Model # 502492 Official Agri-Fab dump cart attachment

Here are the diagrams and repair parts for Official Agri-Fab 502492 dump cart attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |

Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#24

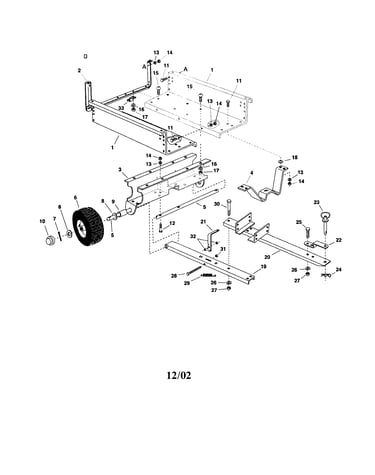

Cart body diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
In Stock
Lawn & Garden Equipment Lock Nut 43082
#27

Cart body diagram

Lawn & garden equipment lock nut

Part #43082

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Lock Nut, 5/16-in 43064
#31

Cart body diagram

Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Wheel Hub Cap 43014
#10

Cart body diagram

Lawn tractor attachment wheel hub cap

Part #43014

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Nut, 5/16-in 43083
#17

Cart body diagram

Lawn tractor attachment hex nut, 5/16-in

Part #43083

This item is not returnable
In Stock
Lawn Vacuum Chipper/shredder Spacer Tube 44678
#9

Cart body diagram

Lawn vacuum chipper/shredder spacer tube

Part #44678

This item is not returnable
In Stock
Lawn & Garden Equipment Attachment Latch Stand 24497
#4

Cart body diagram

Lawn & garden equipment attachment latch stand

Part #24497

Replaced by #24497BL1

?
Manufacturer substitution
This part replaces 24497. Substitute parts can look different from the original.
This item is not returnable
$15.54
11% OFF Phone Price : $17.54
In Stock
Hex Bolt 43866
#11

Cart body diagram

Hex bolt

Part #43866

This item is not returnable
In Stock
Hitch Pin 43884
#23

Cart body diagram

Hitch pin

Part #43884

In Stock
Lawn & Garden Equipment Hex Bolt 1509-69
#12

Cart body diagram

Lawn & garden equipment hex bolt

Part #1509-69

This item is not returnable
In Stock
