Whirlpool ACS102PK0 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACS102PK0 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts forACS102PK0 Air Conditioner

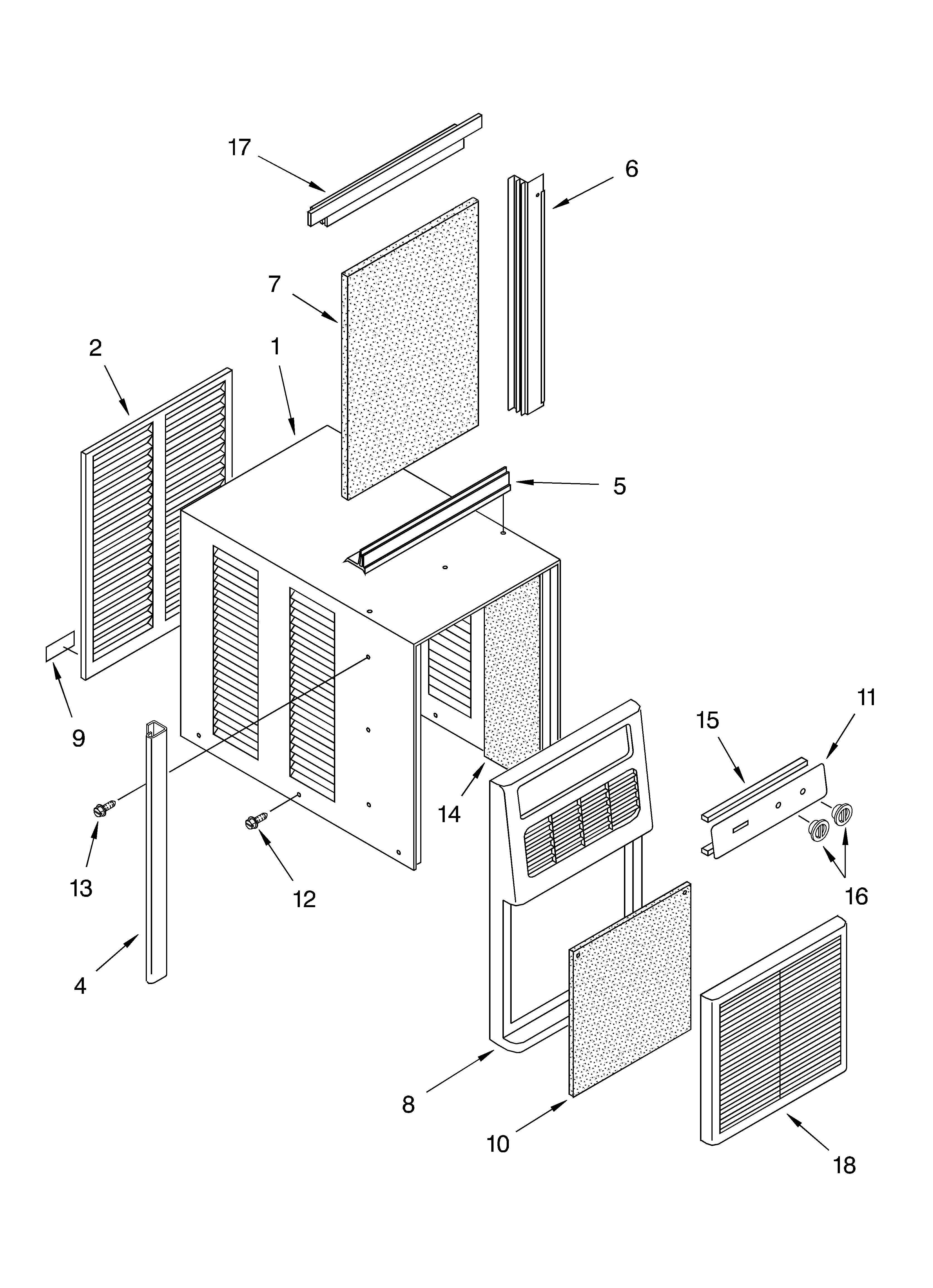

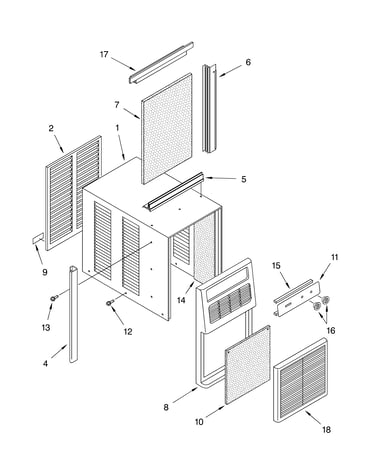

Cabinet diagram
Nameplate
Part #789925Replaced by #1187171
Manufacturer substitutionThis part replaces 789925. Substitute parts can look different from the original.In Stock$46.78
Qty

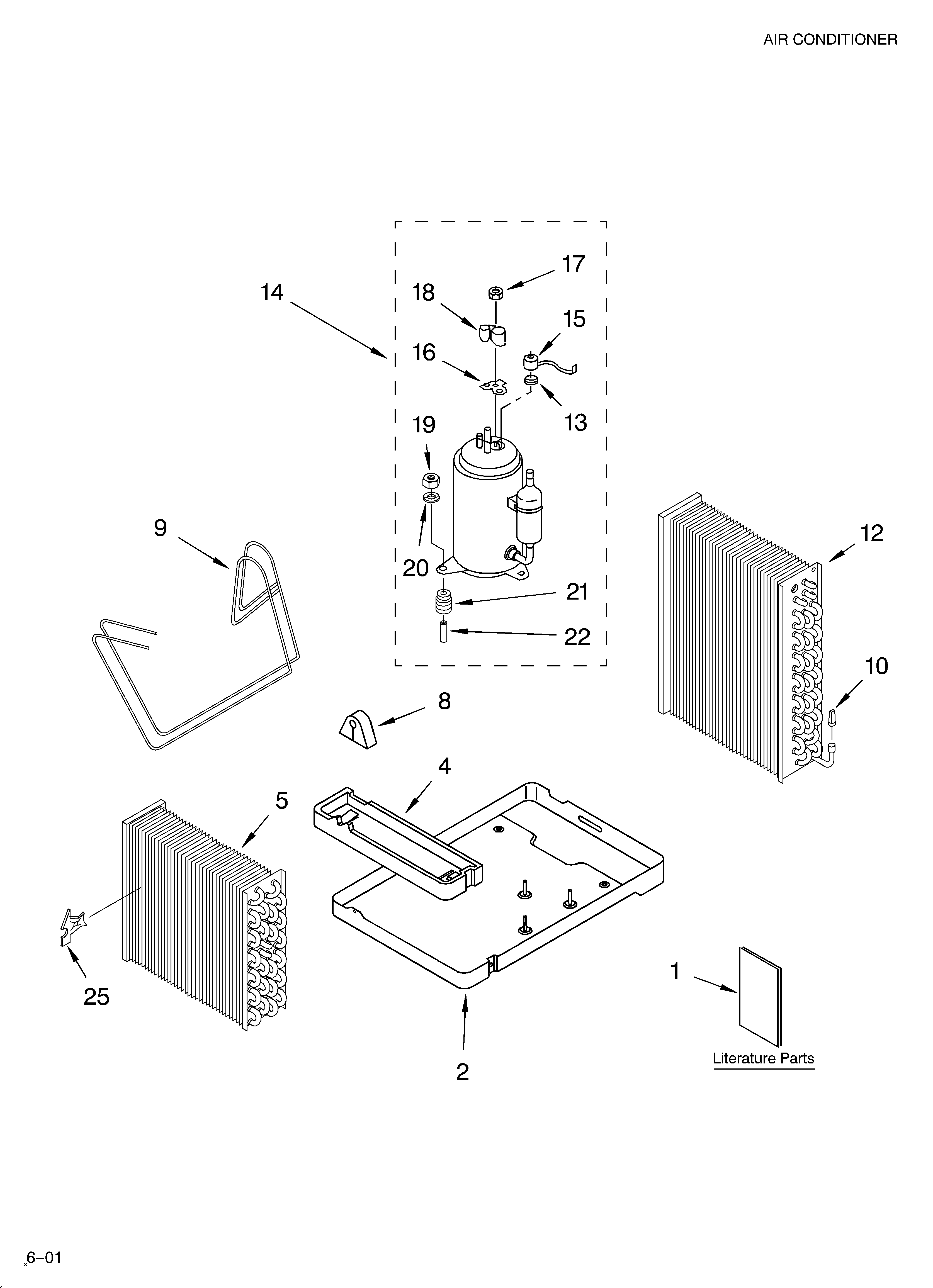

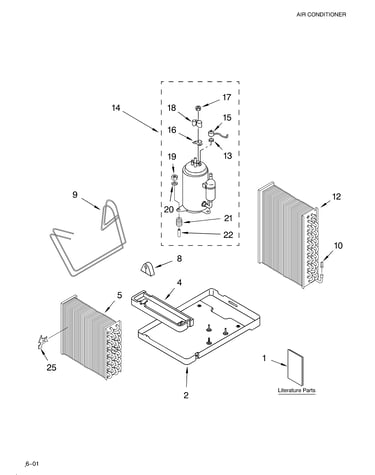

Unit/literature diagram
Washer
Part #789784Replaced by #W11236646
Manufacturer substitutionThis part replaces 789784. Substitute parts can look different from the original.This item is not returnableIn Stock$19.299% OFF Phone Price : $21.29
QtyUnit/literature diagram
Spring Overlay
Part #789830Replaced by #789655

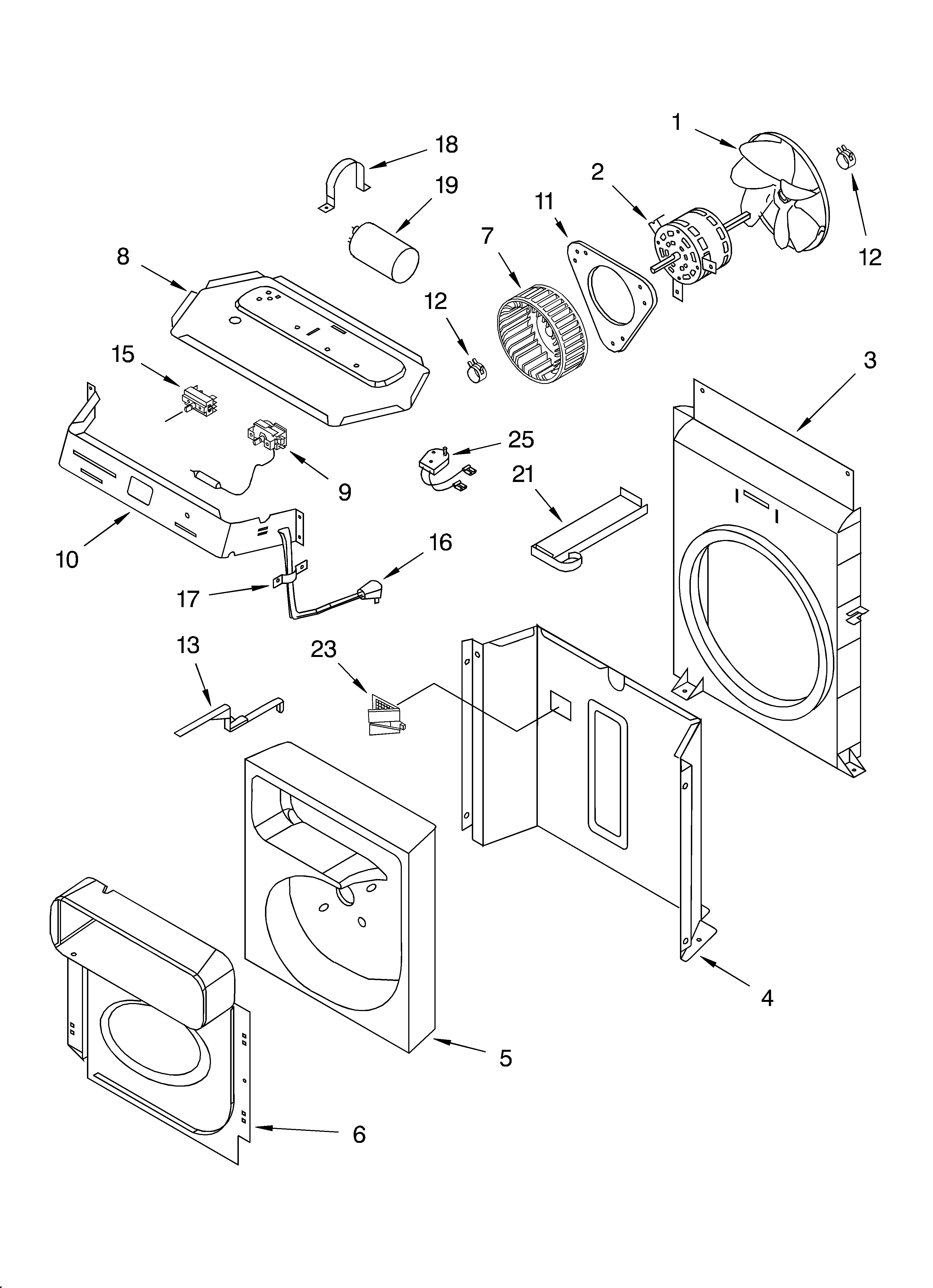

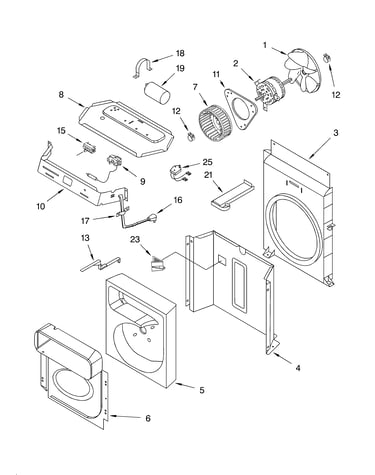

Manufacturer substitutionThis part replaces 789830. Substitute parts can look different from the original.In Stock$28.02QtyAirflow and control diagram
Control Panel Box
Part #789803
The manufacturer no longer makes this part, and there's no substitute part
Unit/literature diagram
Anticipator Clip
Part #789799
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Shroud Condenser
Part #789836
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Screw #8 X 1/4
Part #3148443
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Fan Clamp
Part #789835
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Capacitor
Part #789970
The manufacturer no longer makes this part, and there's no substitute part

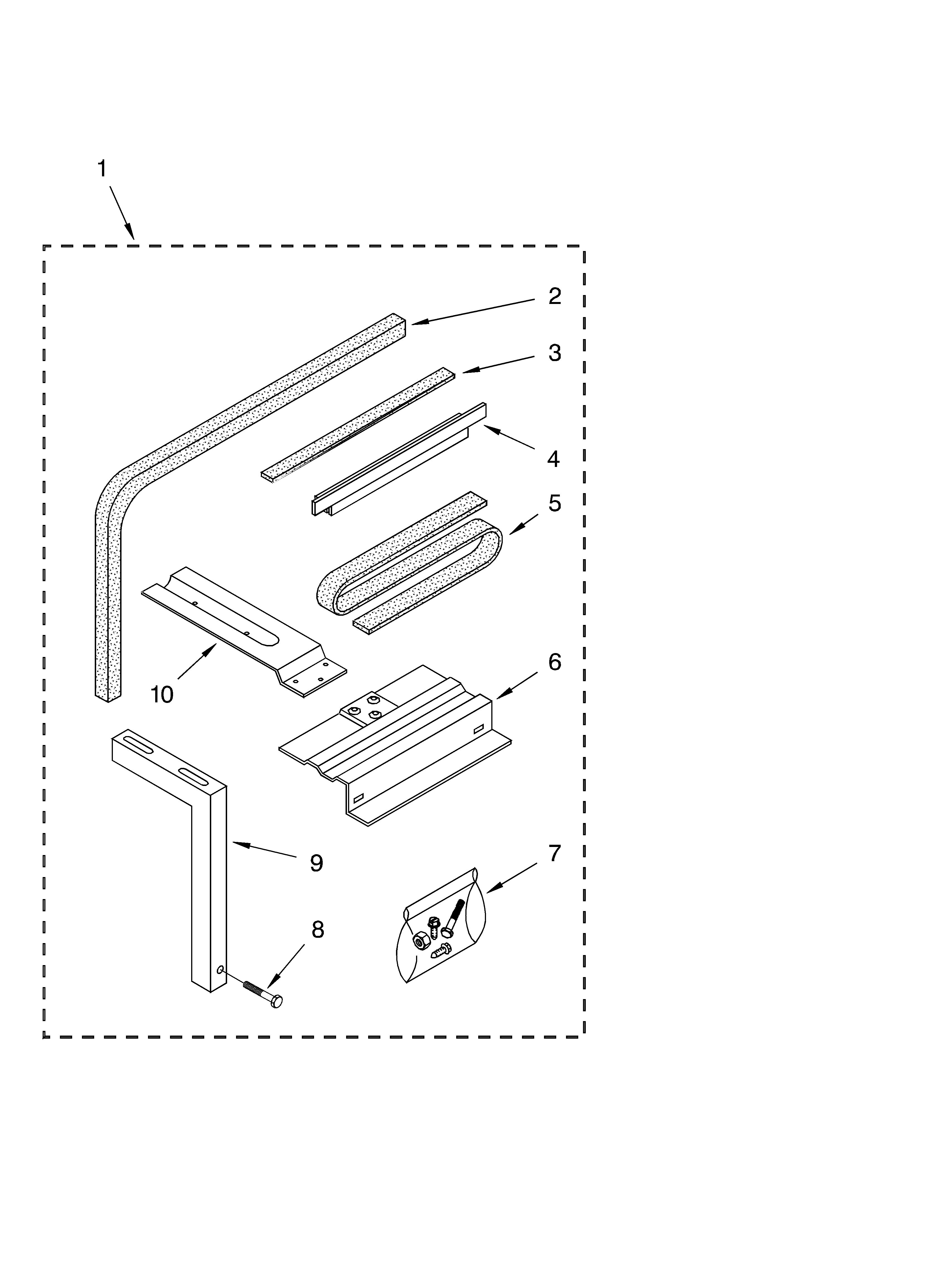

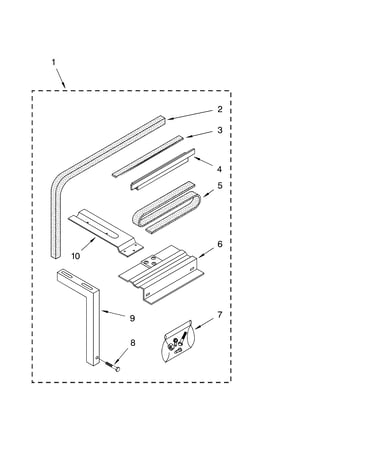

Installation diagram
Seal Strip
Part #789745
The manufacturer no longer makes this part, and there's no substitute part
