Model # FAL125J1A1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAL125J1A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

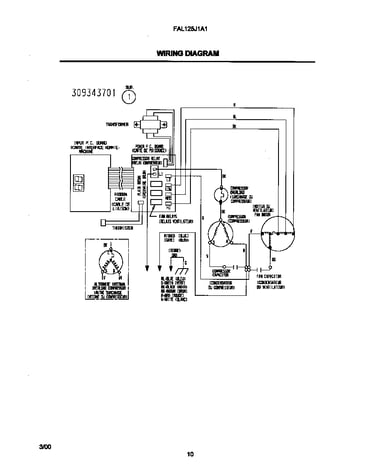

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Room Air Conditioner Screw 5303015427
#7

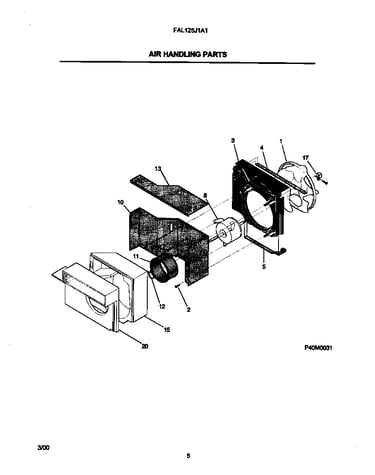

Air handling parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#14

Control parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Bracket Screw 5303301590
#74

Control parts diagram

Bracket screw

Part #5303301590

This item is not returnable
$4.63
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Nut-hex 3017023
#12

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Capacitor 5303318963
#13

Control parts diagram

Capacitor

Part #5303318963

Replaced by #5303291523

?
Manufacturer substitution
This part replaces 5303318963. Substitute parts can look different from the original.
$123.82
In Stock
Filter 309343502
#12

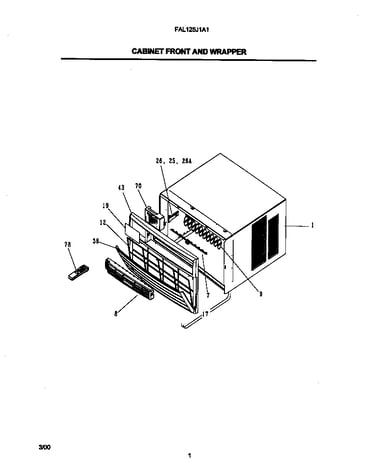

Cabinet front and wrapper diagram

Filter

Part #309343502

Replaced by #5304464983

?
Manufacturer substitution
This part replaces 309343502. Substitute parts can look different from the original.
This item is not returnable
$10.83
In Stock
#evap Assy-2 309606105
#11

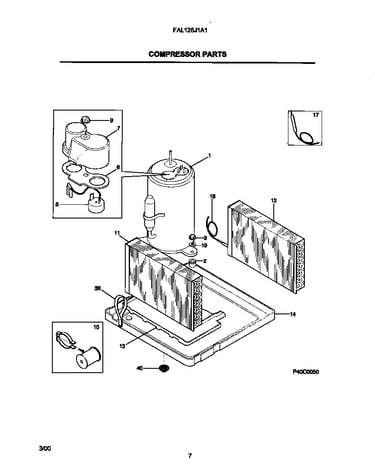

Compressor parts diagram

#evap assy-2

Part #309606105

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Tray 309606001
#13

Compressor parts diagram

Evaporator tray

Part #309606001

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 309608901
#11

Air handling parts diagram

Air conditioner blower wheel

Part #309608901

The manufacturer no longer makes this part, and there's no substitute part
