Kenmore 1199728310 electric range Parts

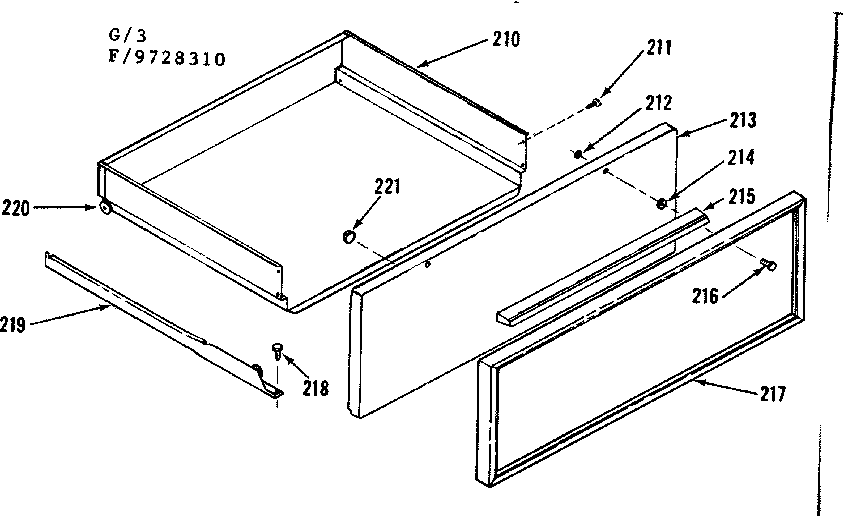

Here are the diagrams and repair parts for Kenmore 1199728310 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

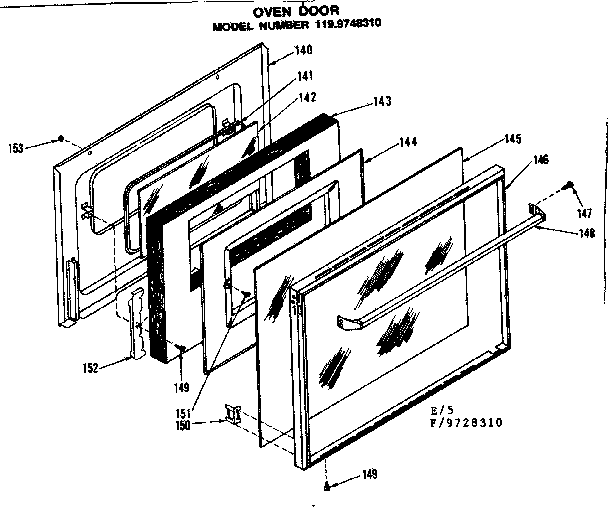

Browse Parts for 1199728310 Ranges

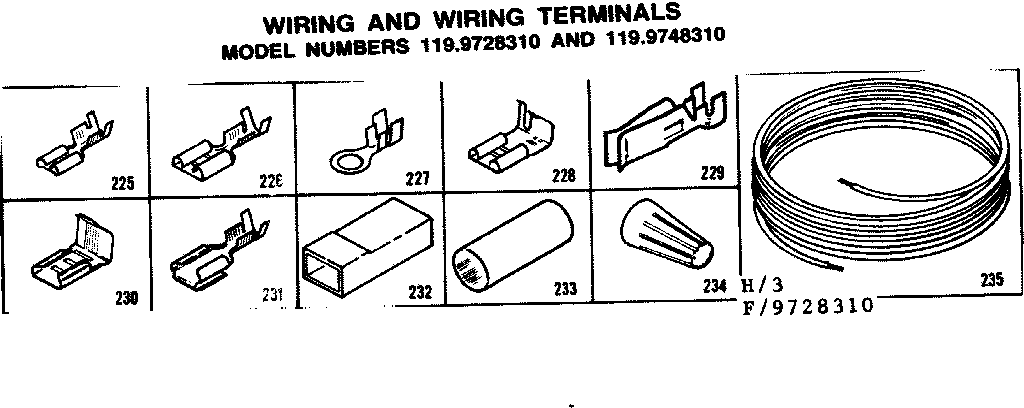

Terminal
Part #1317225Replaced by #5308005363
Manufacturer substitutionThis part replaces 1317225. Substitute parts can look different from the original.In Stock$37.65
Qty

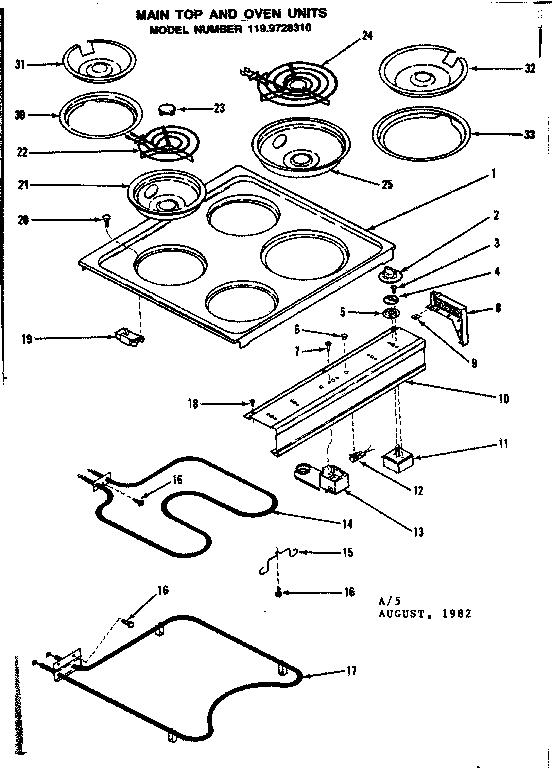

Top and oven units diagram
Tu Switch
Part #9689Replaced by #5303935086
Manufacturer substitutionThis part replaces 9689. Substitute parts can look different from the original.In Stock$34.3119% OFF Was : $42.19

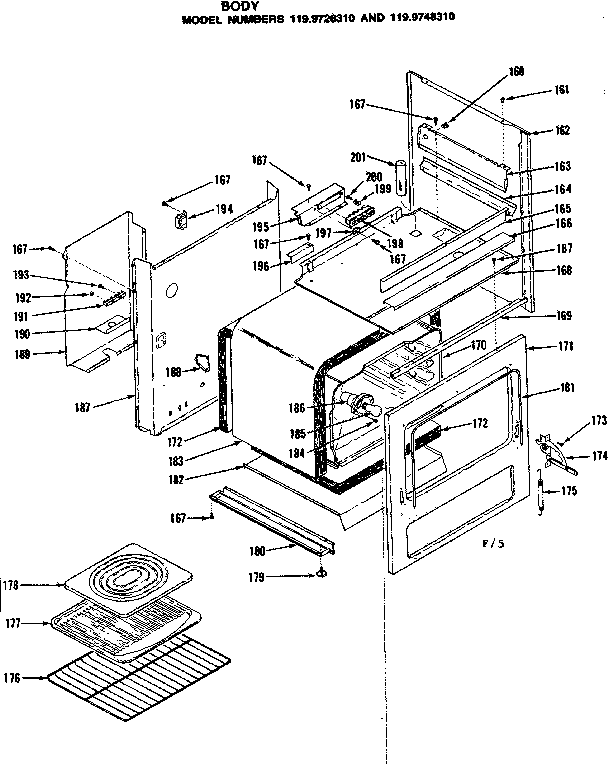

QtyBody parts diagram
Grommet
Part #9194Replaced by #3051063
Manufacturer substitutionThis part replaces 9194. Substitute parts can look different from the original.In Stock$60.98QtyScrew
Part #7660Replaced by #5303013874
Manufacturer substitutionThis part replaces 7660. Substitute parts can look different from the original.In Stock$29.13QtyTop and oven units diagram
Large Bowl
Part #6600Replaced by #316048413

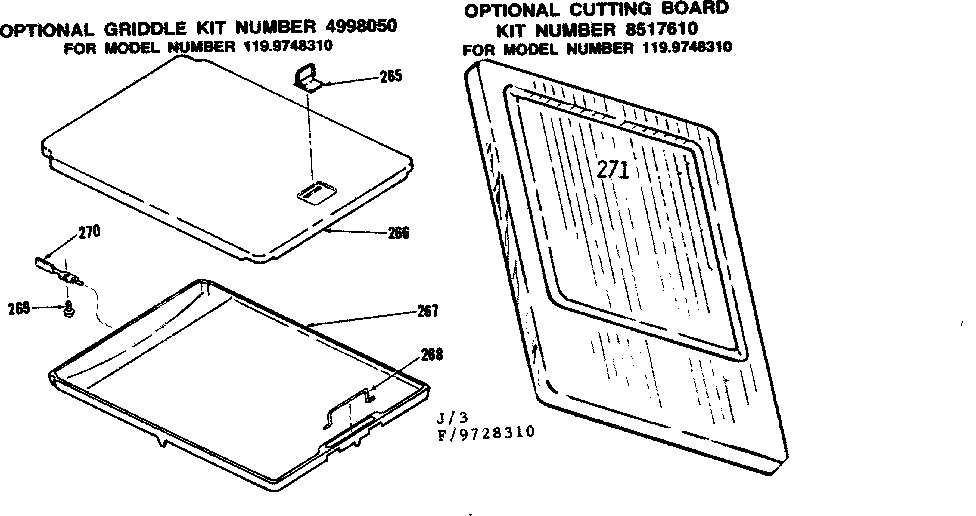

Manufacturer substitutionThis part replaces 6600. Substitute parts can look different from the original.In Stock$14.8212% OFF Phone Price : $16.82QtyOptional griddle kit number 4998050 diagram
Board
Part #8517610
The manufacturer no longer makes this part, and there's no substitute part

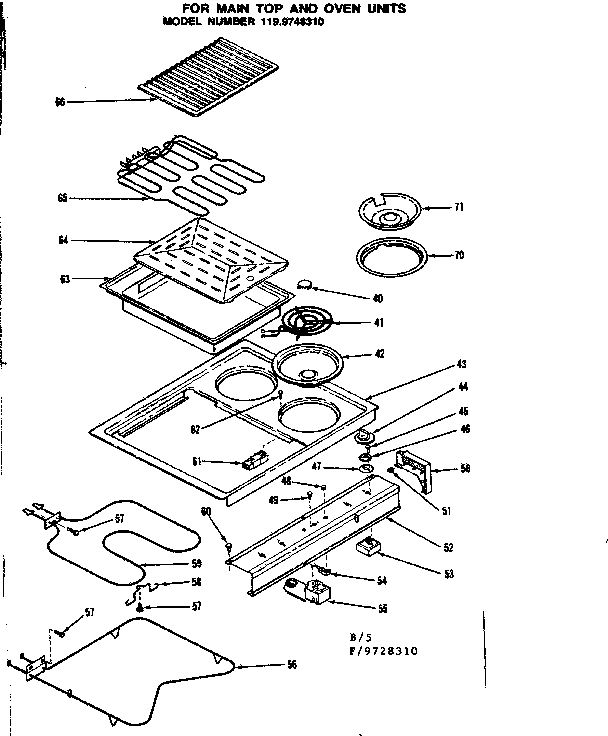

Top and oven units diagram
Shield
Part #1323992
The manufacturer no longer makes this part, and there's no substitute part
Lens
Part #5445
The manufacturer no longer makes this part, and there's no substitute part

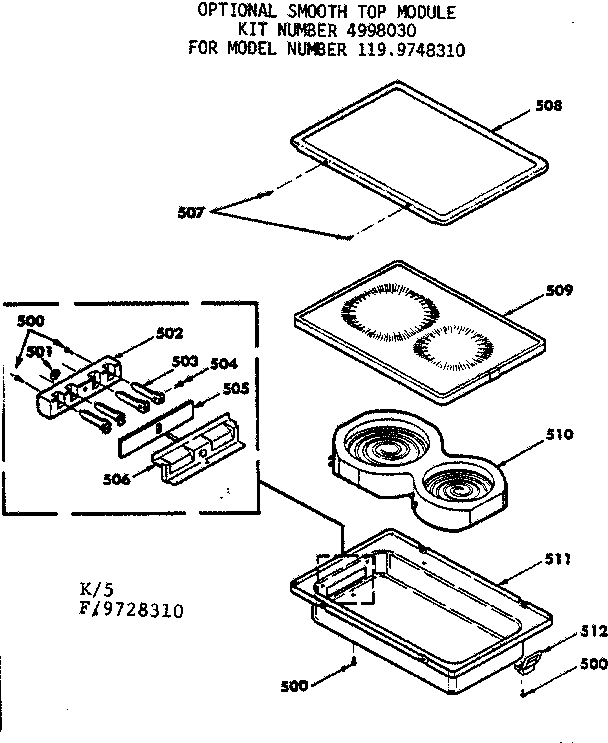

Optional smooth top module diagram
Gasket
Part #1167844
The manufacturer no longer makes this part, and there's no substitute part

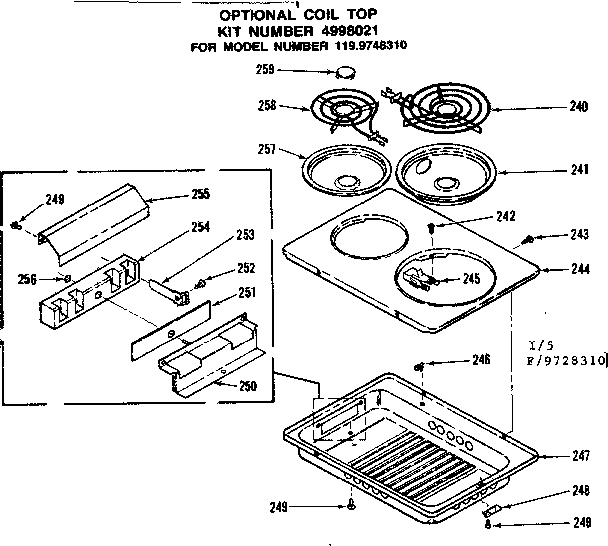

Optional coil top diagram
Wire Clamp
Part #1317798
The manufacturer no longer makes this part, and there's no substitute part
