Model # 32LH30 Official LG lcd television

Here are the diagrams and repair parts for Official LG 32LH30 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Ac Cord EAD36401701
#NI

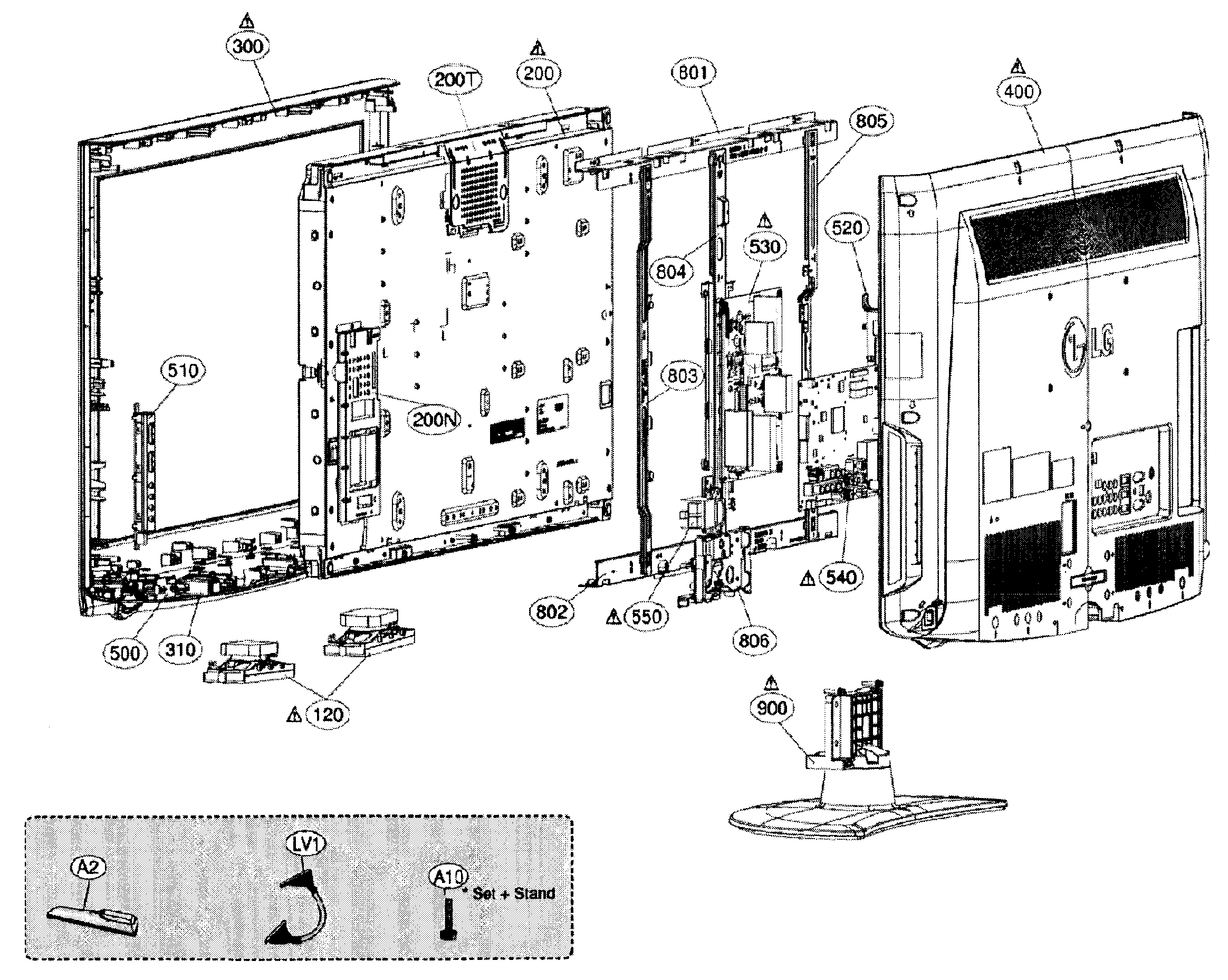

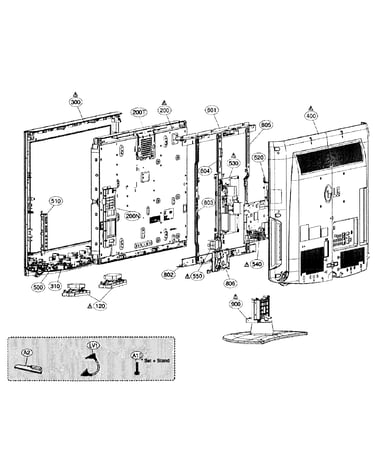

Cabinet assy diagram

Ac cord

Part #EAD36401701

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit EAN55705501
#NI

Cabinet assy diagram

Integrated circuit

Part #EAN55705501

The manufacturer no longer makes this part, and there's no substitute part

Lcd Module EAJ59698201
#200

Cabinet assy diagram

Lcd module

Part #EAJ59698201

The manufacturer no longer makes this part, and there's no substitute part

Support MJH56735801
#803

Cabinet assy diagram

Support

Part #MJH56735801

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 0IMMRCS012C
#NI

Cabinet assy diagram

Integrated circuit

Part #0IMMRCS012C

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 0TFTH80001A
#NI

Cabinet assy diagram

Integrated circuit

Part #0TFTH80001A

The manufacturer no longer makes this part, and there's no substitute part

Support MJH56735611
#802

Cabinet assy diagram

Support

Part #MJH56735611

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly EBR59217501
#500

Cabinet assy diagram

Pcb assembly

Part #EBR59217501

The manufacturer no longer makes this part, and there's no substitute part

Switch EBF58261504
#310

Cabinet assy diagram

Switch

Part #EBF58261504

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit EAN58270401
#NI

Cabinet assy diagram

Integrated circuit

Part #EAN58270401

The manufacturer no longer makes this part, and there's no substitute part
