Kenmore
Furnace

Model # 867763362 Official Kenmore pilot-free gas-fired space saver furnace

Here are the diagrams and repair parts for Official Kenmore 867763362 pilot-free gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

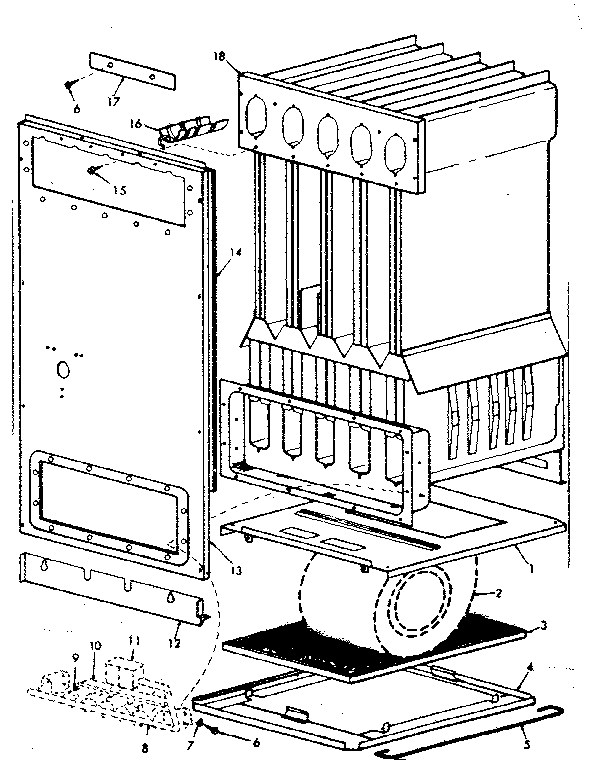

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Catch 602090
#5

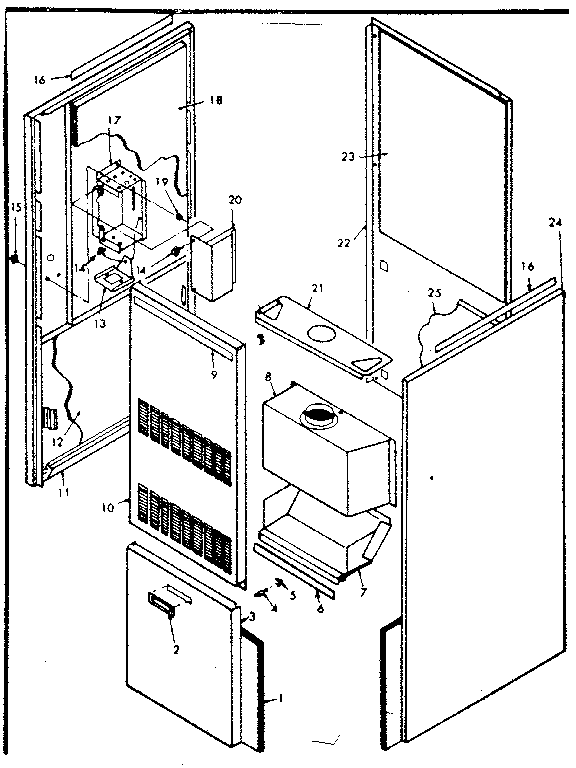

Cabinet diagram

Catch

Part #602090

Replaced by #279570

?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86 |
70% OFF MSRP : $13.00
In Stock
Strike 602089
#4

Cabinet diagram

Strike

Part #602089

Replaced by #279570

?
Manufacturer substitution
This part replaces 602089. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.86 |
70% OFF MSRP : $13.00
In Stock
Module 612919

#NI

All parts diagram

Module

Part #612919

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Motor Mounting Kit 609227
#27

Blower diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Thermostat 42-9295

#NI

All parts diagram

Thermostat

Part #42-9295

The manufacturer no longer makes this part, and there's no substitute part

Relay 700577
#17

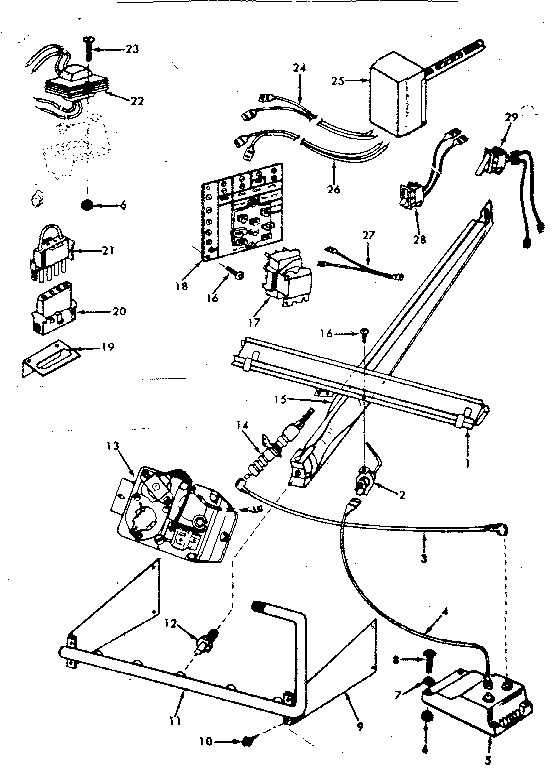

Burner and controls diagram

Relay

Part #700577

The manufacturer no longer makes this part, and there's no substitute part

Pilot Tube 67562

#NI

All parts diagram

Pilot tube

Part #67562

Replaced by #64930

?
Manufacturer substitution
This part replaces 67562. Substitute parts can look different from the original.
$77.80
In Stock
Thermostate 42-9235

#NI

All parts diagram

Thermostate

Part #42-9235

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#20

Blower diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Fan Wheel 601211
#12B

Blower diagram

Furnace blower fan wheel

Part #601211

$267.89
In Stock
