Kenmore
Microwave/Hood Combo

Model # 72163654300 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 72163654300 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

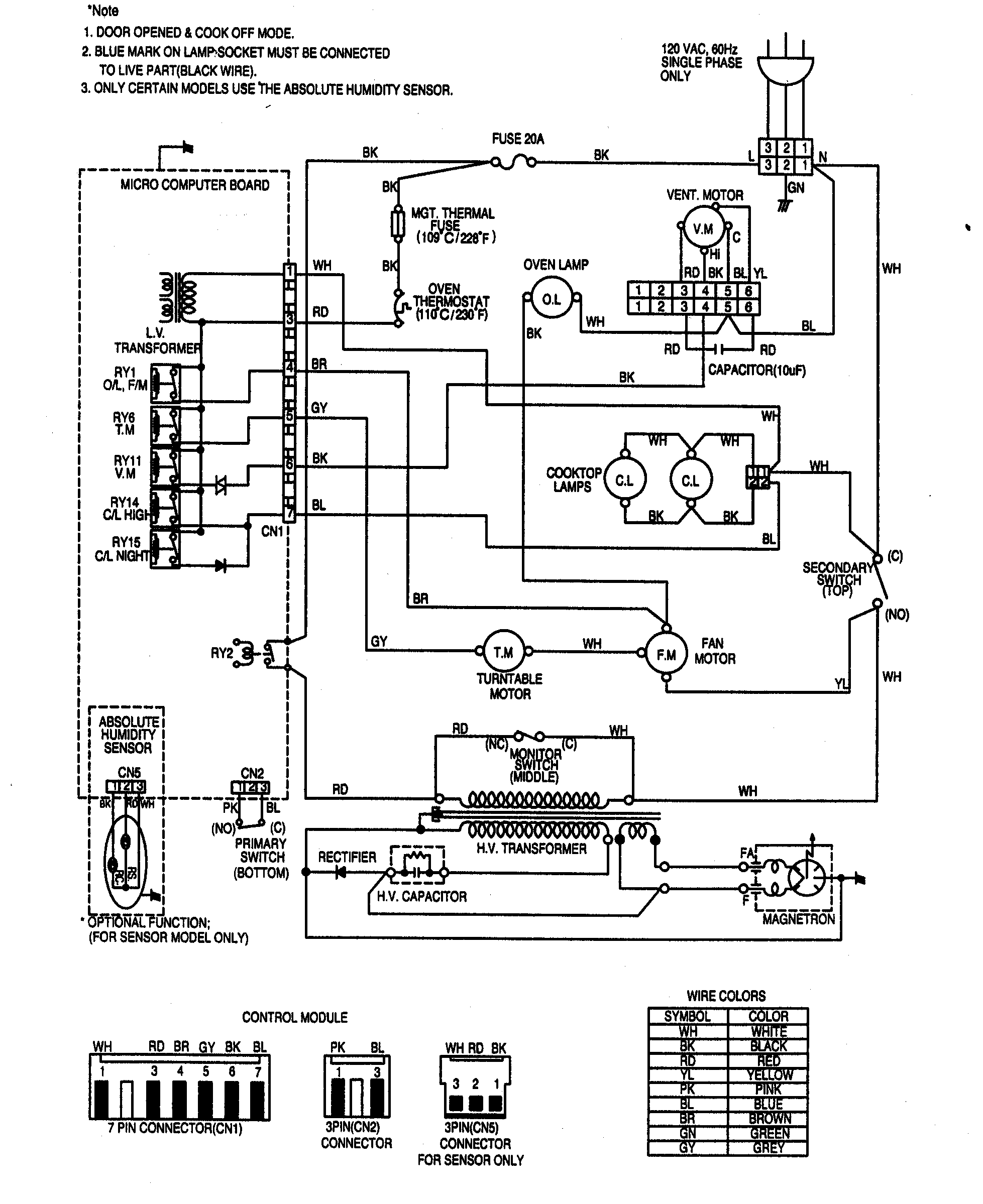

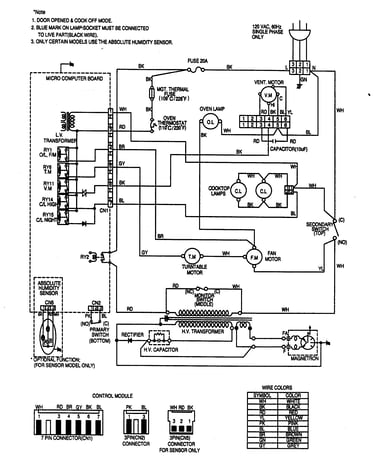

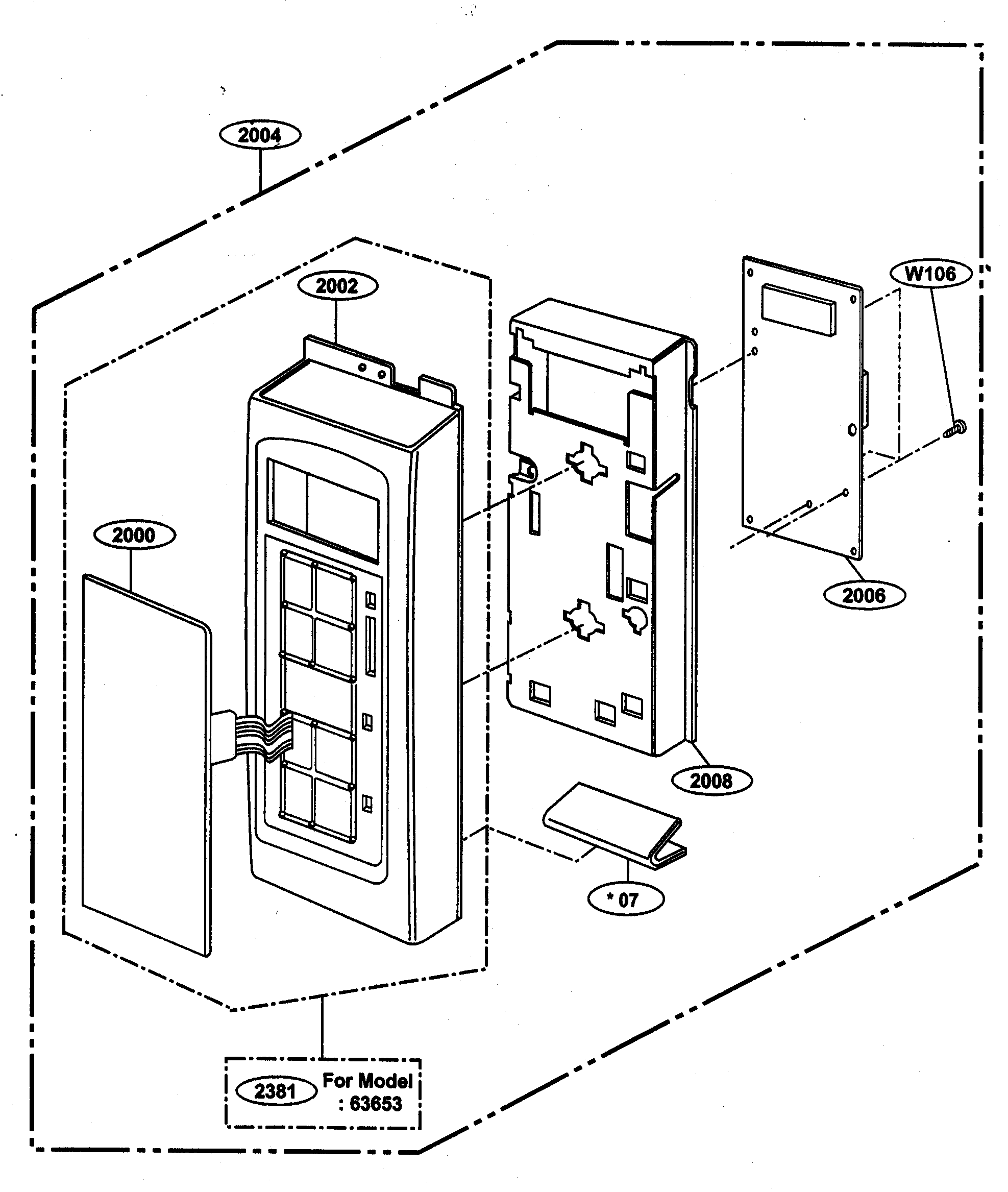

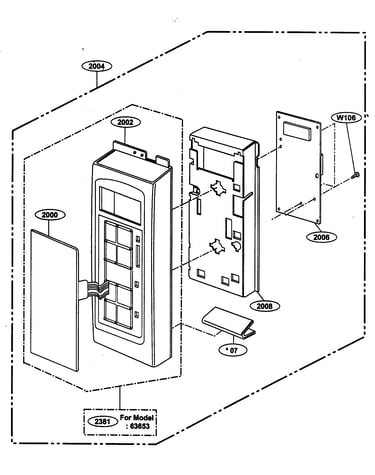

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Microwave Magnetron 6324W1A001A
#5009

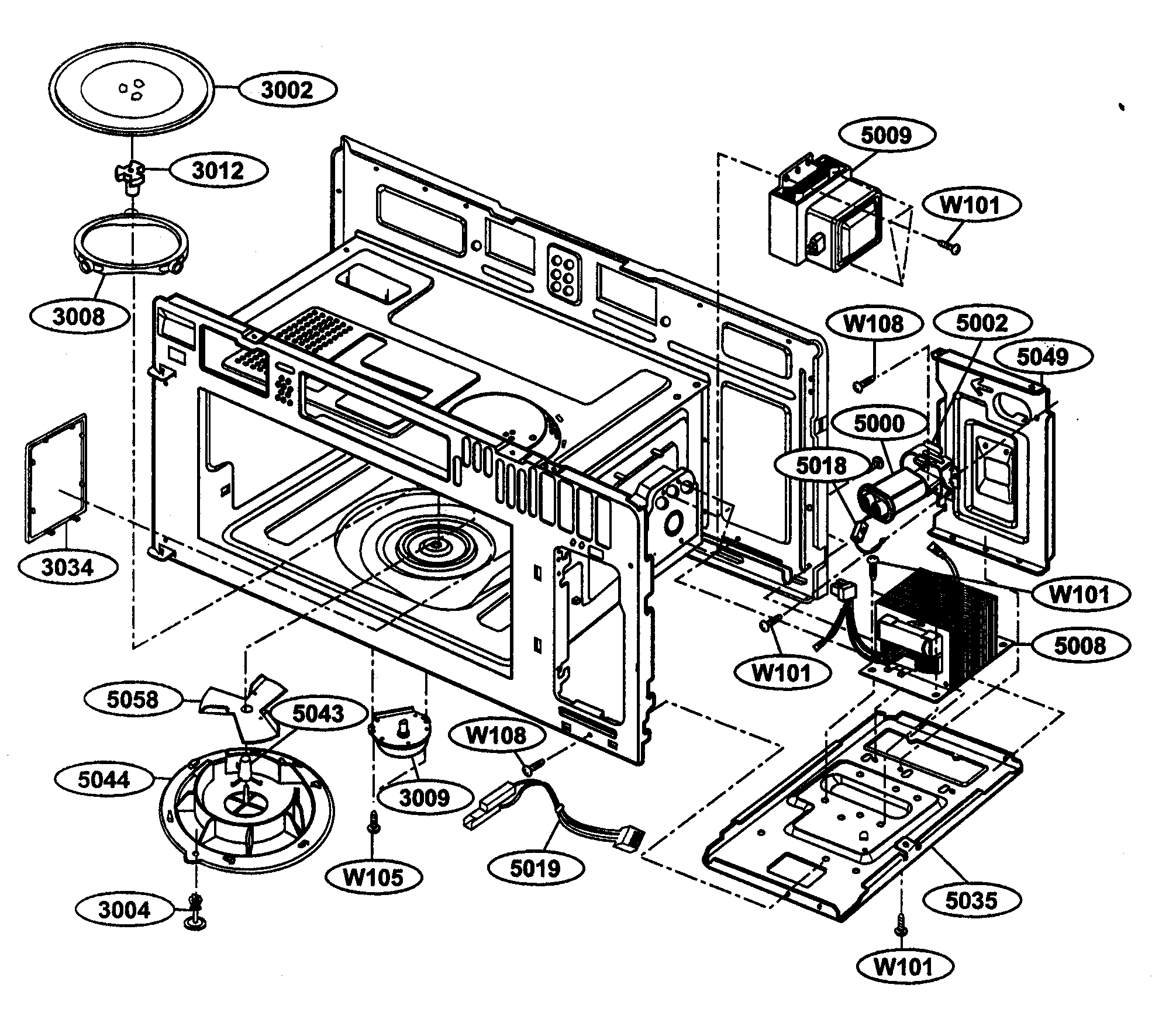

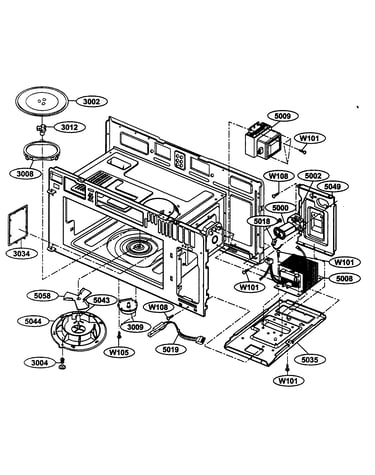

Interior 1 diagram

Microwave magnetron

Part #6324W1A001A

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001A. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Oven Lamp 6912W3Q001A
#3028

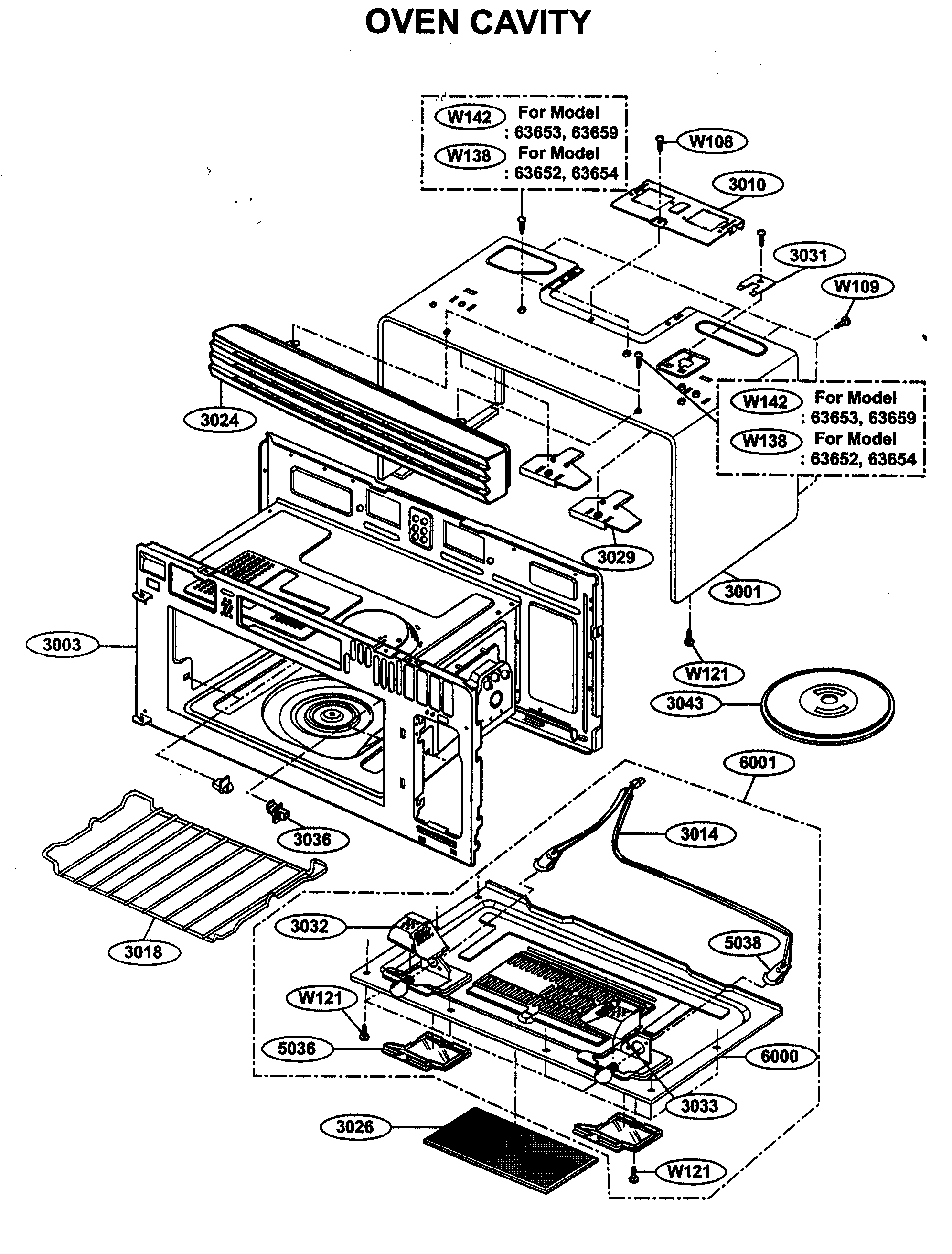

Oven cavity diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

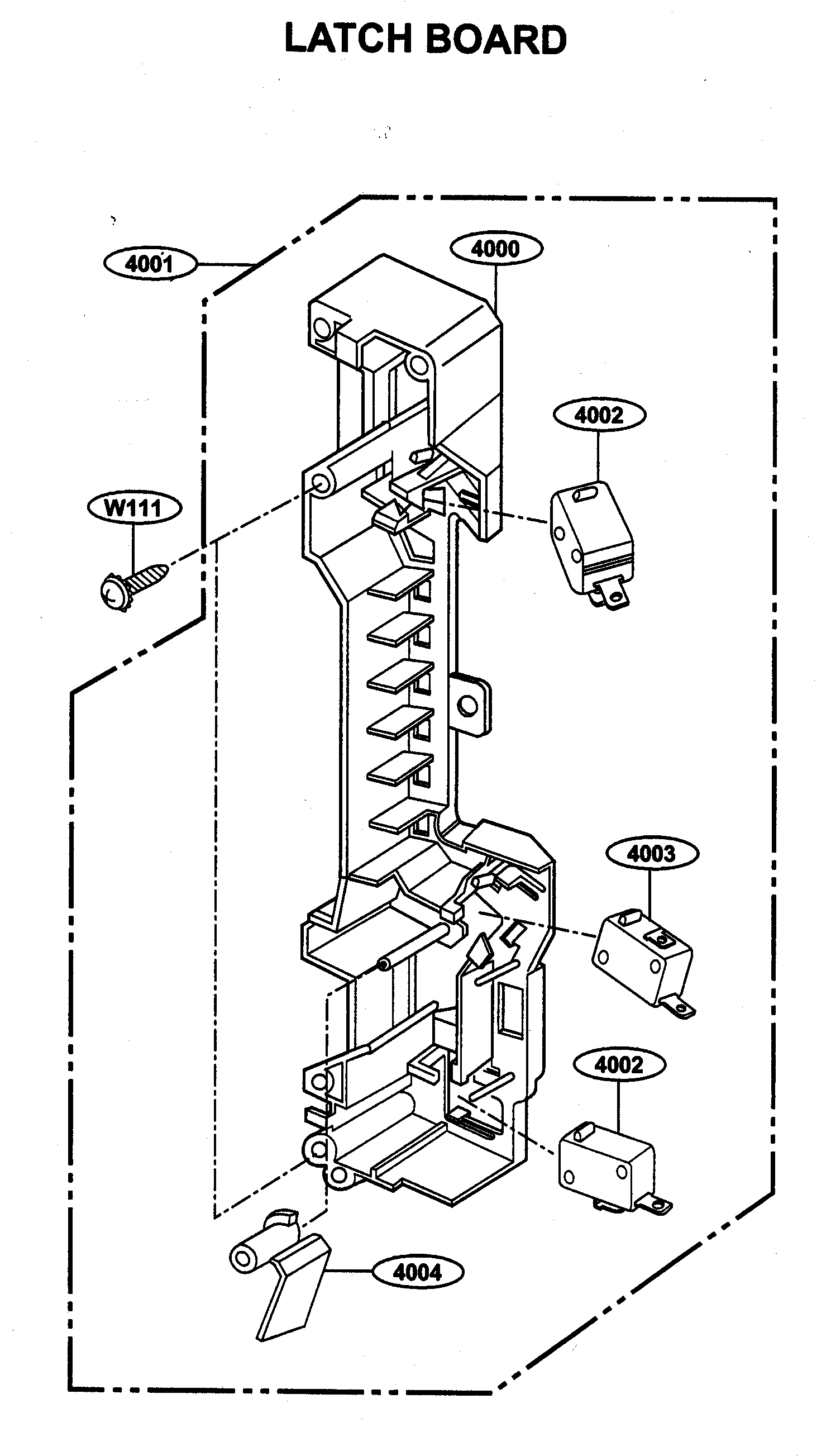

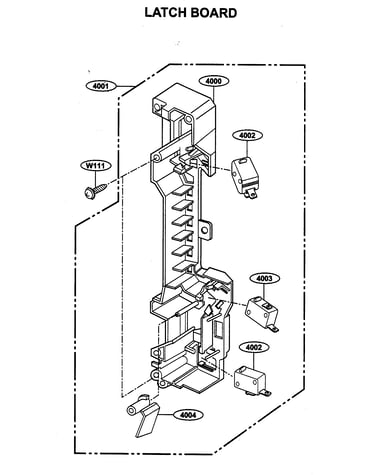

Latch board diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#5000

Interior 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
High-voltage Diode 6021W3B001K
#5018

Interior 1 diagram

High-voltage diode

Part #6021W3B001K

Replaced by #6851W1A002E

?
Manufacturer substitution
This part replaces 6021W3B001K. Substitute parts can look different from the original.
BEST SELLER
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Fuse 3B74133K
#5001

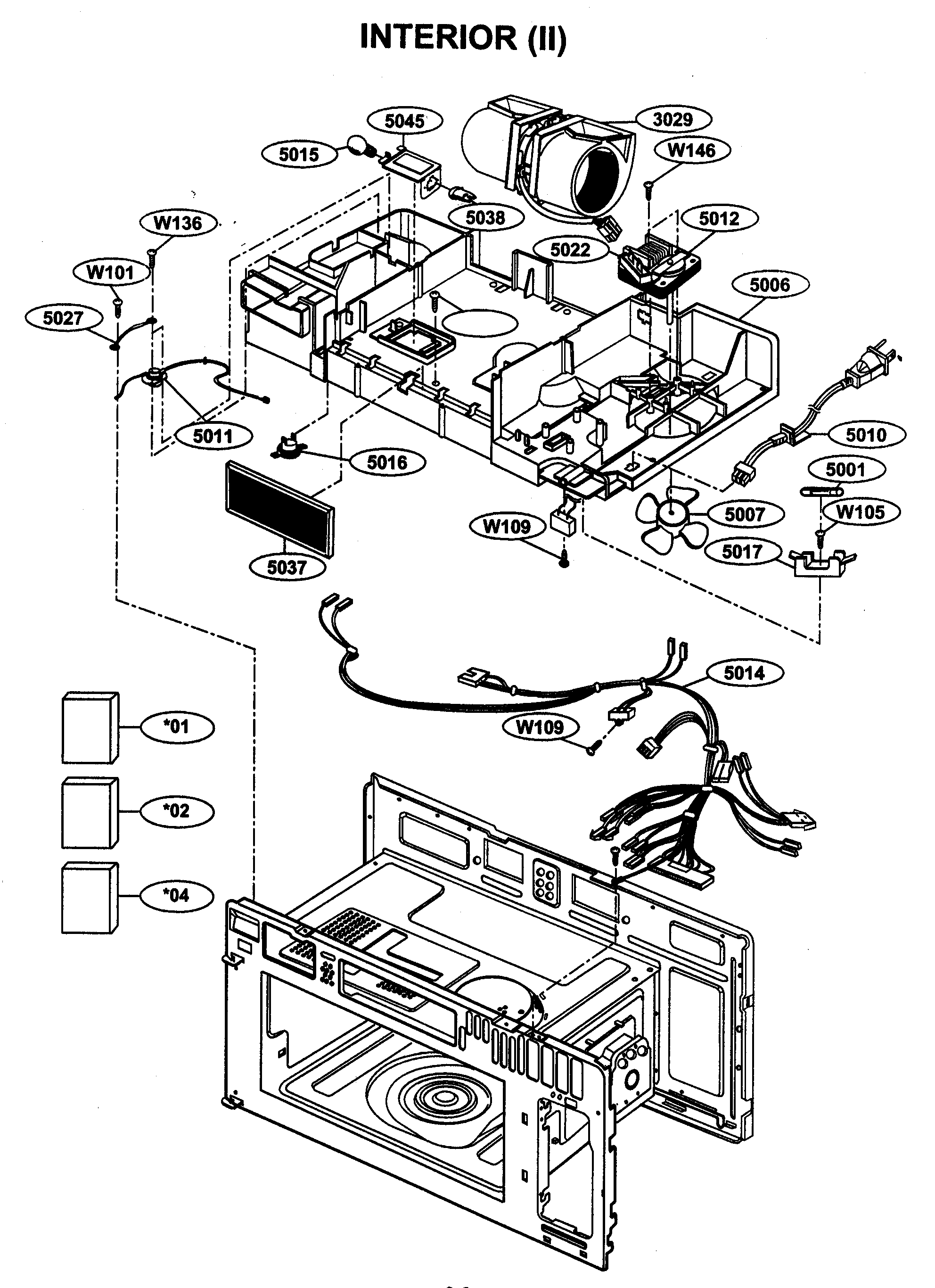

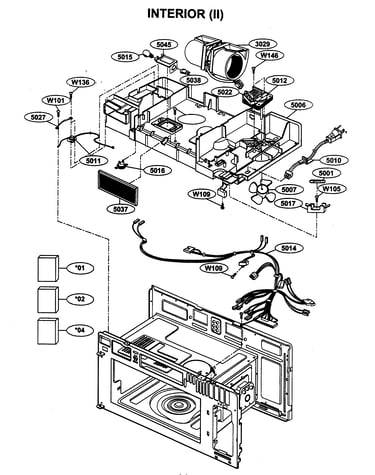

Interior 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

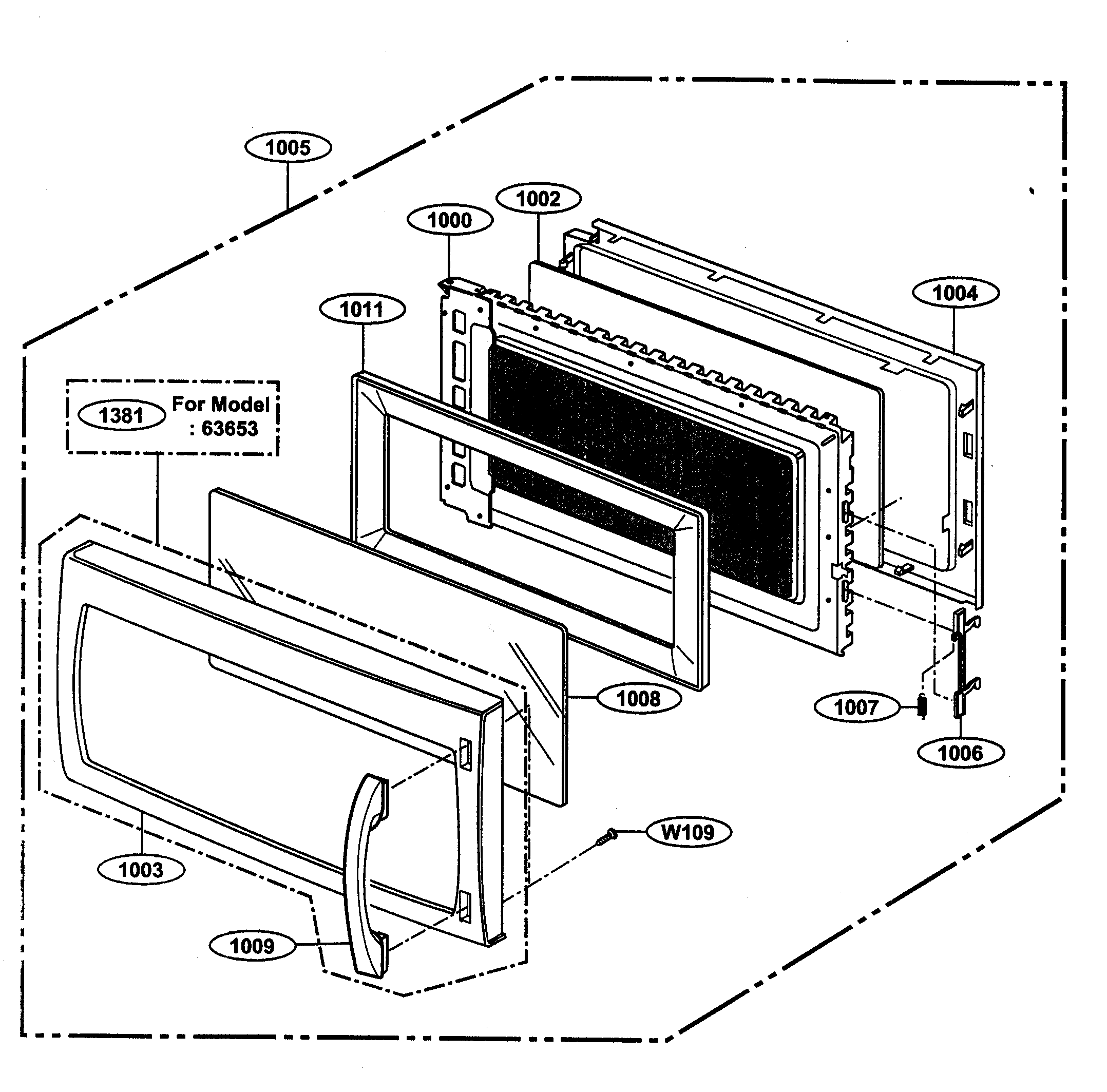

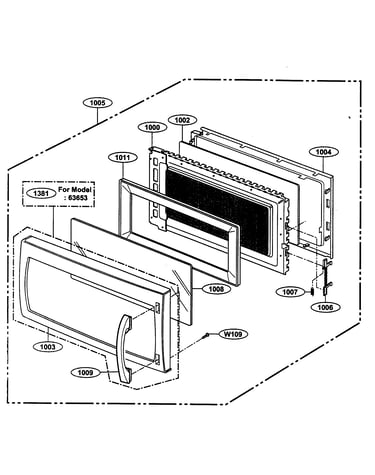

Door diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

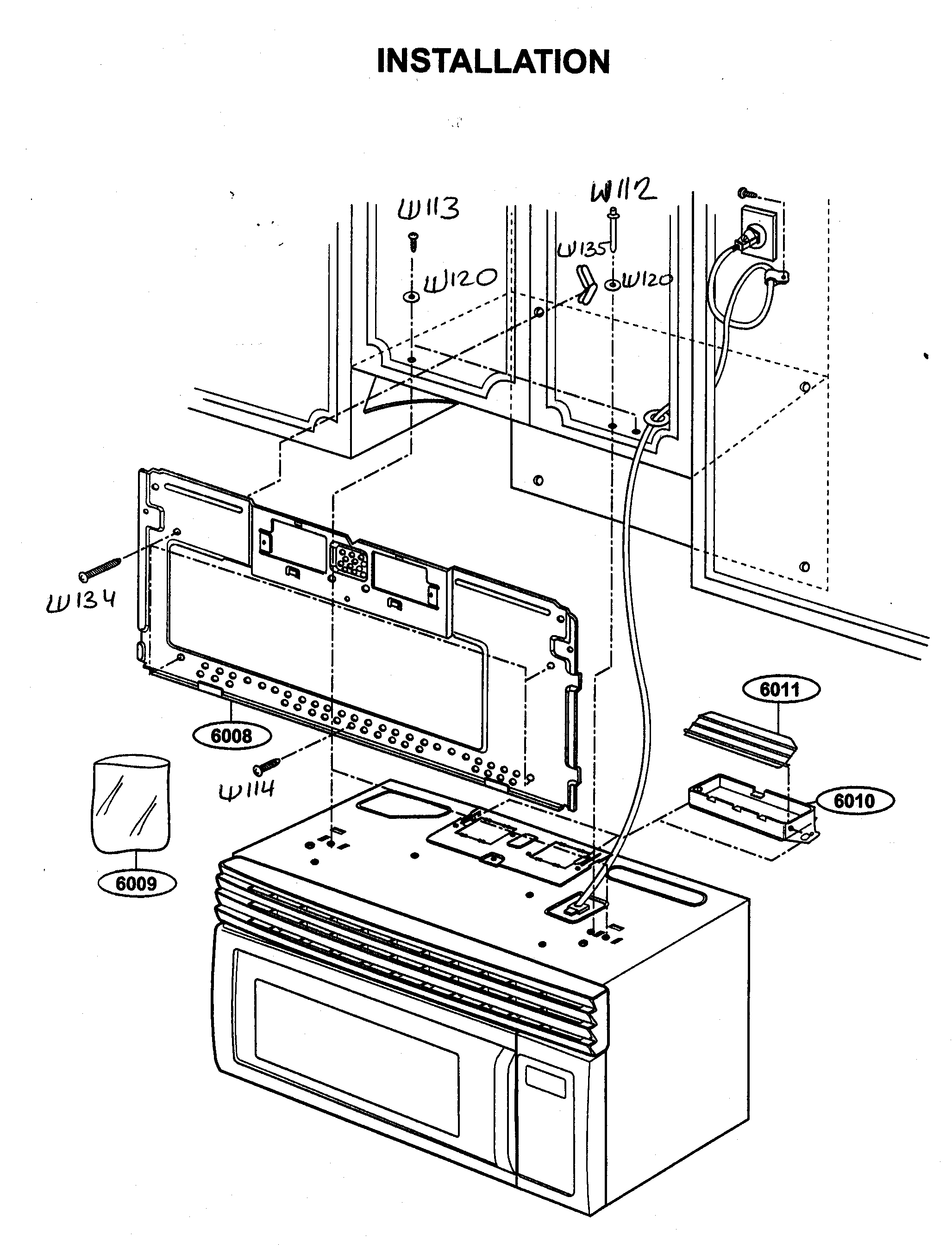

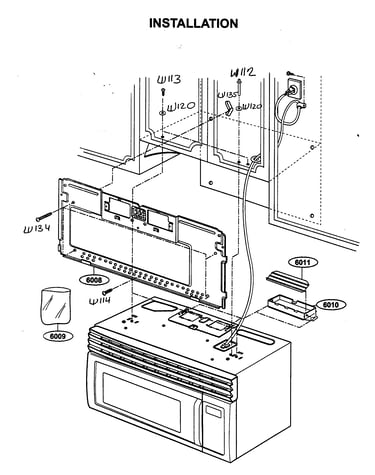

Installation diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Damper 3B71432A
#6011

Installation diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
