Model # FFU14F5HWD Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU14F5HWD freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Filter Drier 216987500
#4

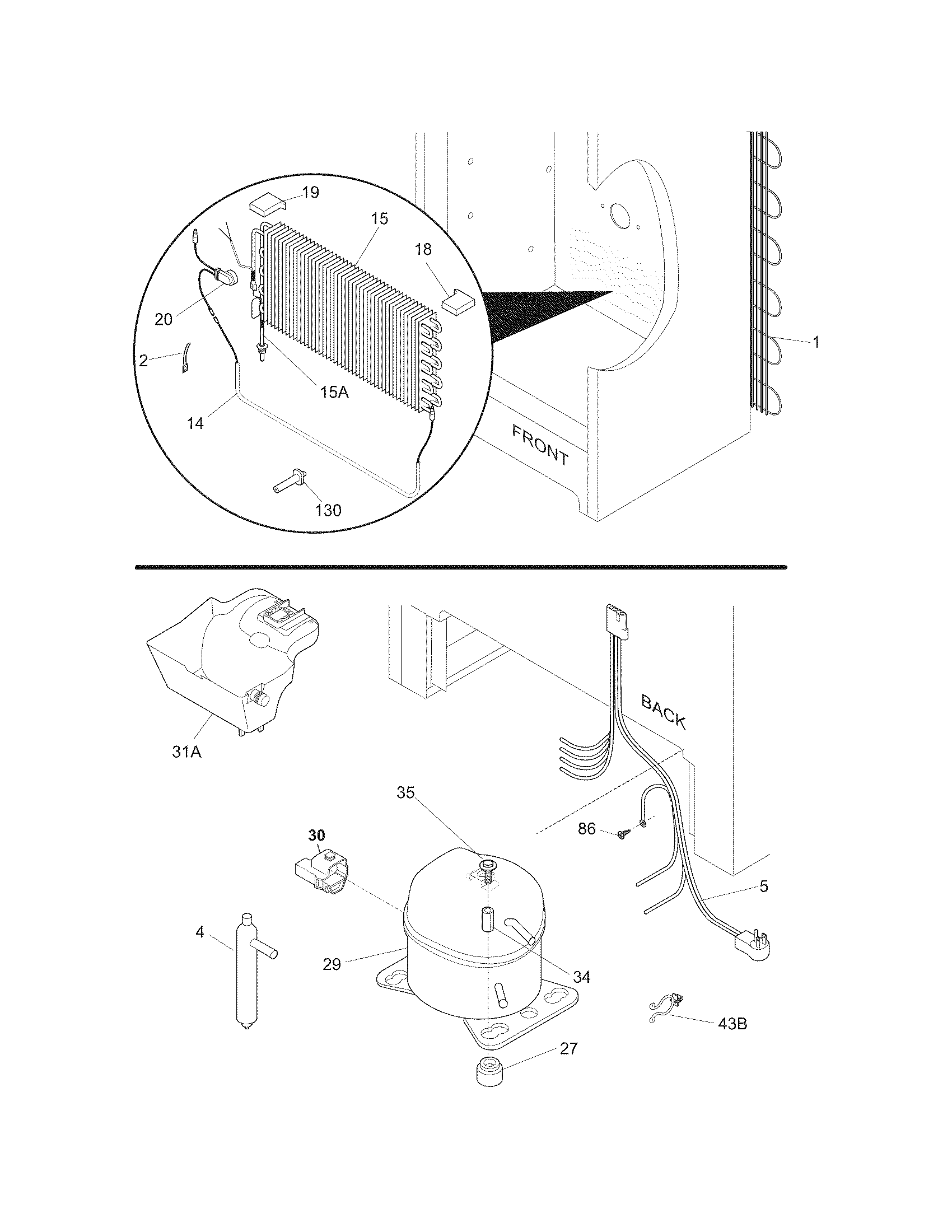

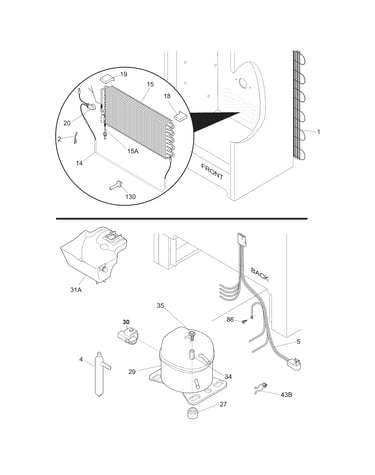

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

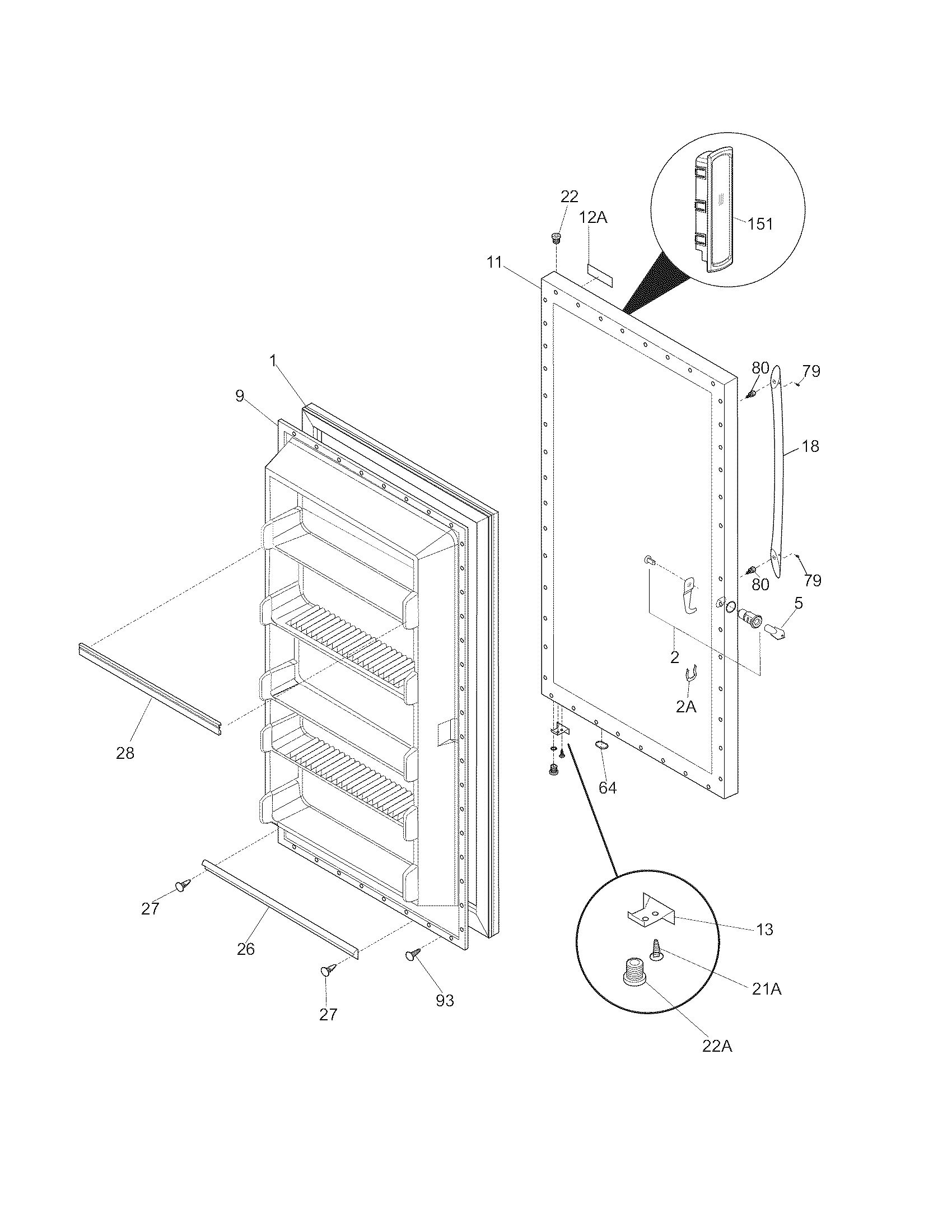

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Refrigeration Appliance Defrost Bi-metal Thermostat (replaces 216872200, 218969901, 7216872200) 297216600
#20

System diagram

Refrigeration appliance defrost bi-metal thermostat (replaces 216872200, 218969901, 7216872200)

Part #297216600

BEST SELLER
$18.80 |
10% OFF Phone Price : $20.80
In Stock
Compressor 297054400
#29

System diagram

Compressor

Part #297054400

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 297054400. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$32.45 |
16% OFF Phone Price : $38.45
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

Door diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.47 |
11% OFF Phone Price : $17.47
In Stock
Switch 216998000
#14

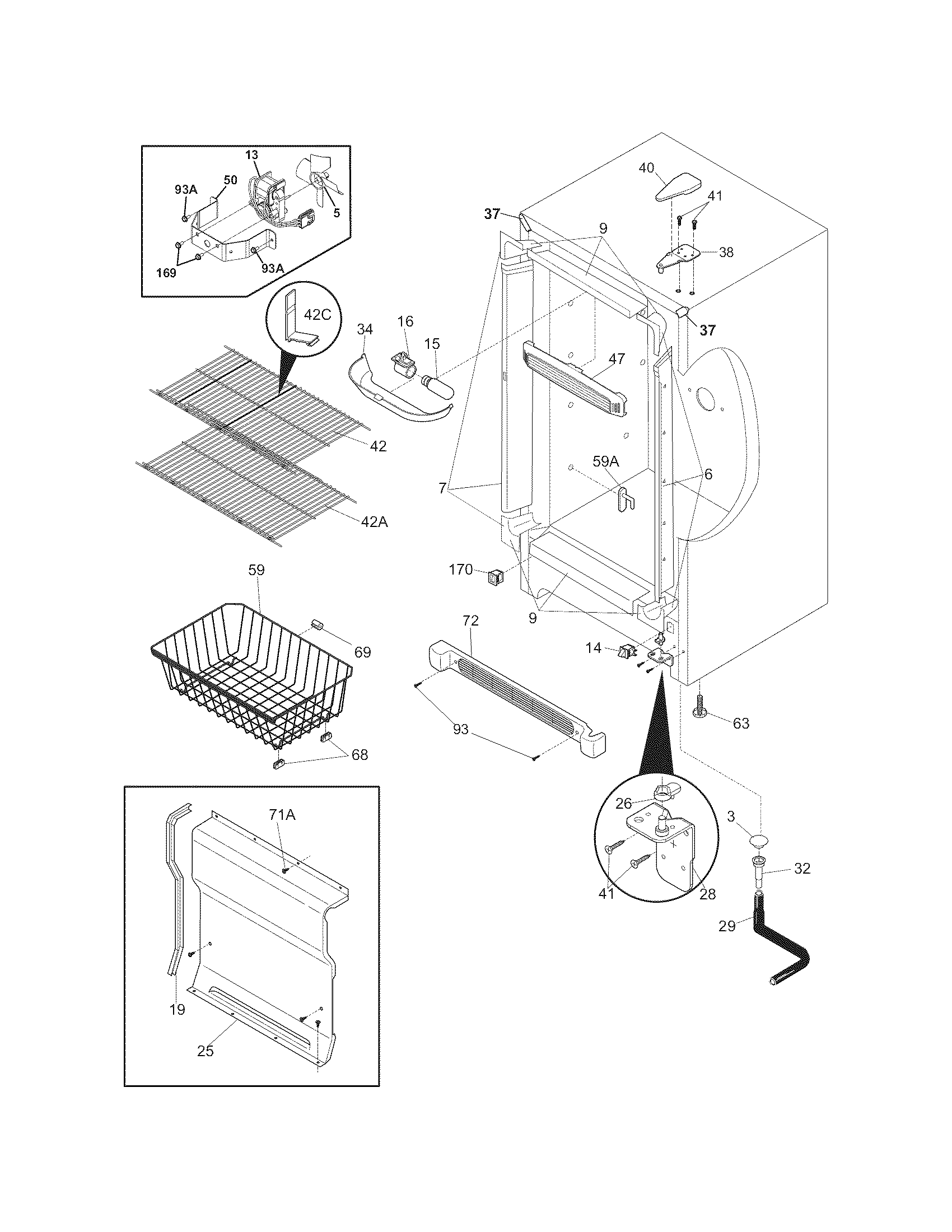

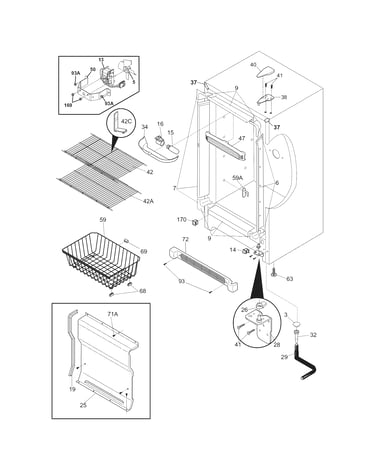

Cabinet diagram

Switch

Part #216998000

Replaced by #216822900

?
Manufacturer substitution
This part replaces 216998000. Substitute parts can look different from the original.
BEST SELLER
$52.94 |
10% OFF Phone Price : $58.94
In Stock
Evaporator 216997200
#15

System diagram

Evaporator

Part #216997200

Replaced by #297414800

?
Manufacturer substitution
This part replaces 216997200. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Heat Exchange 216565700
#15A

System diagram

Heat exchange

Part #216565700

Replaced by #297348500

?
Manufacturer substitution
This part replaces 216565700. Substitute parts can look different from the original.
BEST SELLER
$99.62 |
11% OFF Phone Price : $111.62
In Stock
Freezer Electronic Control Board 297241800
#151

Door diagram

Freezer electronic control board

Part #297241800

Replaced by #297370600

?
Manufacturer substitution
This part replaces 297241800. Substitute parts can look different from the original.
BEST SELLER
$94.33 |
6% OFF Phone Price : $100.33
In Stock
