Model # PRDS484GG Official Thermador star burner

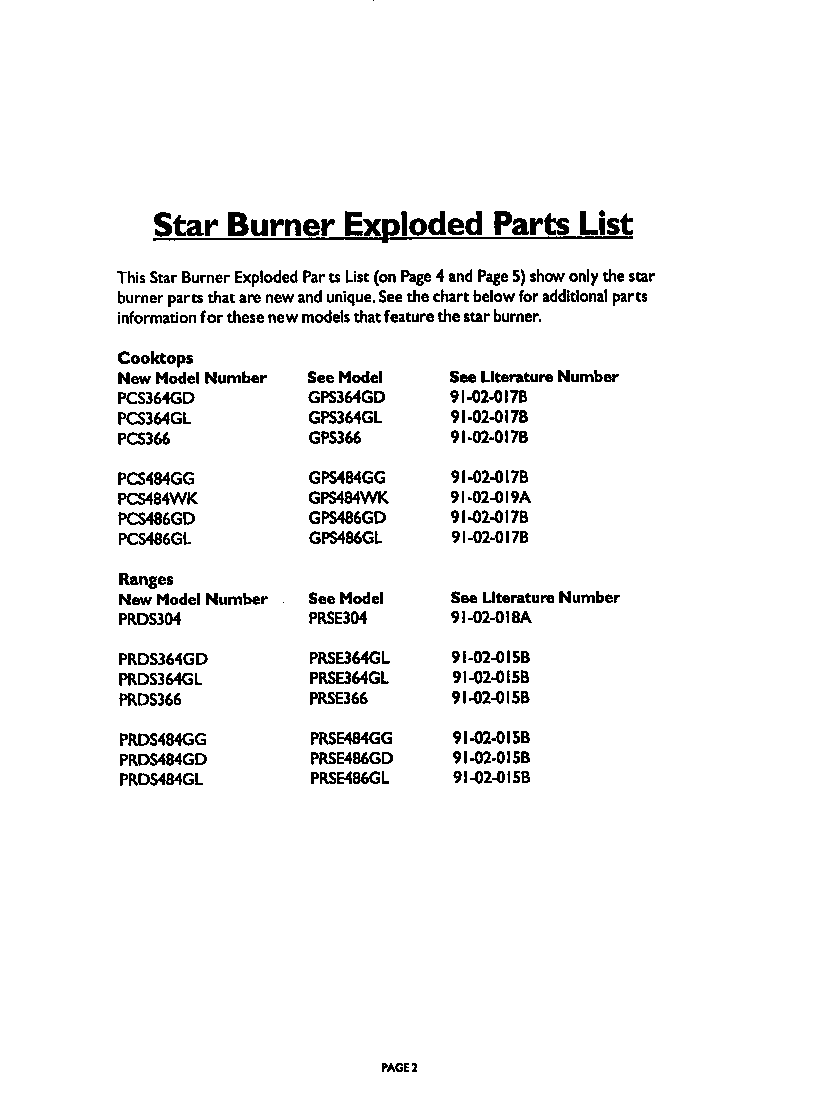

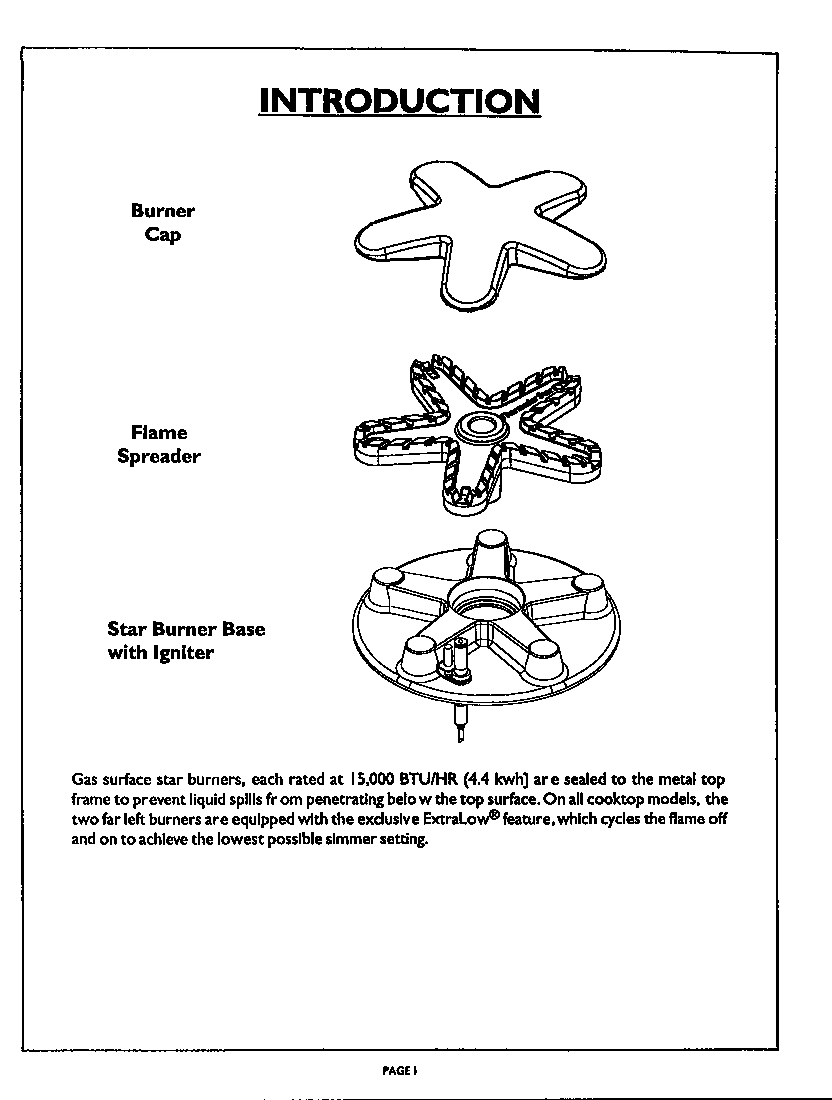

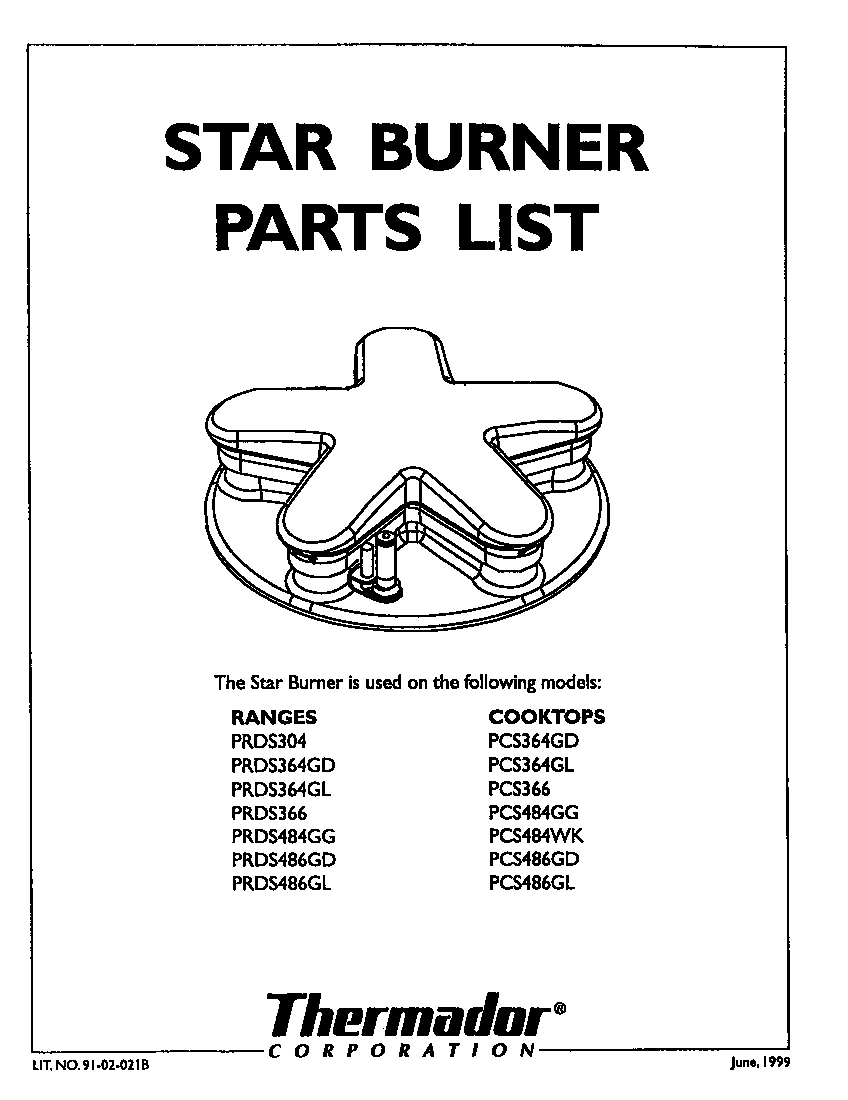

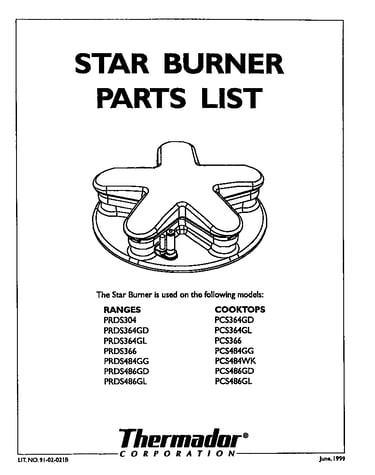

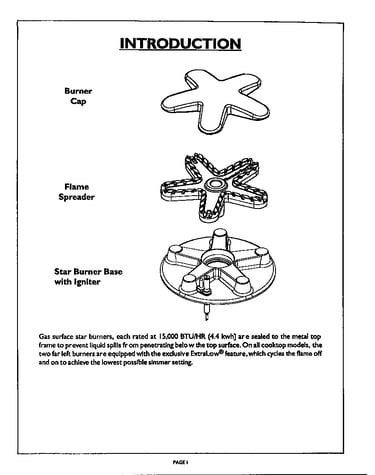

Here are the diagrams and repair parts for Official Thermador PRDS484GG star burner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

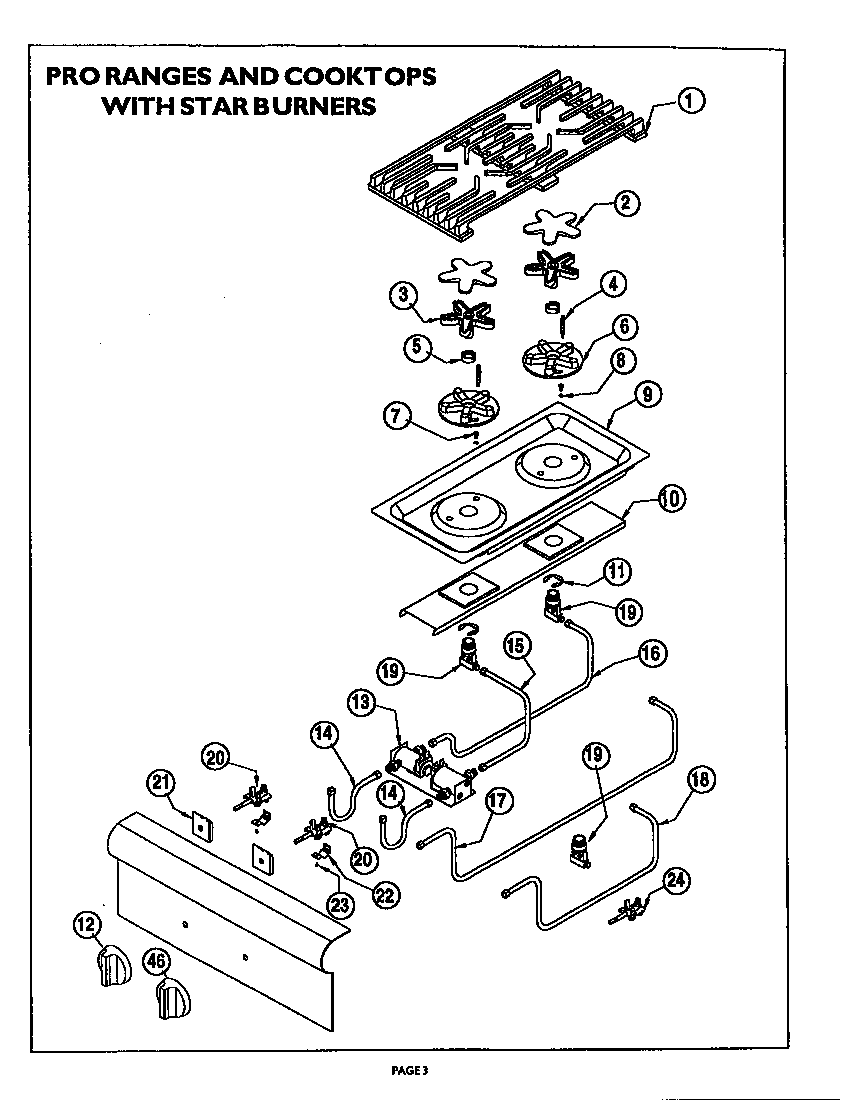

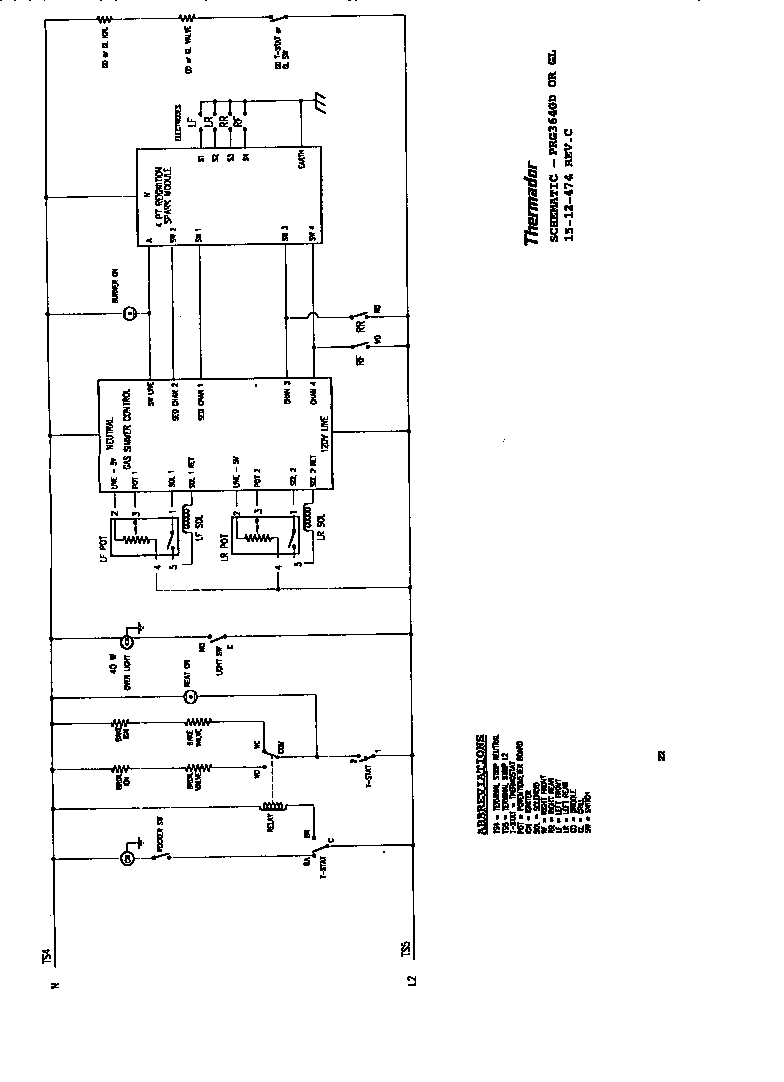

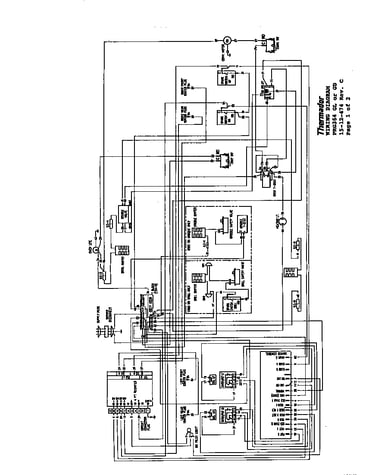

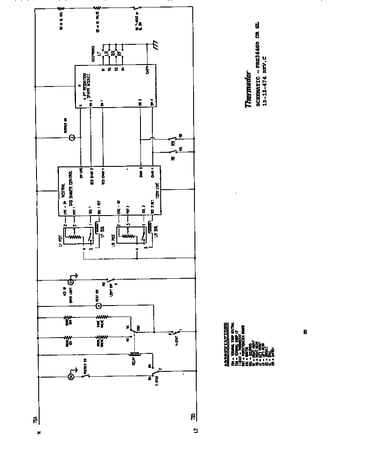

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Solenoid Cover 15-12-615

#NI

All parts diagram

Solenoid cover

Part #15-12-615

The manufacturer no longer makes this part, and there's no substitute part

Knob, Standard Burner (2) 15-10-179-1
#12

Pro ranges/cooktops w/star burners diagram

Knob, standard burner (2)

Part #15-10-179-1

The manufacturer no longer makes this part, and there's no substitute part

C-clip, Electrode (4 Ea All Models Except Pcs366, Pcs486 15-12-612
#8

Pro ranges/cooktops w/star burners diagram

C-clip, electrode (4 ea all models except pcs366, pcs486

Part #15-12-612

The manufacturer no longer makes this part, and there's no substitute part

Saddle Clamp (4 Ea All Models Except Pcs366, Pcs486gd, P 15-10-161
#22

Pro ranges/cooktops w/star burners diagram

Saddle clamp (4 ea all models except pcs366, pcs486gd, p

Part #15-10-161

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly 12" Oven 15-10-952-01

#NI

All parts diagram

Door assembly 12" oven

Part #15-10-952-01

The manufacturer no longer makes this part, and there's no substitute part

Spring, Electrode (4 Ea All Models Except Pcs366, Pcs486 15-12-611
#7

Pro ranges/cooktops w/star burners diagram

Spring, electrode (4 ea all models except pcs366, pcs486

Part #15-12-611

The manufacturer no longer makes this part, and there's no substitute part

Care And Use Manual, Pro-ranges 15-12-597
#26

Pro ranges/cooktops w/star burners diagram

Care and use manual, pro-ranges

Part #15-12-597

The manufacturer no longer makes this part, and there's no substitute part

Convection Fan Cover Right 15-10-400-08

#NI

All parts diagram

Convection fan cover right

Part #15-10-400-08

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Burner Mounting (2 Ea All Models Except Pcs366, 15-12-573
#10

Pro ranges/cooktops w/star burners diagram

Bracket, burner mounting (2 ea all models except pcs366,

Part #15-12-573

The manufacturer no longer makes this part, and there's no substitute part

Valve Sequence (2) 15-12-569
#20

Pro ranges/cooktops w/star burners diagram

Valve sequence (2)

Part #15-12-569

The manufacturer no longer makes this part, and there's no substitute part
