Kenmore
Floor Scrubber

Model # 68088973 Official Kenmore shampooer/polisher

Here are the diagrams and repair parts for Official Kenmore 68088973 shampooer/polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Floor Scrubber Nylon Scrubbing Pad 53871
#51A

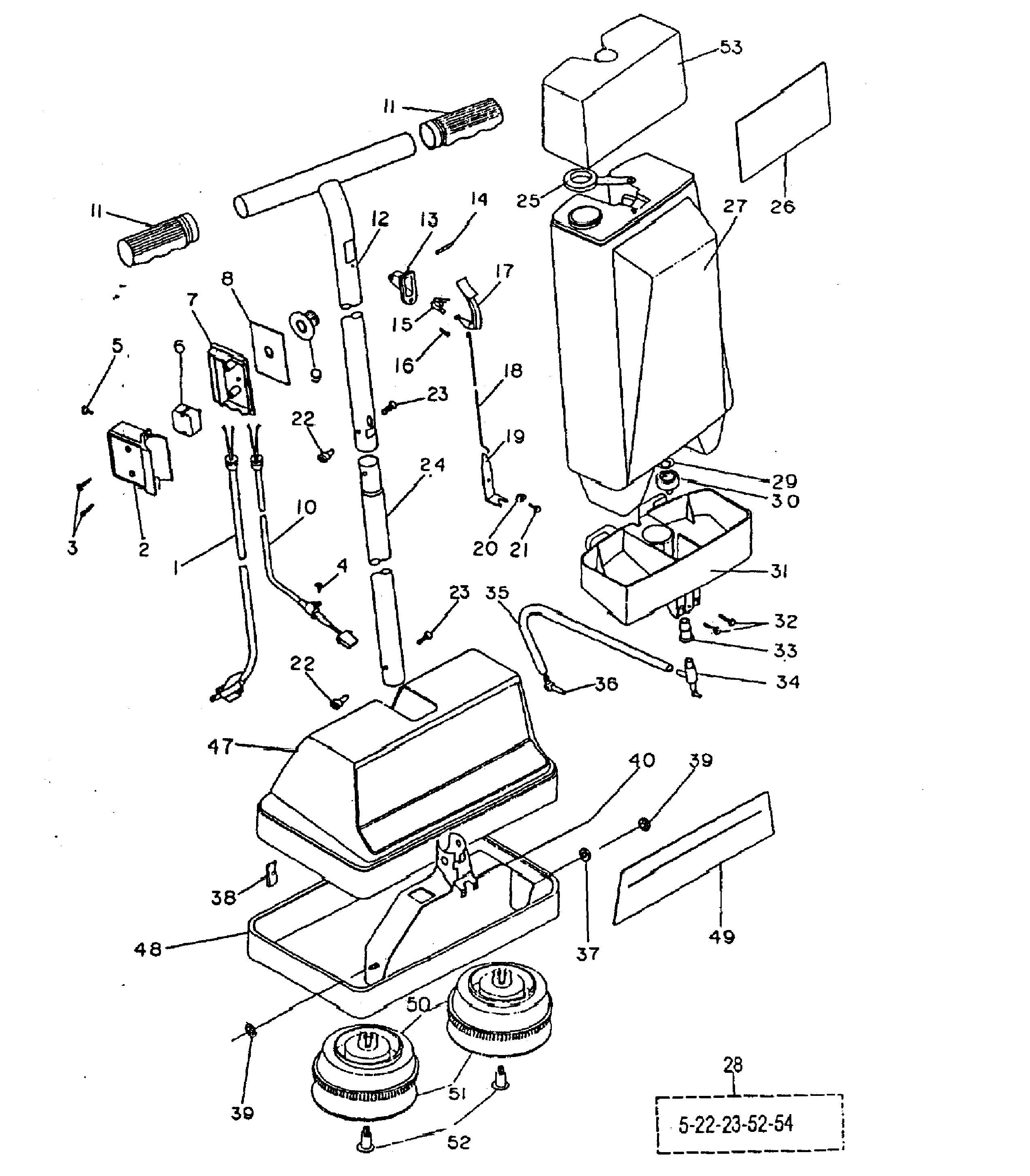

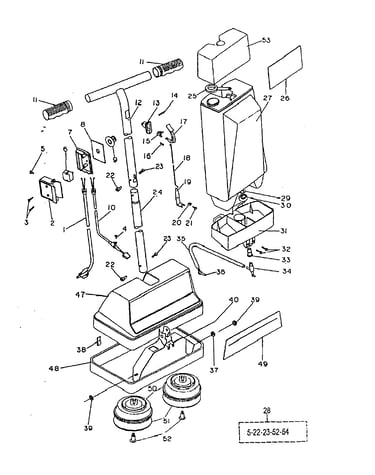

Floor polisher diagram

Floor scrubber nylon scrubbing pad

Part #53871

The manufacturer no longer makes this part, and there's no substitute part

Floor Polisher Brush Set 53271
#50A

Floor polisher diagram

Floor polisher brush set

Part #53271

The manufacturer no longer makes this part, and there's no substitute part

Gear 420012
#21

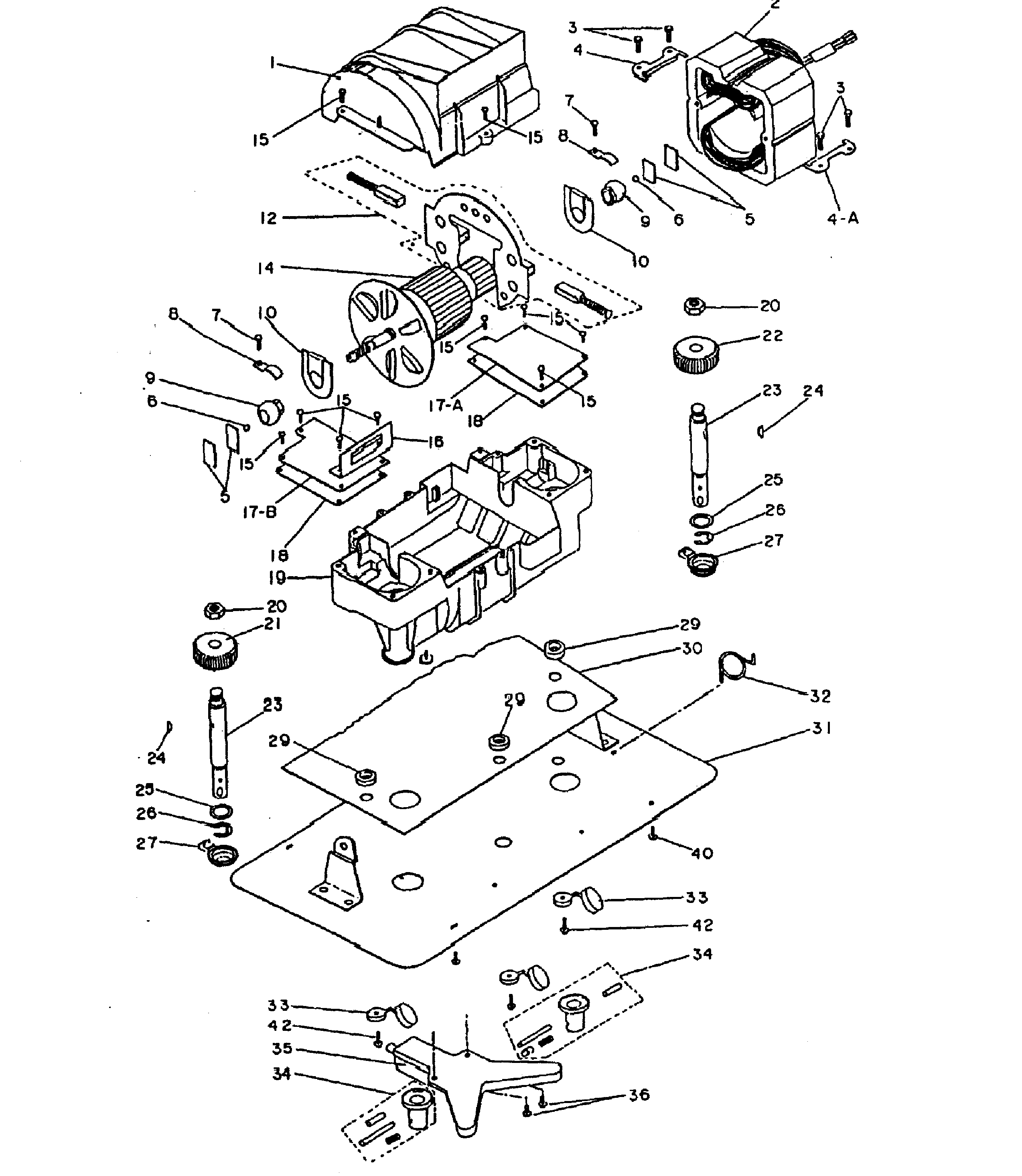

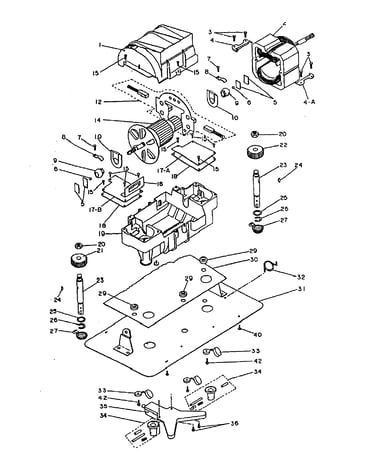

Motor assy diagram

Gear

Part #420012

The manufacturer no longer makes this part, and there's no substitute part

Tray 130216
#35

Motor assy diagram

Tray

Part #130216

The manufacturer no longer makes this part, and there's no substitute part

Spacer Cover 052692
#38

Floor polisher diagram

Spacer cover

Part #052692

The manufacturer no longer makes this part, and there's no substitute part

Ctr Lvr Supt 060463
#13

Floor polisher diagram

Ctr lvr supt

Part #060463

The manufacturer no longer makes this part, and there's no substitute part

Valve Hook 052197
#19

Floor polisher diagram

Valve hook

Part #052197

The manufacturer no longer makes this part, and there's no substitute part

Clamp 050607
#8

Motor assy diagram

Clamp

Part #050607

The manufacturer no longer makes this part, and there's no substitute part

Thrust Ball 260001
#6

Motor assy diagram

Thrust ball

Part #260001

The manufacturer no longer makes this part, and there's no substitute part

Valve Cover 130068
#30

Floor polisher diagram

Valve cover

Part #130068

The manufacturer no longer makes this part, and there's no substitute part
