Universal/Multiflex (Frigidaire)
Chest Freezer

Model # CFC20M4HW1 Official Universal/Multiflex (Frigidaire) freezer - p5995323010

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) CFC20M4HW1 freezer - p5995323010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Filter Drier 216634500
#4

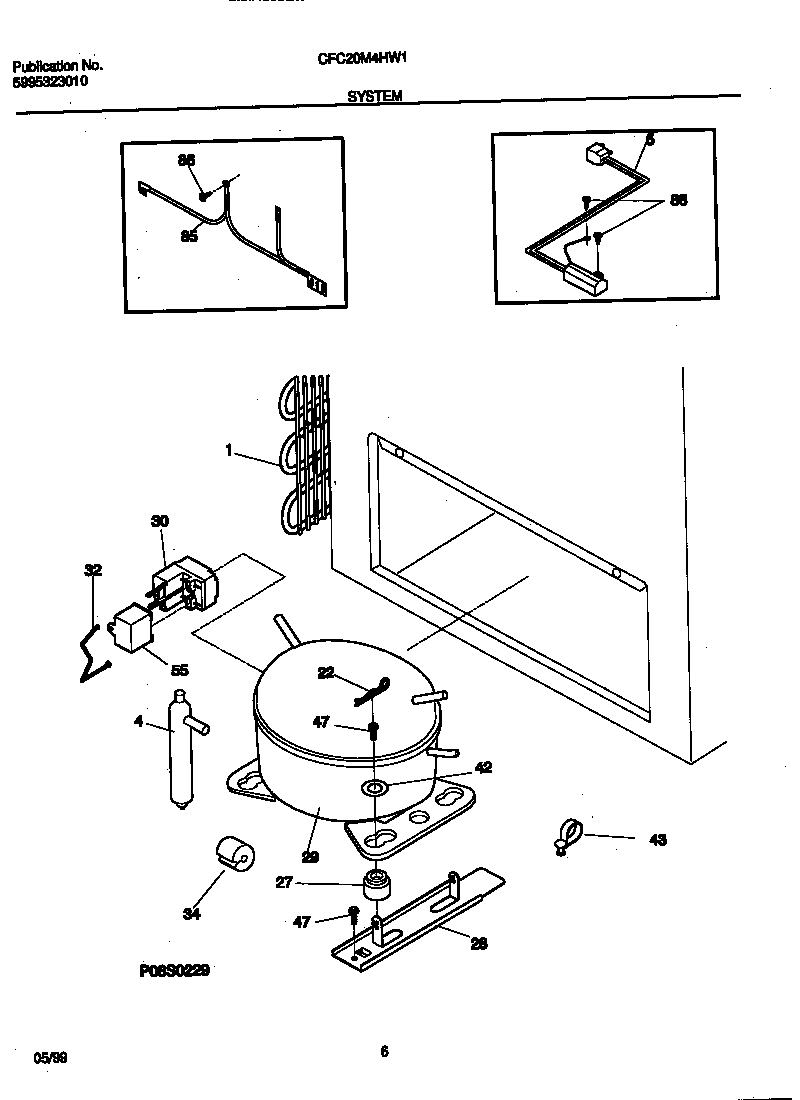

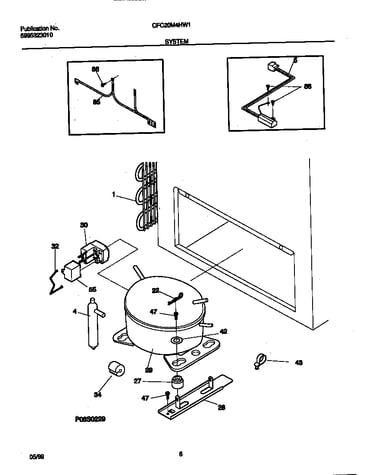

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

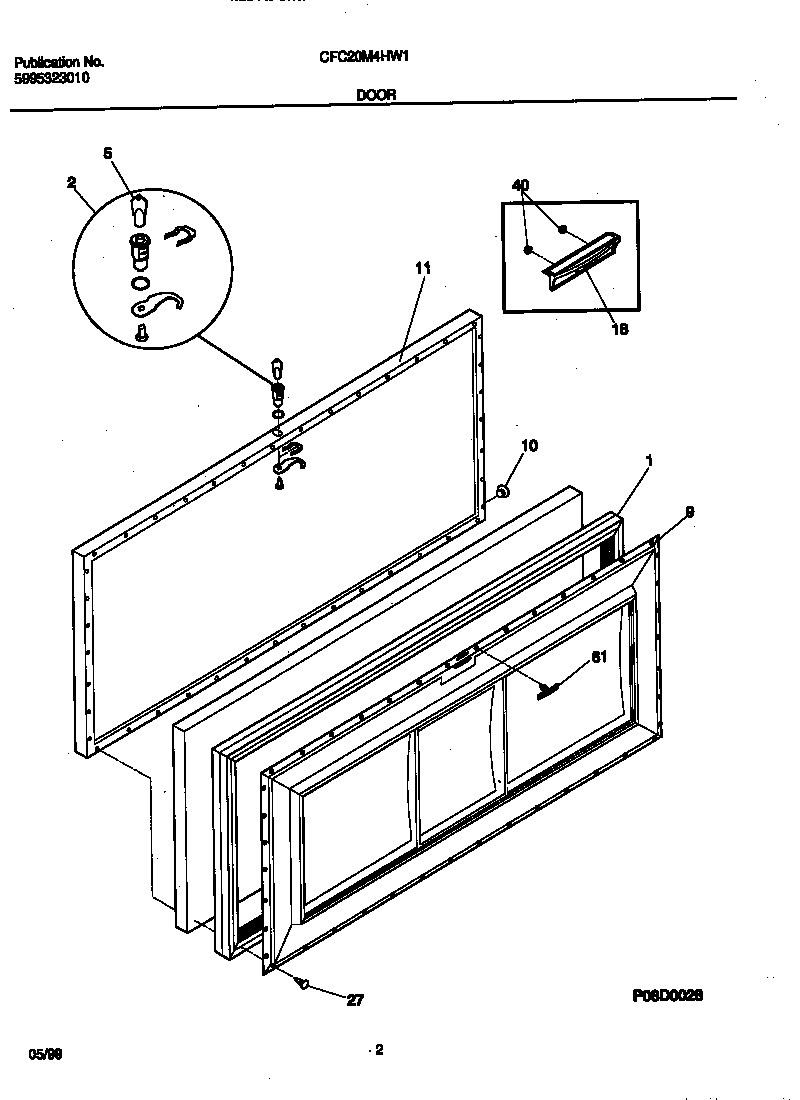

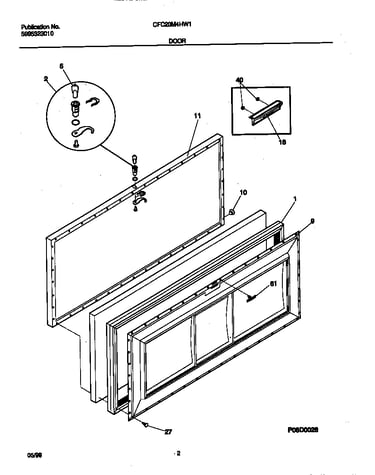

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.84
9% OFF Phone Price : $10.84
In Stock
Chest Freezer Run Capacitor 218909901
#55

System diagram

Chest freezer run capacitor

Part #218909901

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
BEST SELLER
$47.29
11% OFF Phone Price : $53.29
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

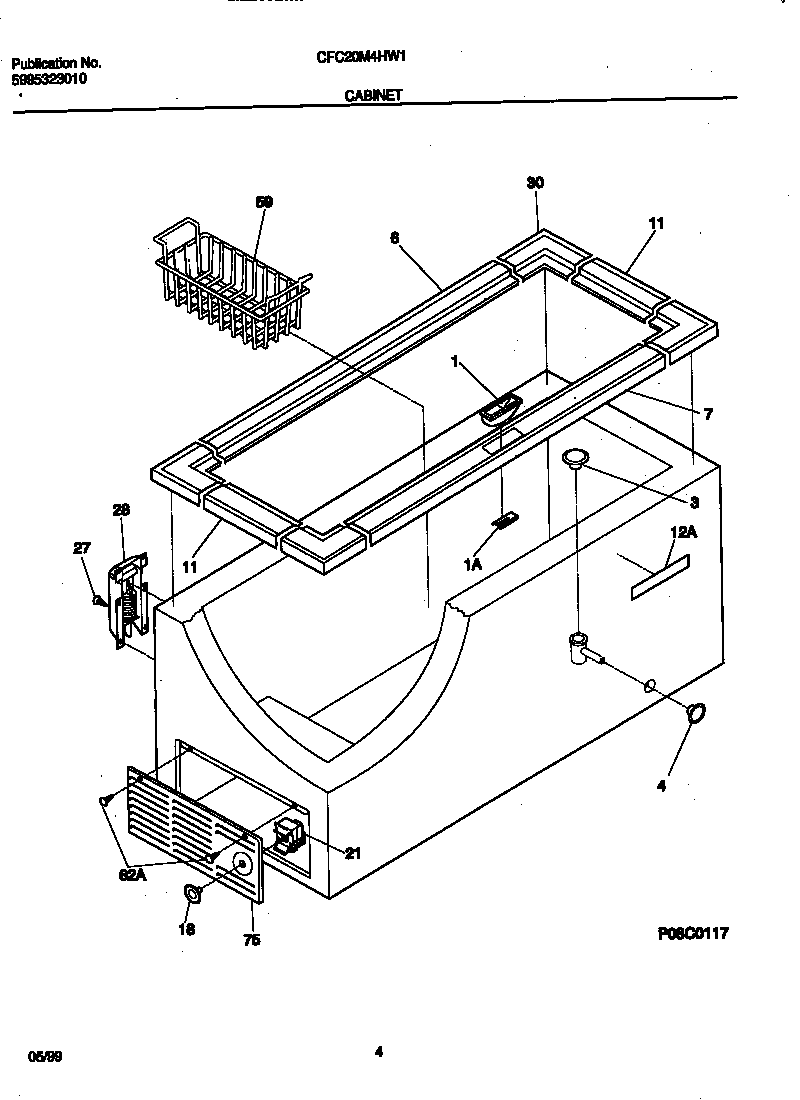

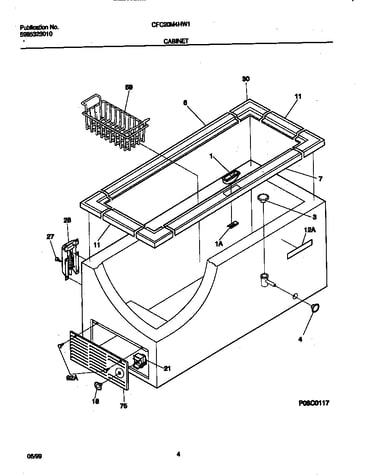

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04
13% OFF Phone Price : $15.04
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49
9% OFF Phone Price : $21.49
In Stock
Screw 131420300
#62

Cabinet diagram

Screw

Part #131420300

Replaced by #131420300

?
Manufacturer substitution
This part replaces 131420300. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw     (i 216036600
#86

System diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39
13% OFF Phone Price : $15.39
In Stock
Freezer Condenser Coil 5303280307
#1

System diagram

Freezer condenser coil

Part #5303280307

In Stock
Kelvinator Clip 216158300
#32

System diagram

Kelvinator clip

Part #216158300

This item is not returnable
In Stock
