Model # EC-TU4606 Official Sharp vacuum cleaner

Here are the diagrams and repair parts for Official Sharp EC-TU4606 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |

Screw XCBSD40P16000
#5-12

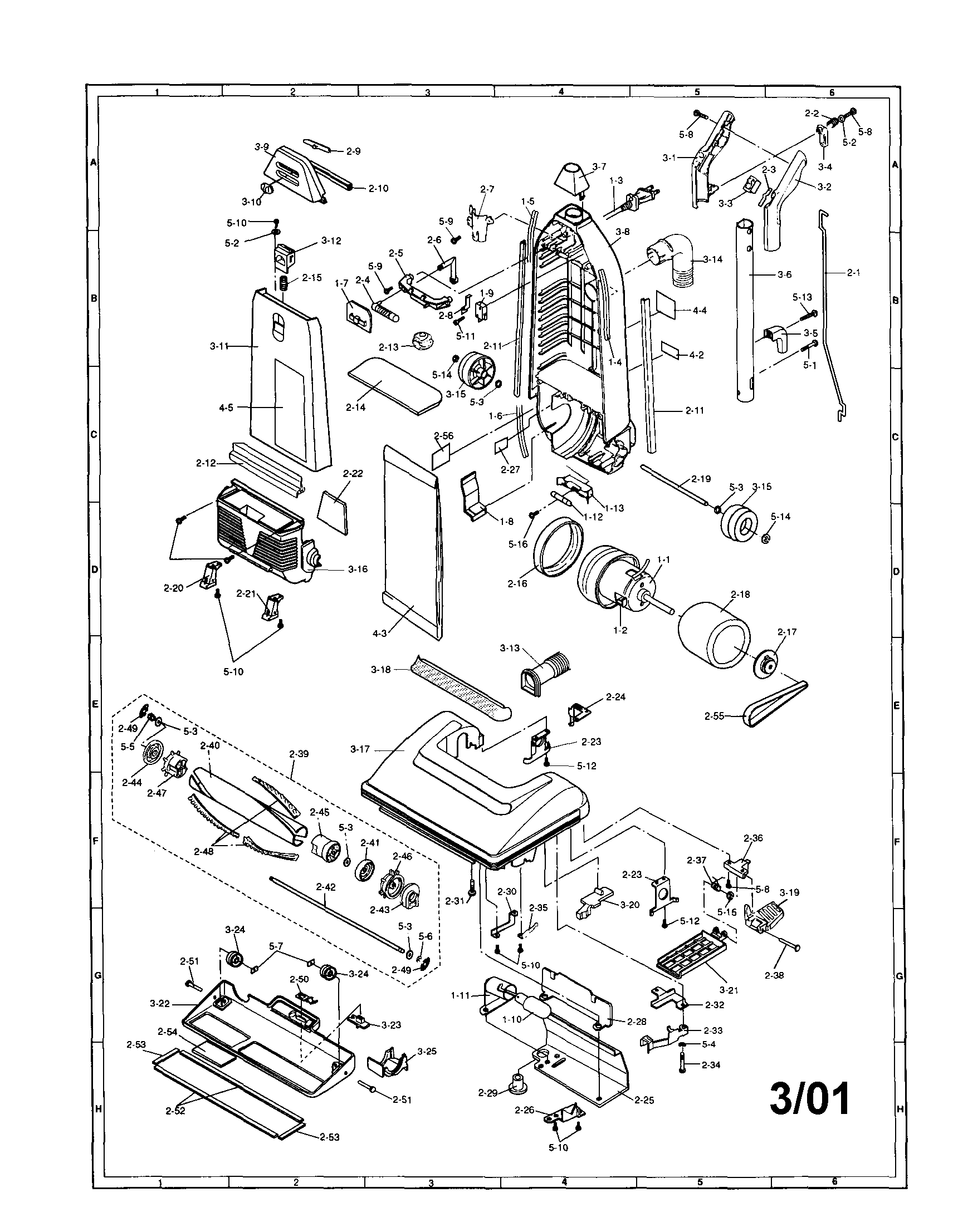

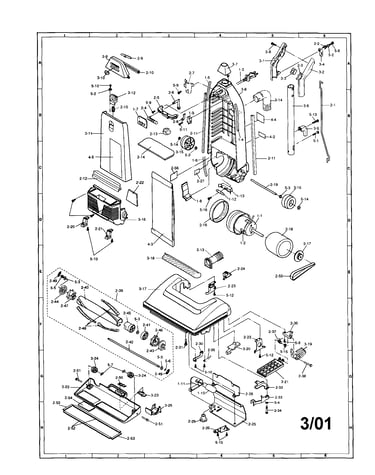

Vacuum diagram

Screw

Part #XCBSD40P16000

The manufacturer no longer makes this part, and there's no substitute part

Lens PLNS-A001VBFA
#3-18

Vacuum diagram

Lens

Part #PLNS-A001VBFA

The manufacturer no longer makes this part, and there's no substitute part

Agitator P FPIPFA005VBK0
#2-40

Vacuum diagram

Agitator p

Part #FPIPFA005VBK0

The manufacturer no longer makes this part, and there's no substitute part

E-clip XRESE40-06000
#5-15

Vacuum diagram

E-clip

Part #XRESE40-06000

The manufacturer no longer makes this part, and there's no substitute part

Brush Base A PBRS-A031VBE0
#2-48

Vacuum diagram

Brush base a

Part #PBRS-A031VBE0

The manufacturer no longer makes this part, and there's no substitute part

E-ring XRESE50-06000
#5-14

Vacuum diagram

E-ring

Part #XRESE50-06000

The manufacturer no longer makes this part, and there's no substitute part

Knob JKNB-A031VBFA
#3-23

Vacuum diagram

Knob

Part #JKNB-A031VBFA

The manufacturer no longer makes this part, and there's no substitute part

Motor Wire QW-VZA372VBE0
#1-04

Vacuum diagram

Motor wire

Part #QW-VZA372VBE0

The manufacturer no longer makes this part, and there's no substitute part

Hose PHOS-A003VBFA
#3-13

Vacuum diagram

Hose

Part #PHOS-A003VBFA

The manufacturer no longer makes this part, and there's no substitute part

Cover GCOV-A402VBRB
#3-11

Vacuum diagram

Cover

Part #GCOV-A402VBRB

The manufacturer no longer makes this part, and there's no substitute part
