Model # DWD210G TYPE 2 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt DWD210G-TYPE-2 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Screw N068183
#3

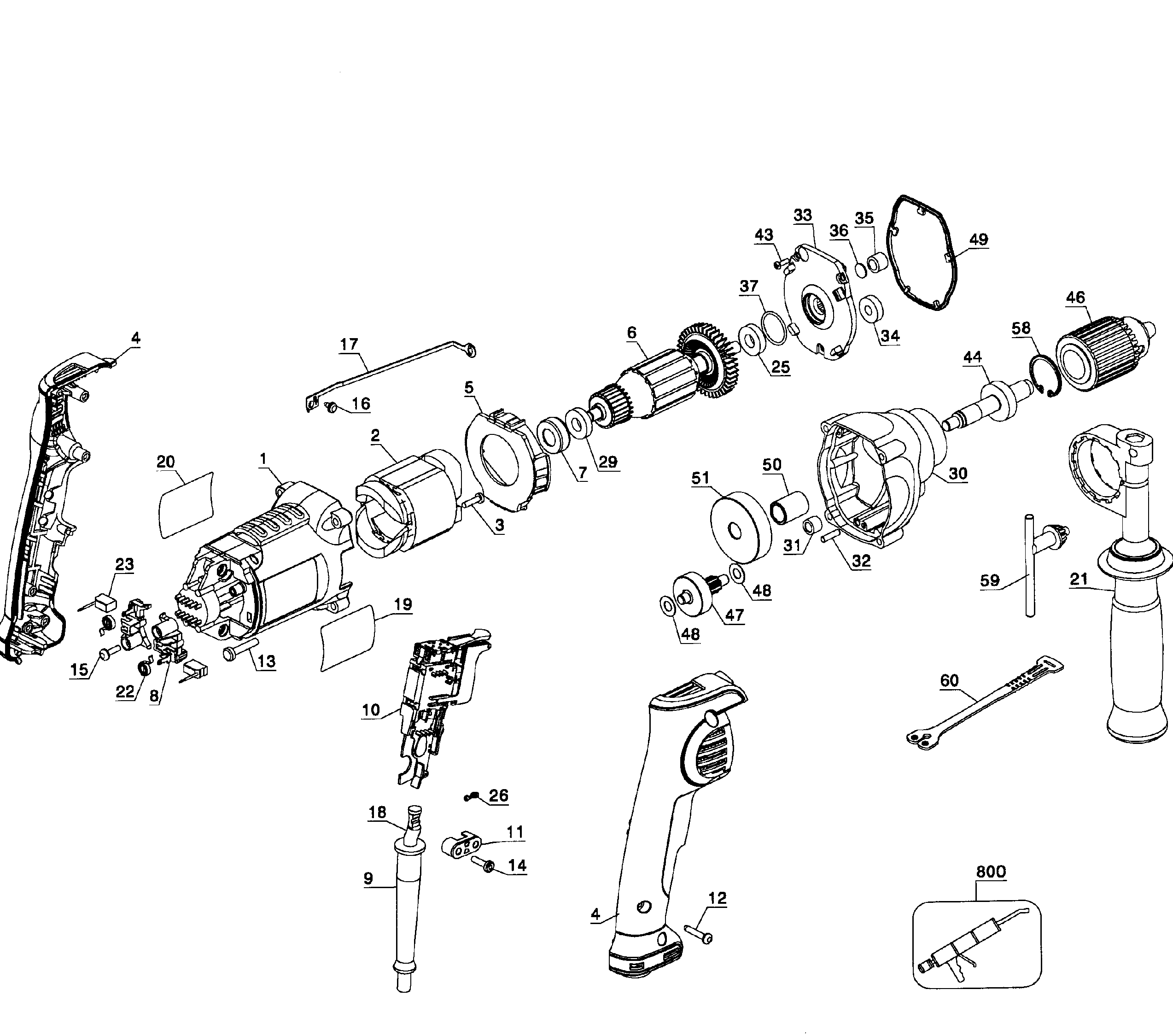

Drill driver diagram

Screw

Part #N068183

The manufacturer no longer makes this part, and there's no substitute part

Spacer 652781-00
#50

Drill driver diagram

Spacer

Part #652781-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 88667-04
#26

Drill driver diagram

Terminal

Part #88667-04

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 330034-16
#59

Drill driver diagram

Chuck key

Part #330034-16

The manufacturer no longer makes this part, and there's no substitute part

Bearing 605040-02
#34

Drill driver diagram

Bearing

Part #605040-02

The manufacturer no longer makes this part, and there's no substitute part

Screw, M5 X 2 330045-15
#13

Drill driver diagram

Screw, m5 x 2

Part #330045-15

The manufacturer no longer makes this part, and there's no substitute part

Output Spi 656366-00
#44

Drill driver diagram

Output spi

Part #656366-00

The manufacturer no longer makes this part, and there's no substitute part

Handle Set 662703-02
#4

Drill driver diagram

Handle set

Part #662703-02

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 087692-00
#58

Drill driver diagram

Retaining ring

Part #087692-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#9

Drill driver diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part
