Model # DWD210G TYPE 2 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt DWD210G-TYPE-2 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Gearcase C 645400-05SV
#33

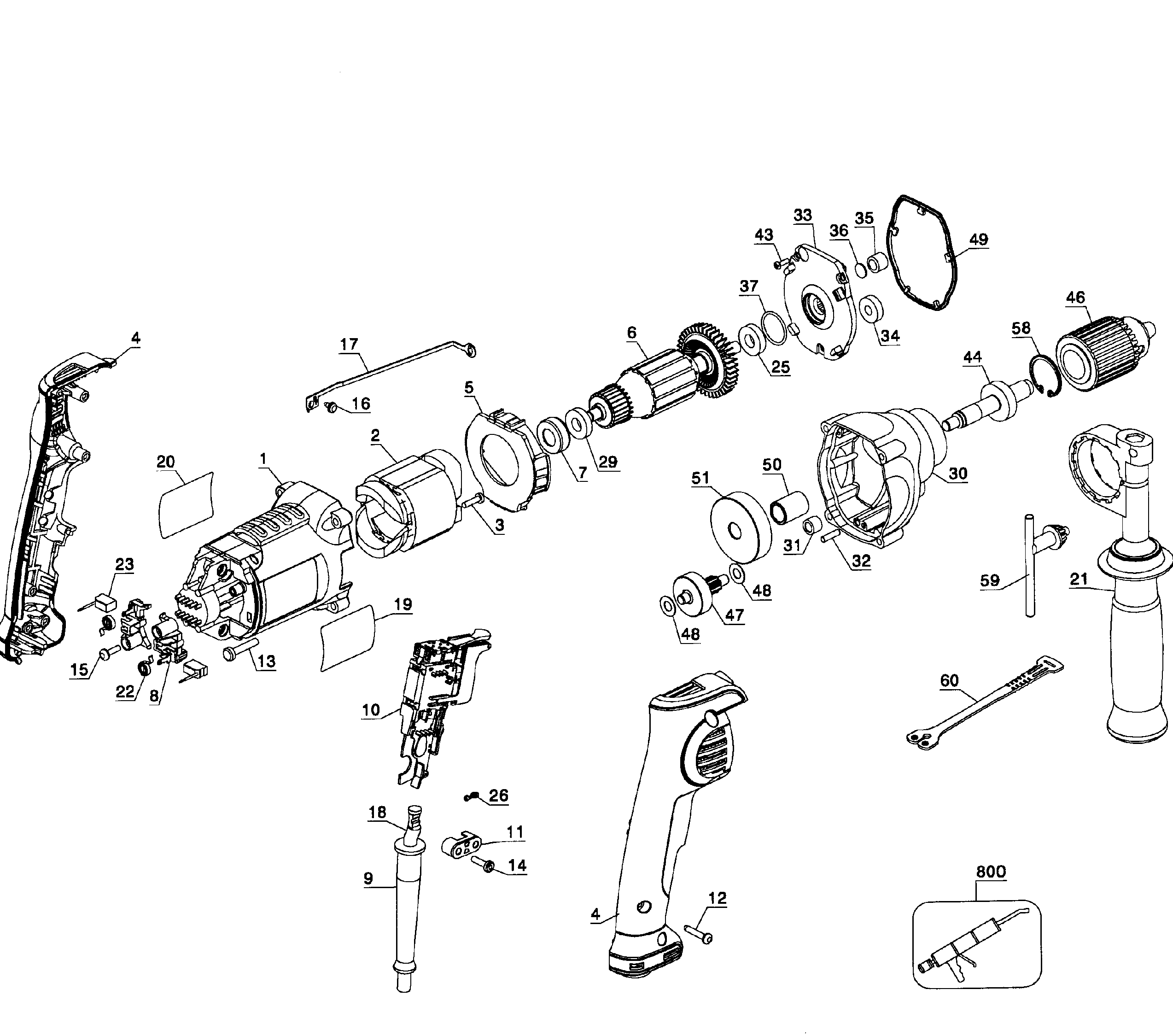

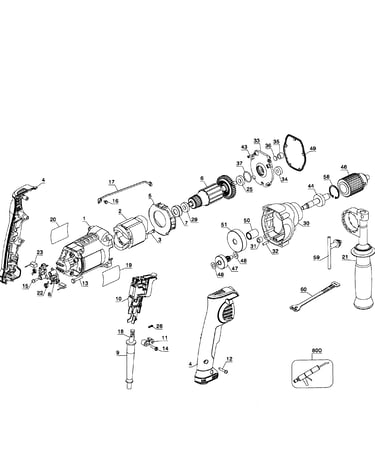

Drill driver diagram

Gearcase c

Part #645400-05SV

The manufacturer no longer makes this part, and there's no substitute part

Screw 176923-00
#16

Drill driver diagram

Screw

Part #176923-00

The manufacturer no longer makes this part, and there's no substitute part

Cordset 330010-12
#18

Drill driver diagram

Cordset

Part #330010-12

The manufacturer no longer makes this part, and there's no substitute part

Bearing,ne 330004-02
#35

Drill driver diagram

Bearing,ne

Part #330004-02

The manufacturer no longer makes this part, and there's no substitute part

Ground Str 653665-00
#17

Drill driver diagram

Ground str

Part #653665-00

The manufacturer no longer makes this part, and there's no substitute part

Ch Key Hol 065288-01
#60

Drill driver diagram

Ch key hol

Part #065288-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 662999-00
#22

Drill driver diagram

Spring

Part #662999-00

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 087692-00
#58

Drill driver diagram

Retaining ring

Part #087692-00

The manufacturer no longer makes this part, and there's no substitute part

Thrust Was 659185-00
#48

Drill driver diagram

Thrust was

Part #659185-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-31
#12

Drill driver diagram

Screw

Part #330065-31

The manufacturer no longer makes this part, and there's no substitute part
