Amana ART308FFDM07 refrigerator

Amana ART308FFDM07 refrigerator Parts

Here are the diagrams and repair parts for Amana ART308FFDM07 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ART308FFDM07 Refrigerators

  • Refrigerator Service Valve for Amana ART308FFDM07 - Part WP978025

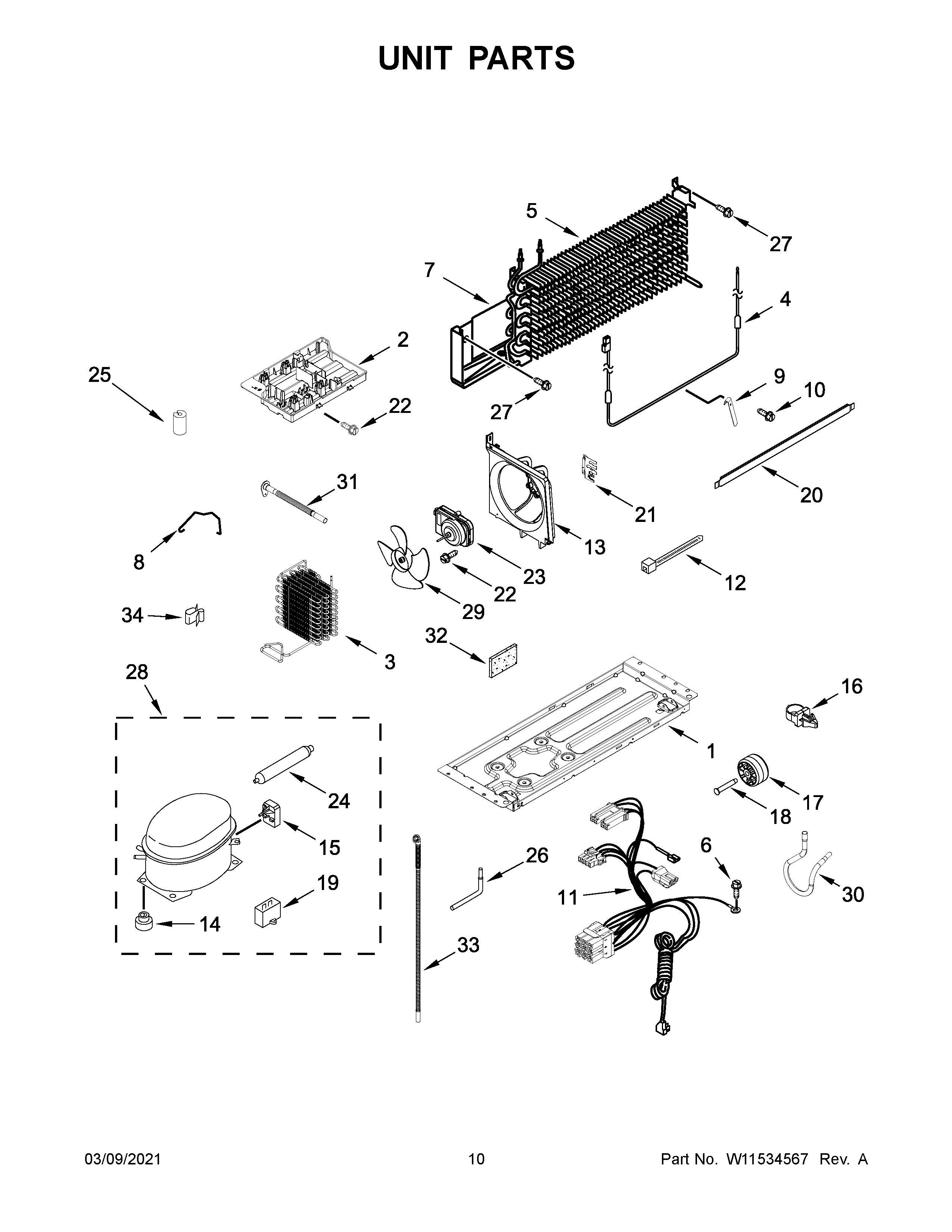

    Unit parts diagram

    Refrigerator Service Valve

    Part #978025

    Replaced by #WP978025

    Info Icon
    Manufacturer substitution
    This part replaces 978025. Substitute parts can look different from the original.
    In Stock
    $41.18
    13% OFF Phone Price : $47.18Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana ART308FFDM07 - Part WP489497

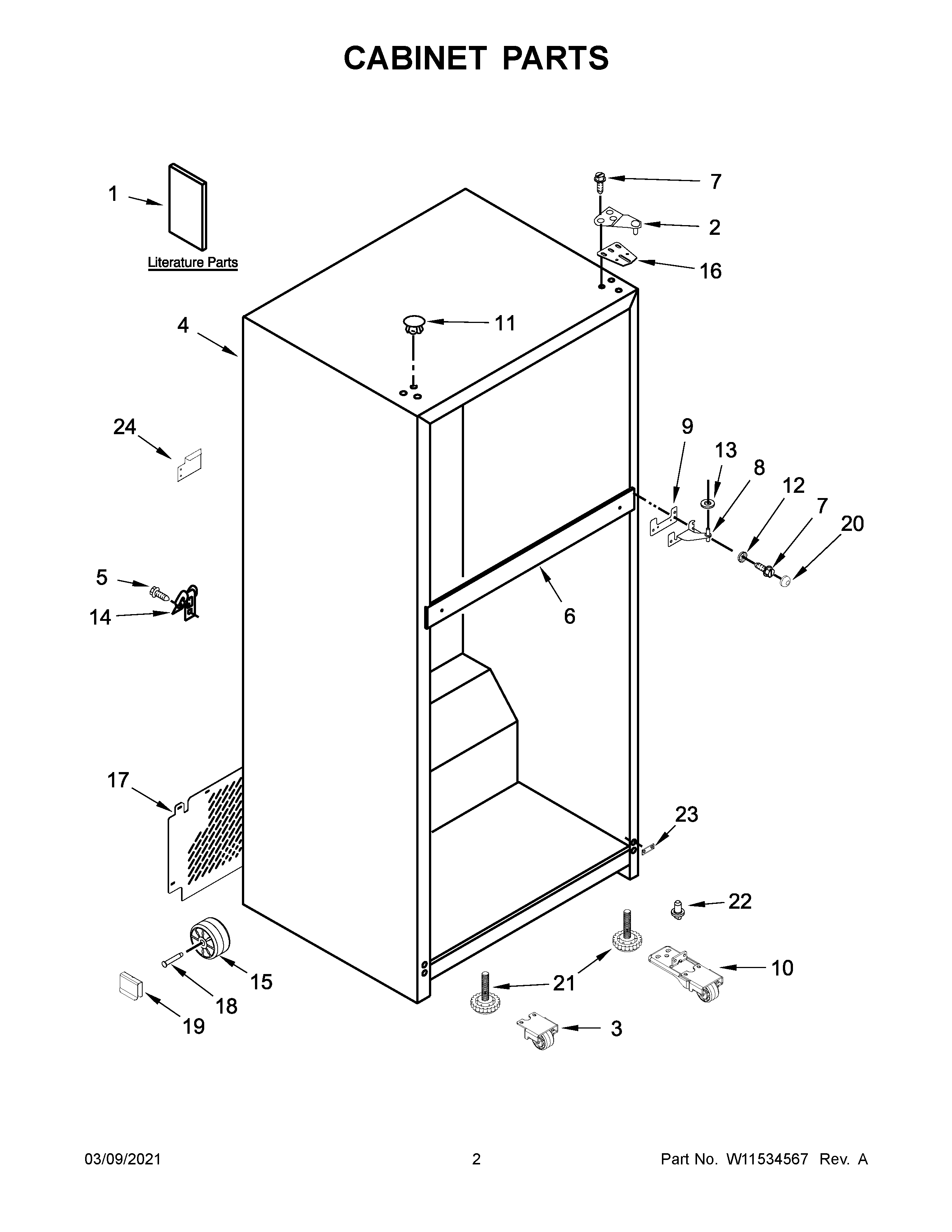

    Cabinet parts diagram

    Refrigerator Screw

    Part #489497

    Replaced by #WP489497

    Info Icon
    Manufacturer substitution
    This part replaces 489497. Substitute parts can look different from the original.
    In Stock
    $9.48
    10% OFF Phone Price : $10.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor for Amana ART308FFDM07 - Part W11438736

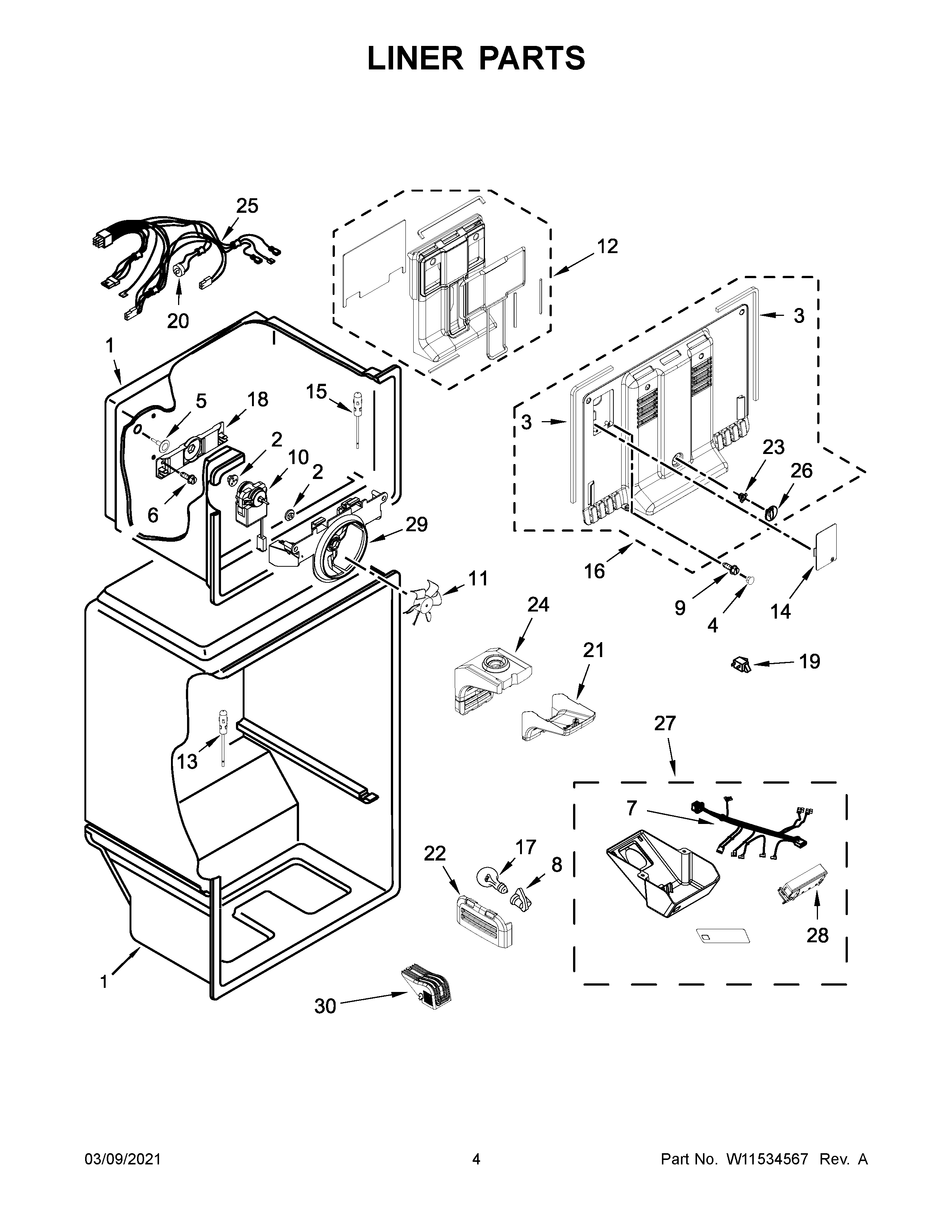

    Liner parts diagram

    Thermistor, Refrigerator

    Part #W11108173

    Replaced by #W11438736

    Info Icon
    Manufacturer substitution
    This part replaces W11108173. Substitute parts can look different from the original.
    In Stock
    $64.06
    9% OFF Phone Price : $70.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Gasket, Black for Amana ART308FFDM07 - Part W11240749

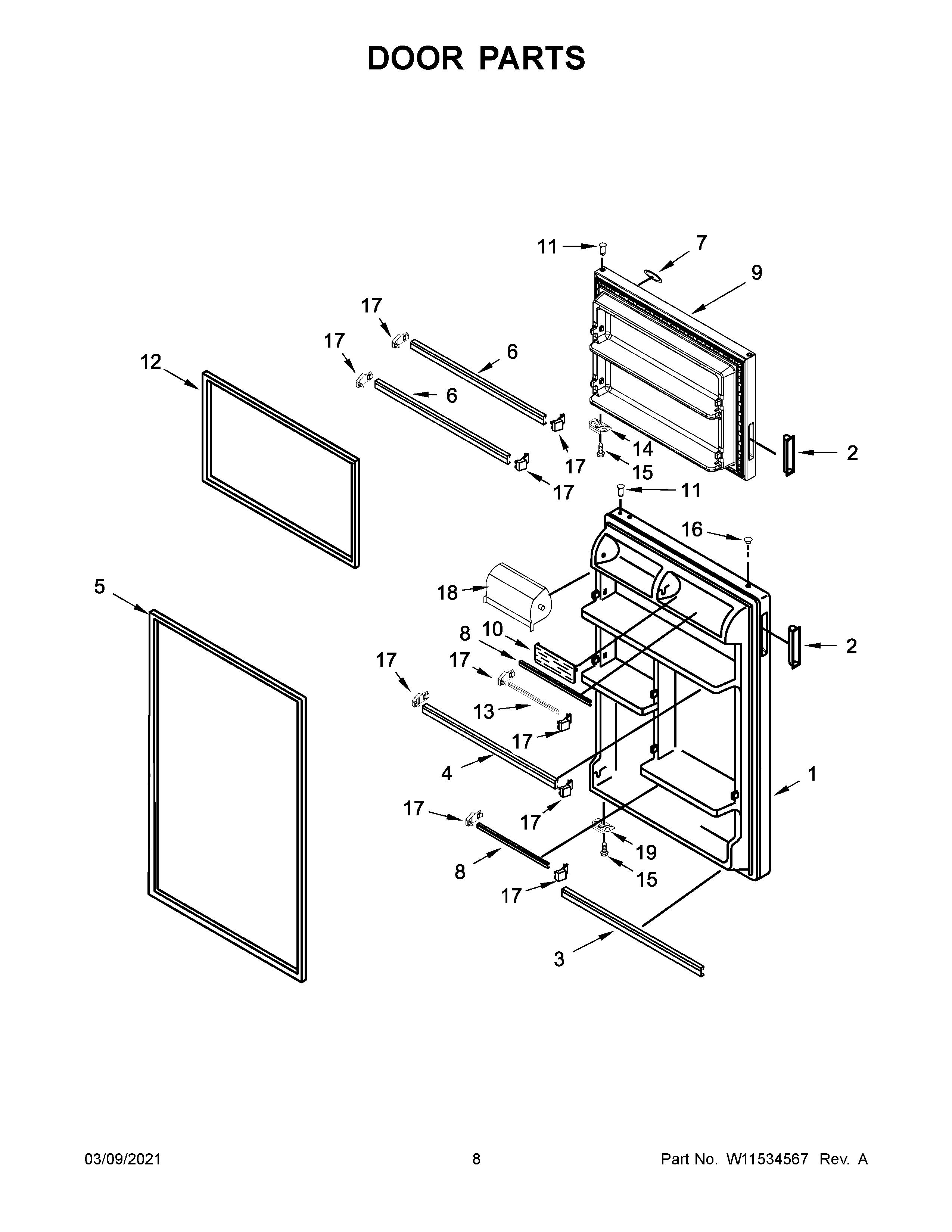

    Door parts diagram

    Refrigerator Door Gasket

    Part #W10678768

    Replaced by #W11240749

    Info Icon
    Manufacturer substitution
    This part replaces W10678768. Substitute parts can look different from the original.
    In Stock
    $144.93
    8% OFF Phone Price : $156.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (biscuit) for Amana ART308FFDM07 - Part 4392899

    Optional parts diagram

    Appliance Touch-up Paint, 0.6-oz (biscuit)

    Part #4392899
    This item is not returnable
    In Stock
    $15.11
    12% OFF Phone Price : $17.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Touch-up Paint, 0.6-oz (black) for Amana ART308FFDM07 - Part 72032

    Optional parts diagram

    Appliance Touch-up Paint, 0.6-oz (black)

    Part #72032
    This item is not returnable
    In Stock
    $11.08
    15% OFF Phone Price : $13.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Gasket-door Fc, Ap.grey 18-feet & 19-feet Matrix for Amana ART308FFDM07 - Part W11574983

    Door parts diagram

    Ikea Refrigerator Freezer Door Gasket (gray)

    Part #W11030682

    Replaced by #W11574983

    Info Icon
    Manufacturer substitution
    This part replaces W11030682. Substitute parts can look different from the original.
    In Stock
    $46.44
    11% OFF Phone Price : $52.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Blade for Amana ART308FFDM07 - Part W11193484

    Unit parts diagram

    Blade-conden

    Part #W10817071

    Replaced by #W11193484

    Info Icon
    Manufacturer substitution
    This part replaces W10817071. Substitute parts can look different from the original.
    In Stock
    $52.09
    10% OFF Phone Price : $58.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Light Bulb for Amana ART308FFDM07 - Part W11216993

    Liner parts diagram

    Led - Lamp 1

    Part #W11125625

    Replaced by #W11216993

    Info Icon
    Manufacturer substitution
    This part replaces W11125625. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $40.67
    13% OFF Phone Price : $46.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Sears Refrigerator Service Valve for Amana ART308FFDM07 - Part 978026

    Unit parts diagram

    Sears Refrigerator Service Valve

    In Stock
    $31.07
    31% OFF Was : $45.33Info Icon
    Minus Item
    Qty
    Plus Item

Amana REFRIGERATOR ART308FFDM07 FAQs

Amana refrigerators typically last 10 to 15 years. For an Amana top-mount like ART308FFDM07, lifespan depends most on compressor health, airflow (clean condenser coils), and tight door seals that prevent warm air leaks.

Typical lifespan and what affects it

Most owners see the biggest lifespan differences from maintenance and how hard the refrigerator has to work (hot garages, frequent door openings, overpacking).

  • Condenser coil cleanliness (dust makes the compressor run hotter and longer)
  • Door gasket condition (air leaks cause longer run times and frost issues)
  • Evaporator fan performance (poor airflow leads to warm temps and icing)
  • Temperature settings (too cold can increase run time and frost)
  • Leveling and door alignment (helps doors close fully every time)

Quick maintenance that helps it last longer

We recommend these simple habits for ART308FFDM07 and most Amana top-mount refrigerators:

  • Vacuum and brush the condenser area every 6 to 12 months
  • Keep food from blocking interior vents so air can circulate
  • Confirm doors close on their own and don’t “bounce” back open
  • Wipe gaskets clean; warm soapy water helps them seal better
  • Listen for the evaporator fan; unusual noise can signal a failing motor

Parts that commonly drive “end of life” decisions

When these parts fail, repairs can range from simple to more involved. This table helps you prioritize what to check first.

Symptom Common cause Example model-matched part
Warm fridge, freezer OK or noisy airflow Evaporator fan issue Refrigerator evaporator fan motor WP2315539
Frost buildup, poor cooling Defrost system issue Refrigerator defrost heater WPW10316428
Door won’t seal, sweating, frost near door Worn gasket Refrigerator door gasket (white) W10861499
Temps swing, runs too long/short Sensor/control issue Thermistor, refrigerator W11438736

Why it matters

A refrigerator that runs longer than it should uses more electricity and puts extra heat stress on the sealed system. Keeping airflow strong and doors sealing tightly is the most reliable way to reach (or beat) the 10 to 15 year lifespan.

Helpful DIY guidance

Last updated: February 2026

If your Amana ART308FFDM07 top-mount refrigerator is not cooling, we start by restoring airflow and verifying the cooling system is running: confirm the evaporator fan runs, clear frost that blocks the evaporator, and clean the condenser area so the compressor can remove heat properly.

Quick checks that fix many “not cooling” complaints

  • Make sure both temperature controls are set to a normal mid-range setting (not “off” or “warm”).
  • Confirm the doors close fully and the gaskets seal all the way around.
  • Do not block the air vents between the freezer and fresh food section.
  • Allow 24 hours after any control change for temperatures to stabilize.
  • If the unit was just moved or unplugged, give it time to restart and pull down temperature.

Airflow and frost: the most common cause on top-mount units

A top-mount refrigerator cools the fresh food section by moving cold air from the freezer. If the evaporator area is packed with frost, airflow drops and the refrigerator warms up.

What to look for

Symptom Most likely area What we do next
Freezer cold, refrigerator warm Airflow/vents, evaporator fan Check fan operation and vent blockage
Frost or snow on freezer back wall Defrost system issue Inspect heater, sensor, and airflow
Both sections warm, compressor running Dirty condenser, sealed system strain Clean coils, verify condenser fan (if equipped)

If the evaporator fan is not running, cooling performance drops fast. For this model, a common repair is replacing the refrigerator evaporator fan motor WP2315539.

Parts that commonly solve “not cooling” on ART308FFDM07

Why it matters

When airflow is restricted or the condenser cannot shed heat, the compressor runs longer, food warms up, and frost can build faster. Fixing the root cause protects food temperatures and reduces wear on the compressor.

DIY help we recommend

Last updated: February 2026

In the Amana ART308FFDM07 top-mount refrigerator, the most commonly replaced parts are the ones that wear out from daily use or affect cooling and sealing: door gaskets, fan components, temperature sensors, defrost parts, and electronic controls. Water-system parts are also common on models equipped with filtration or ice makers.

Most common refrigerator parts that get replaced

  • Door gaskets (seals): stop warm air leaks that cause sweating, frost, and long run times
  • Evaporator fan parts: move cold air through the fresh food section and freezer
  • Temperature sensing parts: help the control maintain stable temperatures
  • Defrost system parts: prevent frost buildup that blocks airflow
  • Electronic control parts: manage compressor and fan operation
  • Shelves, rollers, and bins: break from load stress or impact

Model-relevant examples for ART308FFDM07

These are examples of commonly replaced parts we see for this model:

Quick symptom-to-part guide

Symptom Most likely part area What to check first
Fridge warm, freezer cold Evaporator fan and airflow Listen for fan noise, check for ice blocking vents
Frost sheet on back freezer wall Defrost system Look for heavy frost buildup behind the rear panel
Temps swing up and down Thermistor or control Verify settings, then inspect sensor wiring
Moisture or gaps at door Door gasket and door alignment Dollar-bill test around the perimeter

Why it matters

Replacing the right wear part early (like a gasket, thermistor, or evaporator fan motor) restores proper airflow and temperature control; that reduces food spoilage, prevents frost buildup, and helps the compressor avoid excessive run time.

Last updated: February 2026
