Model # 6013BR Official Makita drill

Here are the diagrams and repair parts for Official Makita 6013BR drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

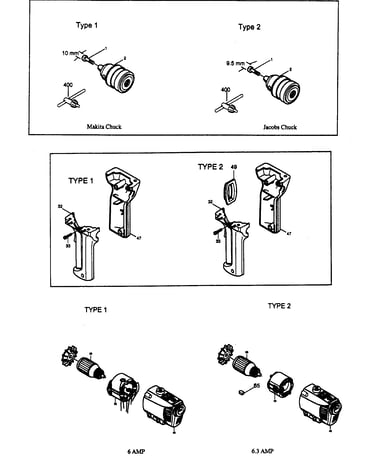

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Fan 241622-9
#24

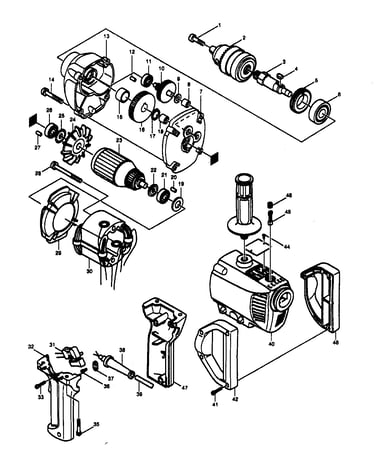

Drill 1 assy diagram

Fan

Part #241622-9

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 682502-4
#38

Drill 1 assy diagram

Power tool power cord strain relief

Part #682502-4

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211033-2
#21

Drill 1 assy diagram

Bearing

Part #211033-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 911133-5
#36

Drill 1 assy diagram

Screw

Part #911133-5

The manufacturer no longer makes this part, and there's no substitute part

N. Bearing 212012-3
#8

Drill 1 assy diagram

N. bearing

Part #212012-3

The manufacturer no longer makes this part, and there's no substitute part

Rivet 953106-2
#44

Drill 1 assy diagram

Rivet

Part #953106-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 911256-9
#14

Drill 1 assy diagram

Screw

Part #911256-9

The manufacturer no longer makes this part, and there's no substitute part

Washer 261008-1
#9

Drill 1 assy diagram

Washer

Part #261008-1

The manufacturer no longer makes this part, and there's no substitute part

Rtning Ring 961054-1
#17

Drill 1 assy diagram

Rtning ring

Part #961054-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 266105-8
#14A

Drill 1 assy diagram

Screw

Part #266105-8

The manufacturer no longer makes this part, and there's no substitute part
