GE
Room Air Conditioner

Model # ASM24DBD1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASM24DBD1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Ast10 +20 49-7405
#9999

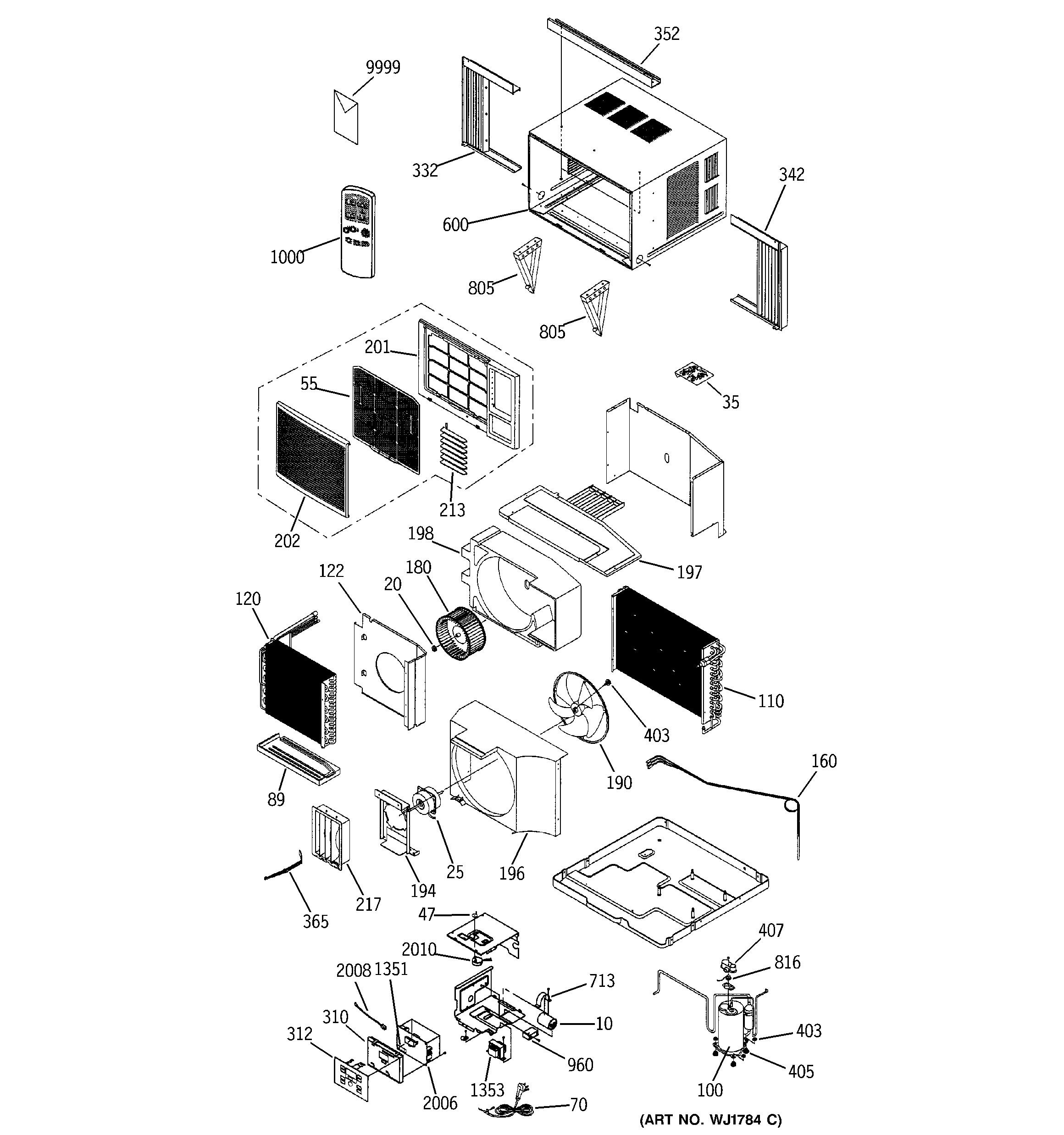

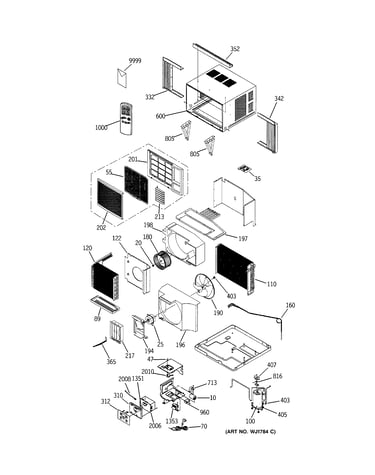

Room air conditioner diagram

Ast10 +20

Part #49-7405

Replaced by #49-7405-2

?
Manufacturer substitution
This part replaces 49-7405. Substitute parts can look different from the original.
$8.49
In Stock
Remote Control WJ26X10022
#1000

Room air conditioner diagram

Remote control

Part #WJ26X10022

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Coil WJ01X10111
#197

Room air conditioner diagram

Evaporator coil

Part #WJ01X10111

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb WJ26X10054
#2006

Room air conditioner diagram

Main pcb

Part #WJ26X10054

The manufacturer no longer makes this part, and there's no substitute part

Condenser WJ88X10044
#110

Room air conditioner diagram

Condenser

Part #WJ88X10044

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket WJ68X10018
#805

Room air conditioner diagram

Mounting bracket

Part #WJ68X10018

The manufacturer no longer makes this part, and there's no substitute part

Motor WJ94X10110
#25

Room air conditioner diagram

Motor

Part #WJ94X10110

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3.15a WP23X10017
#1351

Room air conditioner diagram

Fuse 3.15a

Part #WP23X10017

The manufacturer no longer makes this part, and there's no substitute part

Shutter, Left WJ86X10046
#332

Room air conditioner diagram

Shutter, left

Part #WJ86X10046

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 6 WJ20X10051
#960

Room air conditioner diagram

Capacitor 6

Part #WJ20X10051

The manufacturer no longer makes this part, and there's no substitute part
