Model # KECC568GAL3 Official KitchenAid electric counter unit

Here are the diagrams and repair parts for Official KitchenAid KECC568GAL3 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Surface Element 8272567
#24A

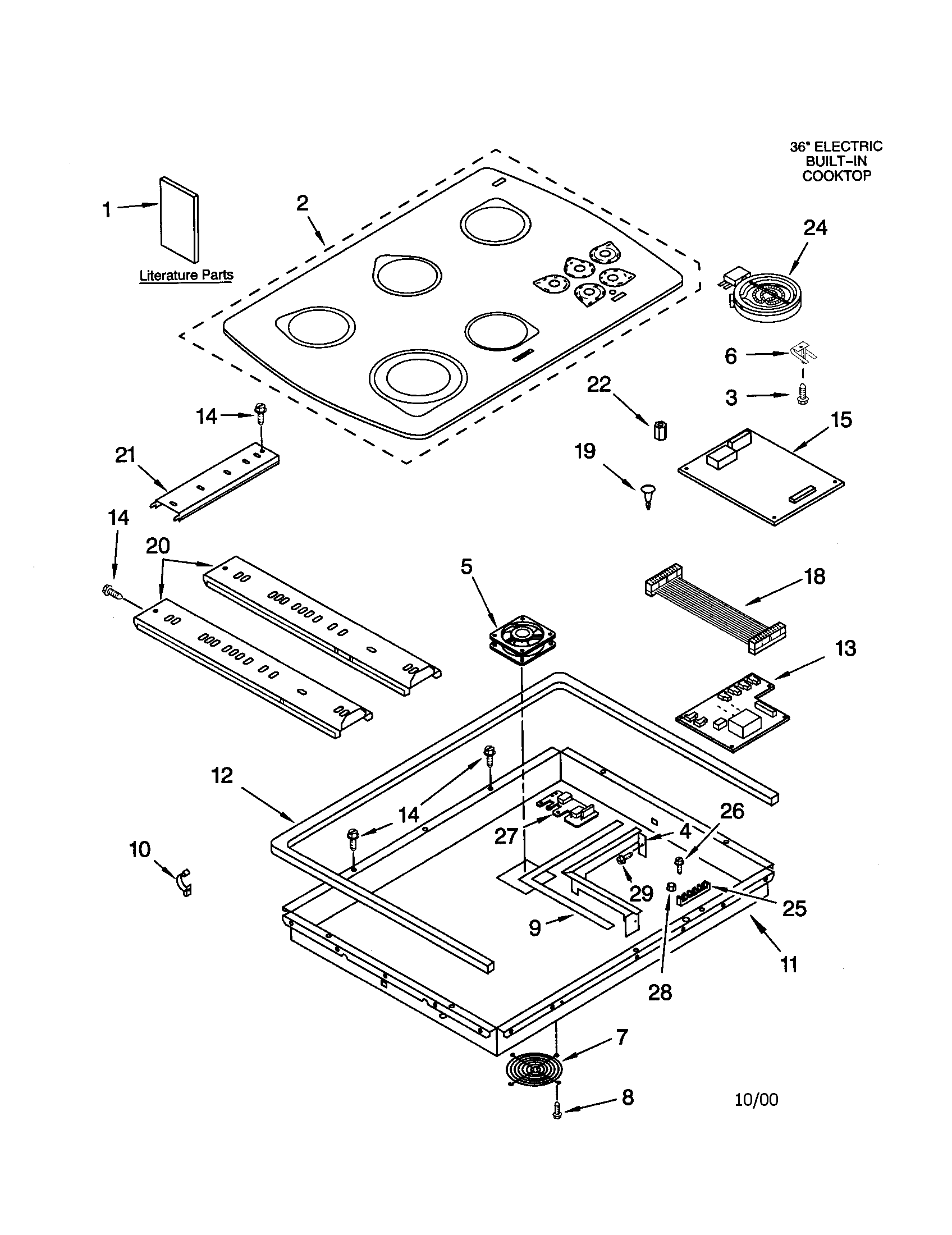

Cooktop diagram

Surface element

Part #8272567

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 8272567. Substitute parts can look different from the original.
BEST SELLER
$184.51
5% OFF Phone Price : $194.51
In Stock
Screw 3196537
#14

Cooktop diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Surface Element 8272566
#24B

Cooktop diagram

Surface element

Part #8272566

Replaced by #W10823698

?
Manufacturer substitution
This part replaces 8272566. Substitute parts can look different from the original.
$137.66
7% OFF Phone Price : $147.66
In Stock
Terminal Block 4449868
#25

Cooktop diagram

Terminal block

Part #4449868

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 4449868. Substitute parts can look different from the original.
This item is not returnable
$16.46
11% OFF Phone Price : $18.46
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

In Stock
Nut 112432
#28

Cooktop diagram

Nut

Part #112432

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Microcomputer 3192772
#15

Cooktop diagram

Microcomputer

Part #3192772

The manufacturer no longer makes this part, and there's no substitute part

Polish 3191048

#NI

All parts diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$10.89
16% OFF Phone Price : $12.89
In Stock
Screw 3400015

#NI

All parts diagram

Screw

Part #3400015

Replaced by #WP3400015

?
Manufacturer substitution
This part replaces 3400015. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Screw 3177991
#29

Cooktop diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
