Model # 153333850 Official Kenmore water heater
Here are the diagrams and repair parts for Official Kenmore 153333850 water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for153333850 Water Heaters
- #16

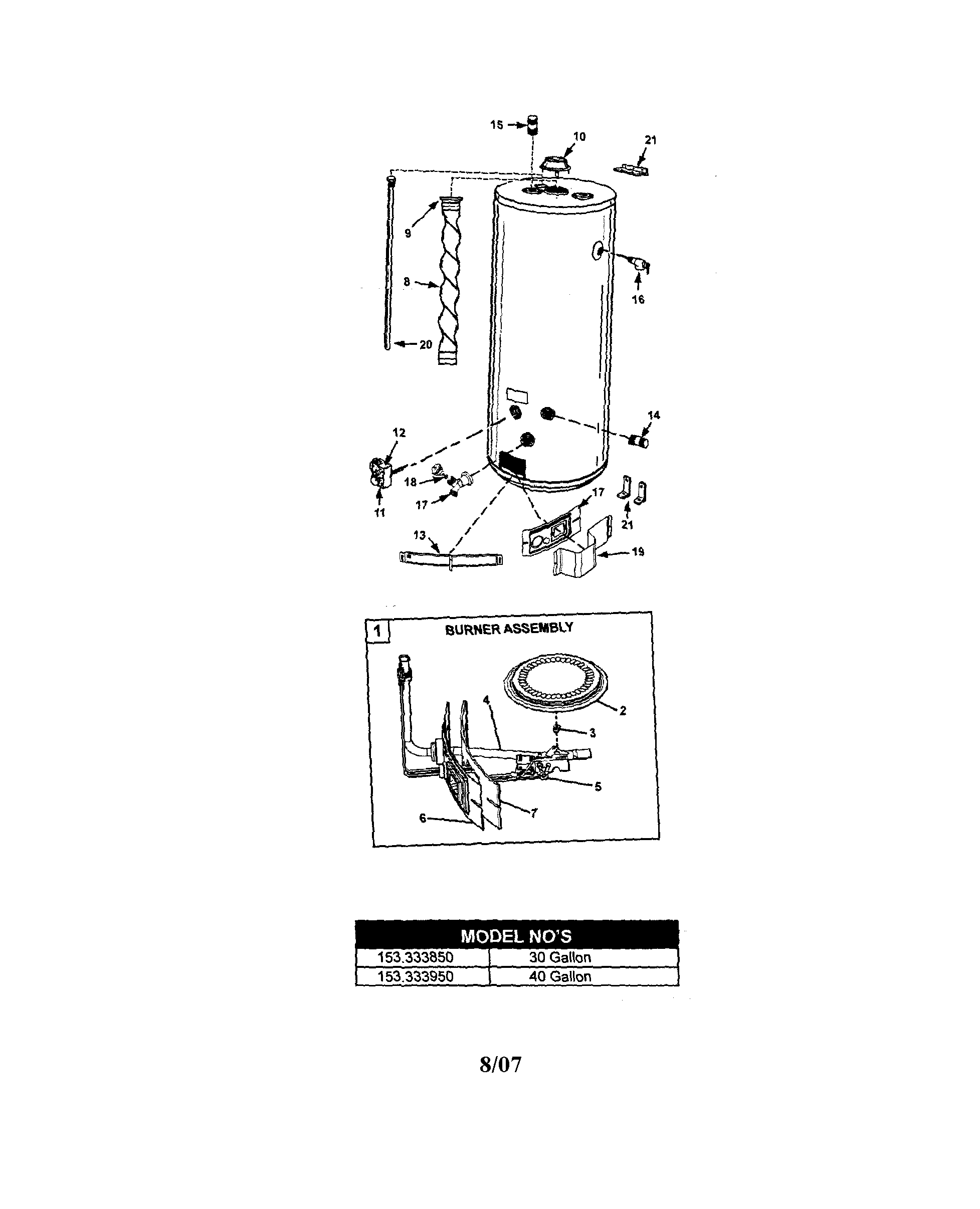

Water heater diagram
Water heater temperature and pressure relief valvePart #9000071
Replaced by #100108279
?Manufacturer substitutionThis part replaces 9000071. Substitute parts can look different from the original.$53.56 |10% OFF Phone Price : $59.56In Stock - #19
Water heater diagram
Outer doorPart #9003545
Replaced by #100109299
?Manufacturer substitutionThis part replaces 9003545. Substitute parts can look different from the original.$62.60In Stock - #11
Water heater diagram
Gas valvePart #9006384
Replaced by #100109075
?Manufacturer substitutionThis part replaces 9006384. Substitute parts can look different from the original.$341.56In Stock - #2
Water heater diagram
Water heater burnerPart #9003385
Replaced by #100109206
?Manufacturer substitutionThis part replaces 9003385. Substitute parts can look different from the original.$80.22In Stock - #20A
Water heater diagram
Anode rodPart #9003972
Replaced by #100109624
?Manufacturer substitutionThis part replaces 9003972. Substitute parts can look different from the original.$51.59 |10% OFF Phone Price : $57.59Back Order - #4
Water heater diagram
Burner tubePart #9006378
Replaced by #100111144
?Manufacturer substitutionThis part replaces 9006378. Substitute parts can look different from the original.$72.22In Stock - #4A
Water heater diagram
Burner tubePart #9006379
Replaced by #100111145
?Manufacturer substitutionThis part replaces 9006379. Substitute parts can look different from the original.$72.22In Stock - #1
Water heater diagram
Water heater burner assemblyPart #9006369
Replaced by #100111137
?Manufacturer substitutionThis part replaces 9006369. Substitute parts can look different from the original.$270.11In Stock - #22
Water heater diagram
Convers ktPart #9006389
Replaced by #100111152
?Manufacturer substitutionThis part replaces 9006389. Substitute parts can look different from the original.$145.00In Stock - #9
Water heater diagram
RingPart #9000275
Replaced by #100108369
?Manufacturer substitutionThis part replaces 9000275. Substitute parts can look different from the original.$53.73In Stock
