Kenmore
Room Air Conditioner

Model # 58075119700 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075119700 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

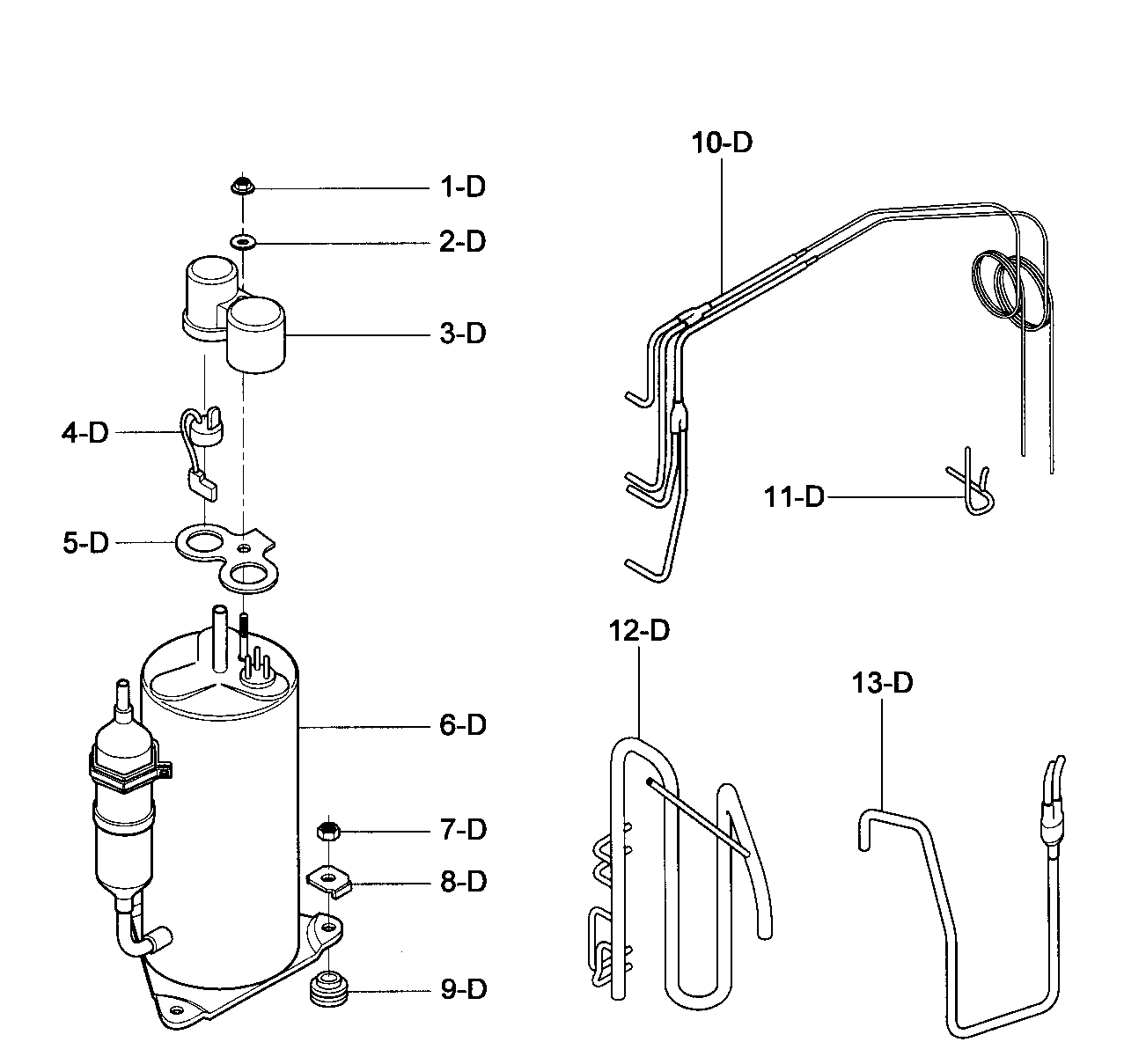

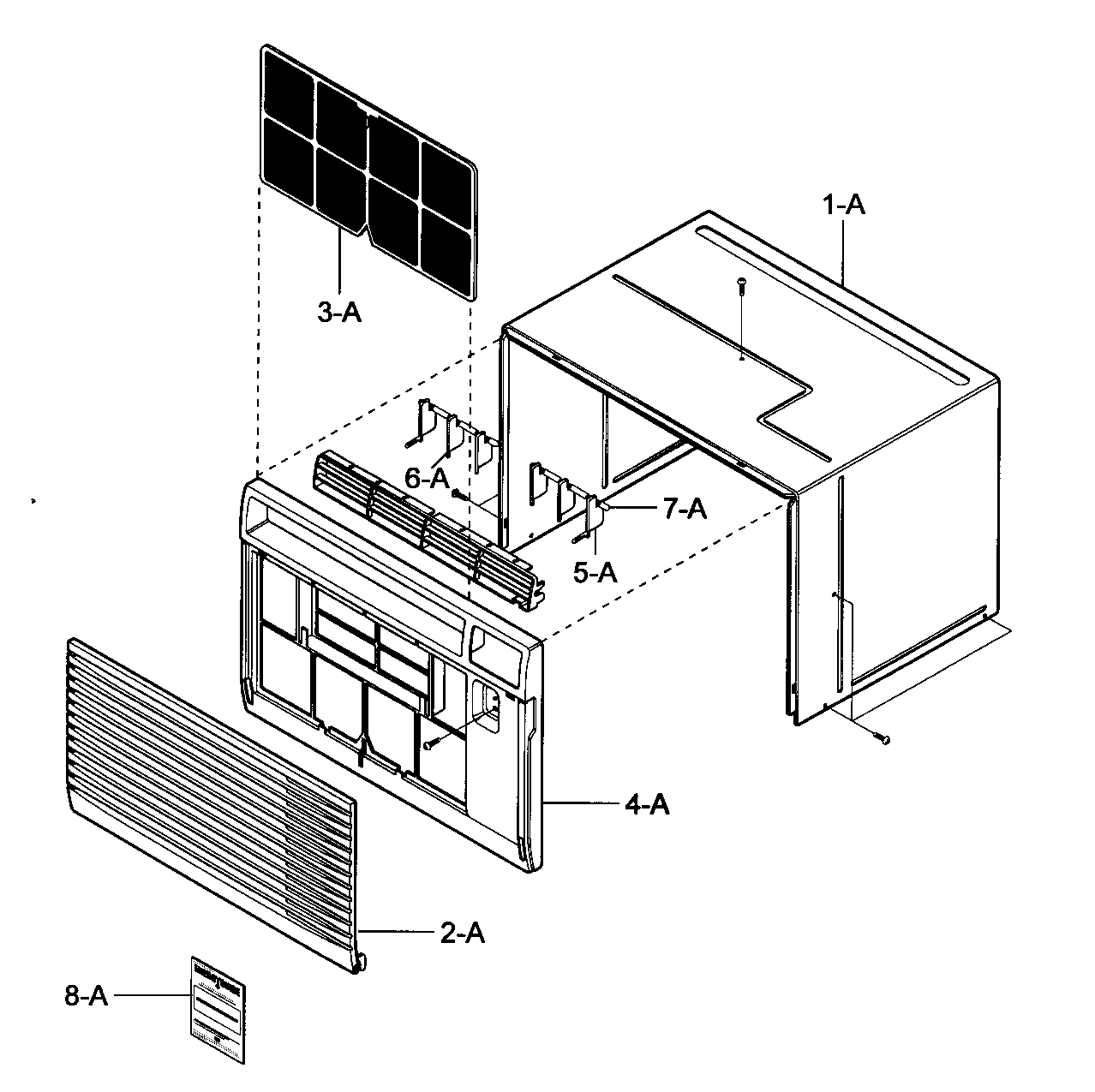

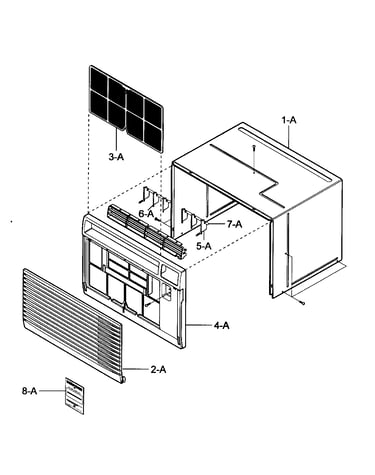

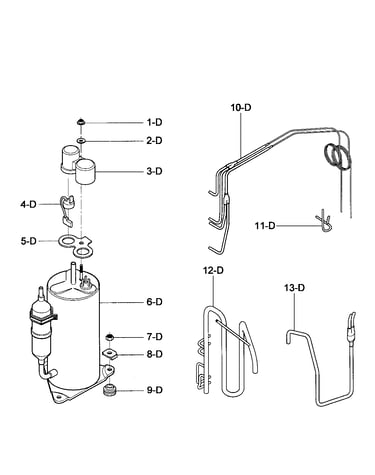

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Heater Assembly (replaces 5301a30001a) 5300A20003A
#12C

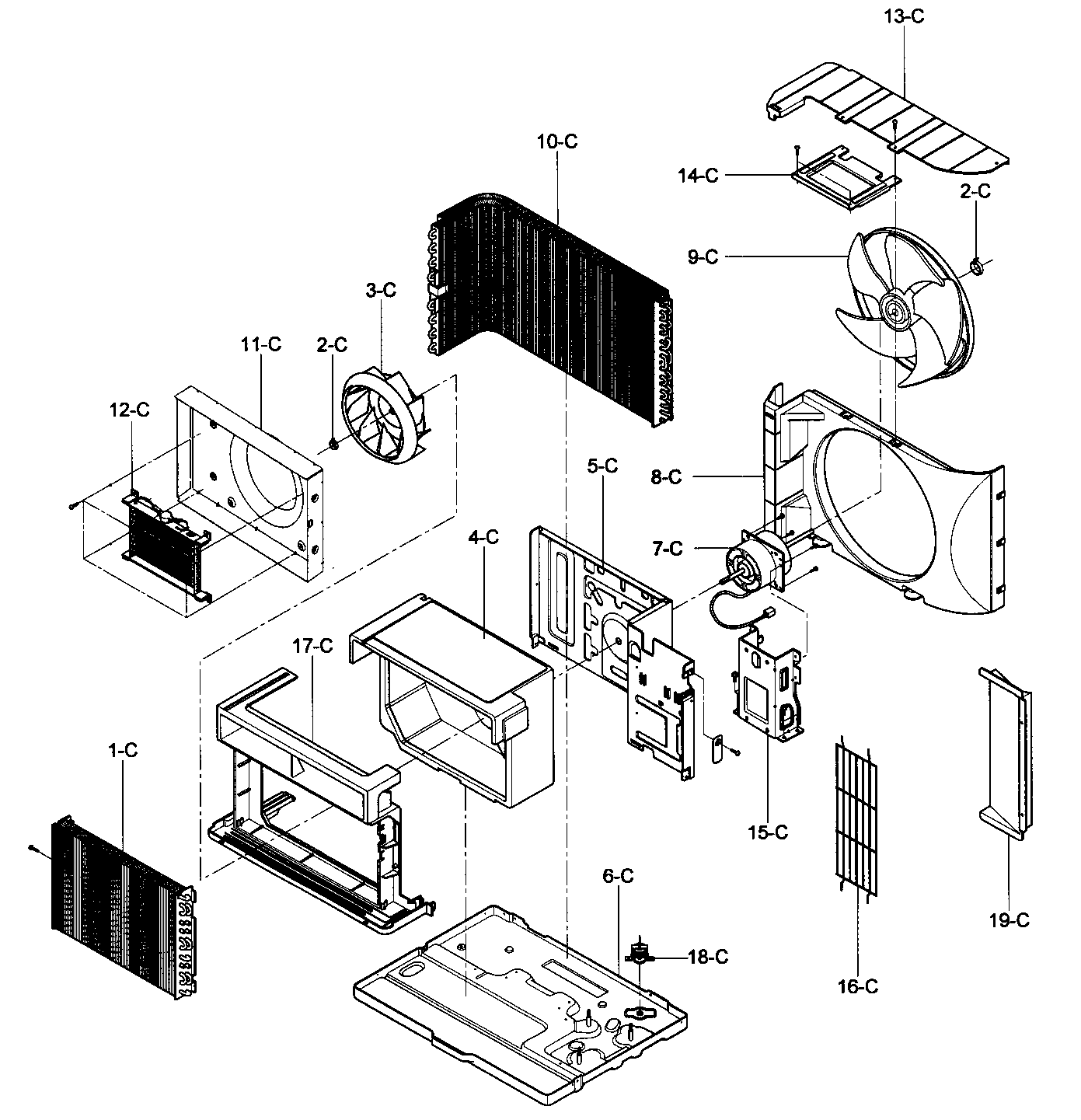

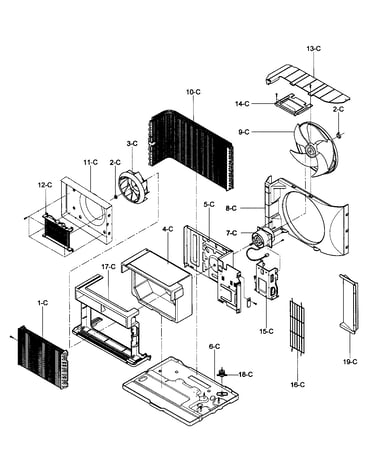

Air handling/cycle parts diagram

Room air conditioner heater assembly (replaces 5301a30001a)

Part #5300A20003A

$118.73 |
9% OFF Phone Price : $130.73
In Stock
Room Air Conditioner Front Trim 4918A20001A
#1E

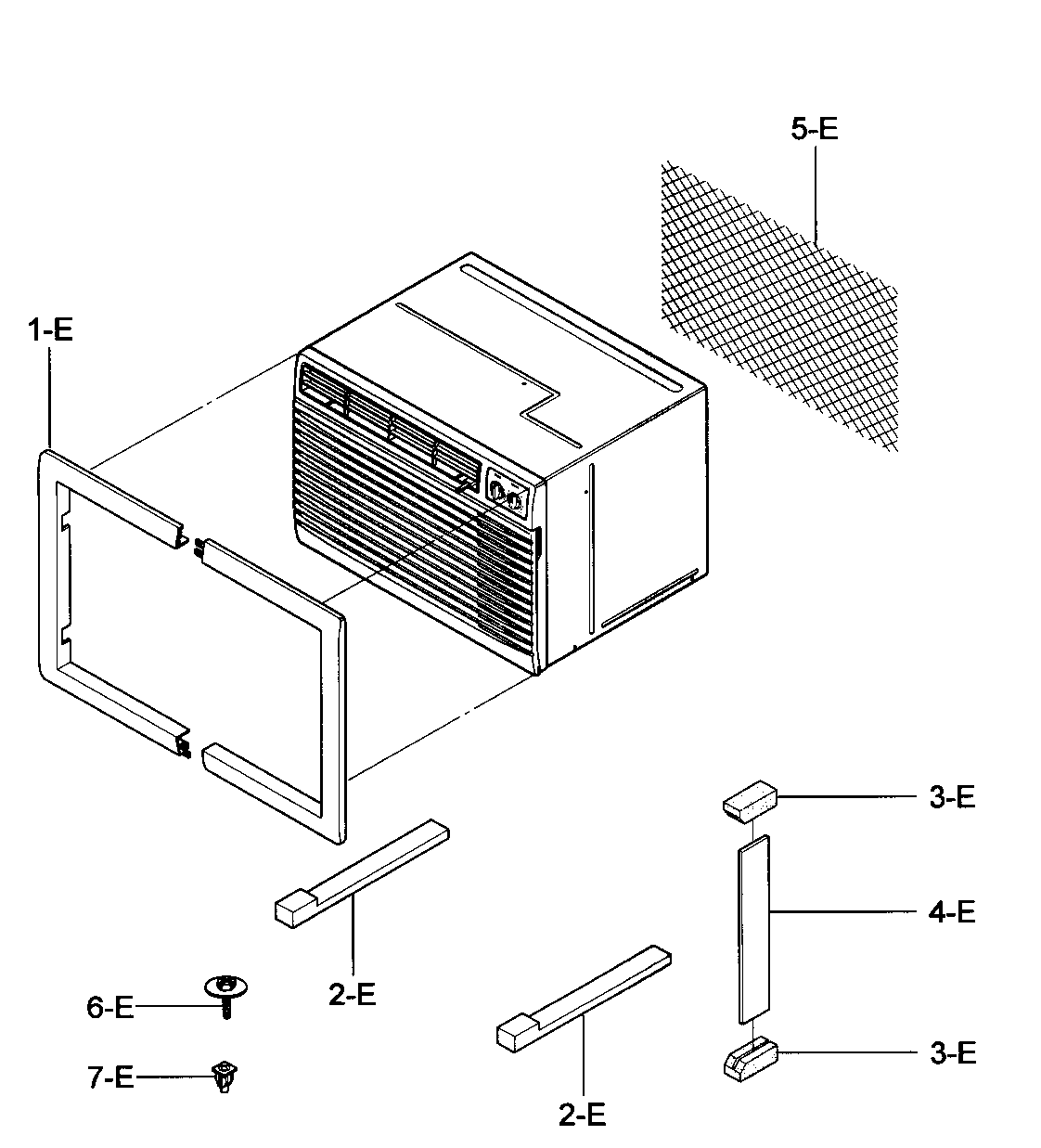

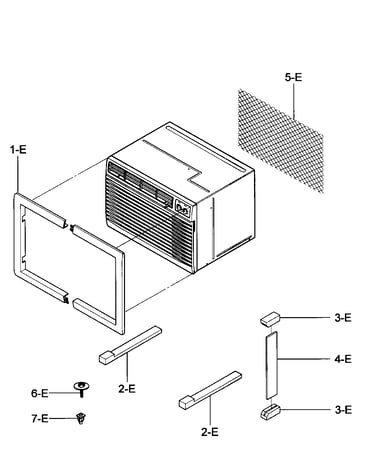

Installation kit assy diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Room Air Conditioner Rotary Switch 2H00598F
#5B

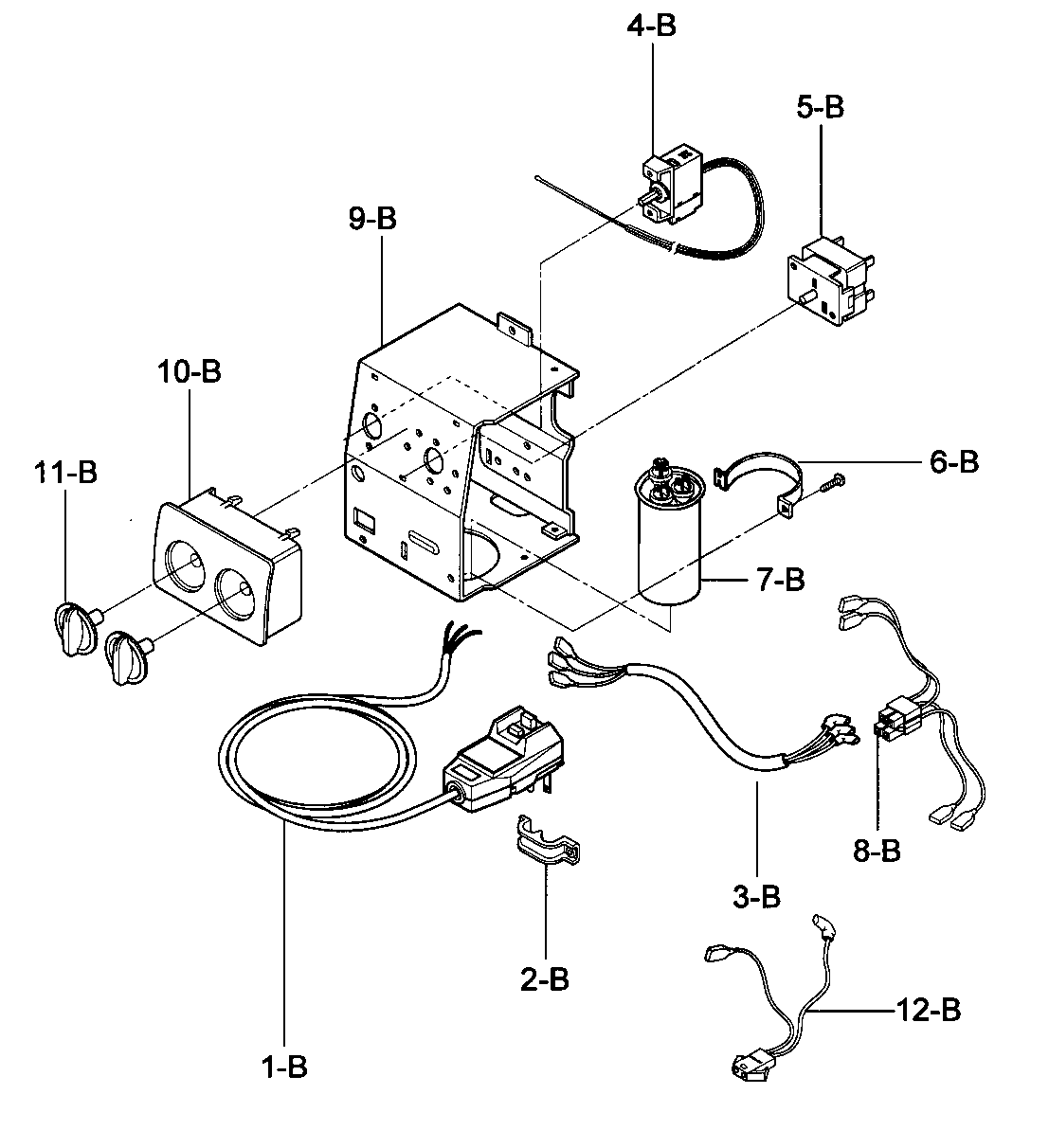

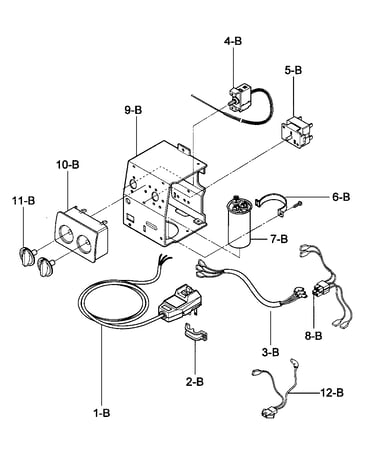

Control box assy diagram

Room air conditioner rotary switch

Part #2H00598F

$31.05 |
16% OFF Phone Price : $37.05
In Stock
Orifice 4948A10006A
#11C

Air handling/cycle parts diagram

Orifice

Part #4948A10006A

$24.09
In Stock
Lg Screw 4001AR4160A
#6E

Installation kit assy diagram

Lg screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Mech Sheet 3858A20001A
#4E

Installation kit assy diagram

Mech sheet

Part #3858A20001A

This item is not returnable
$4.84
In Stock
Turbo Fan 5900A20009B
#3C

Air handling/cycle parts diagram

Turbo fan

Part #5900A20009B

$46.60
In Stock
Guide 4974A30053A
#7E

Installation kit assy diagram

Guide

Part #4974A30053A

This item is not returnable
$4.51
In Stock
Scroll 3072A20003B
#4C

Air handling/cycle parts diagram

Scroll

Part #3072A20003B

$24.09
In Stock
Room Air Conditioner Condenser Fan Shroud 4998A10007B
#8C

Air handling/cycle parts diagram

Room air conditioner condenser fan shroud

Part #4998A10007B

$29.98
In Stock
