Model # FU199LRW2 Official White-Westinghouse upright freezer - lw30889130

Here are the diagrams and repair parts for Official White-Westinghouse FU199LRW2 upright freezer - lw30889130, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

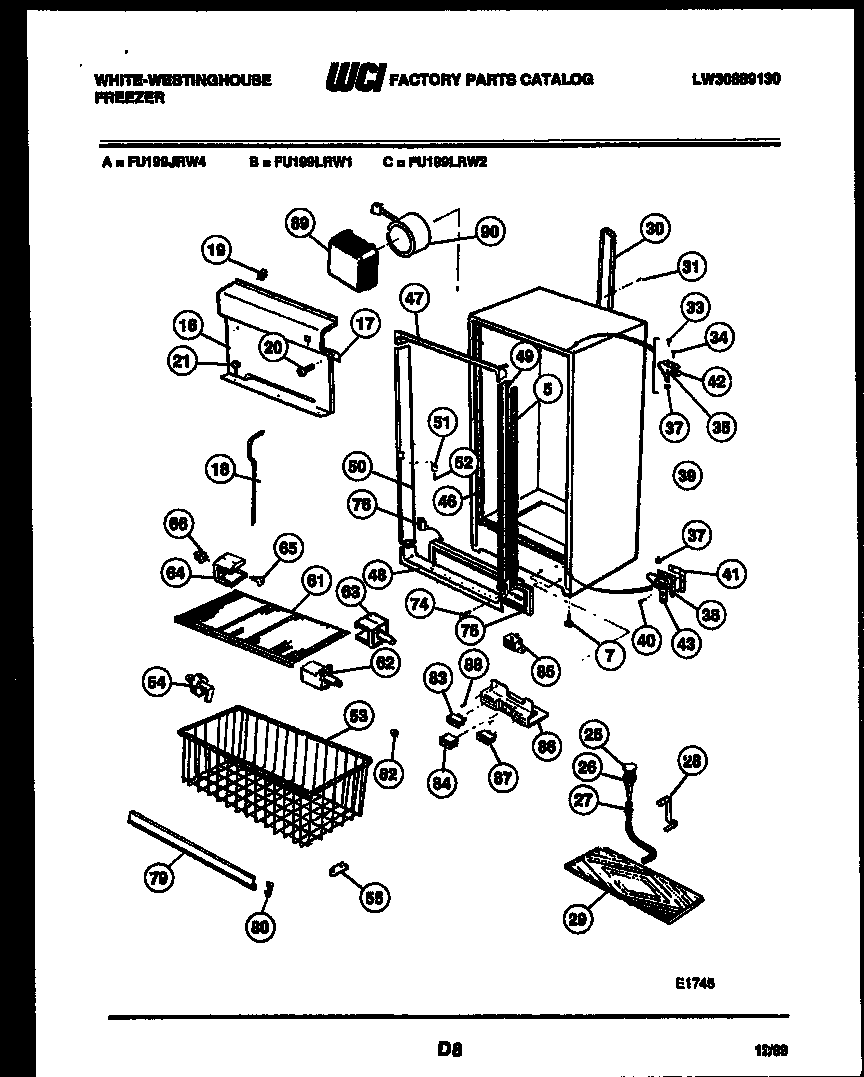

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Filter 08000027
#26

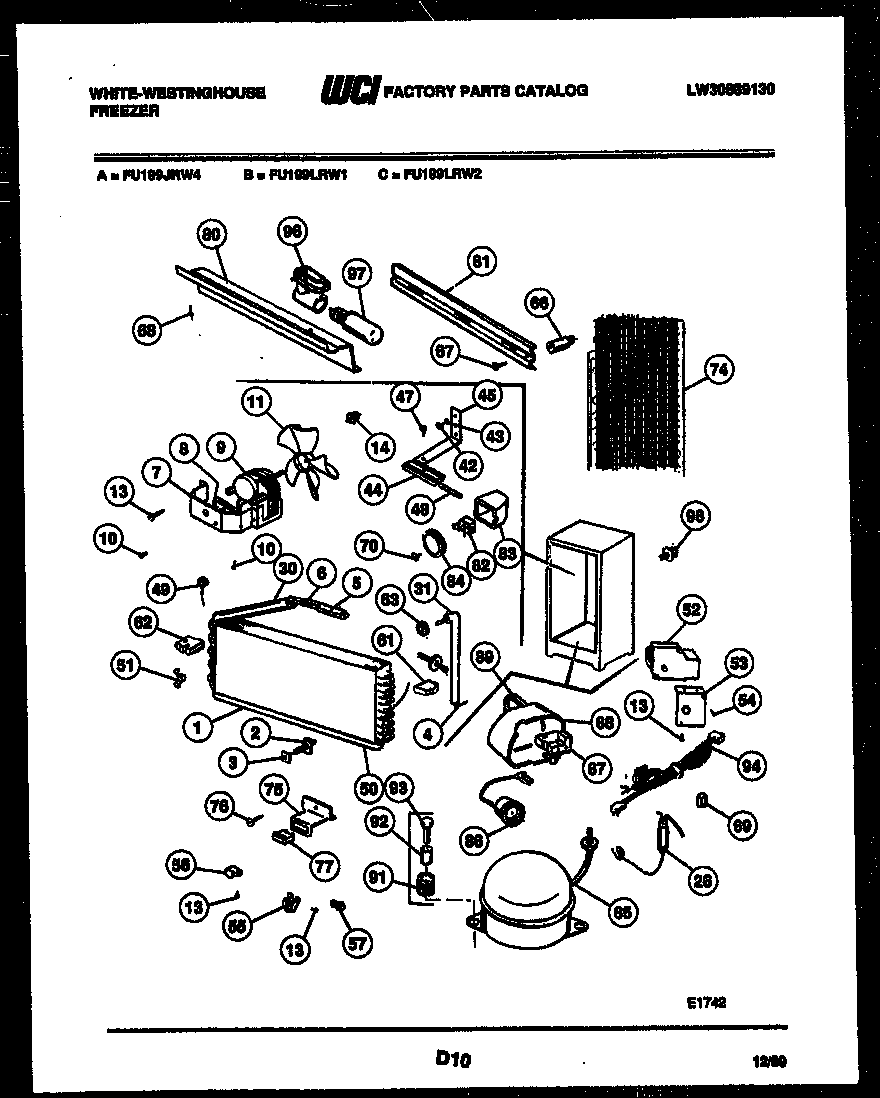

System and automatic defrost parts diagram

Filter

Part #08000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 08000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
22% OFF MSRP : $16.34
In Stock
Key 08037402
#47

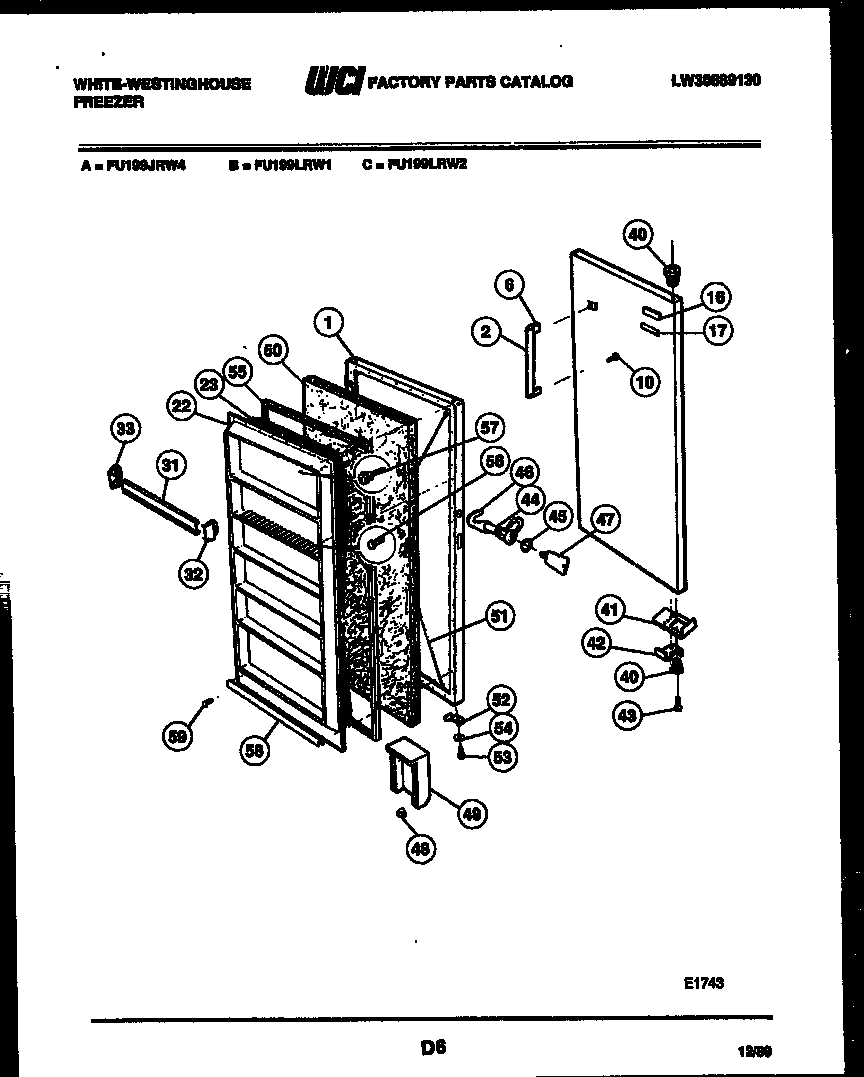

Door parts diagram

Key

Part #08037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 08037402. Substitute parts can look different from the original.
BEST SELLER
$9.12 |
10% OFF Phone Price : $10.12
In Stock
Clip 3091422
#59

Door parts diagram

Clip

Part #3091422

Replaced by #5304406520

?
Manufacturer substitution
This part replaces 3091422. Substitute parts can look different from the original.
BEST SELLER
$32.48 |
13% OFF Phone Price : $37.48
In Stock
Timer 08037967
#52

System and automatic defrost parts diagram

Timer

Part #08037967

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 08037967. Substitute parts can look different from the original.
BEST SELLER
$45.63 |
10% OFF Phone Price : $50.63
In Stock
Thermostat 3016814
#49

System and automatic defrost parts diagram

Thermostat

Part #3016814

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 3016814. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
17% OFF Phone Price : $29.36
In Stock
Bearing 08016490
Bearing

Part #08016490

Replaced by #297006800

?
Manufacturer substitution
This part replaces 08016490. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Gasket 3201004
#55

Door parts diagram

Gasket

Part #3201004

Replaced by #3206256

?
Manufacturer substitution
This part replaces 3201004. Substitute parts can look different from the original.
$166.65 |
6% OFF Phone Price : $176.65
In Stock
Valve 09950074
#48

Door parts diagram

Valve

Part #09950074

Replaced by #5309950074

?
Manufacturer substitution
This part replaces 09950074. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Gasket 08016359
#55

Door parts diagram

Gasket

Part #08016359

Replaced by #3206256

?
Manufacturer substitution
This part replaces 08016359. Substitute parts can look different from the original.
$166.65 |
6% OFF Phone Price : $176.65
In Stock
Condenser F83897
#74

System and automatic defrost parts diagram

Condenser

Part #F83897

Replaced by #5300083897

?
Manufacturer substitution
This part replaces F83897. Substitute parts can look different from the original.
This item is not returnable
$417.18 |
$10.00 OFF Phone Price : $427.18
In Stock
