Model # 25372055201 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 25372055201 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

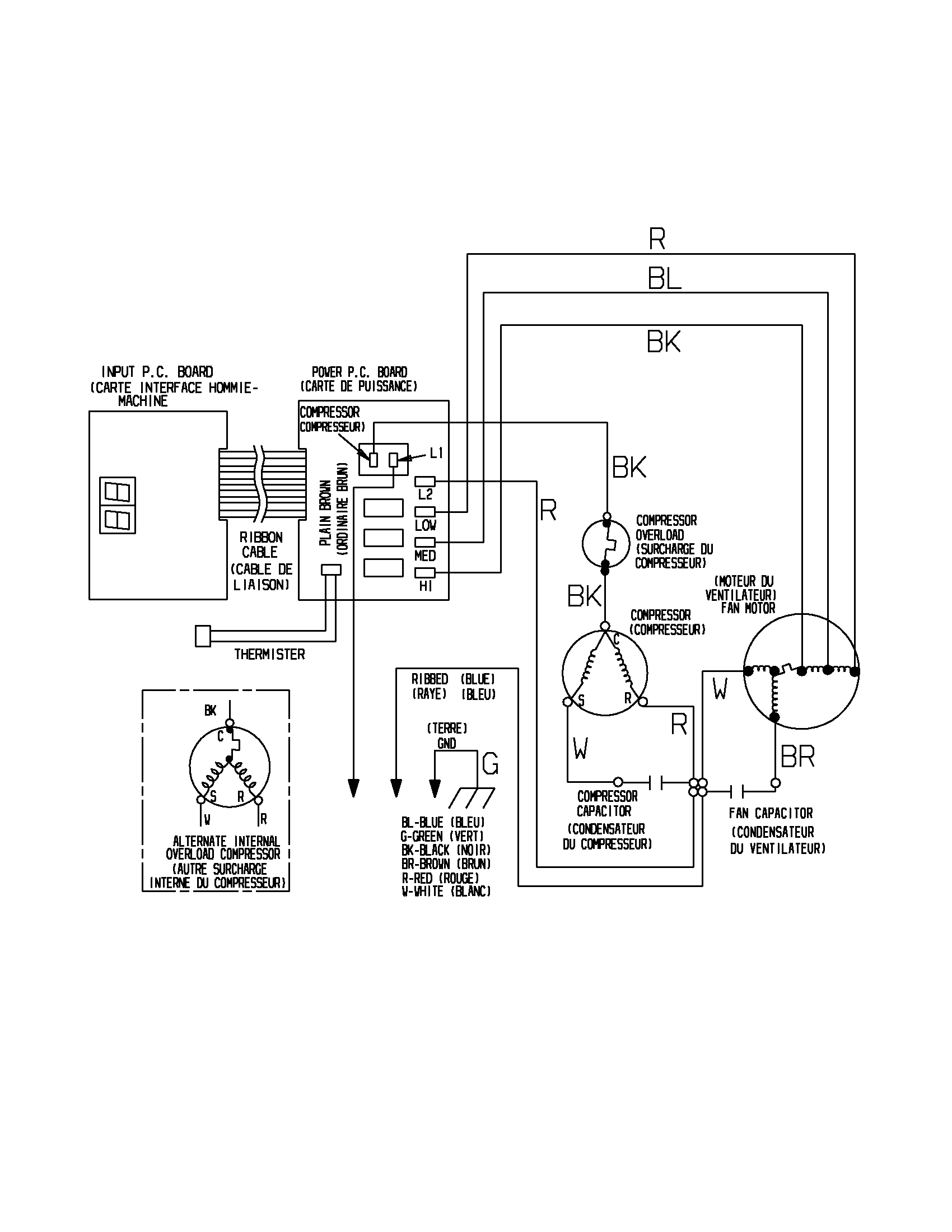

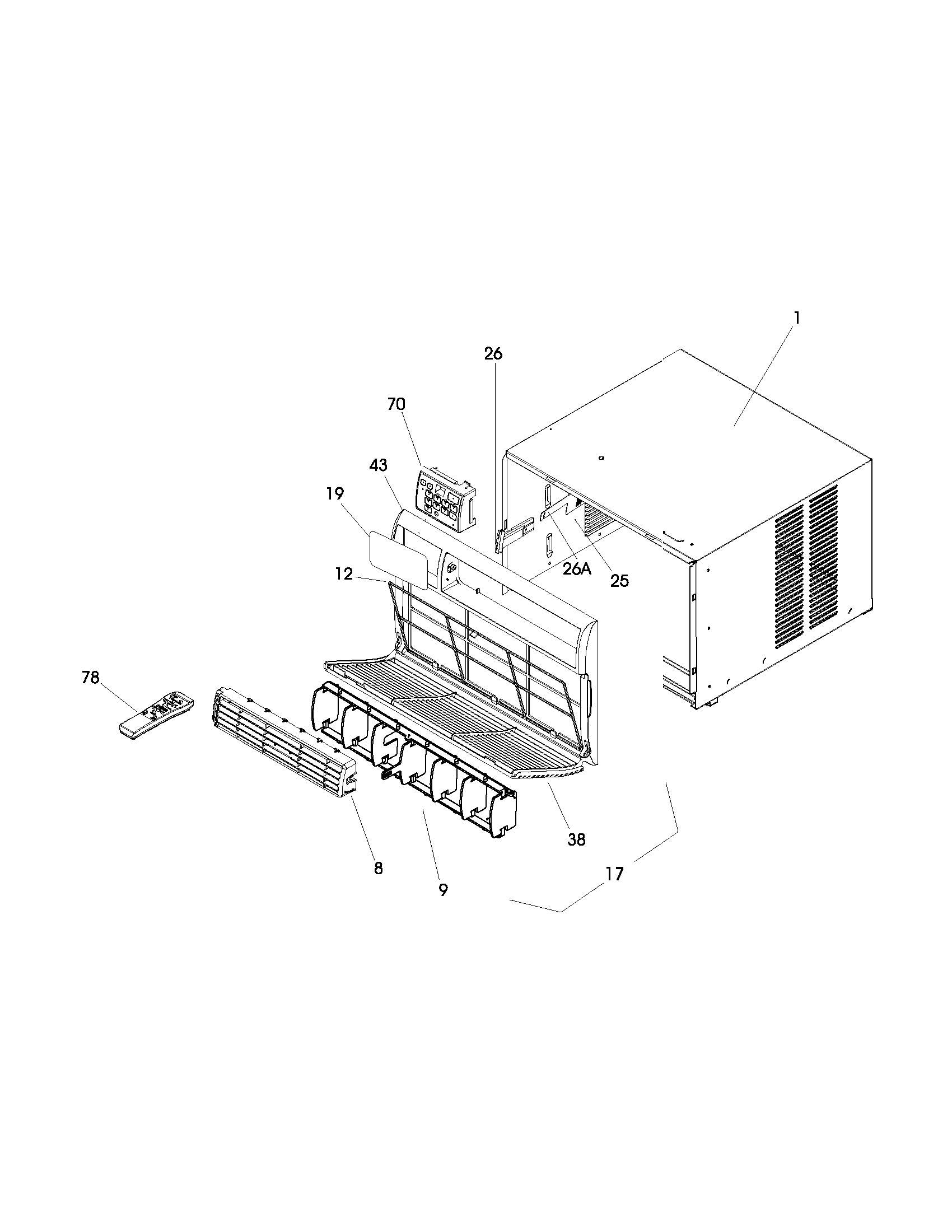

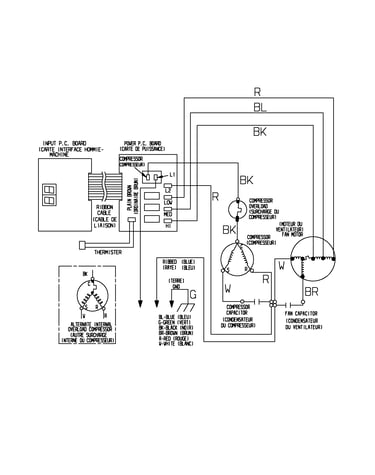

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Bracket Screw 5303301590
#74

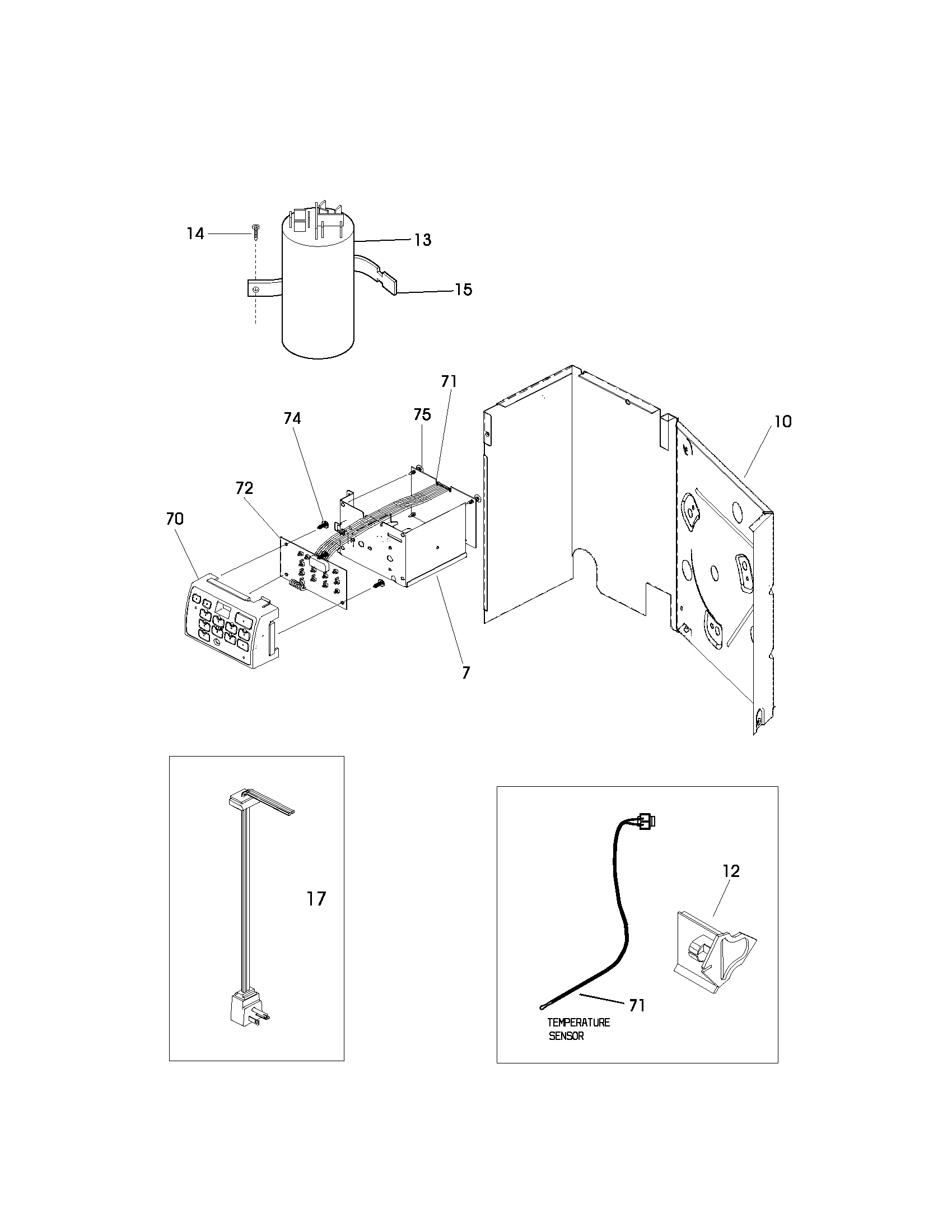

Control parts diagram

Bracket screw

Part #5303301590

This item is not returnable
In Stock
Evaporator 309604223
#11

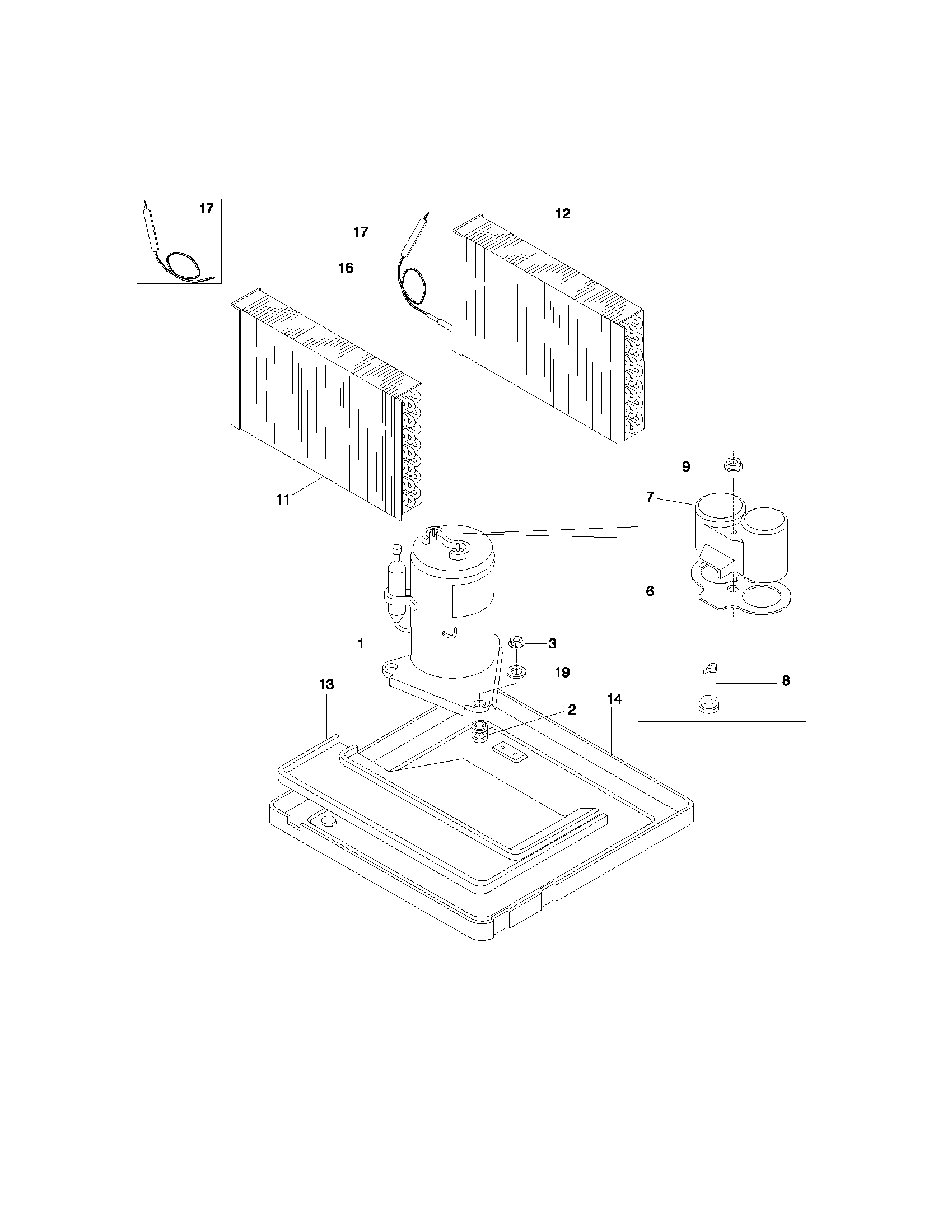

Compressor parts diagram

Evaporator

Part #309604223

In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Foam Strip 5304407729
#1

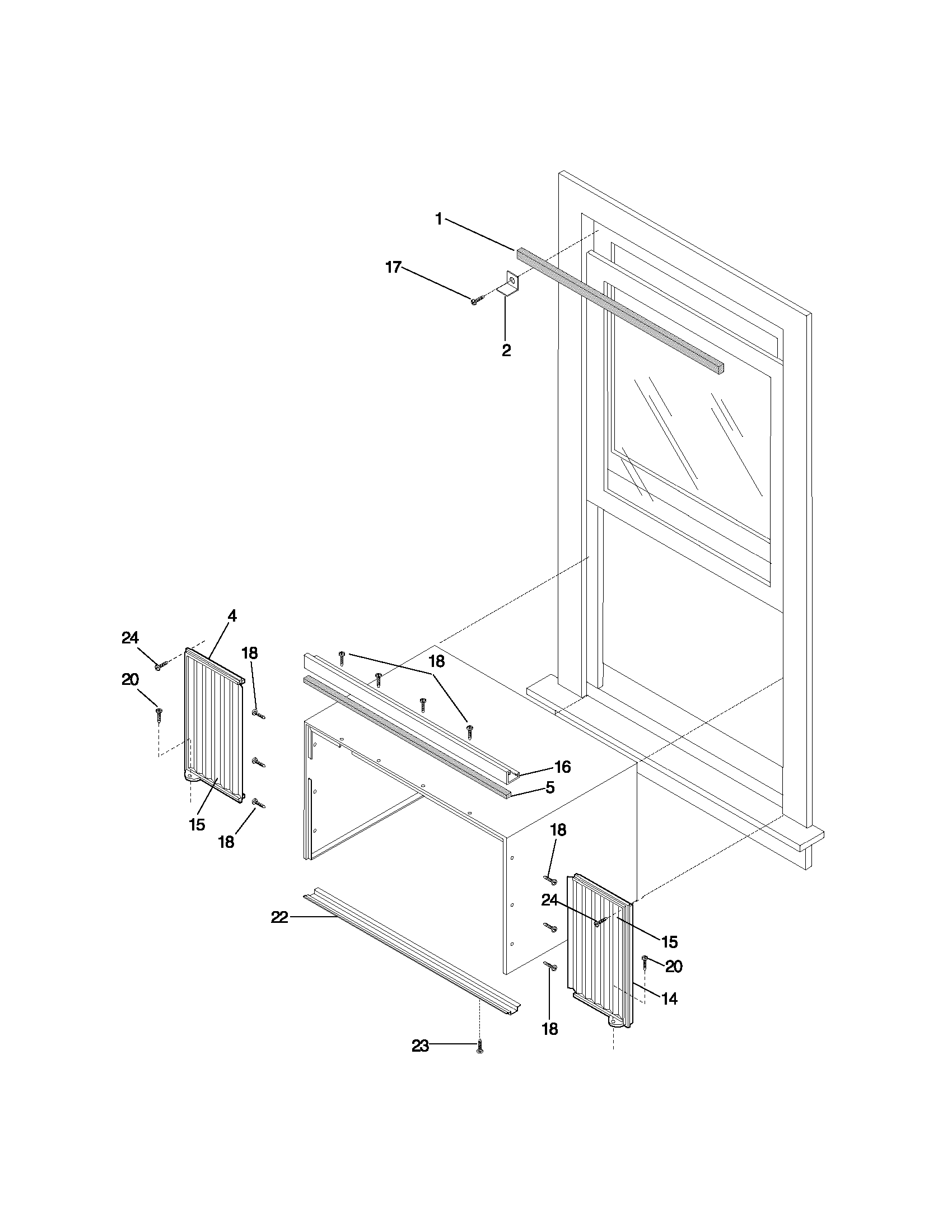

Window mounting parts diagram

Foam strip

Part #5304407729

In Stock
Room Air Conditioner Screw, #8-18 X 0.75-in 5304411997
#20

Window mounting parts diagram

Room air conditioner screw, #8-18 x 0.75-in

Part #5304411997

This item is not returnable
In Stock
Screw 3202975
#2

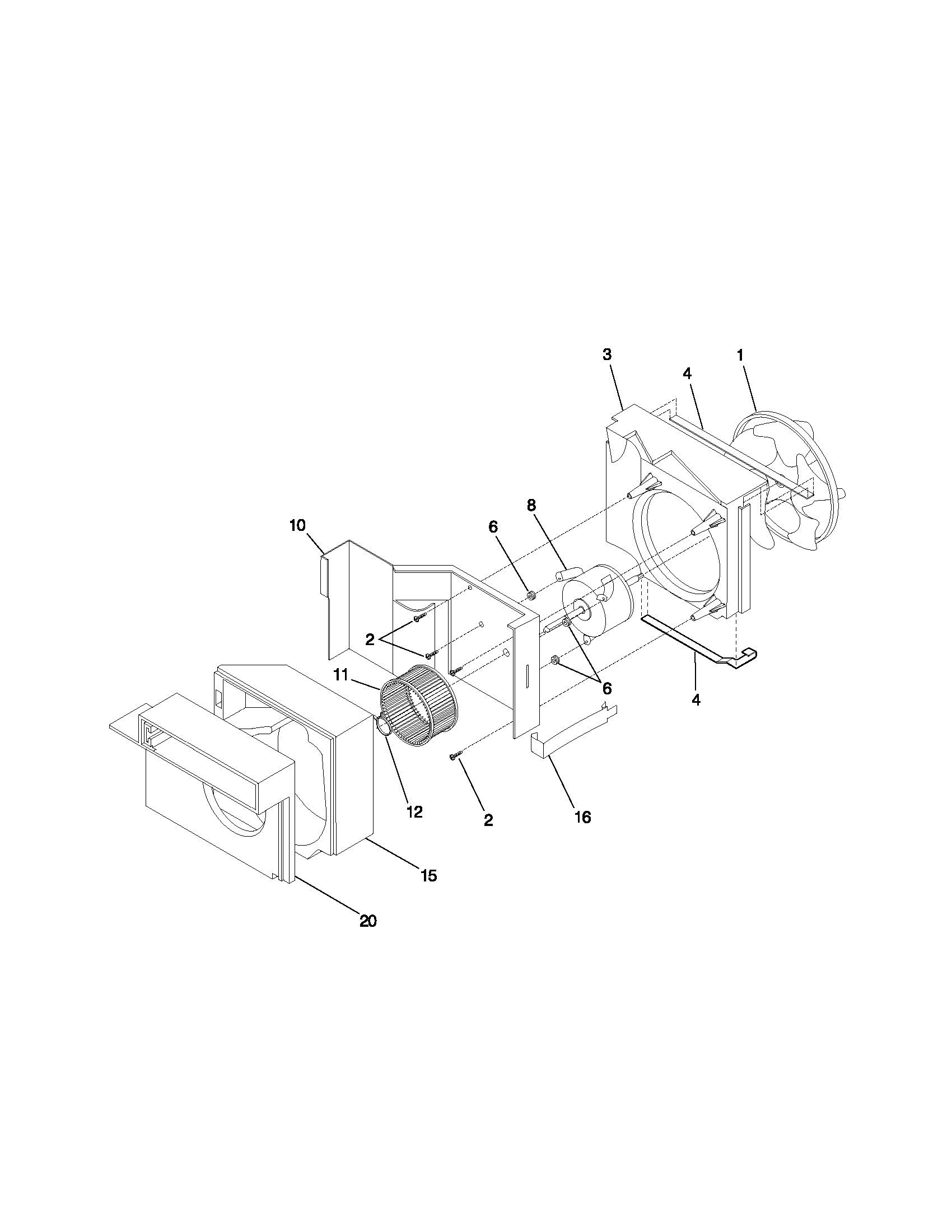

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 5303303691
#18

Window mounting parts diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
In Stock
Capillary Tube 5304417693
#16

Compressor parts diagram

Capillary tube

Part #5304417693

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5304426656
#1

Compressor parts diagram

Compressor

Part #5304426656

The manufacturer no longer makes this part, and there's no substitute part

Condenser 309645301
#12

Compressor parts diagram

Condenser

Part #309645301

The manufacturer no longer makes this part, and there's no substitute part
