Universal/Multiflex (Frigidaire)
Chest Freezer

Model #MFC09M1BW1 Official Universal/Multiflex (Frigidaire) chest freezer - 5995264206

Here are the diagrams and repair parts for Universal/Multiflex (Frigidaire) MFC09M1BW1 chest freezer - 5995264206, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Showing 10 of 40 parts

Freezer Door Hinge#28

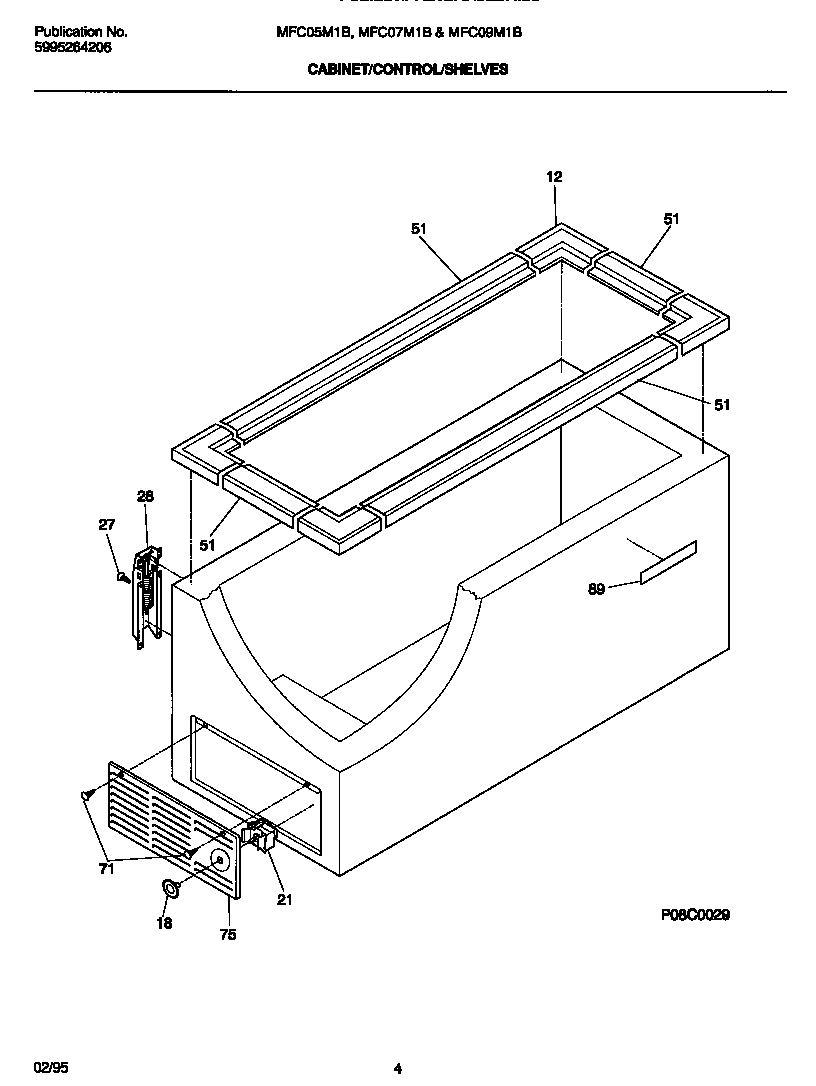

Cabinet/control/shelves Diagram

Hinge

Part #216119201
Replaced by #297313200
?
Manufacturer substitution
This part replaces 216119201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.99 |
9% OFF
Phone Price: $56.99
Freezer Door Hinge#28

Cabinet/control/shelves Diagram

Hinge

Part #216119101
Replaced by #297313200
?
Manufacturer substitution
This part replaces 216119101. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.99 |
9% OFF
Phone Price: $56.99
Appliance Touch-Up Paint, 0.6-oz (White)

#NI

All parts Diagram

Touch paint

Part #5303305324
Replaced by #5303321319
?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.09 |
12% OFF
Phone Price: $17.09
Freezer Lid Gasket#1

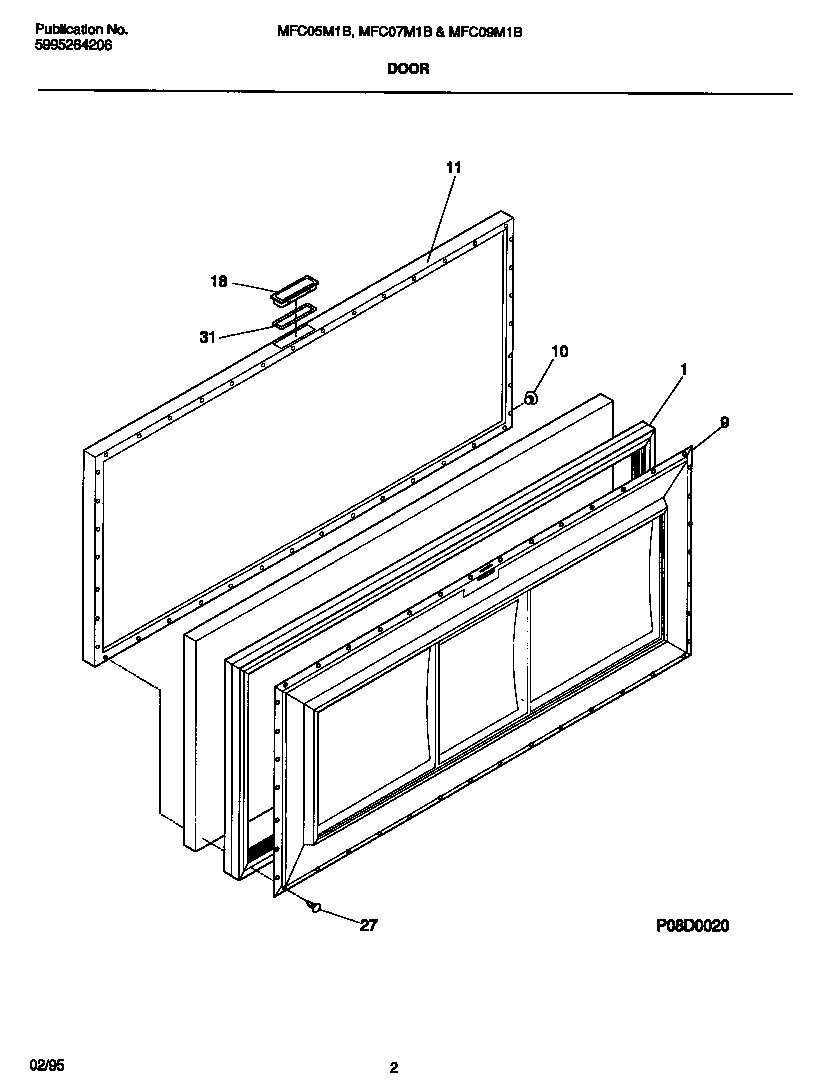

Door Diagram

Gasket

Part #216078400
Replaced by #216480801
?
Manufacturer substitution
This part replaces 216078400. Substitute parts can look different from the original.
In Stock
$134.25 |
7% OFF
Phone Price: $144.25
Refrigerator Door Insulation

#NI

All parts Diagram

In Stock
$212.89 |
$10.00 OFF
Phone Price: $222.89
Refrigerator Door Handle (Chrome)#18

Door Diagram

Handle

Part #216140200
Replaced by #297034202
?
Manufacturer substitution
This part replaces 216140200. Substitute parts can look different from the original.
In Stock
$49.89 |
9% OFF
Phone Price: $54.89
Freezer Lid Outer Panel (White)#11

Door Diagram

In Stock
$131.92
Freezer Lid Hinge Screw#27

Cabinet/control/shelves Diagram

Freezer lid hinge screw

Part #5309950602
This item is not returnable
In Stock
$4.99 |
17% OFF
Phone Price: $5.99
Freezer Panel#11

Door Diagram

Freezer panel

Part #5303925164
In Stock
$132.80

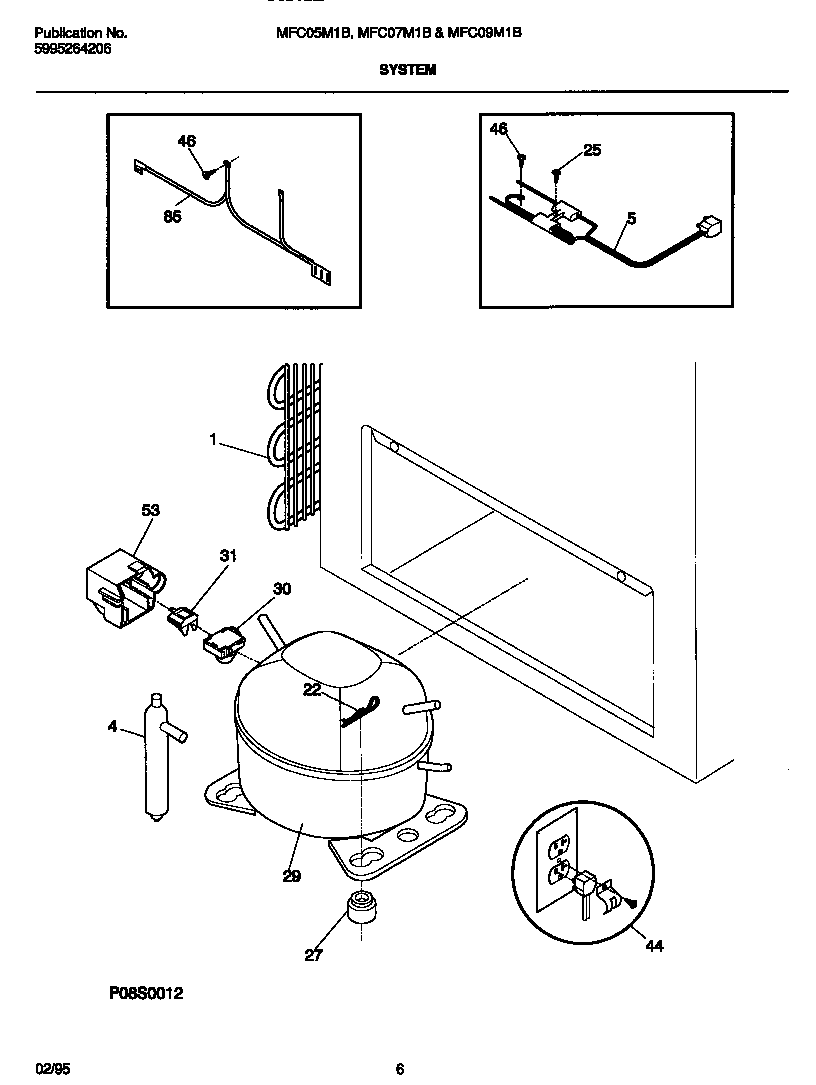

Refrigerator Filter Dryer#4

System Diagram

In Stock
$11.44 |
30% OFF
MSRP: $16.34

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
