GE TBX22ZLTRAD refrigerator Parts

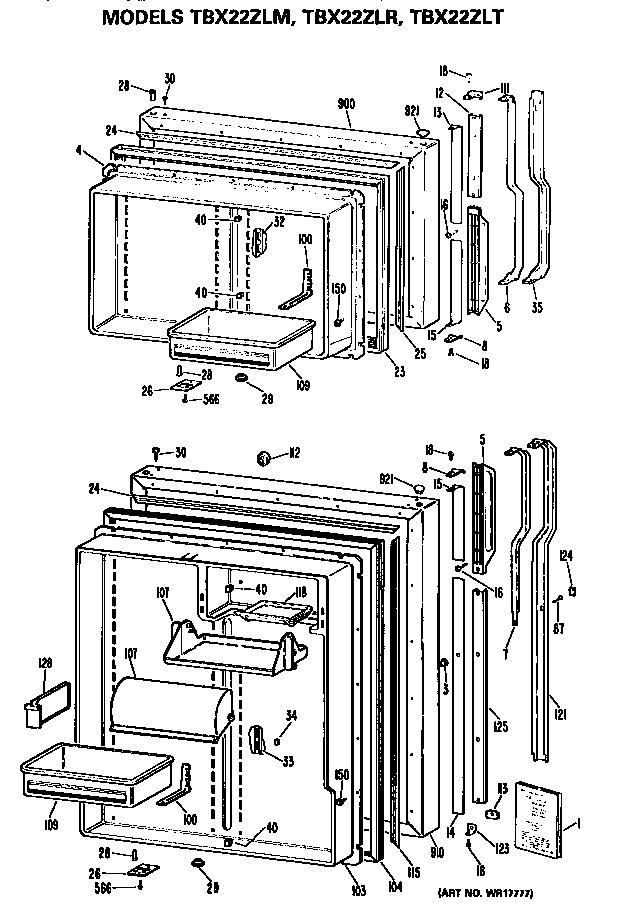

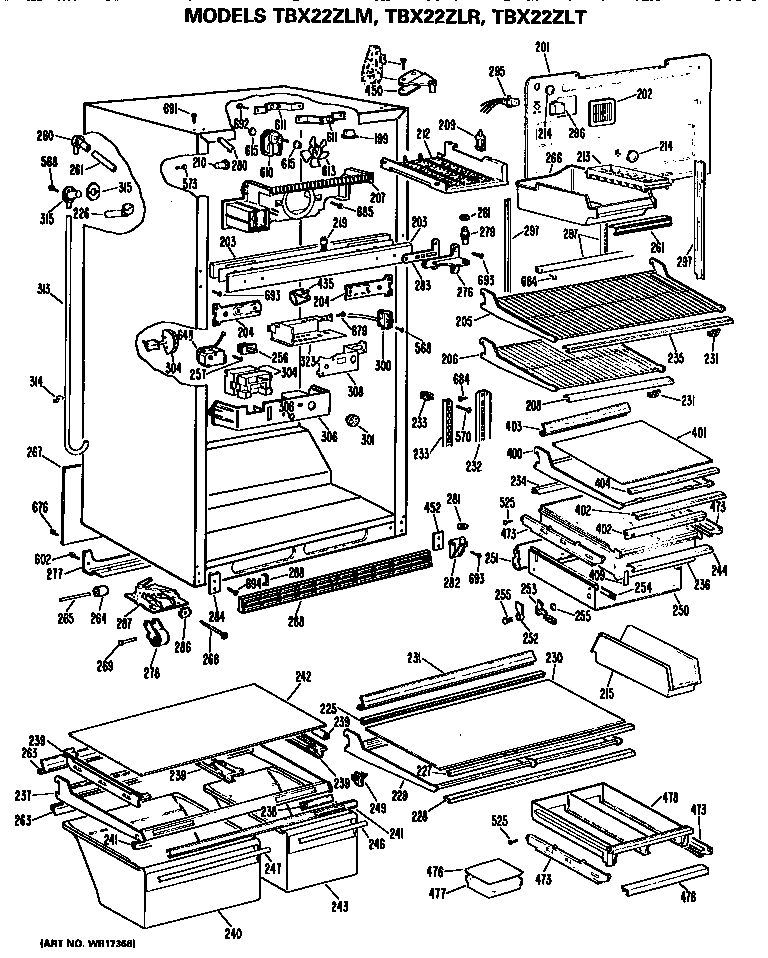

Here are the diagrams and repair parts for GE TBX22ZLTRAD refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for TBX22ZLTRAD Refrigerators
#740

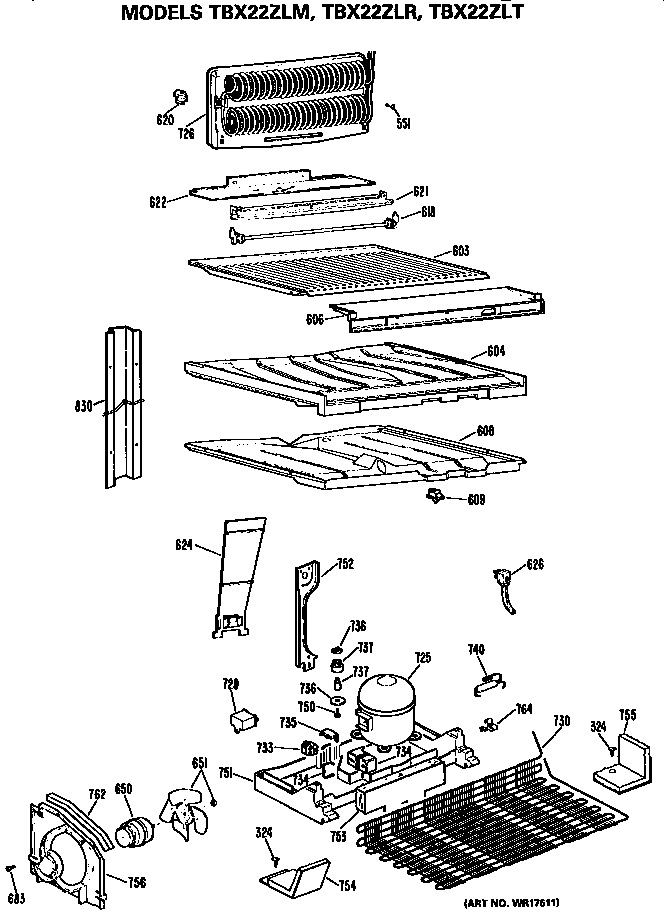

All parts diagram
Dryer Assembly
Part #WR86X86Replaced by #WR86X25269
Manufacturer substitutionThis part replaces WR86X86. Substitute parts can look different from the original.In Stock$46.3645% OFF Was : $83.96
Qty
#435
All parts diagram
40a15/22
Part #STD372402Replaced by #40A15
Manufacturer substitutionThis part replaces STD372402. Substitute parts can look different from the original.In Stock$14.9512% OFF Phone Price : $16.95Qty#650
All parts diagram
Refrigerator Condenser Fan Motor
Part #WR60X179Replaced by #WR60X187
Manufacturer substitutionThis part replaces WR60X179. Substitute parts can look different from the original.In Stock$260.70$12.00 OFF Phone Price : $272.70Qty#626
All parts diagram
Power Cord
Part #WR23X108Replaced by #WR23X10300
Manufacturer substitutionThis part replaces WR23X108. Substitute parts can look different from the original.In Stock$28.2518% OFF Phone Price : $34.25Qty#257
All parts diagram
Refrigerator Screw, 2-pack
Part #WR1X1762Replaced by #WZ5X158D
Manufacturer substitutionThis part replaces WR1X1762. Substitute parts can look different from the original.In Stock$19.5748% OFF Was : $37.28Qty#618
All parts diagram
Refrigerator Defrost Heater
Part #WR51X317Replaced by #WR51X465
Manufacturer substitutionThis part replaces WR51X317. Substitute parts can look different from the original.In Stock$153.047% OFF Phone Price : $165.04Qty#300
All parts diagram
Sleeve
In Stock$14.6112% OFF Phone Price : $16.61Qty#733
All parts diagram
Refrigerator Relay Protector
Part #WR7X200Replaced by #WR07X10055
Manufacturer substitutionThis part replaces WR7X200. Substitute parts can look different from the original.This item is not returnableIn Stock$30.3617% OFF Phone Price : $36.36Qty#725
All parts diagram
Hi Side Asm
Part #WR87X246Replaced by #WR87X10079
Manufacturer substitutionThis part replaces WR87X246. Substitute parts can look different from the original.In Stock$828.58$12.00 OFF Phone Price : $840.58Qty#277
All parts diagram
Refrigerator Rear Rail
In Stock$107.69Qty
