Sony
Digital Camcorder

Model # DCR-DVD108 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD108 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Termnl Brd 178006421
#NI

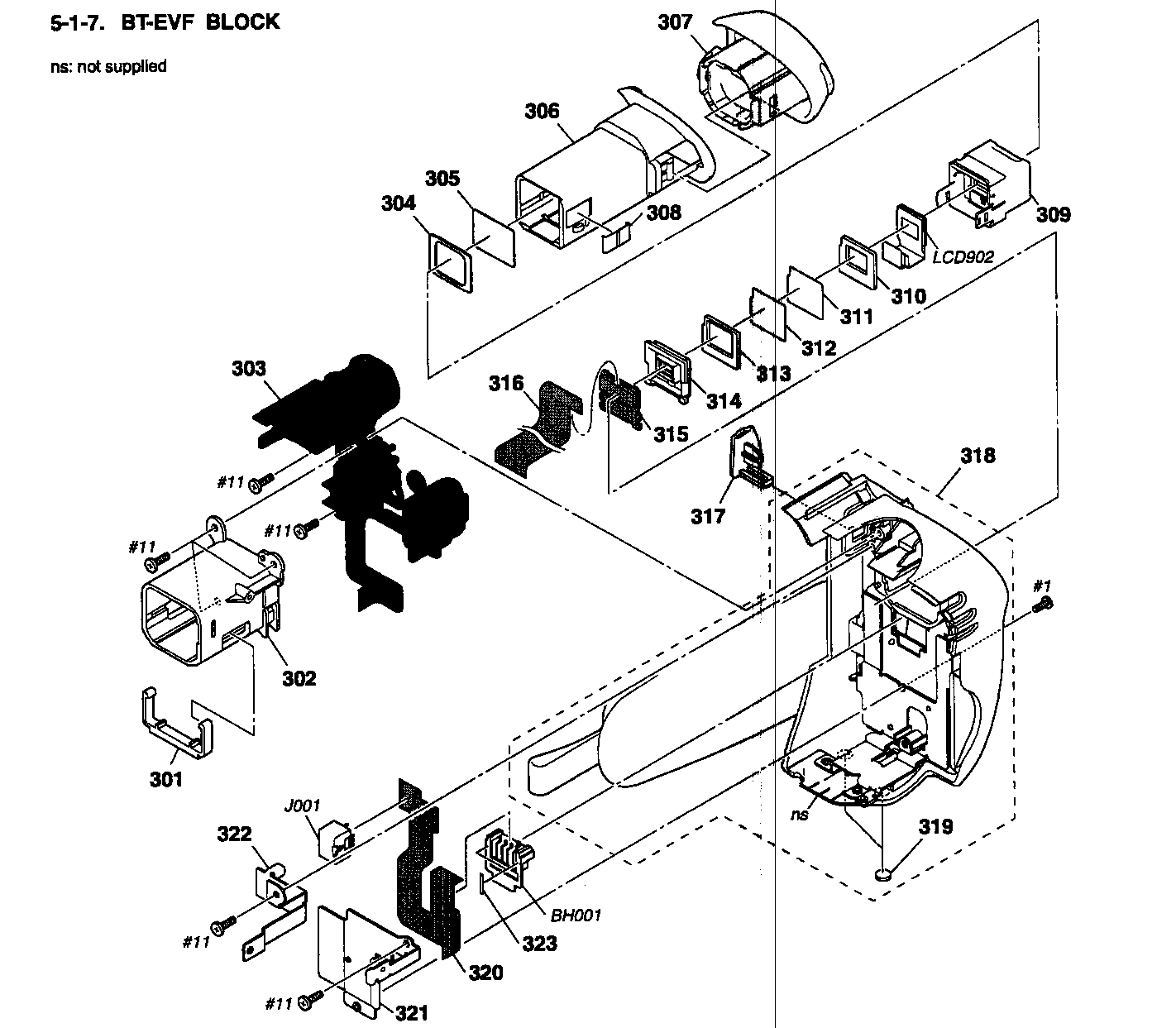

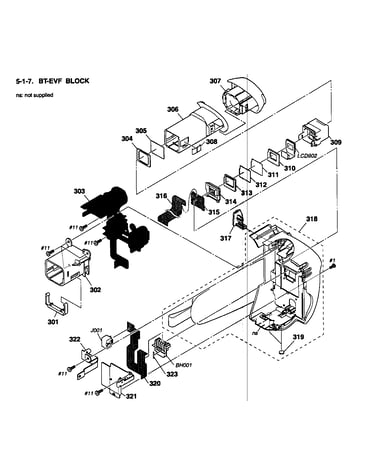

Bt-evf block diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Loud Speaker 182526041
#NI

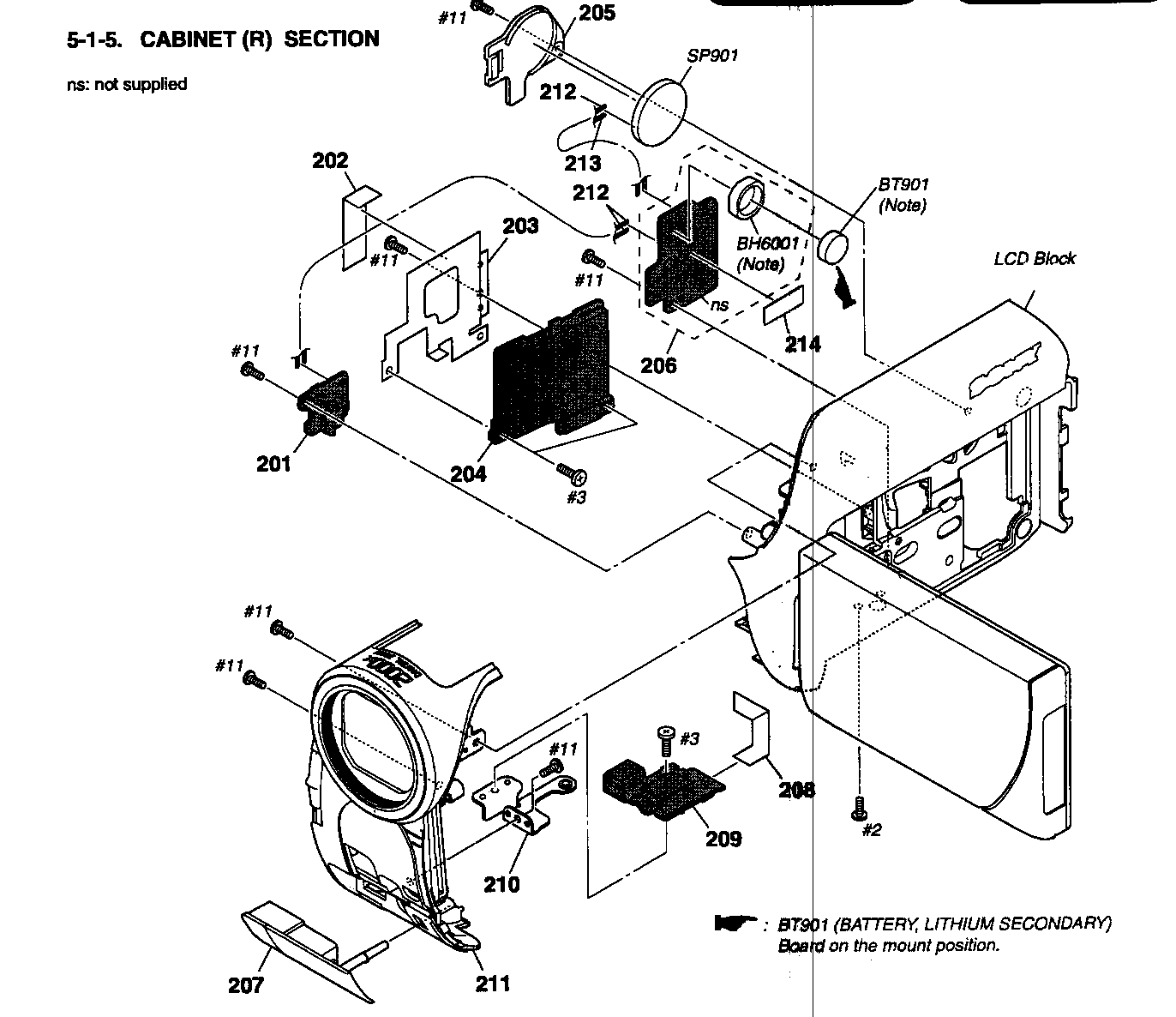

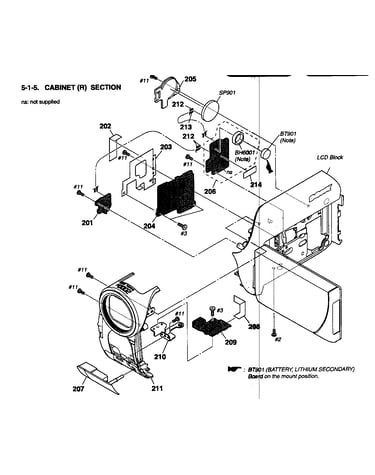

Cabinet parts 3 diagram

Loud speaker

Part #182526041

Replaced by #182526041

?
Manufacturer substitution
This part replaces 182526041. Substitute parts can look different from the original.
$38.51
In Stock
Board A1228487A
#160

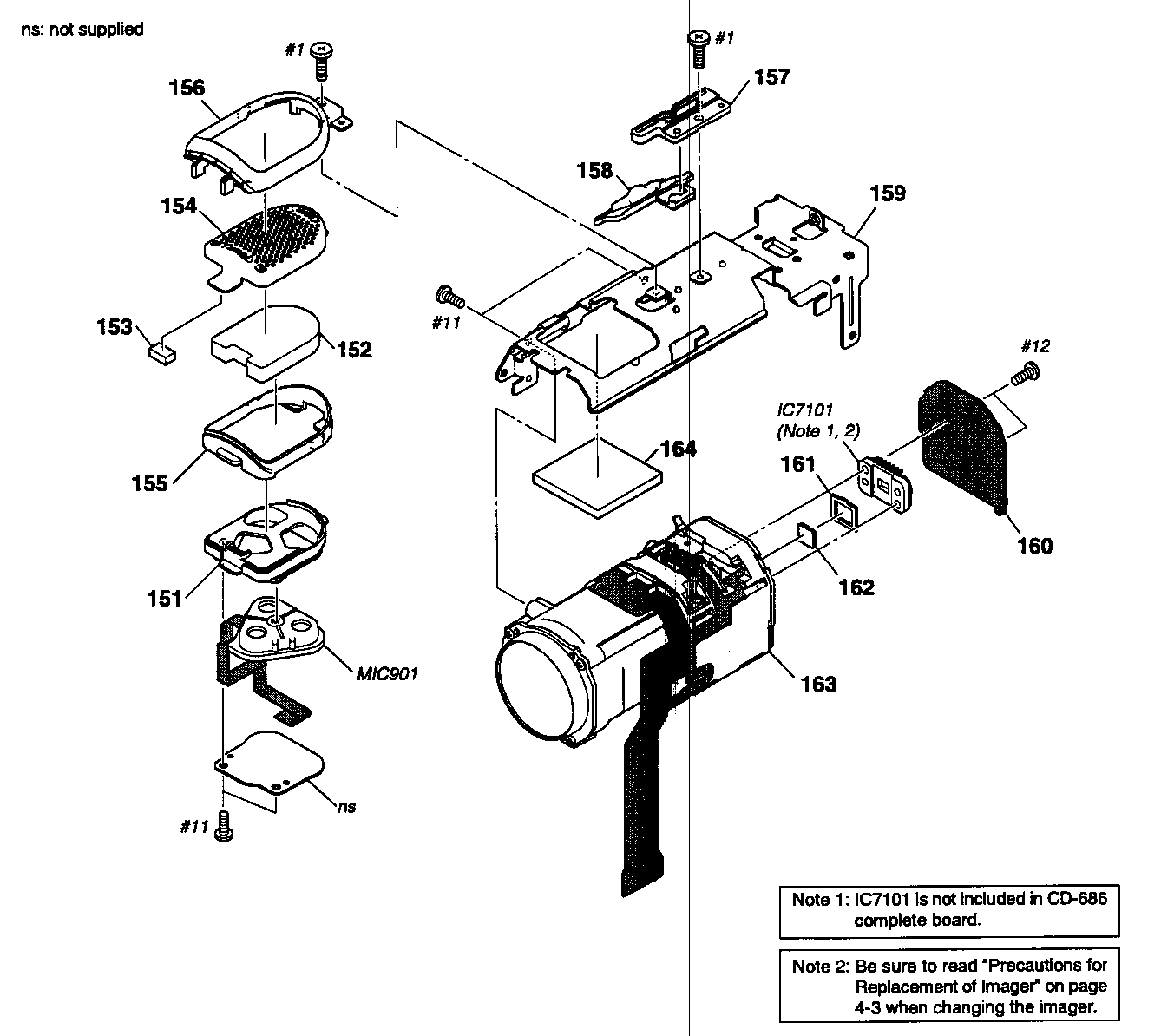

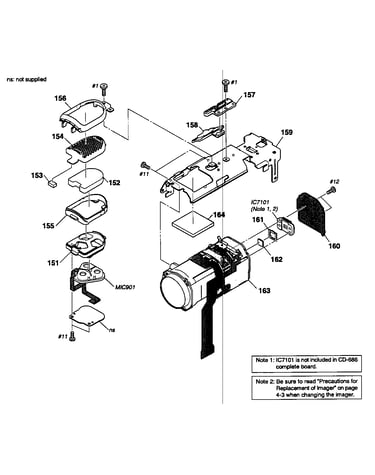

Lens block diagram

Board

Part #A1228487A

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 187128811
#108

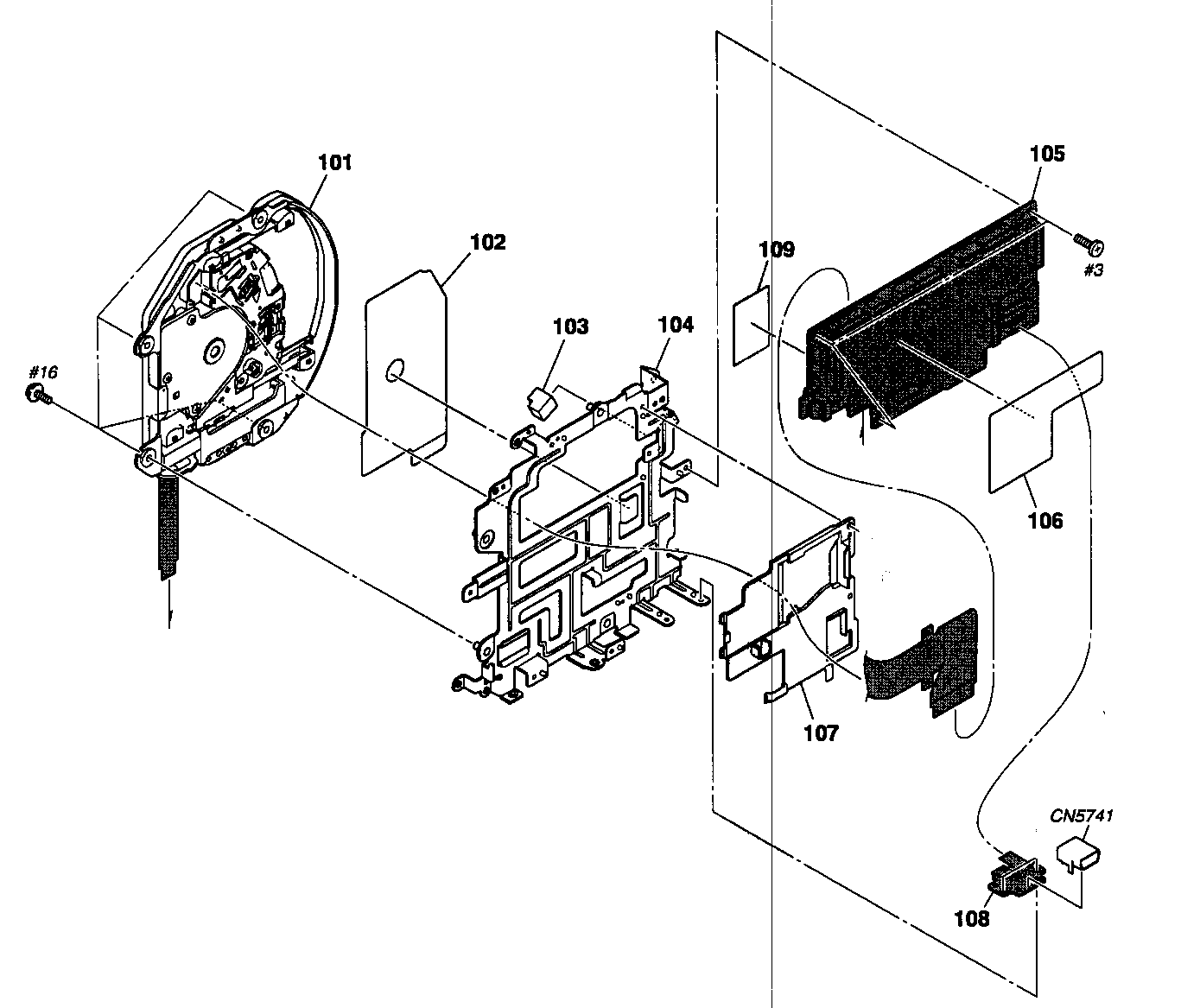

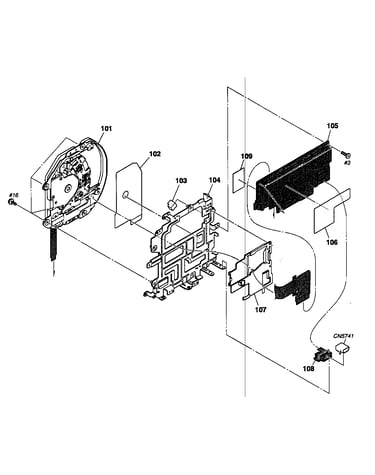

Md block diagram

Flexible pcb

Part #187128811

Replaced by #187128811

?
Manufacturer substitution
This part replaces 187128811. Substitute parts can look different from the original.
$35.73
In Stock
Bl-006 Pcb A1228495A
#315

Bt-evf block diagram

Bl-006 pcb

Part #A1228495A

Replaced by #A1228495A

?
Manufacturer substitution
This part replaces A1228495A. Substitute parts can look different from the original.
$31.26
In Stock
Control Switch 147992611
#255

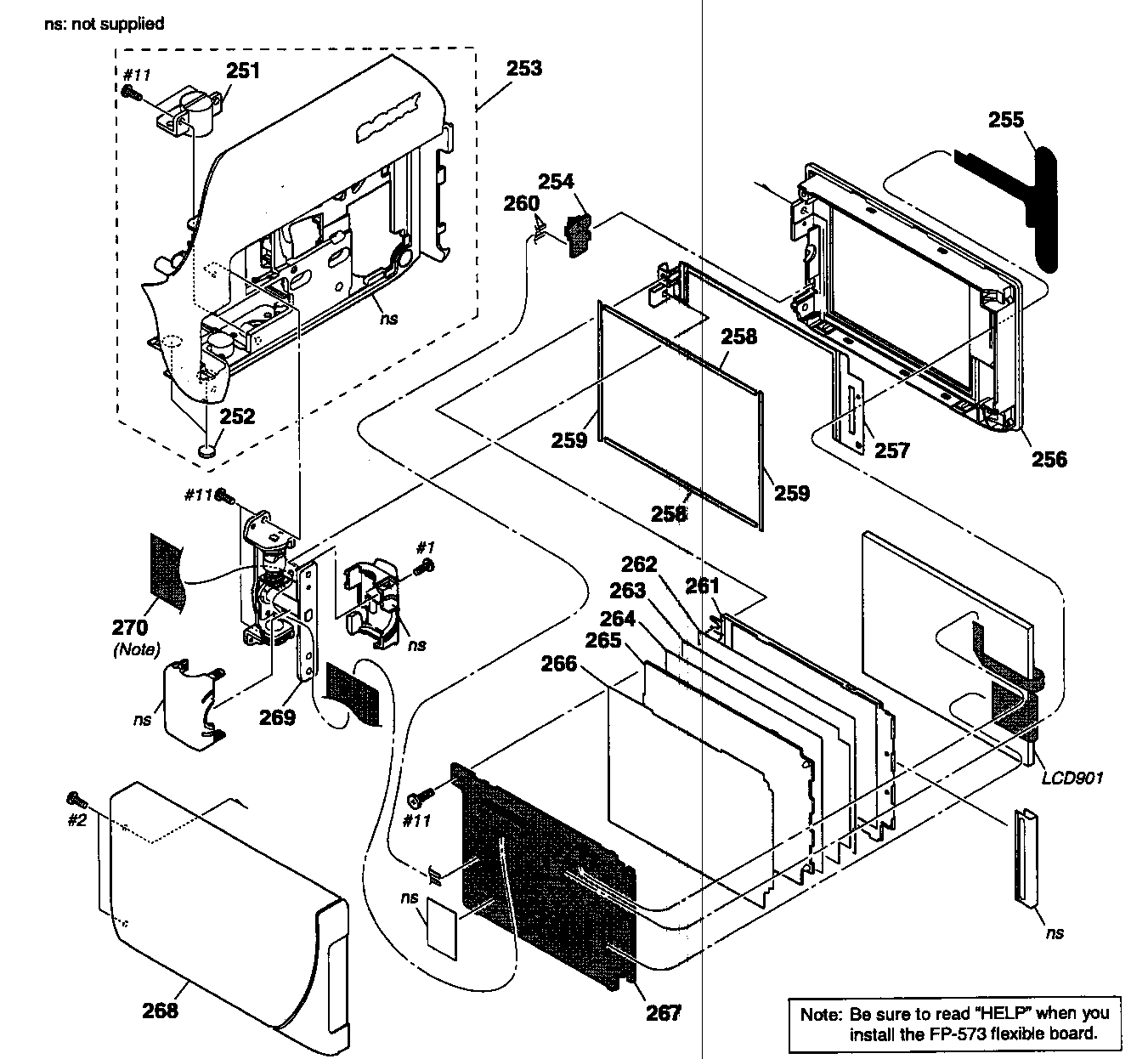

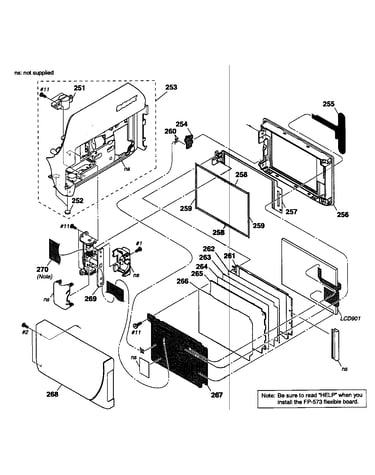

Lcd block diagram

Control switch

Part #147992611

The manufacturer no longer makes this part, and there's no substitute part

Guide 269926601
#1

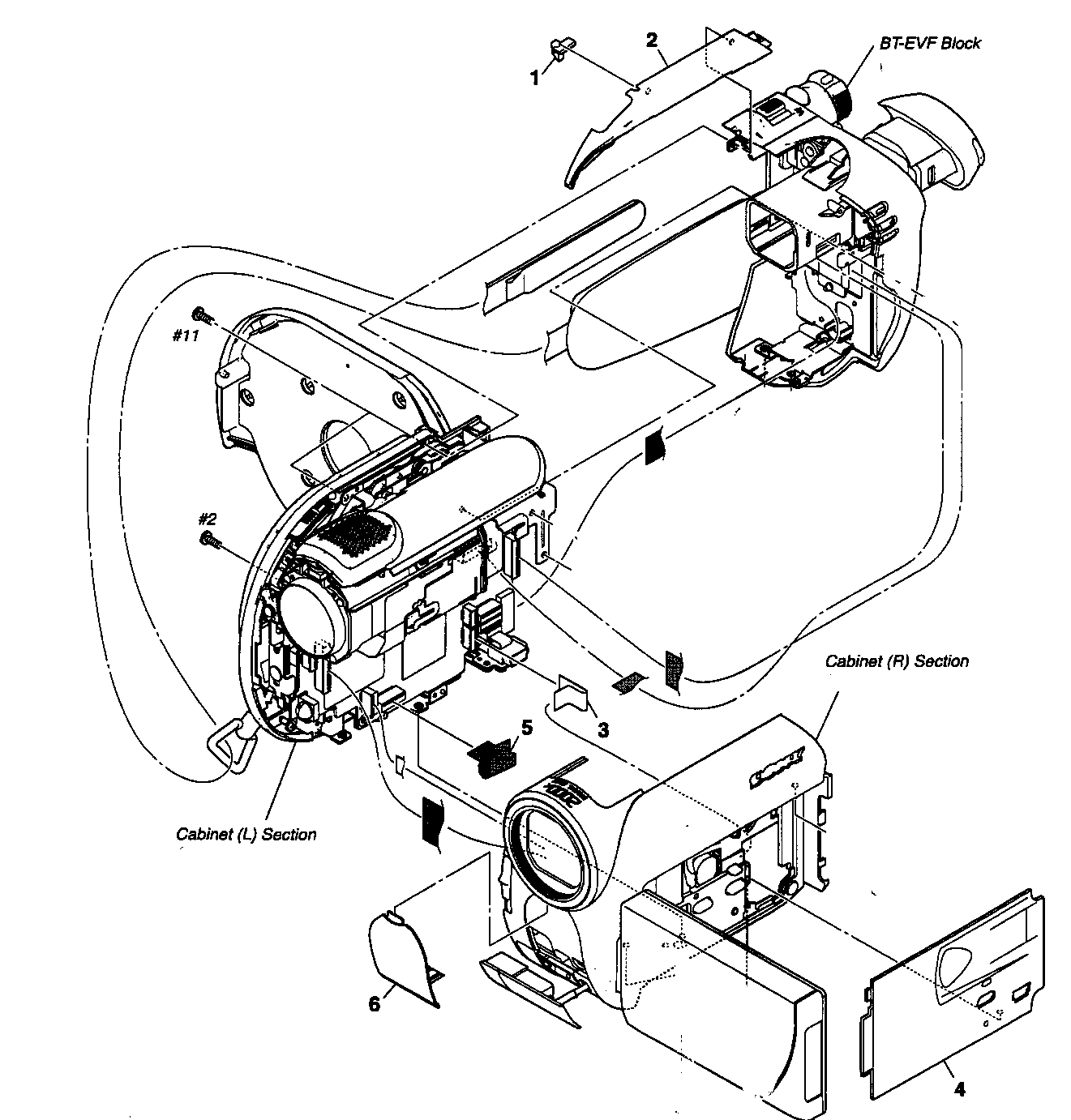

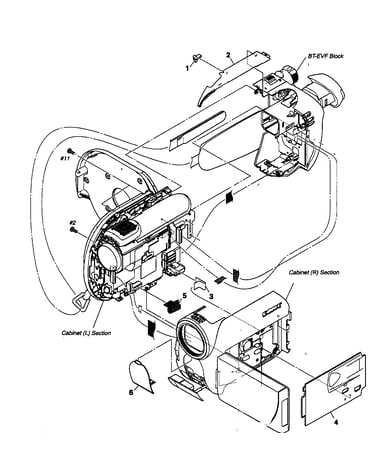

Cabinet parts 1 diagram

Guide

Part #269926601

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly A1246110A
#318

Bt-evf block diagram

Panel assembly

Part #A1246110A

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable 183367521
#55

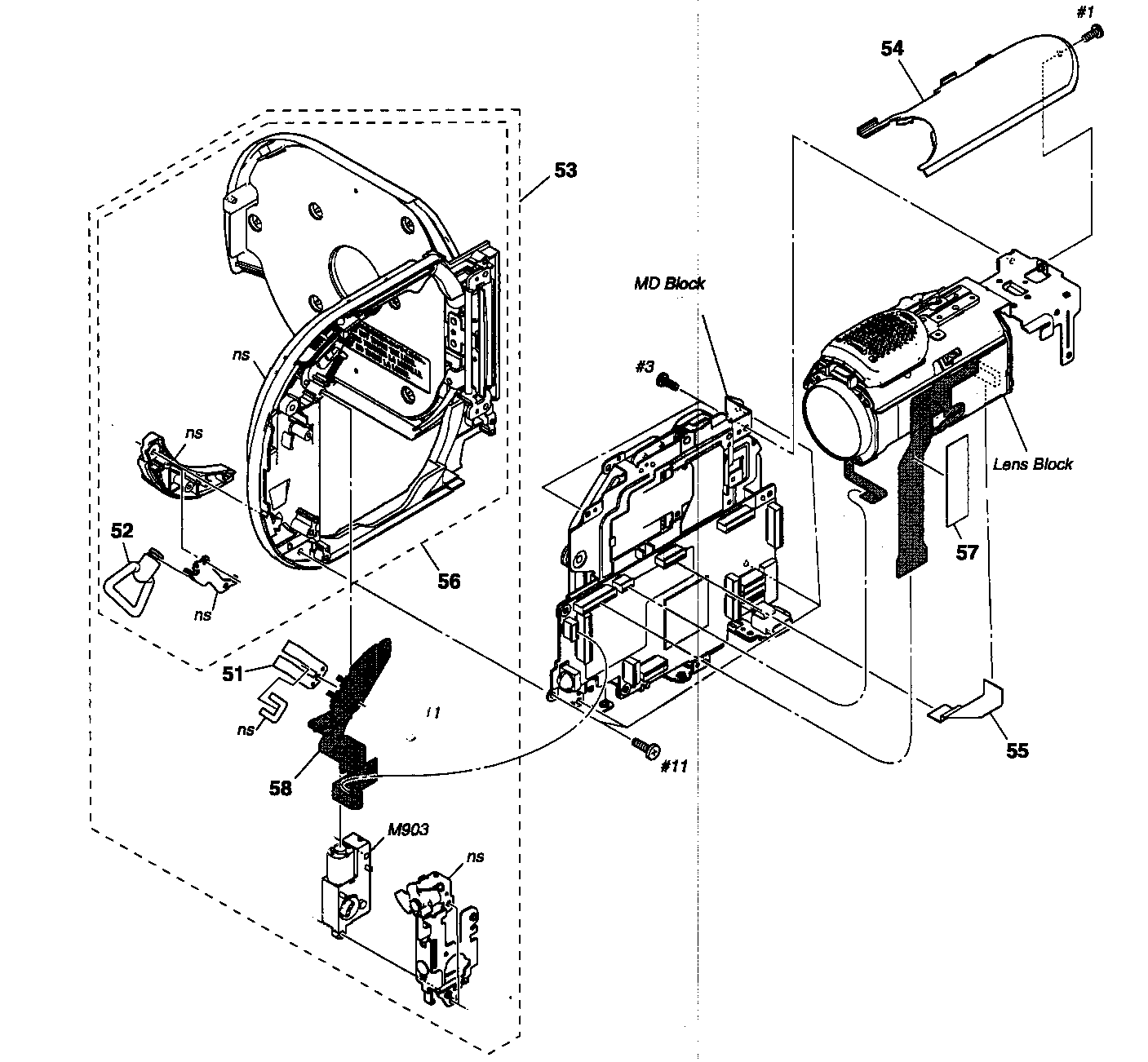

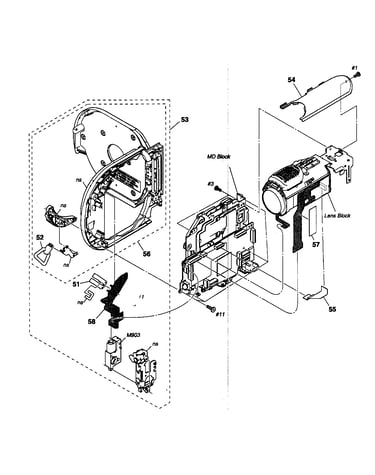

Cabinet parts 2 diagram

Flex cable

Part #183367521

Replaced by #183367521

?
Manufacturer substitution
This part replaces 183367521. Substitute parts can look different from the original.
$62.91
In Stock
Motor 178723711
#M903

Cabinet parts 2 diagram

Motor

Part #178723711

The manufacturer no longer makes this part, and there's no substitute part
