Model # 919158220 Official Craftsman sprayer/compressor

Here are the diagrams and repair parts for Official Craftsman 919158220 sprayer/compressor, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for919158220 Power Tools

  • Unknown Brand Name #696 Air Compressor Exhaust Vent Filter 265-6
    #76

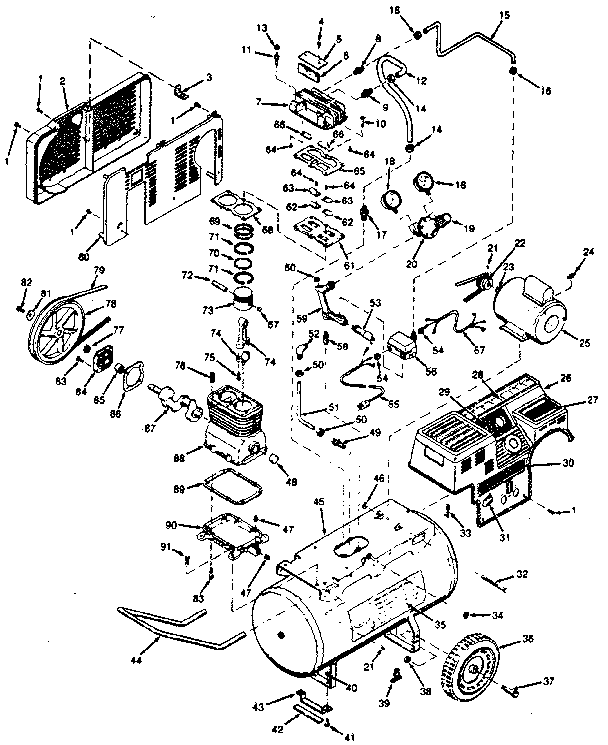

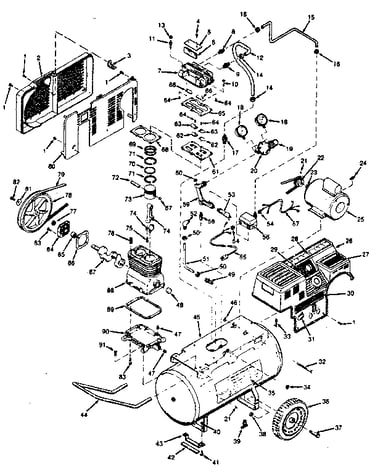

    Unit parts diagram

    Unknown brand name #696 air compressor exhaust vent filter

    Part #265-6

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Compressor Reed Valve Screw SSF-9821
    #64

    Unit parts diagram

    Air compressor reed valve screw

    Part #SSF-9821

    The manufacturer no longer makes this part, and there's no substitute part

  • Companion Air Compressor Screw CAC-60
    #37

    Unit parts diagram

    Companion air compressor screw

    Part #CAC-60

    The manufacturer no longer makes this part, and there's no substitute part

  • Porter Cable Washer SSN-1014-ZN
    #81

    Unit parts diagram

    Porter cable washer

    Part #SSN-1014-ZN

    The manufacturer no longer makes this part, and there's no substitute part

  • Unknown Brand Name #696 Air Compressor Set Screw SS-391
    #21

    Unit parts diagram

    Unknown brand name #696 air compressor set screw

    Part #SS-391

    The manufacturer no longer makes this part, and there's no substitute part

  • Unknown Brand Name #696 Air Compressor Power Cord SUDL-404-1
    #55A

    Unit parts diagram

    Unknown brand name #696 air compressor power cord

    Part #SUDL-404-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Unknown Brand Name #696 Air Compressor Safety Valve TIA-4150
    #53A

    Unit parts diagram

    Unknown brand name #696 air compressor safety valve

    Part #TIA-4150

    The manufacturer no longer makes this part, and there's no substitute part

  • Unknown Brand Name #696 Screw SSF-928
    #91

    Unit parts diagram

    Unknown brand name #696 screw

    Part #SSF-928

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Compressor Drive Belt C-BT-205
    #79

    Unit parts diagram

    Air compressor drive belt

    Part #C-BT-205

    The manufacturer no longer makes this part, and there's no substitute part

  • Unknown Brand Name #696 Air Compressor Flywheel 265-2
    #78

    Unit parts diagram

    Unknown brand name #696 air compressor flywheel

    Part #265-2

    The manufacturer no longer makes this part, and there's no substitute part
