Kenmore
Central Air Conditioner

Model #1067791541 Kenmore air conditioner

Here are the diagrams and repair parts for Kenmore 1067791541 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 204 parts

    Bracket Support

    #39

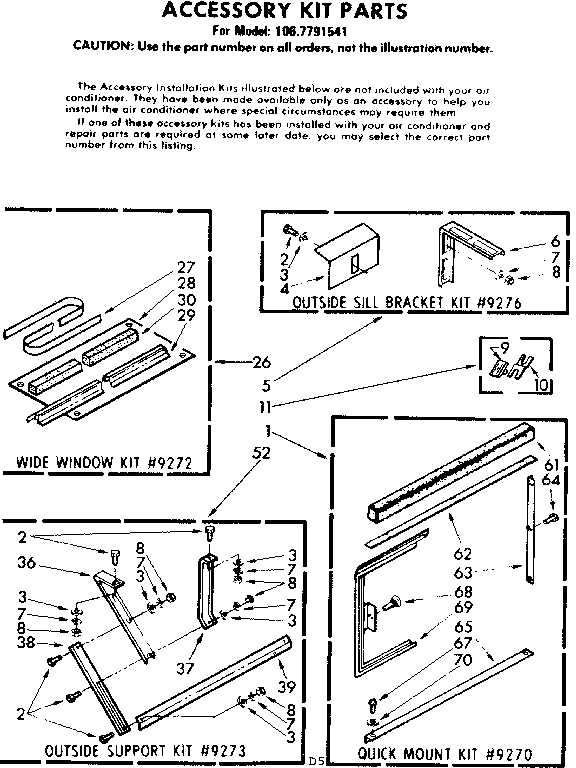

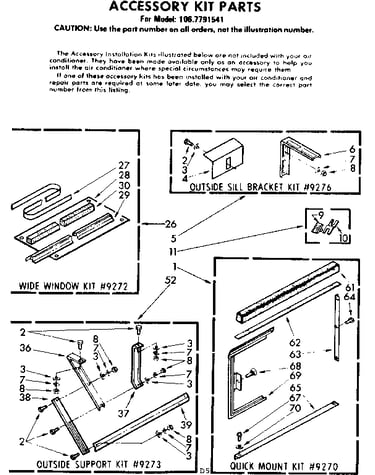

    Accessory kit parts Diagram

    Bracket support

    Part #644281
    $42.20

    In Stock

    Crimp Terminal Connector

    #38

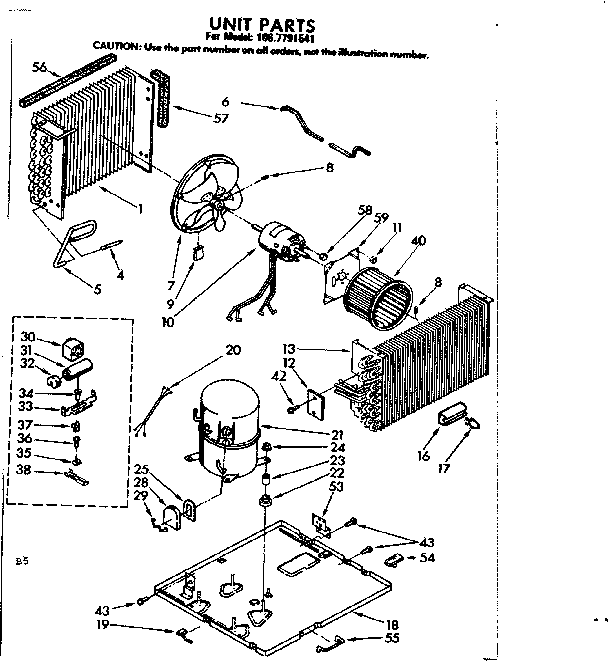

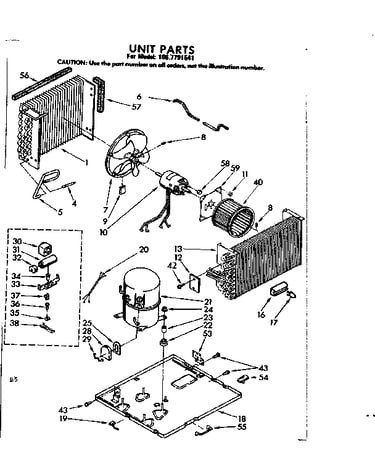

    Unit parts Diagram

    Crimp terminal connector

    Part #STD374251
    ?
    Manufacturer substitution
    This part replaces 45571. Substitute parts can look different from the original.
    This part replaces 45571
    This item is not returnable
    $2.49

    In Stock

    Thread-Forming Screw, 8-pack

    #52

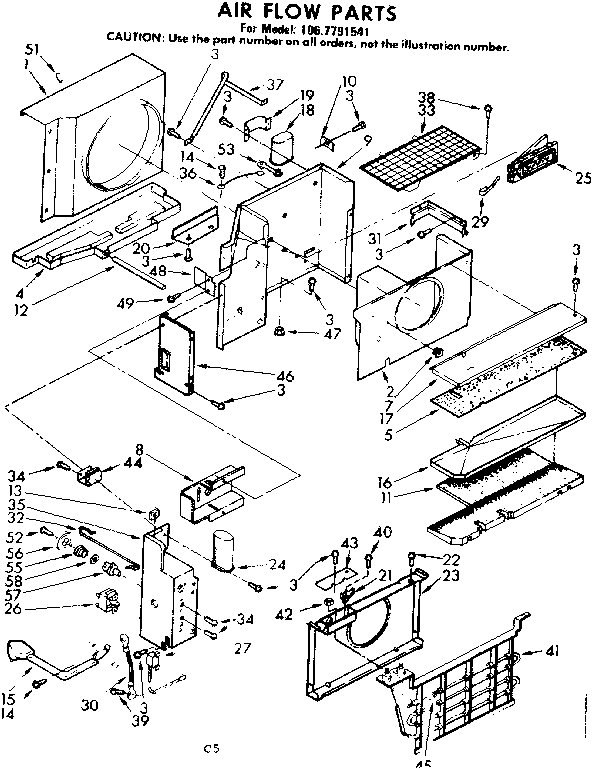

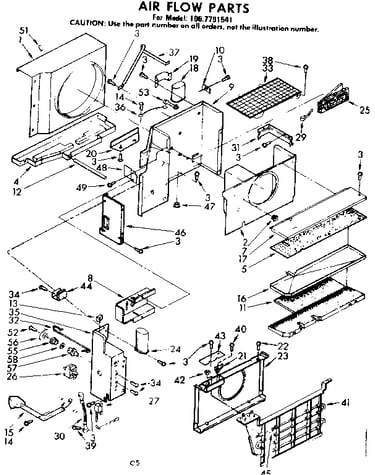

    Air flow parts Diagram

    Thread-forming screw, 8-pack

    Part #STD610805
    ?
    Manufacturer substitution
    This part replaces 487953. Substitute parts can look different from the original.
    This part replaces 487953
    This item is not returnable
    $2.79

    In Stock

    Dishwasher Screw

    #36

    Unit parts Diagram

    Dishwasher screw

    Part #WP965173
    ?
    Manufacturer substitution
    This part replaces 487869. Substitute parts can look different from the original.
    This part replaces 487869
    This item is not returnable
    $5.48

    In Stock

    Motor Run Capacitor

    #24

    Air flow parts Diagram

    Motor run capacitor

    Part #12005
    ?
    Manufacturer substitution
    This part replaces 996499. Substitute parts can look different from the original.
    This part replaces 996499
    $13.99

    In Stock

    Room Air Conditioner Foam Seal

    #10

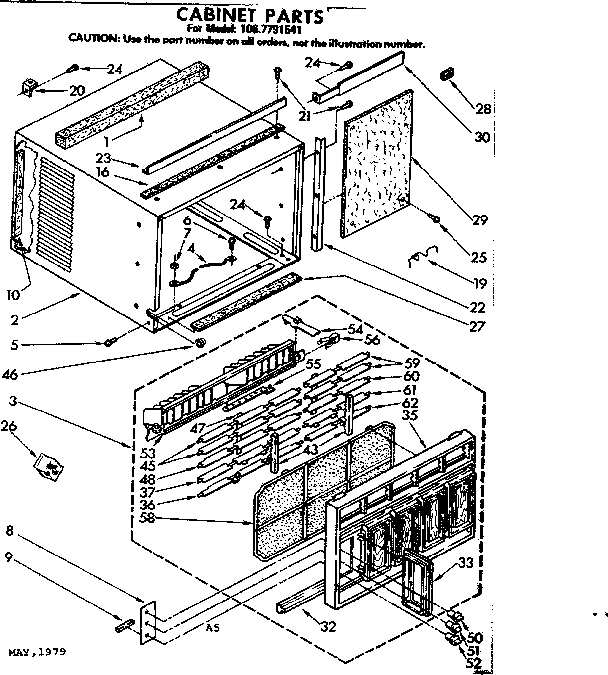

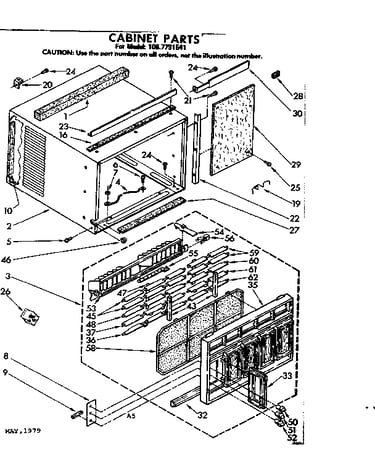

    Cabinet parts Diagram

    Room air conditioner foam seal

    Part #WP854334
    ?
    Manufacturer substitution
    This part replaces 858839. Substitute parts can look different from the original.
    This part replaces 858839
    $8.60

    In Stock

    Wire

    #4

    Cabinet parts Diagram

    Wire

    Part #857078
    ?
    Manufacturer substitution
    This part replaces 857017. Substitute parts can look different from the original.
    This part replaces 857017
    $9.12

    In Stock

    Nut

    #58

    Unit parts Diagram

    Nut

    Part #488130

    The manufacturer no longer makes this part, and there's no substitute part

    Dishwasher Screw

    #25

    Cabinet parts Diagram

    Dishwasher screw

    Part #WP965173
    ?
    Manufacturer substitution
    This part replaces 488017. Substitute parts can look different from the original.
    This part replaces 488017
    This item is not returnable
    $5.48

    In Stock

    Screw

    #67

    Accessory kit parts Diagram

    Screw

    Part #488720

    The manufacturer no longer makes this part, and there's no substitute part
