Model # EPC5530FC1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP EPC5530FC1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Restrictor . 1093424
#7

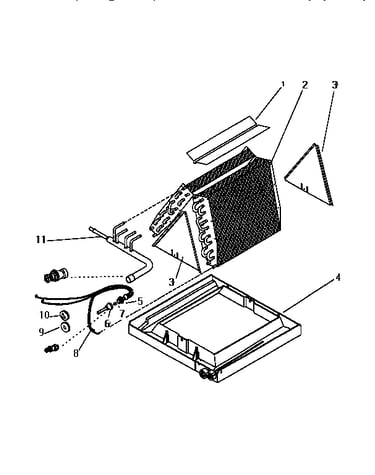

Functional "cased" coils diagram

Restrictor .

Part #1093424

Replaced by #1160292

?
Manufacturer substitution
This part replaces 1093424. Substitute parts can look different from the original.
$108.88
In Stock
Bracket 1062570
#3

Non-functional "cased coils diagram

Bracket

Part #1062570

The manufacturer no longer makes this part, and there's no substitute part

Panel Filler 23248500
#6

Non-functional "cased coils diagram

Panel filler

Part #23248500

The manufacturer no longer makes this part, and there's no substitute part

Manifold 1064004
#11

Functional "cased" coils diagram

Manifold

Part #1064004

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1062621
#9

Functional "cased" coils diagram

Grommet

Part #1062621

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 1062478
#4

Functional "cased" coils diagram

Drain pan

Part #1062478

The manufacturer no longer makes this part, and there's no substitute part

Plate 1064003
#3

Functional "cased" coils diagram

Plate

Part #1064003

The manufacturer no longer makes this part, and there's no substitute part

Grommet 24358300
#10

Functional "cased" coils diagram

Grommet

Part #24358300

The manufacturer no longer makes this part, and there's no substitute part

Instal Instr 1069813

#NI

All parts diagram

Instal instr

Part #1069813

The manufacturer no longer makes this part, and there's no substitute part

Housing Flow 1055239
#5

Functional "cased" coils diagram

Housing flow

Part #1055239

The manufacturer no longer makes this part, and there's no substitute part
