Model # FEC3X9XEBA Official Frigidaire electric cooktop - 5995287926

Here are the diagrams and repair parts for Official Frigidaire FEC3X9XEBA electric cooktop - 5995287926, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Surface Switch 318078200
#54

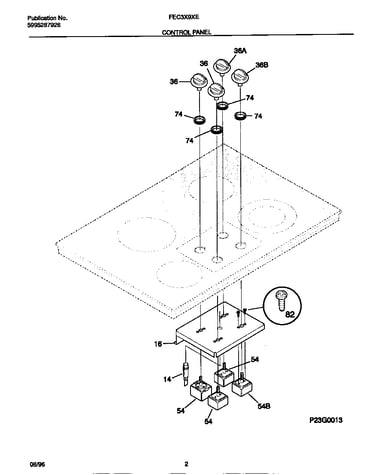

Control panel diagram

Surface switch

Part #318078200

Replaced by #903057-9010

?
Manufacturer substitution
This part replaces 318078200. Substitute parts can look different from the original.
$61.25 |
8% OFF Phone Price : $66.25
In Stock
Range Surface Element Control Switch 318120505
#54

Control panel diagram

Range surface element control switch

Part #318120505

$183.99 |
5% OFF Phone Price : $193.99
In Stock
Surface Element 318050100
#15

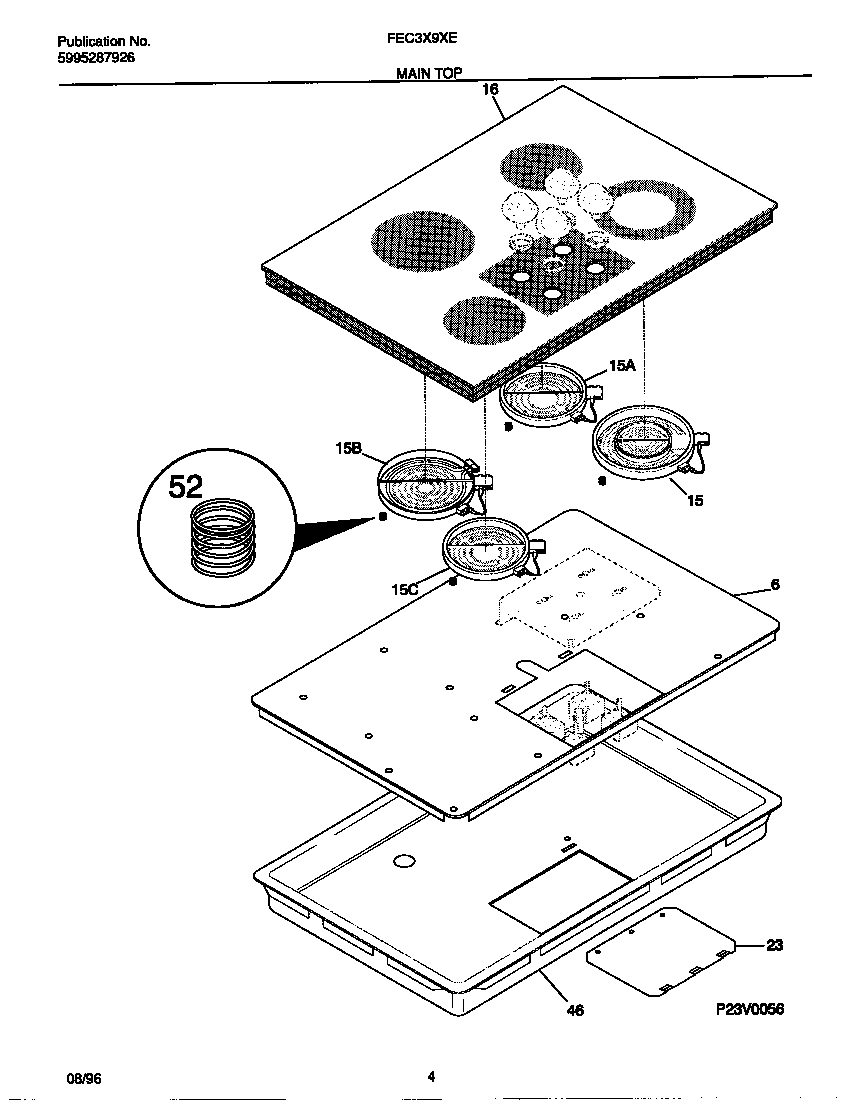

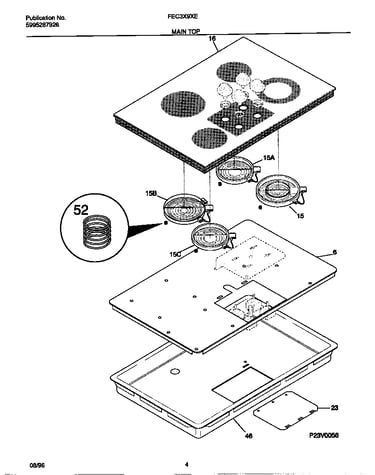

Main top diagram

Surface element

Part #318050100

Replaced by #318198817

?
Manufacturer substitution
This part replaces 318050100. Substitute parts can look different from the original.
$149.91 |
6% OFF Phone Price : $159.91
In Stock
Range Screw 5303300265

#NI

All parts diagram

Range screw

Part #5303300265

This item is not returnable
$3.23
In Stock
Screw 5303292005
#82A

Control panel diagram

Screw

Part #5303292005

This item is not returnable
$4.92
In Stock
Screw 5303305528
#82B

Control panel diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
$10.97
In Stock
Spacer 08007817

#NI

All parts diagram

Spacer

Part #08007817

Replaced by #318531702

?
Manufacturer substitution
This part replaces 08007817. Substitute parts can look different from the original.
$9.77
In Stock
Surface Element 318050200
#15

Main top diagram

Surface element

Part #318050200

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Surface Element 5303297143
#15

Main top diagram

Cooktop surface element

Part #5303297143

The manufacturer no longer makes this part, and there's no substitute part

Burner Box 318077211
#46

Main top diagram

Burner box

Part #318077211

The manufacturer no longer makes this part, and there's no substitute part
