Whirlpool YGY398LXPQ00 electric slide-in range Parts
Here are the diagrams and repair parts for Whirlpool YGY398LXPQ00 electric slide-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for YGY398LXPQ00 Ranges

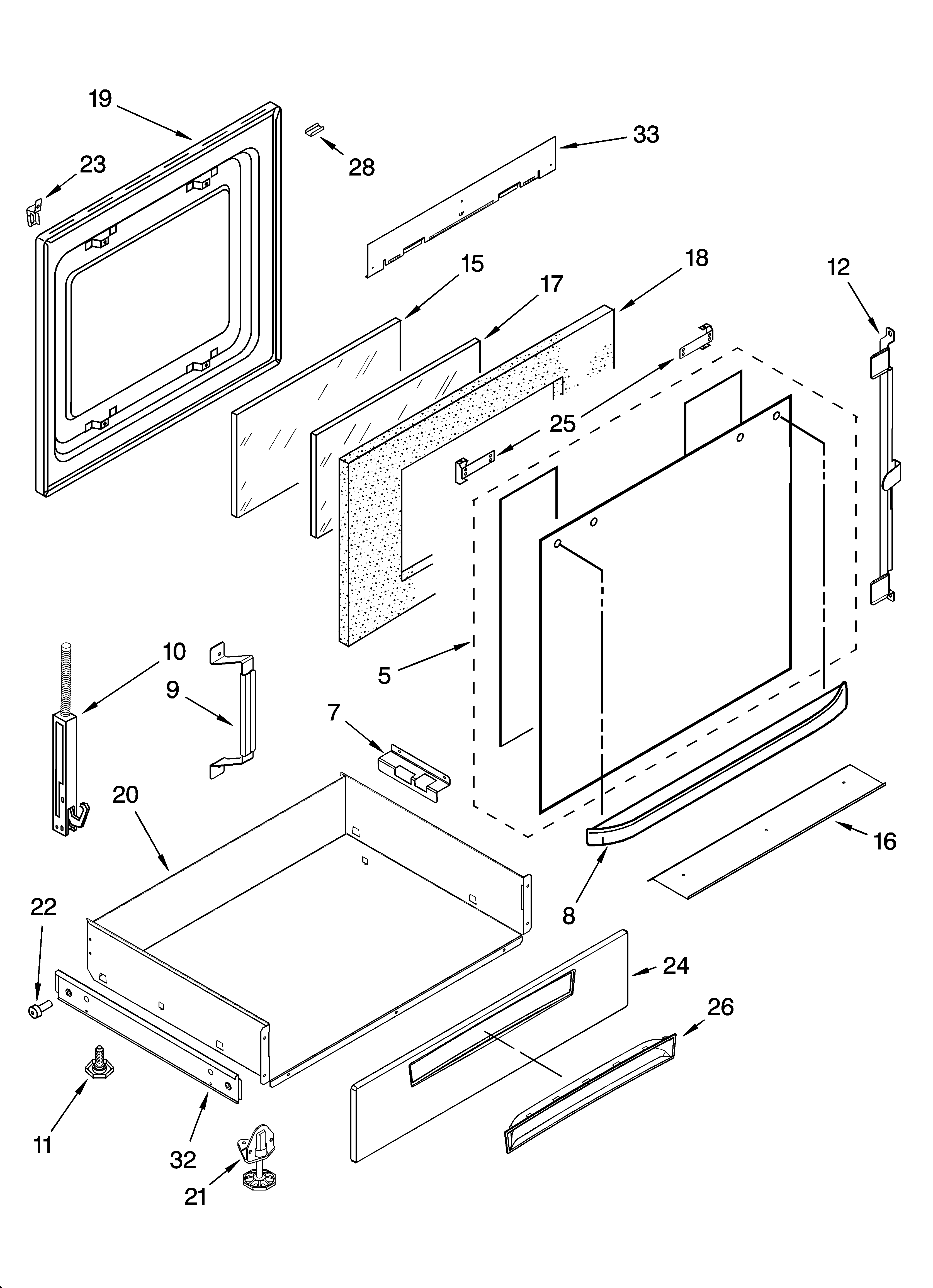

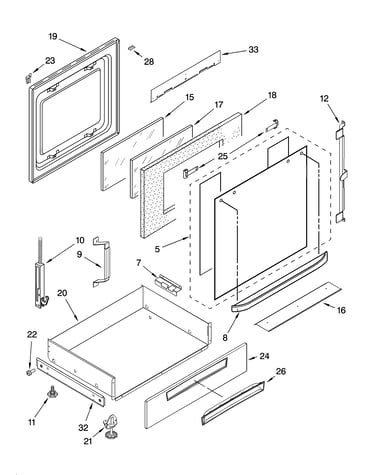

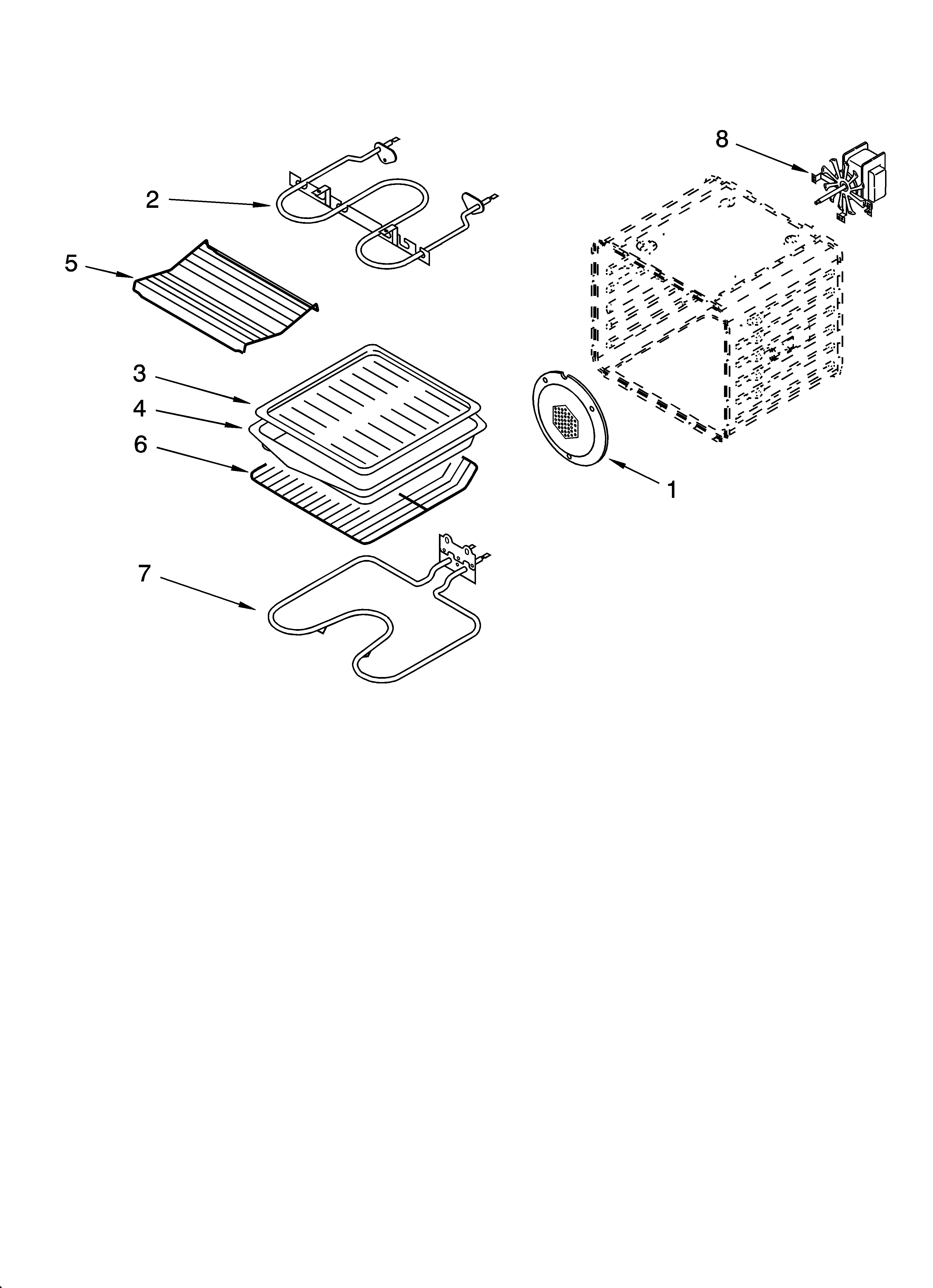

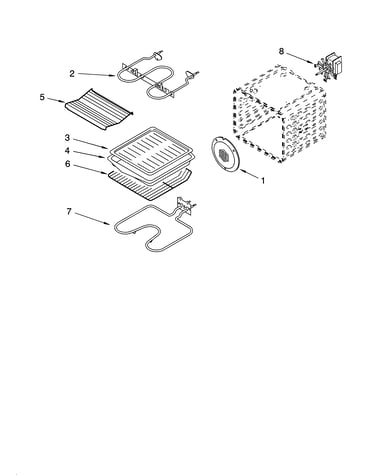

Internal oven parts diagram
Bake Element
Part #4452153Replaced by #WPW10207397
Manufacturer substitutionThis part replaces 4452153. Substitute parts can look different from the original.In Stock$54.7210% OFF Phone Price : $60.72
Qty

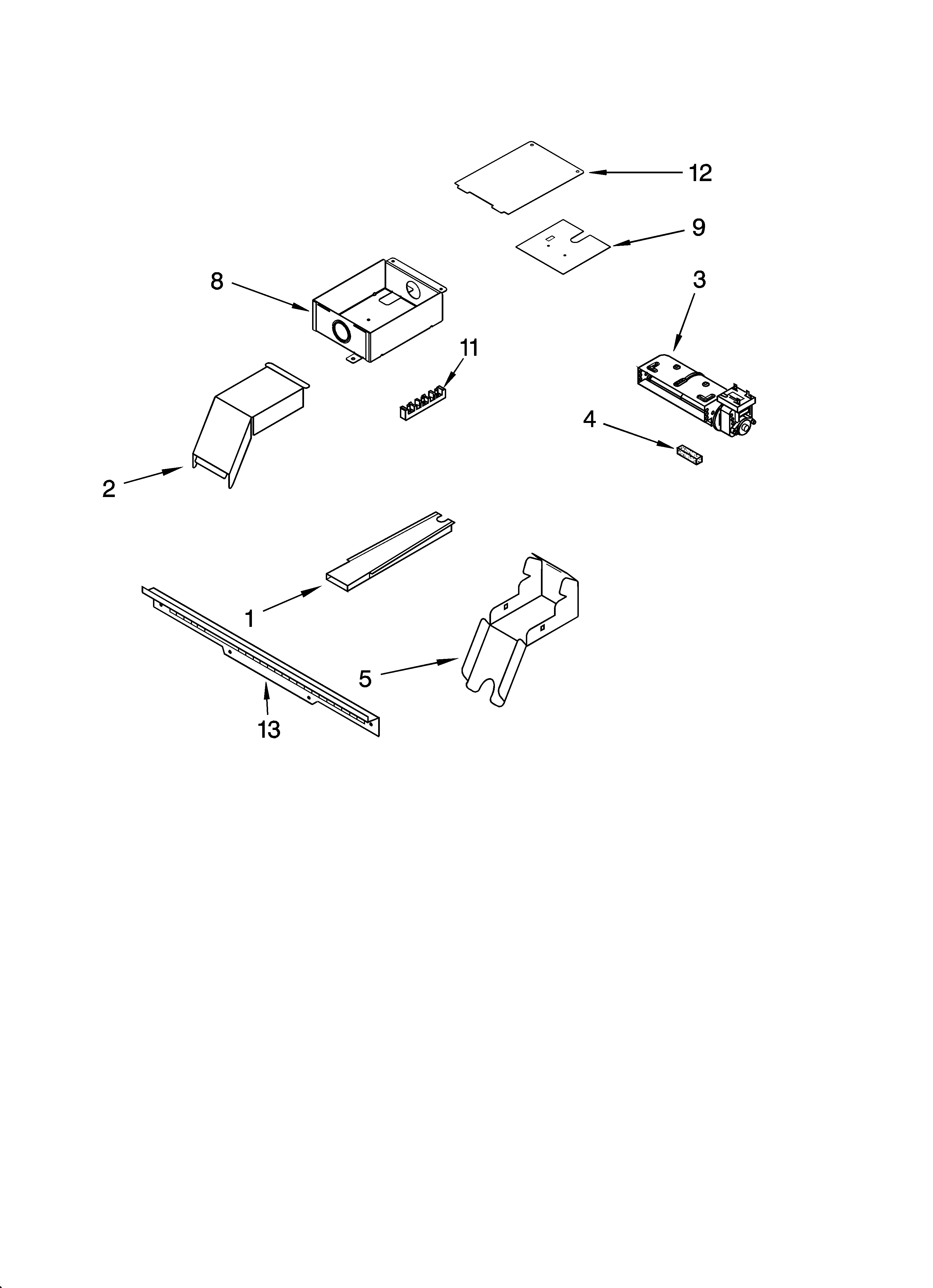

Top venting parts, optional parts (not included) diagram
Adhesive
Part #482338Replaced by #WP482338
Manufacturer substitutionThis part replaces 482338. Substitute parts can look different from the original.In Stock$24.4627% OFF Was : $33.32QtyOven parts diagram

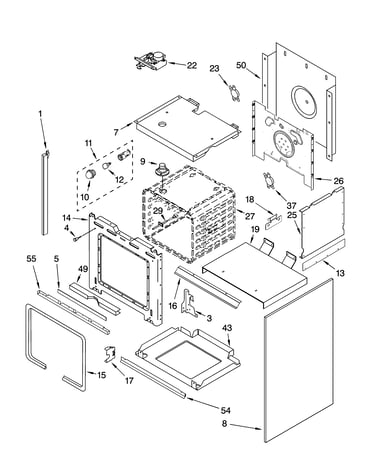

Range High-limit Thermostat
Part #4451442Replaced by #WP9759243
Manufacturer substitutionThis part replaces 4451442. Substitute parts can look different from the original.In Stock$48.9011% OFF Phone Price : $54.90QtyOven parts diagram
Oven Door Latch
Part #8302474Replaced by #WPW10195934
Manufacturer substitutionThis part replaces 8302474. Substitute parts can look different from the original.In Stock$145.048% OFF Phone Price : $157.04QtyRange Screw
Part #3196160Replaced by #W10491985

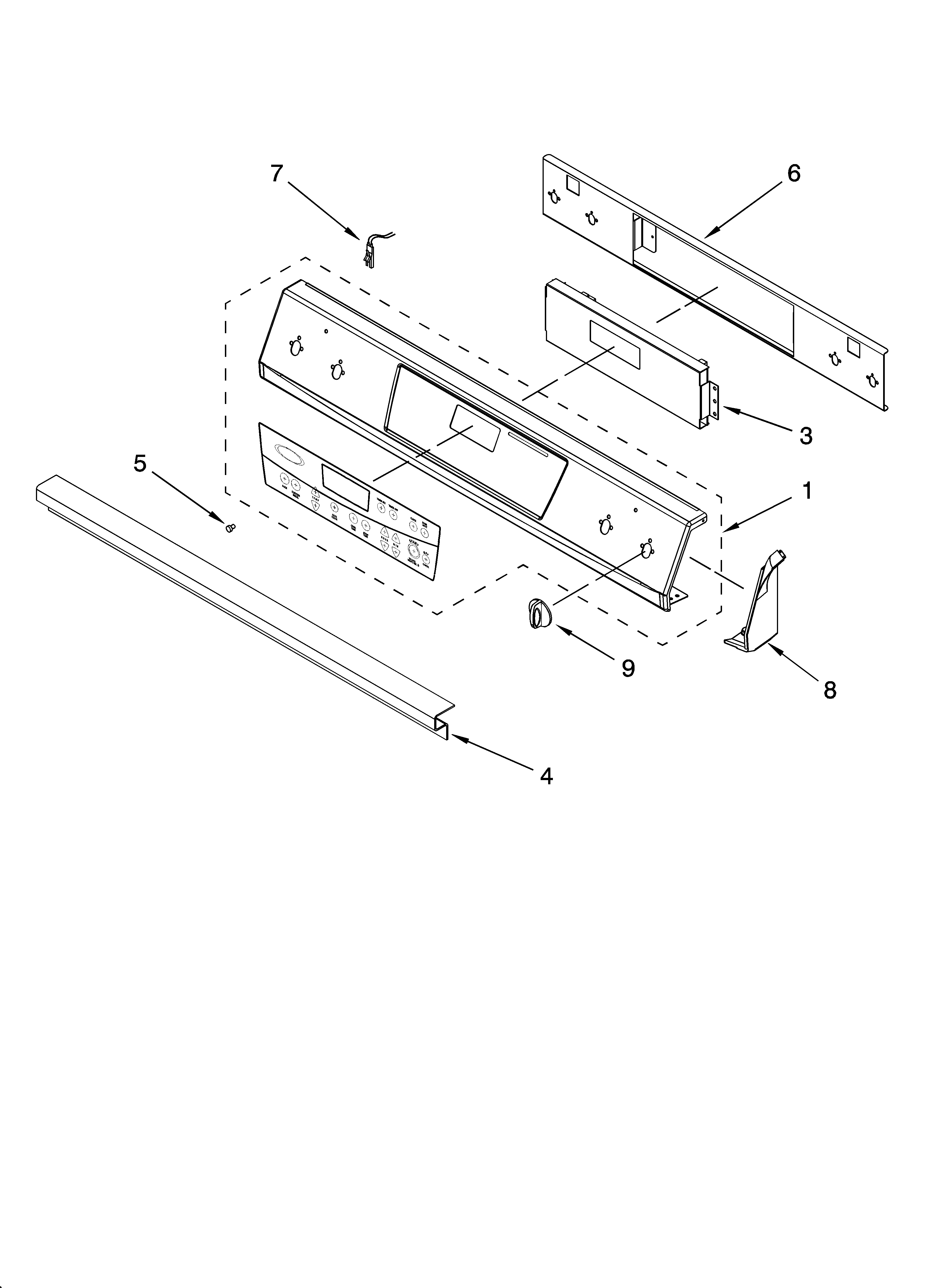

Manufacturer substitutionThis part replaces 3196160. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyControl panel parts diagram

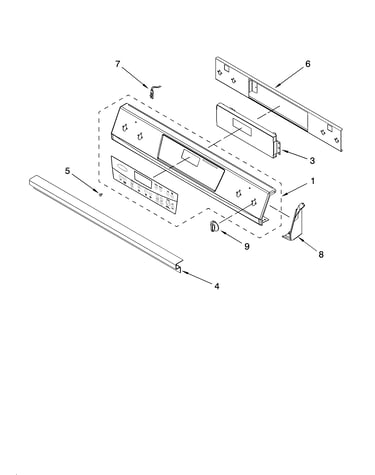

Light Lens
Part #3196068Replaced by #WP3196068

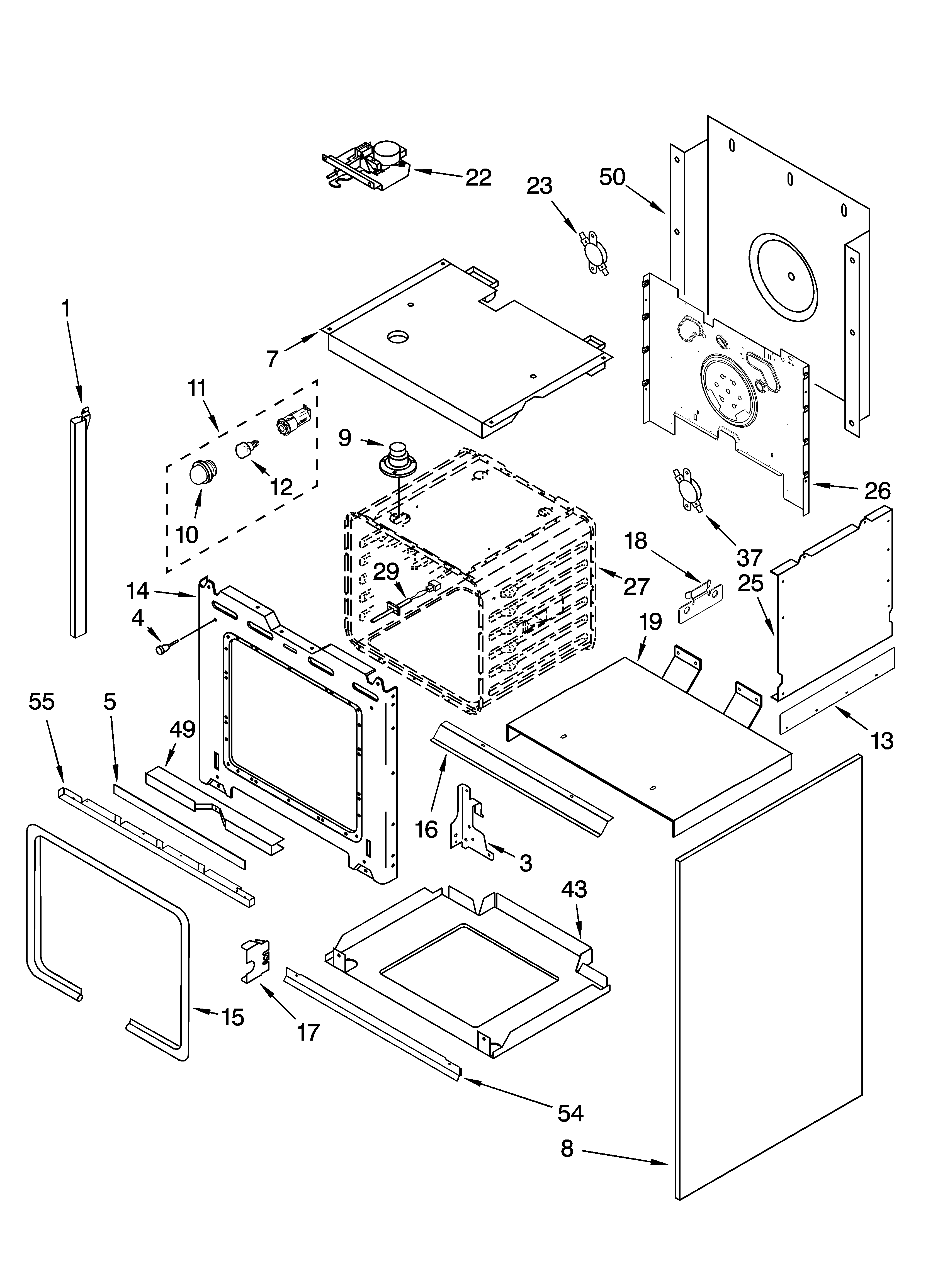

Manufacturer substitutionThis part replaces 3196068. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0814% OFF Phone Price : $7.08QtyOven parts diagram
Screw
Part #3400832Replaced by #WP3400832

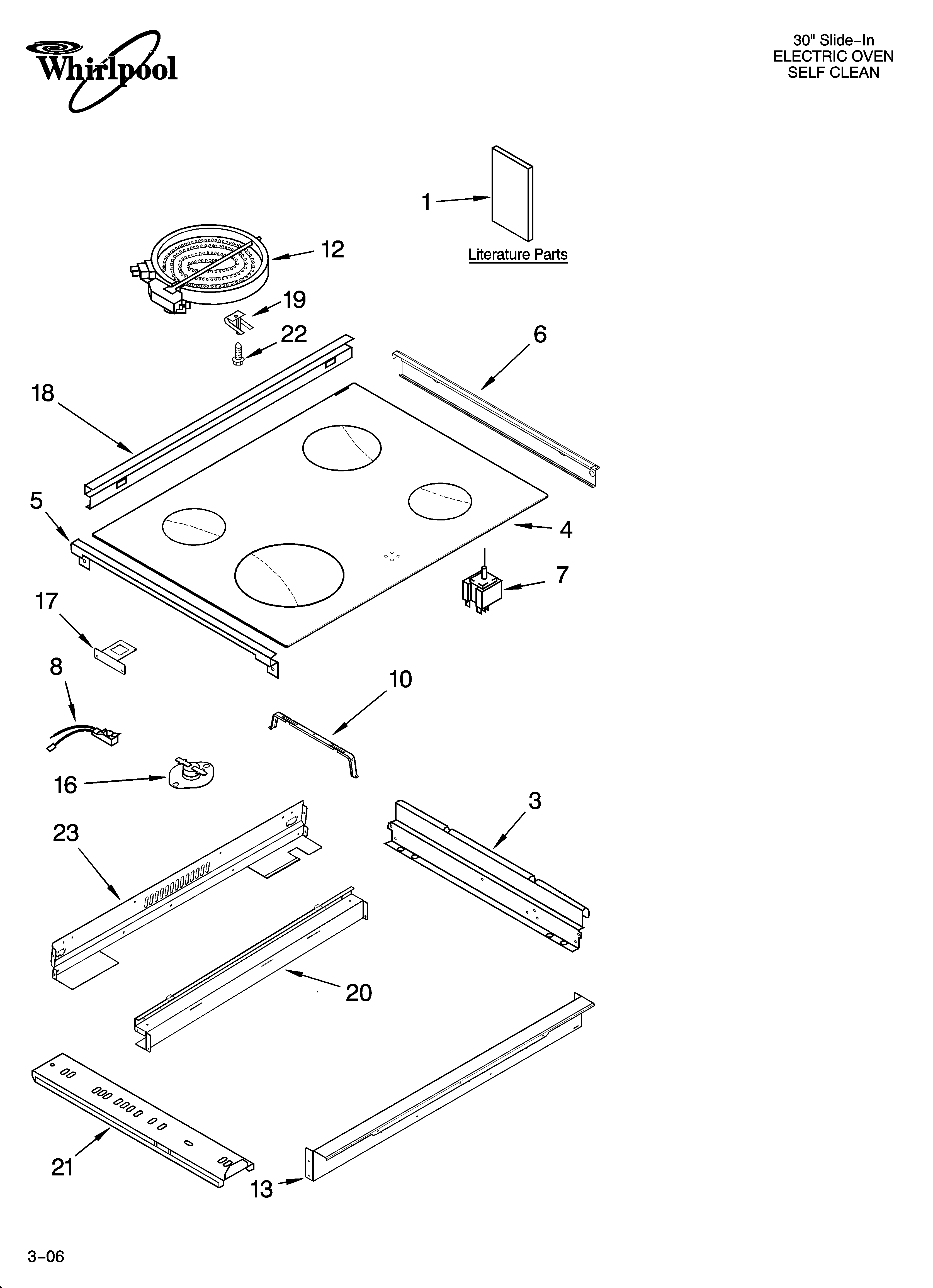

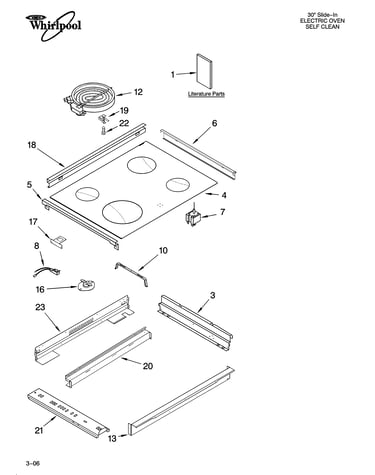

Manufacturer substitutionThis part replaces 3400832. Substitute parts can look different from the original.This item is not returnableIn Stock$5.1416% OFF Phone Price : $6.14QtyCooktop parts diagram
Range Radiant Surface Element, 9-in
Part #8523692Replaced by #W10823696
Manufacturer substitutionThis part replaces 8523692. Substitute parts can look different from the original.In Stock$112.1910% OFF Phone Price : $124.19QtyScrew (black)
Part #4449743Replaced by #WP4449743
Manufacturer substitutionThis part replaces 4449743. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyTop venting parts, optional parts (not included) diagram
Nut
Part #112432Replaced by #WP112432
Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88Qty
