Model # 5191AT Official Eureka cyclonic self-propelled vacuum

Here are the diagrams and repair parts for Official Eureka 5191AT cyclonic self-propelled vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

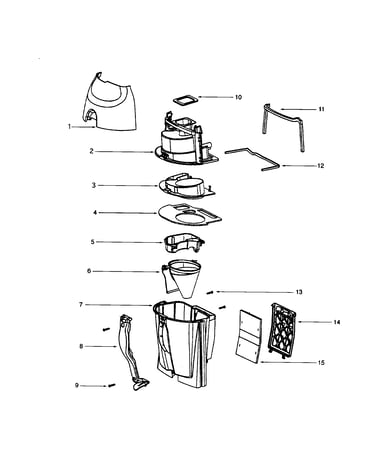

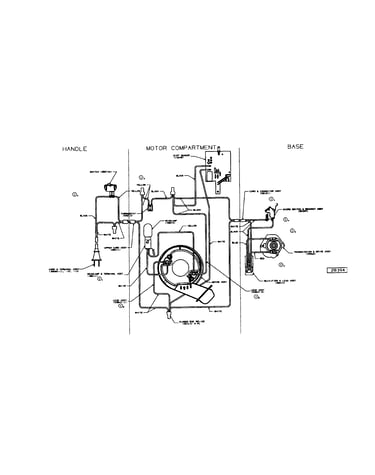

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Gasket 59586
#5

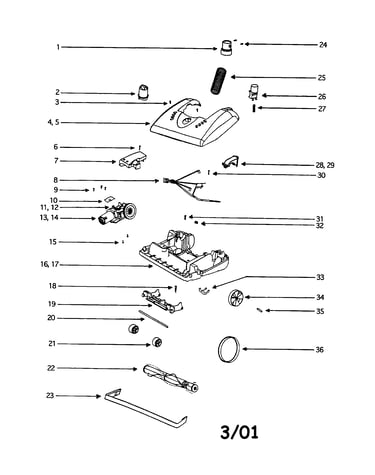

Hood diagram

Gasket

Part #59586

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut 60613
#29

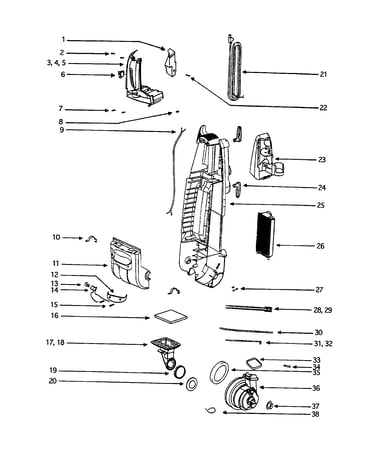

Motor cover diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Tube 59362B
#30

Motor cover diagram

Tube

Part #59362B

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 39035
#5

Motor cover diagram

Nameplate

Part #39035

The manufacturer no longer makes this part, and there's no substitute part

Screw 53257-1
#15

Hood diagram

Screw

Part #53257-1

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#34

Motor cover diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Neutral Lock 36890-1
#8

Handle diagram

Neutral lock

Part #36890-1

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 60756-1
#12

Hood diagram

Retaining ring

Part #60756-1

The manufacturer no longer makes this part, and there's no substitute part

Axle 58814
#35

Hood diagram

Axle

Part #58814

The manufacturer no longer makes this part, and there's no substitute part

Shield 59587
#14

Hood diagram

Shield

Part #59587

The manufacturer no longer makes this part, and there's no substitute part
