GE GFE24JYKEFFS refrigerator Parts

For the GE GFE24JYKEFFS refrigerator, the limited warranty is 1 year from the original purchase date for parts and labor due to defects in materials or workmanship; the water filter cartridge is covered for 30 days (if included), and GE Profile and GE Café models include 5 years on the sealed refrigerating system. See the warranty section in the owner's manual.

• 1 year: refrigerator parts and labor (defects in materials or workmanship)
• 30 days: water filter cartridge (if included)
• 5 years (GE Profile and GE Café models): sealed refrigerating system (compressor, condenser, evaporator, connecting tubing)
• Proof of purchase date is required (keep your receipt)

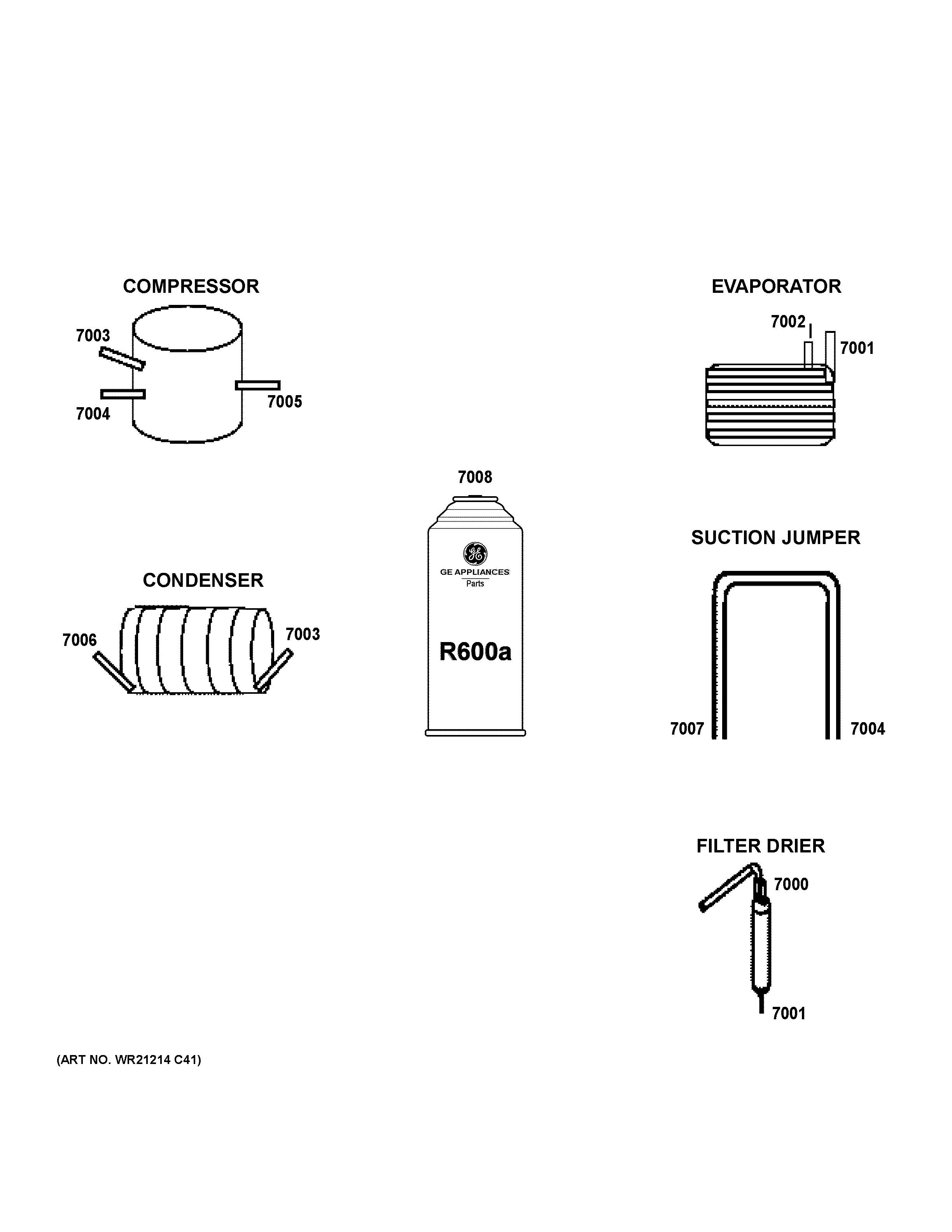

The sealed refrigerating system is the cooling loop. If your refrigerator is a GE Profile or GE Café model, the warranty coverage listed in the manual applies to these components:

Knowing the exact warranty window helps you decide whether to troubleshoot a symptom (like warm temperatures or dispenser issues) or document the problem and gather your model and serial information before scheduling service.

The manual notes that damage caused by a non-GE brand water filter is not covered. If you are replacing the filter, use the correct filter for this model, such as the GE refrigerator water filter XWFE.

Last updated: February 2026

For your GE GFE24JYKEFFS bottom-mount refrigerator, the fastest way to find the right replacement parts is to use the model number (GFE24JYKEFFS) to match parts by fit and function, then confirm the part description against the diagrams and part list in the owner's manual.

Using the exact model number prevents ordering a look-alike part that will not fit your refrigerator’s wiring, water system, or door configuration.

• Check the model and serial tag inside the fresh food compartment (commonly on a side wall).
• Write the model number exactly as shown: GFE24JYKEFFS.
• Use the model number to filter to the correct parts list for your refrigerator.
• Match the part name to the symptom (cooling, ice maker, water dispenser, door sealing).
• Verify any installation notes and specifications in the owner's manual.

These are frequently searched items for GE French door and bottom-mount refrigerators like GFE24JYKEFFS:

• Compare the part ID and description to your parts list for GFE24JYKEFFS.
• If you are replacing a water filter, plan to flush the system after installation.
• For water and ice issues, confirm your home water pressure is in a normal range (many GE systems run best with typical household pressure).
• For electrical parts (control boards, sensors, fans), unplug the refrigerator before servicing.
• If multiple parts could cause the same symptom, start with the simplest checks (settings, door closure, airflow blockage) before replacing parts.

Refrigerator parts are model-specific because GE uses different connectors, control logic, and water filtration configurations across similar-looking units. Matching by GFE24JYKEFFS helps you get the right fit the first time and restores proper cooling, ice production, and water dispensing.

Last updated: February 2026

The most common problem we see with GE refrigerators (including model GFE24JYKEFFS) is a cooling complaint: the fresh food section gets warm, the freezer temperature drifts, or temperatures swing. In many cases, the root cause is restricted airflow or a failing cooling component rather than a “bad compressor.”

Start with the simplest, highest-impact checks first:

• Dirty condenser coils: heat cannot shed efficiently, so the unit runs longer and cools worse.
• Airflow blocked inside the cabinet: overpacked shelves or blocked return vents reduce circulation.
• Evaporator fan or airflow control issues: weak airflow from the freezer to fresh food can mimic a sealed-system problem.
• Defrost system trouble: frost buildup on the evaporator restricts airflow and causes warming.
• Temperature sensing or control issues: a bad sensor or board can misread temps and undercool.

Use these steps to narrow the problem on your GFE24JYKEFFS:

• Confirm the controls are set to normal temps (not “off” or “demo”); see the owner's manual.
• Make sure interior vents are not blocked by food containers.
• Listen for the evaporator fan when the doors are closed (you may hear airflow in the fresh food section).
• Check door gaskets for gaps and verify doors close fully.
• Clean condenser coils and ensure the condenser fan area is clear.

If basic airflow and cleaning do not fix it, these model-matched parts are often involved:

Cooling problems usually get worse over time. Catching restricted airflow, frost buildup, or a drifting sensor early helps protect food, reduces run time, and prevents the refrigerator from overworking.

Last updated: February 2026

For your GE GFE24JYKEFFS bottom-mount refrigerator, we set the freezer to 0°F for safe long-term food storage and best ice quality. If items are too soft or you see excess frost, adjust in small steps and recheck after 24 hours.

• Freezer: 0°F
• Fresh food (refrigerator section): 37°F (typical target for most GE refrigerators)
• Acceptable freezer range: -2°F to 2°F (small swings are normal)

Make one change at a time, then give the refrigerator time to stabilize.

• Change the freezer setting by one step (or 1 to 2 degrees, depending on your control style)
• Wait 24 hours before judging results
• Use a thermometer placed between frozen packages (not in the door bin)
• Keep vents clear so cold air can circulate
• Confirm the freezer drawer closes fully and seals evenly

At 0°F, food stays solidly frozen, freezer burn risk drops, and your icemaker and dispenser system typically performs more consistently. Warmer settings can shorten storage time; colder-than-needed settings can increase frost and energy use.

Your control layout and exact adjustment steps can vary by configuration; we follow the control and temperature guidance in the GFE24JYKEFFS owner's manual.
