Model # CVG4280W Official Jenn-Air gas counter unit cooktop
Here are the diagrams and repair parts for Official Jenn-Air CVG4280W gas counter unit cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
CVG4280W Cooktops
#7

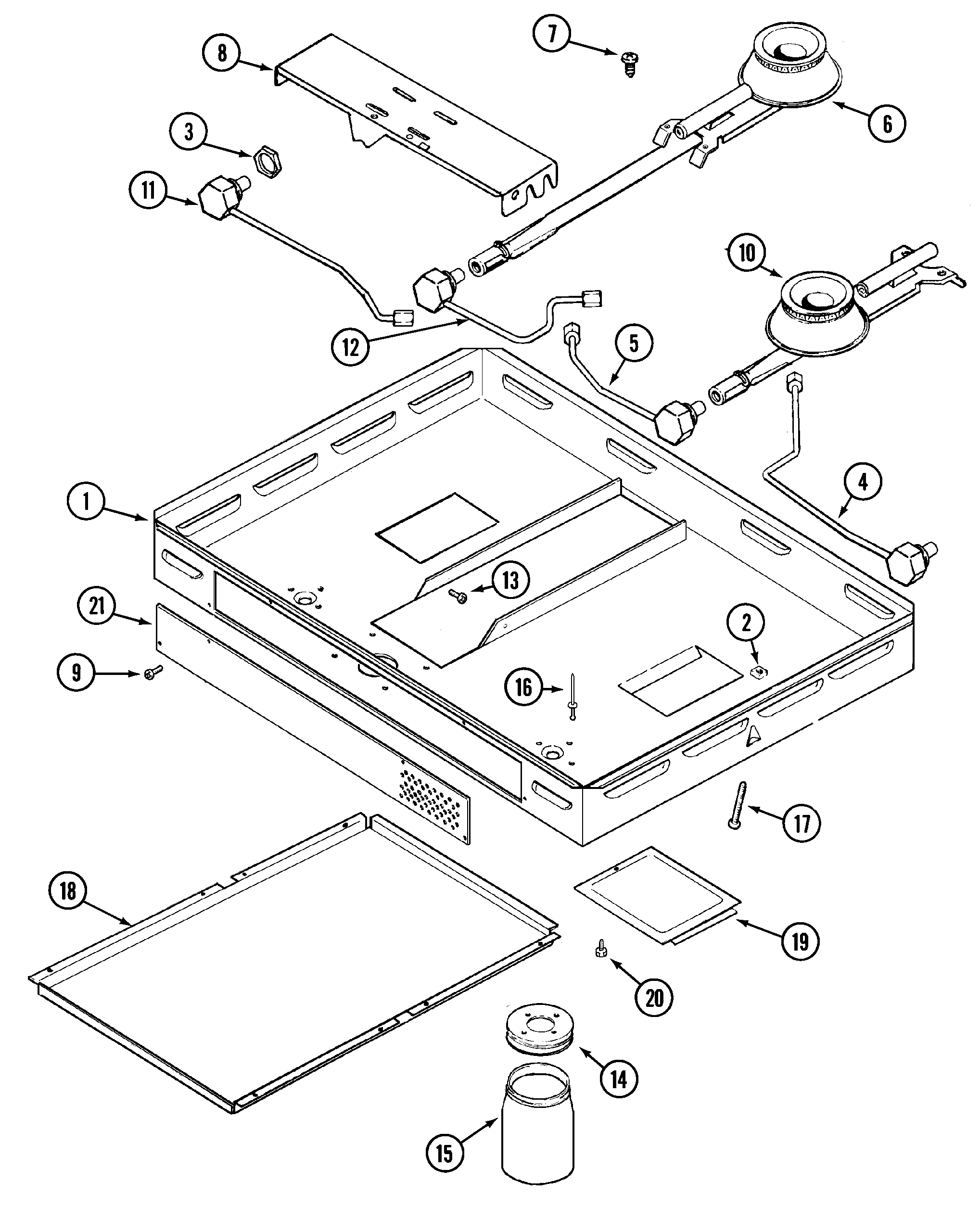

Body diagram
Screw
Part #715773
Replaced by #WP90767
?
Manufacturer substitution
This part replaces 715773. Substitute parts can look different from the original.
This item is not returnable
$4.15 |
19% OFF Phone Price : $5.15
In Stock
#25

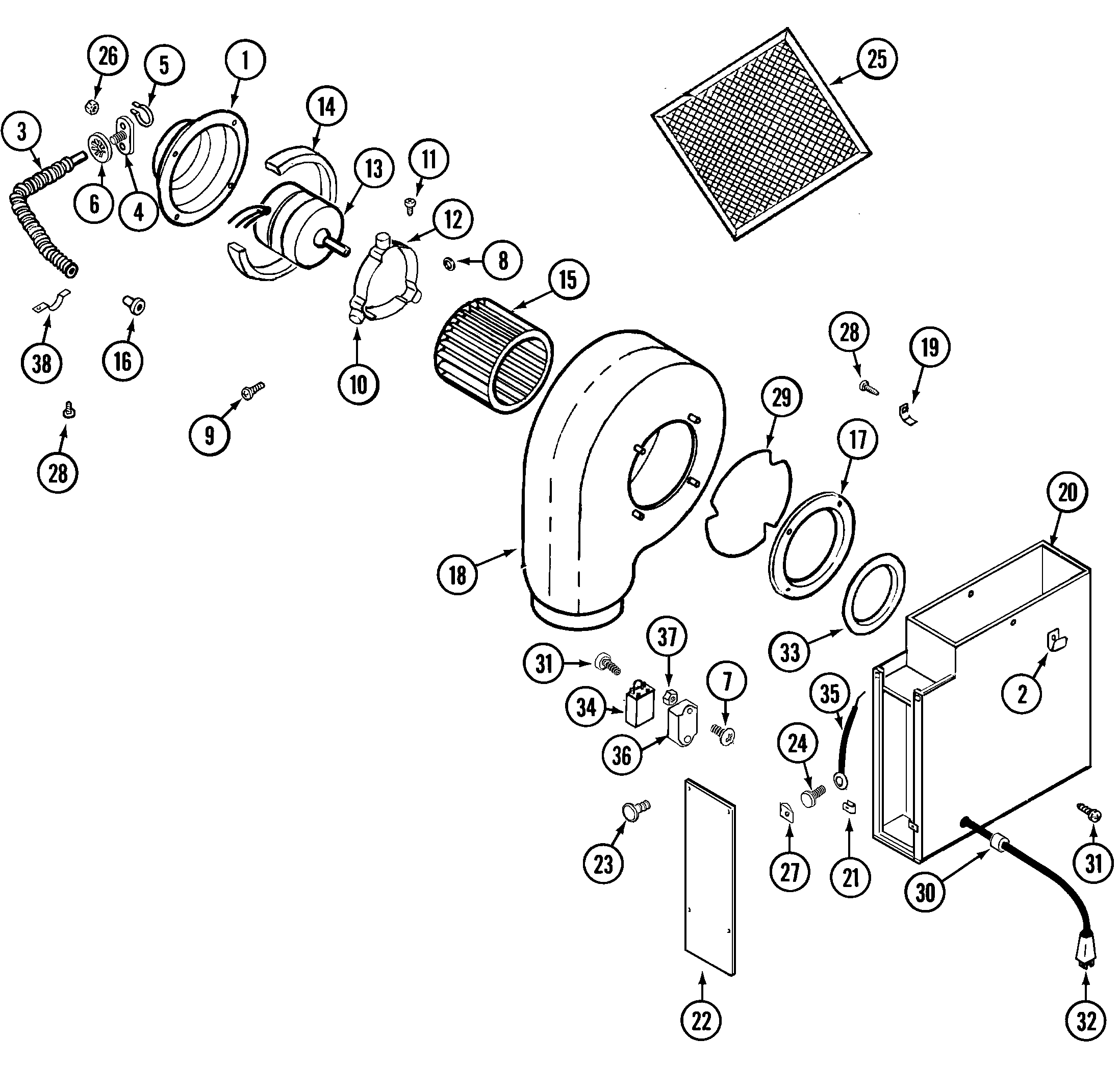

Blower assembly-plenum diagram
Range downdraft vent grease filter
Part #707929
Replaced by #WP707929
?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09 |
19% OFF Phone Price : $31.09
In Stock
#6C
Body diagram
Whirlpool cooktop burner assembly, rear (replaces 71001934, 7505p284-60, 8189688, y705402)
Part #74005189
$162.85 |
7% OFF Phone Price : $174.85
In Stock
#18

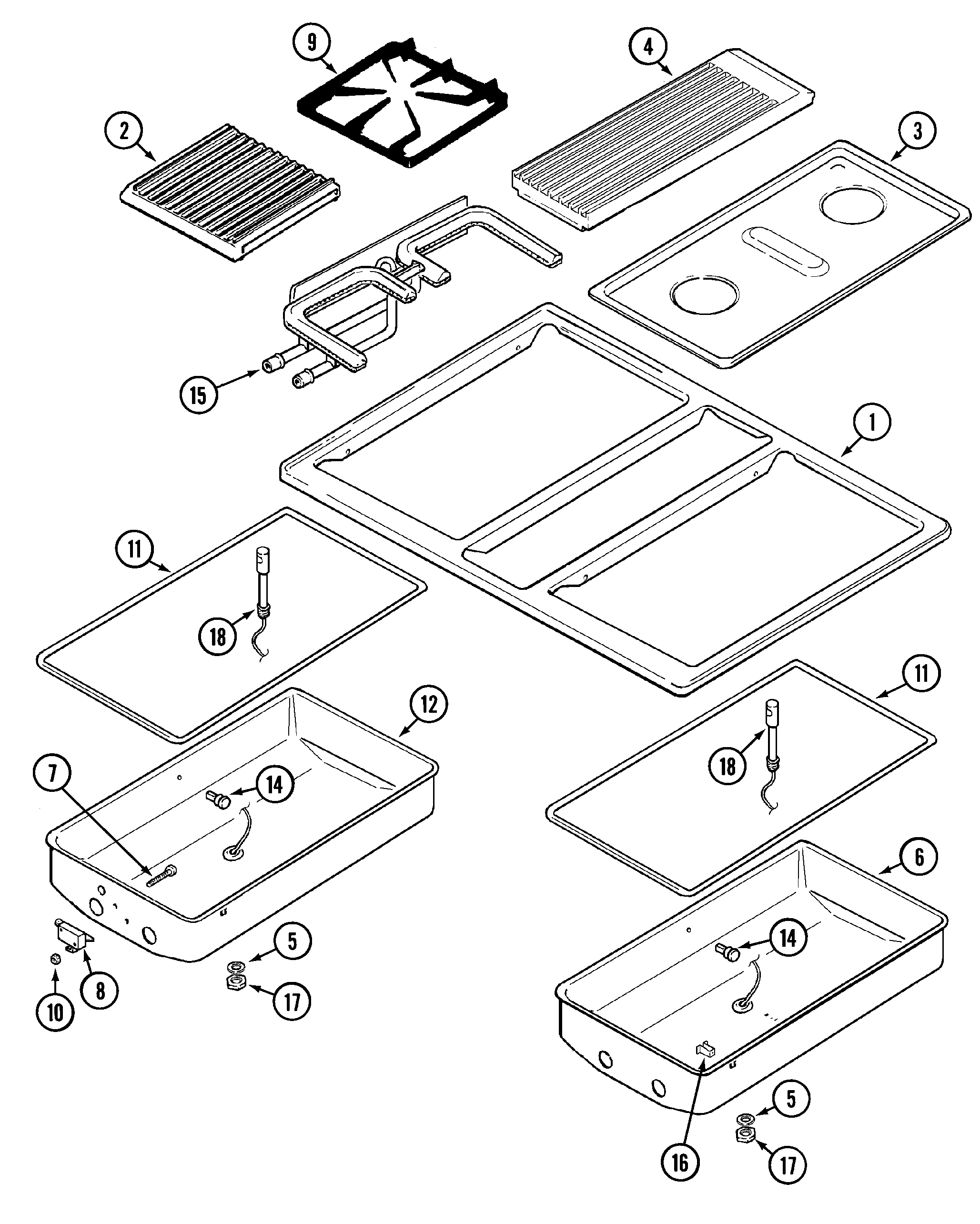

Top assembly diagram
Ignitor, spa
Part #704535
Replaced by #WP71002179
?
Manufacturer substitution
This part replaces 704535. Substitute parts can look different from the original.
$268.06 |
$12.00 OFF Phone Price : $280.06
In Stock
#6
Body diagram
Rear burner
Part #705317
Replaced by #74005189
?
Manufacturer substitution
This part replaces 705317. Substitute parts can look different from the original.
$162.85 |
7% OFF Phone Price : $174.85
In Stock
#2

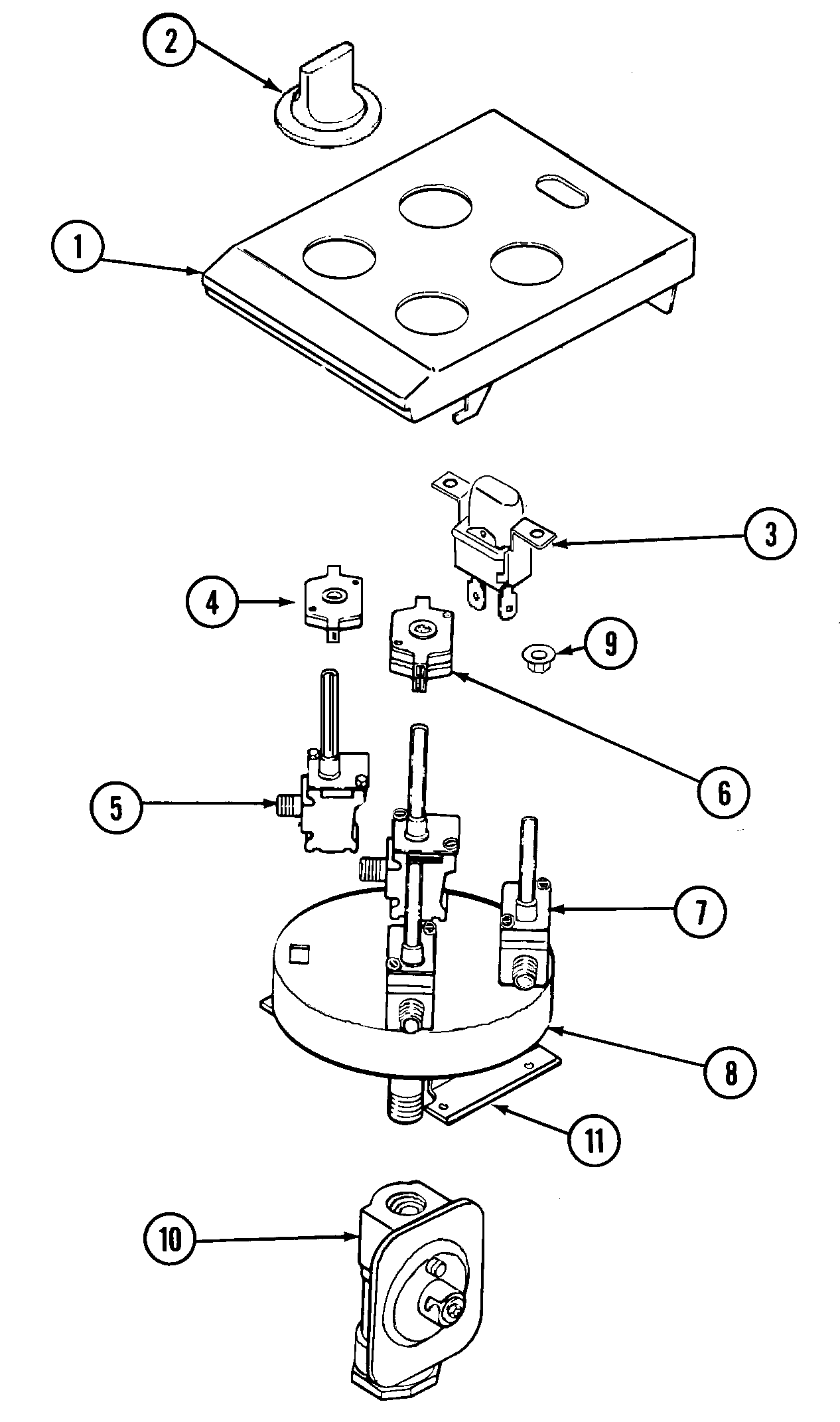

Control assembly diagram
Cooktop burner knob
Part #71001641
Replaced by #WP71001641
?
Manufacturer substitution
This part replaces 71001641. Substitute parts can look different from the original.
$18.16 |
10% OFF Phone Price : $20.16
In Stock
#15
Blower assembly-plenum diagram
Blower wheel
Part #707985
Replaced by #WPY707985
?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$68.10 |
8% OFF Phone Price : $74.10
In Stock
#6B
Body diagram
Rear burner
Part #74005026
Replaced by #74005189
?
Manufacturer substitution
This part replaces 74005026. Substitute parts can look different from the original.
$162.85 |
7% OFF Phone Price : $174.85
In Stock
#6A
Body diagram
Rear burner
Part #705402
Replaced by #74005189
?
Manufacturer substitution
This part replaces 705402. Substitute parts can look different from the original.
$162.85 |
7% OFF Phone Price : $174.85
In Stock
#34B
Blower assembly-plenum diagram
Fan relay
Part #71001579
Replaced by #12001452
?
Manufacturer substitution
This part replaces 71001579. Substitute parts can look different from the original.
$130.14
In Stock
