Model # JS2628HEKB13 Official Jenn-Air refrigerator
Here are the diagrams and repair parts for Official Jenn-Air JS2628HEKB13 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

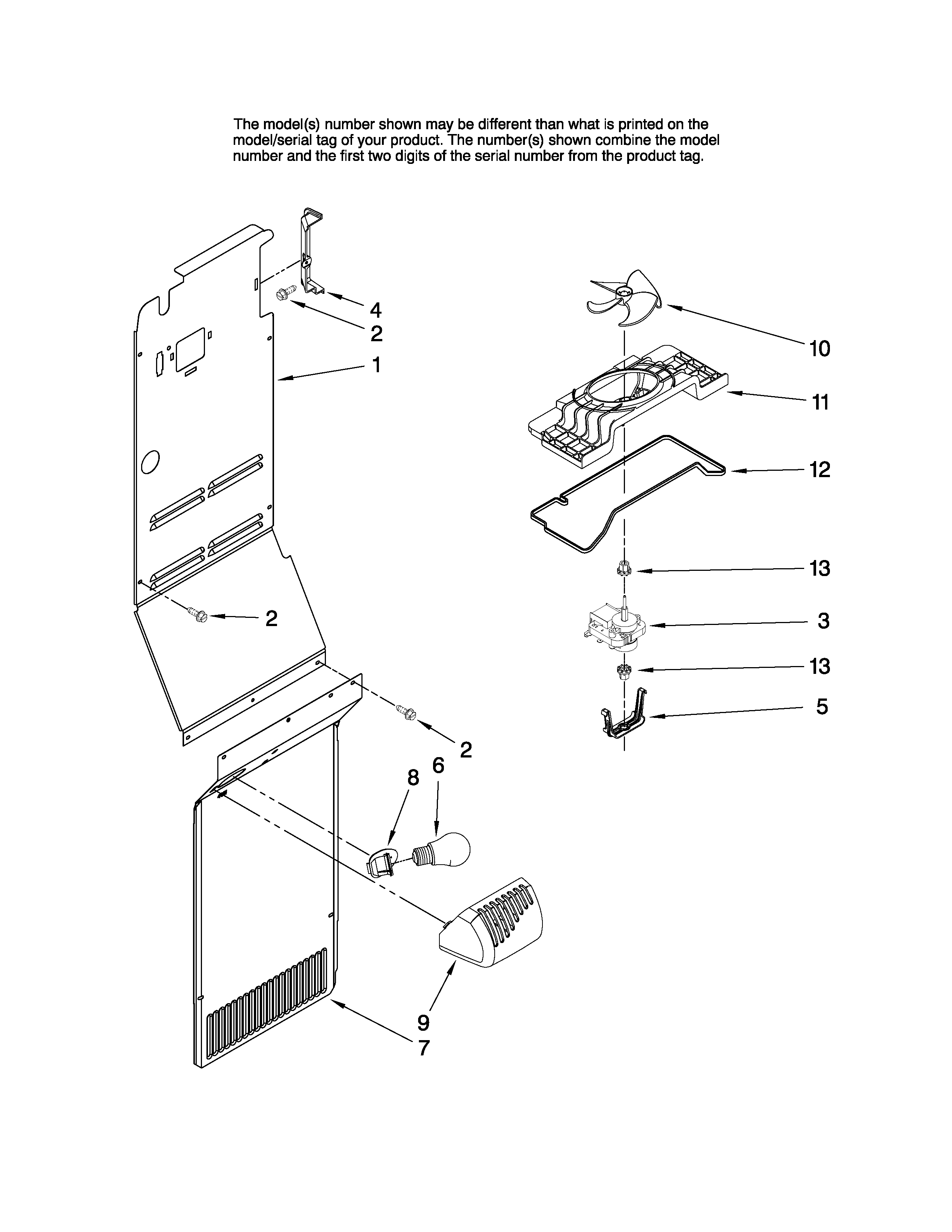

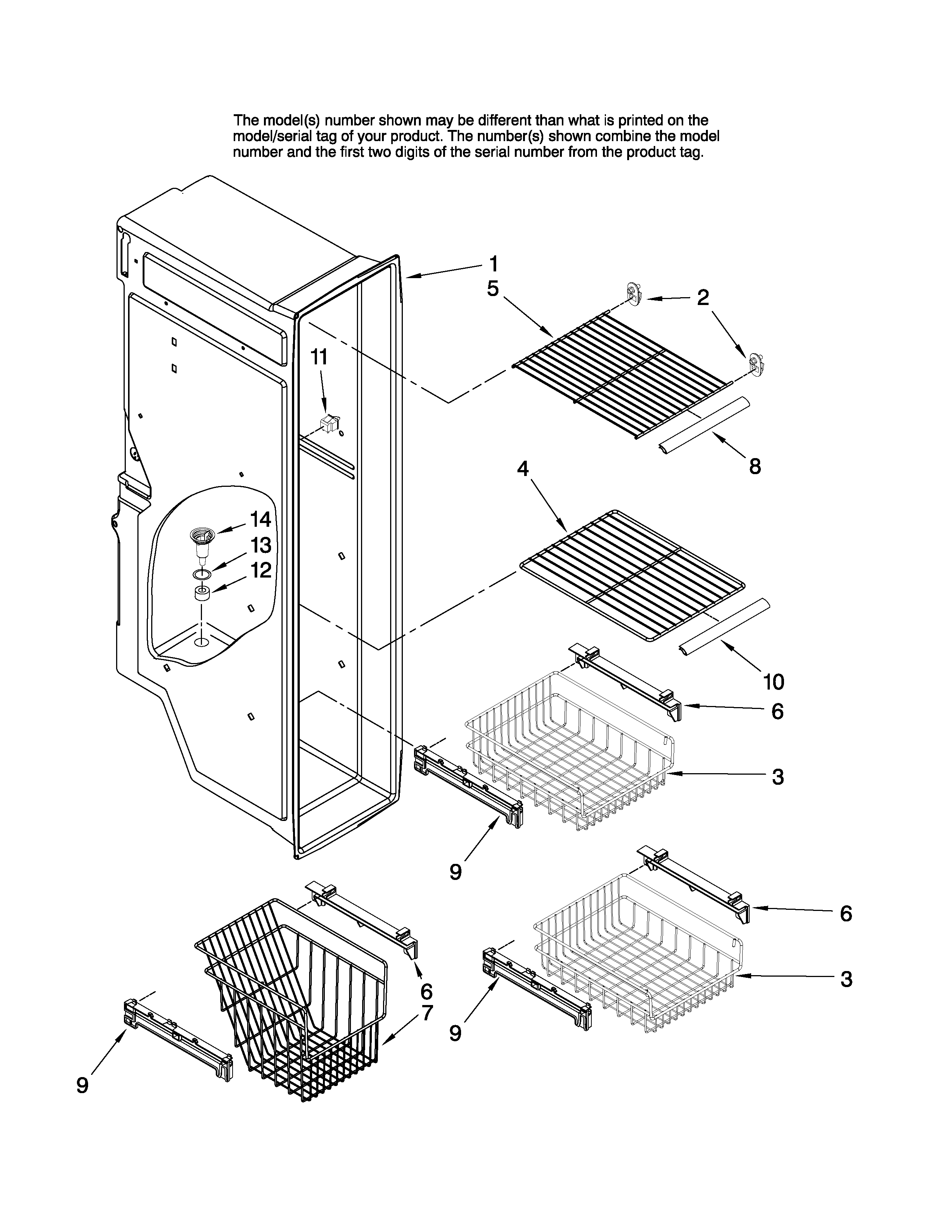

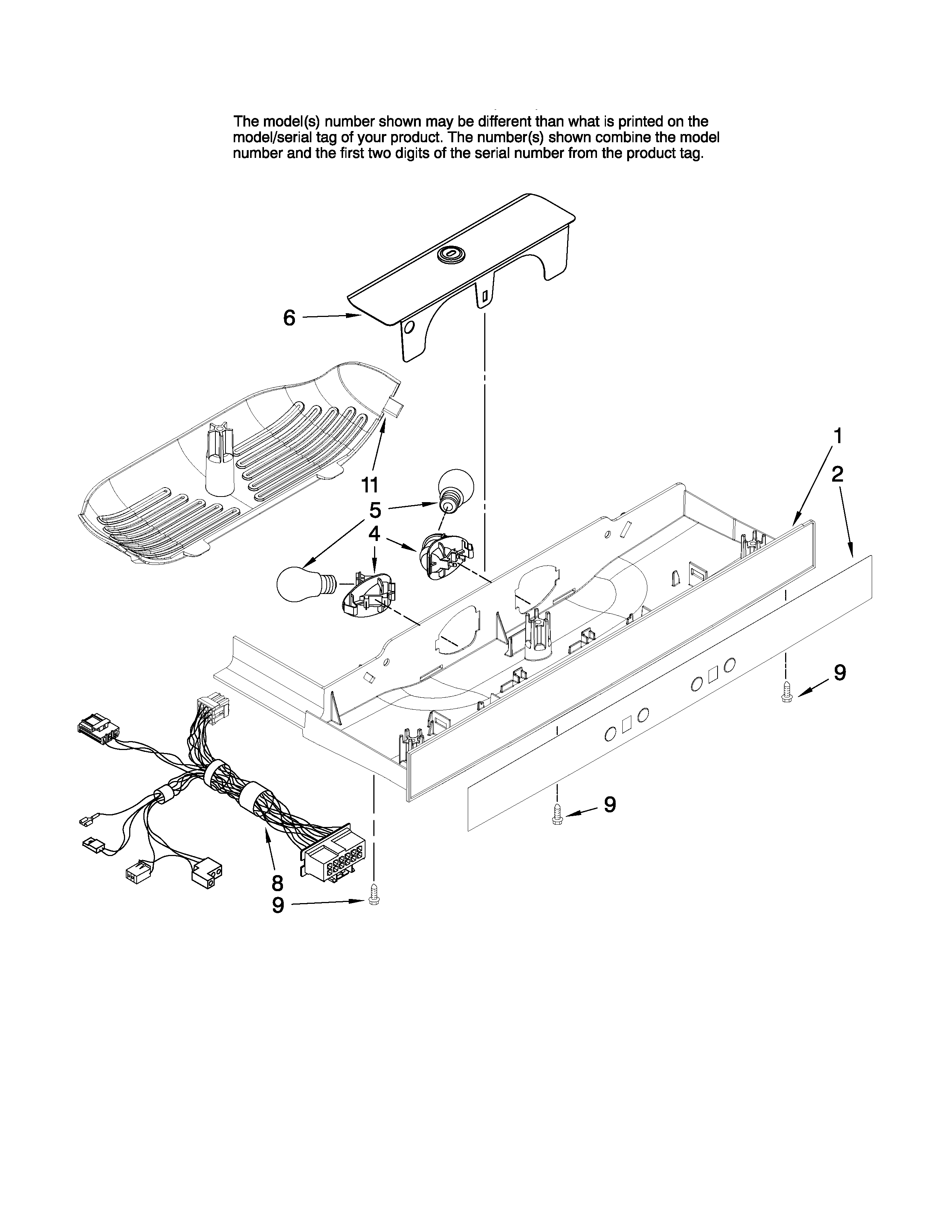

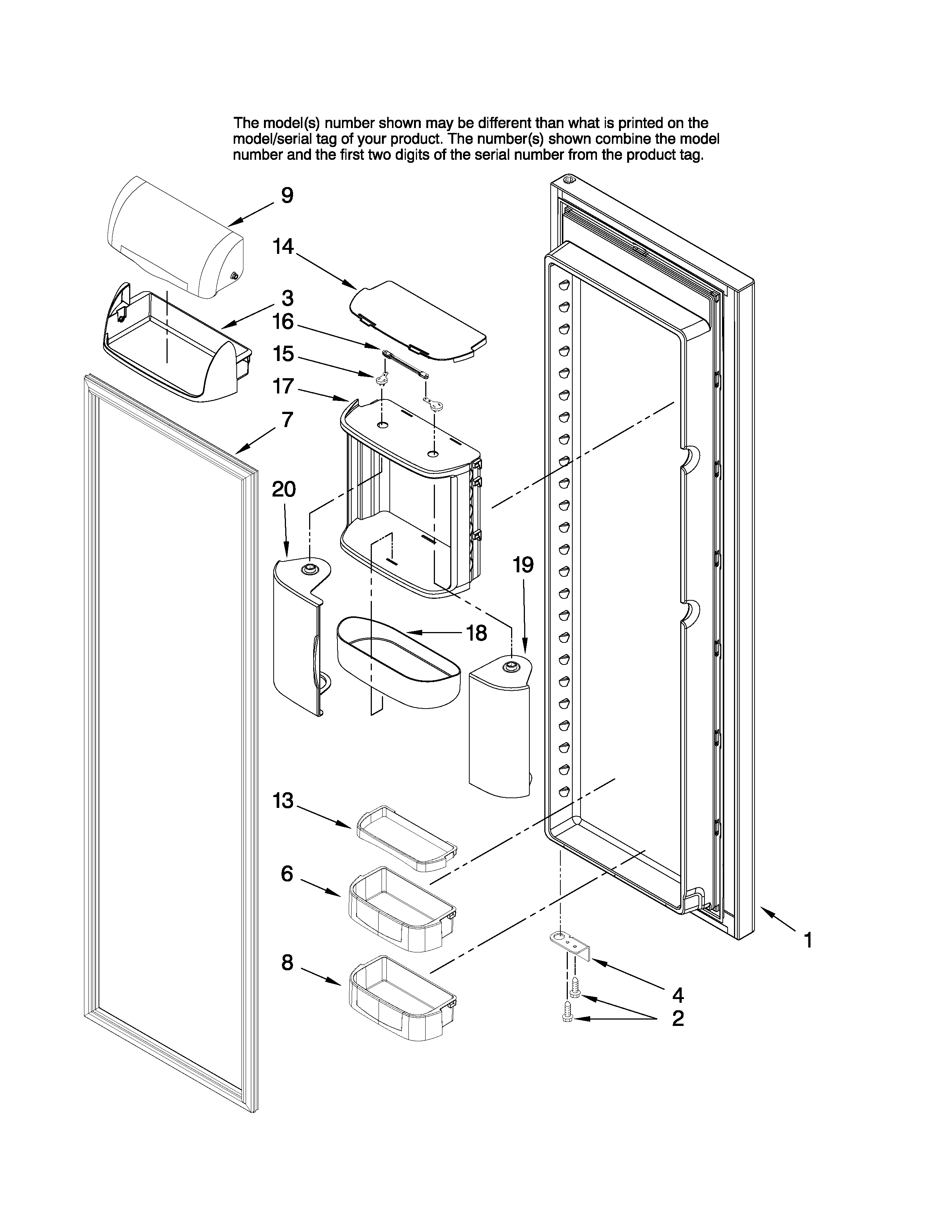

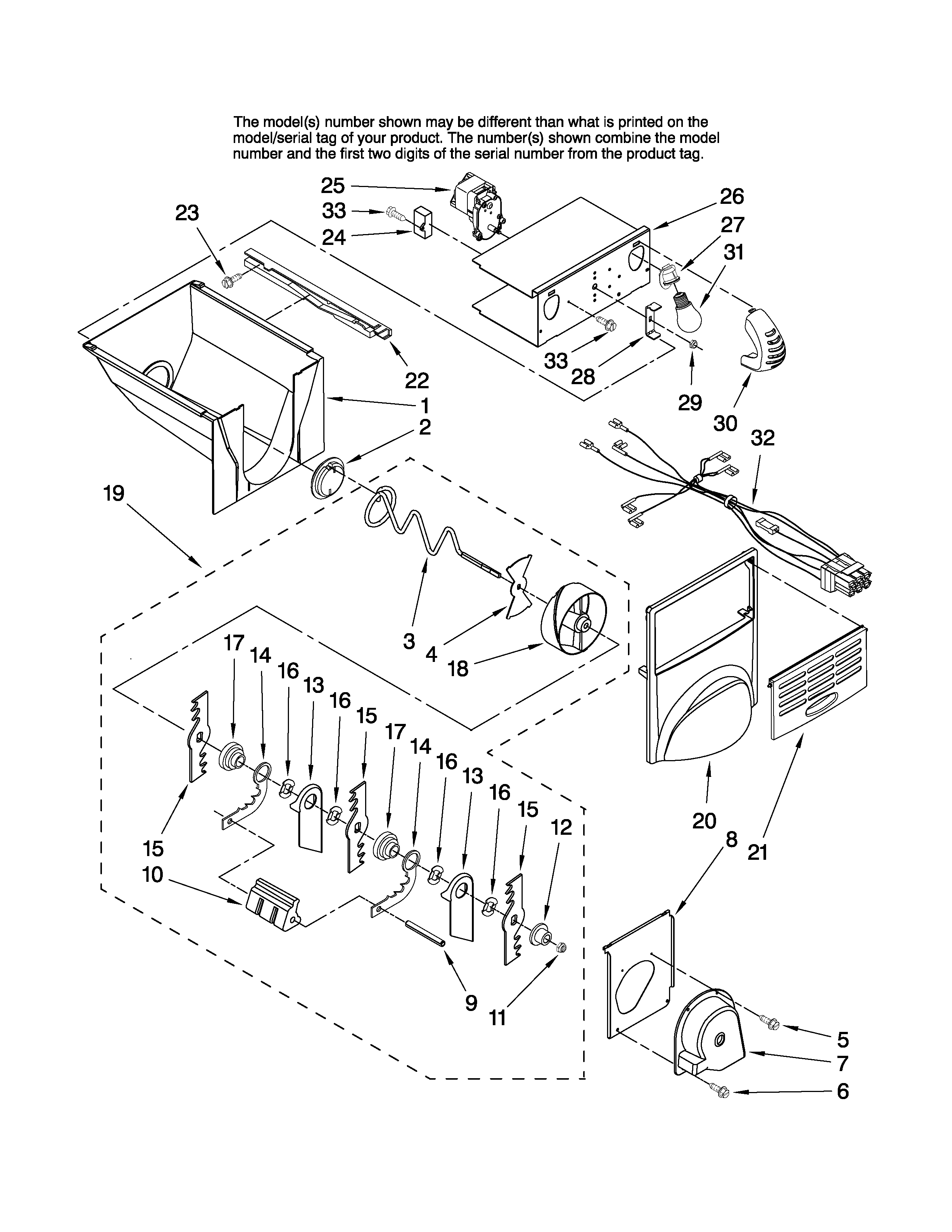

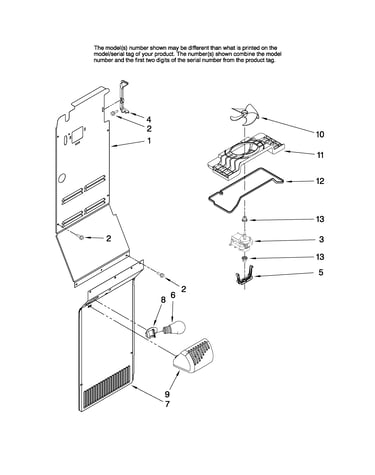

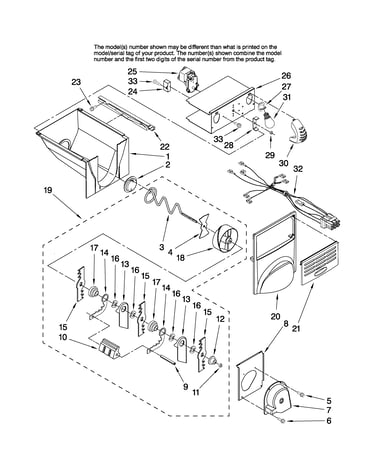

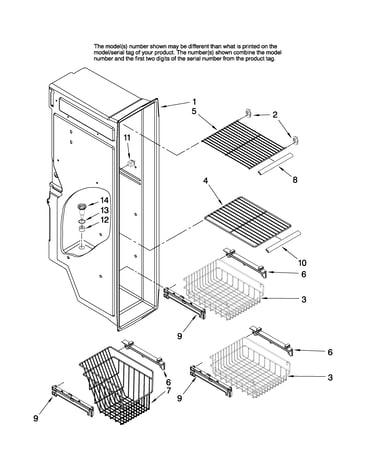

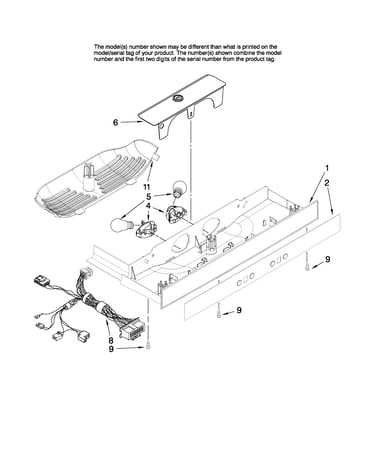

SELECT DIAGRAM
Browse Parts for
JS2628HEKB13 Refrigerators
#24

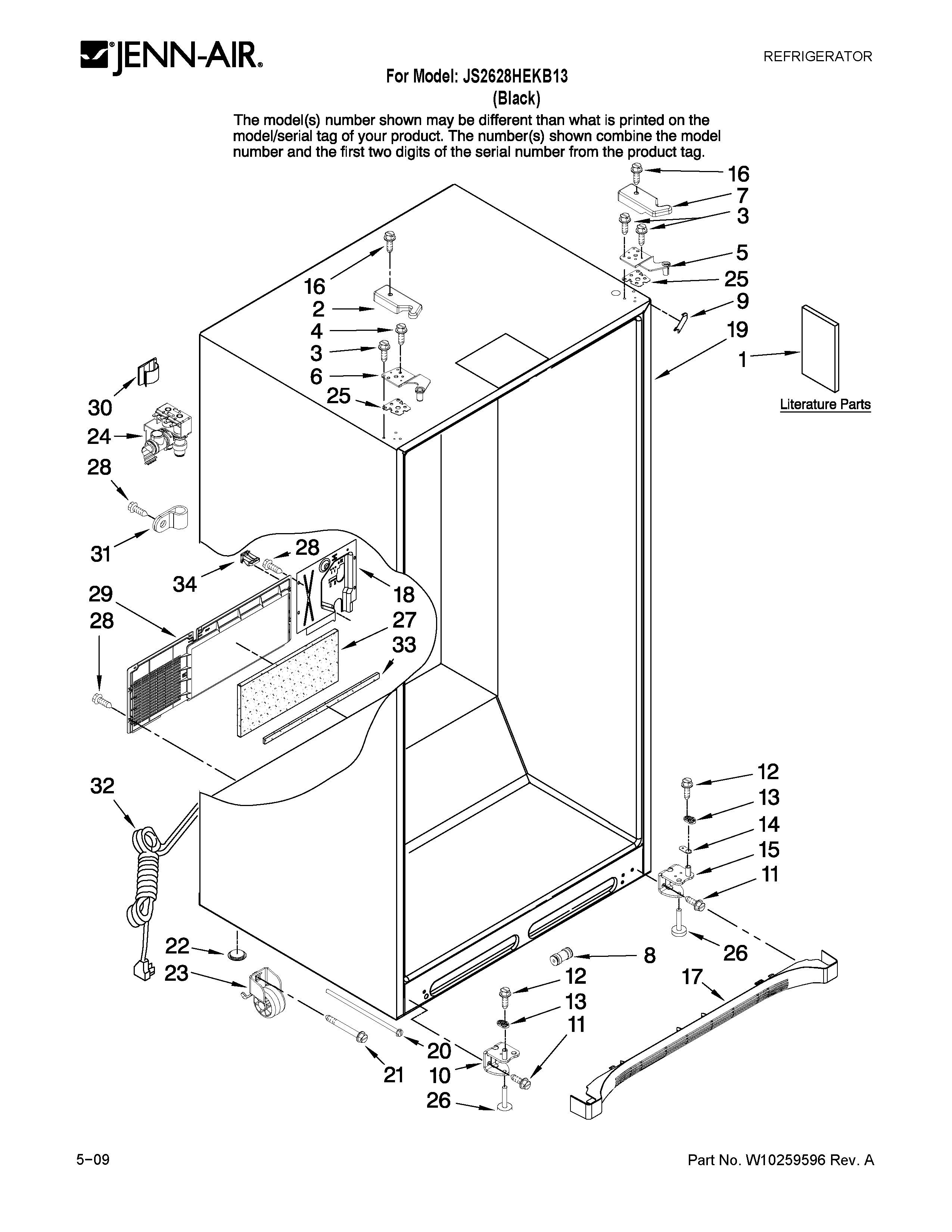

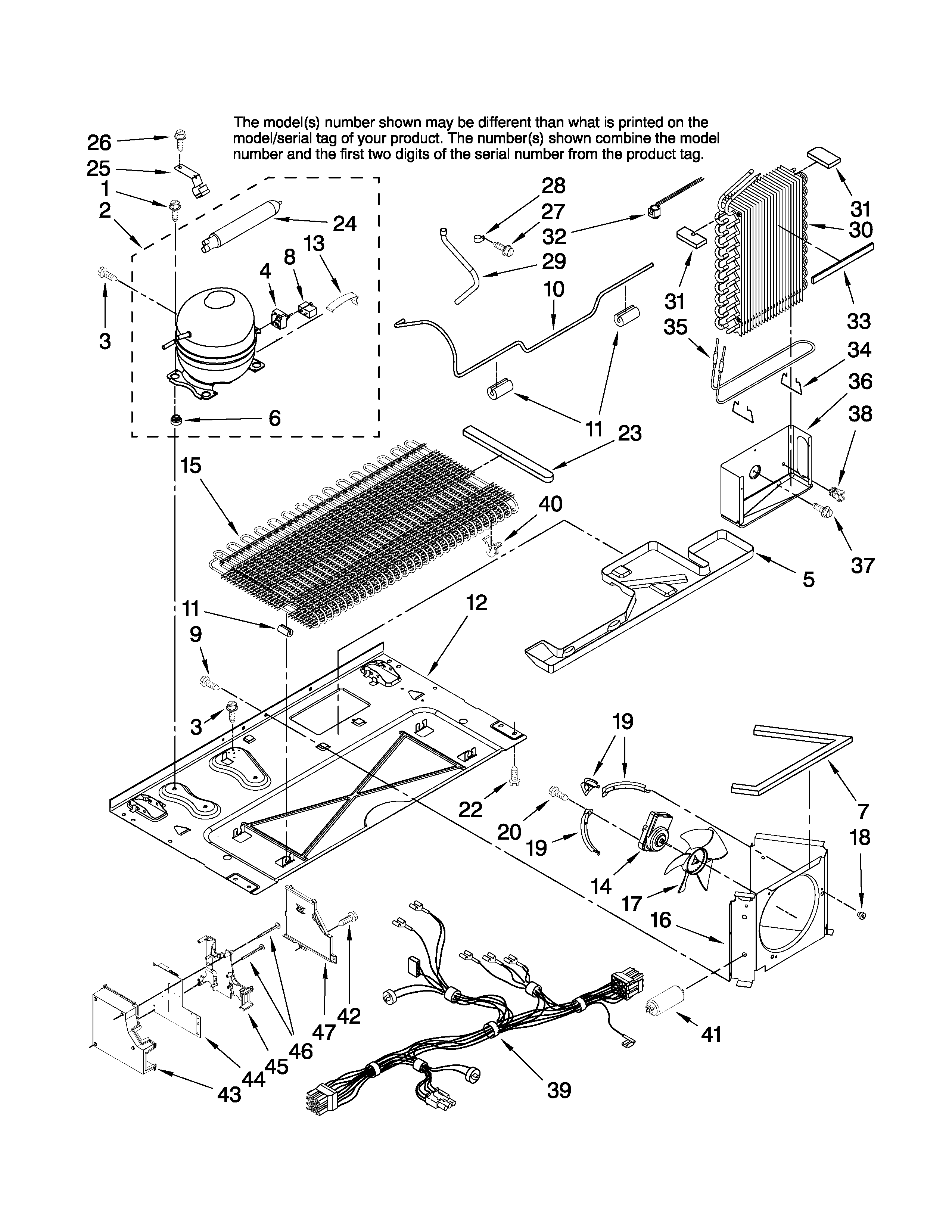

Unit parts diagram
Refrigerator uv filter dryer
Part #W10143759
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
$20.04 |
23% OFF Phone Price : $26.04
In Stock
#2

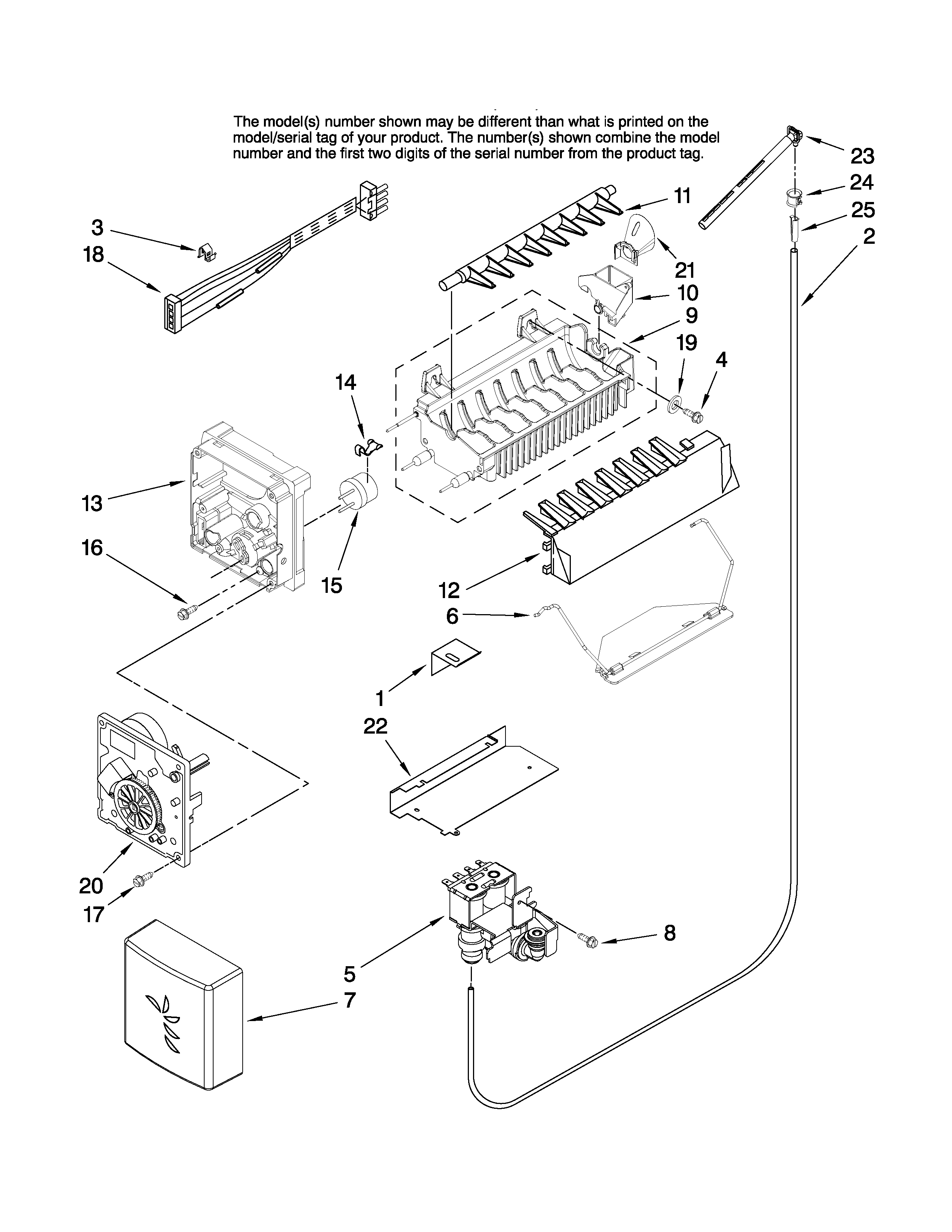

Icemaker parts diagram
Refrigerator tube
Part #B5705323
Replaced by #W10823511
?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
$29.74 |
17% OFF Phone Price : $35.74
In Stock
#37
Unit parts diagram
Refrigerator screw
Part #67006838
The manufacturer no longer makes this part, and there's no substitute part
#28

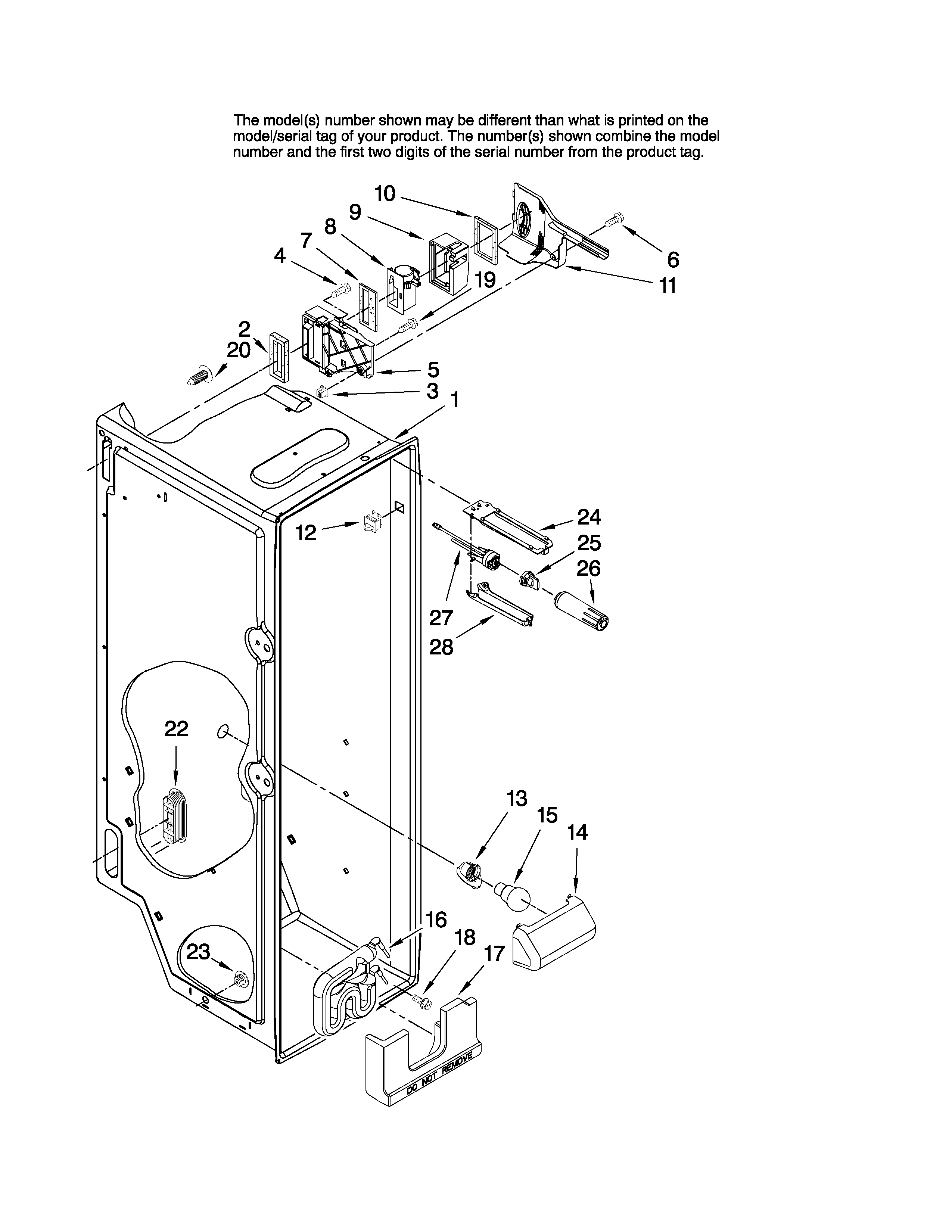

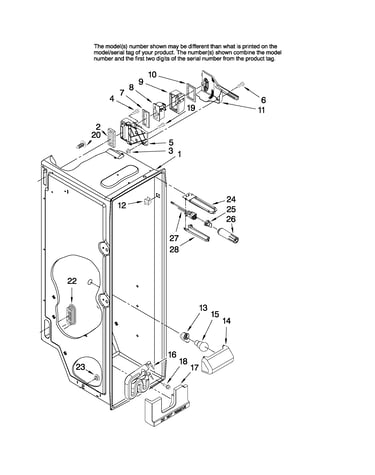

Refrigerator liner parts diagram
Refrigerator water filter housing
Part #12568001
Replaced by #WP12568001
?
Manufacturer substitution
This part replaces 12568001. Substitute parts can look different from the original.
$51.90 |
10% OFF Phone Price : $57.90
In Stock
#17
Unit parts diagram
Refrigerator fan blade
Part #W10162928
Replaced by #W10156818
?
Manufacturer substitution
This part replaces W10162928. Substitute parts can look different from the original.
$39.42 |
13% OFF Phone Price : $45.42
In Stock
#NI
Optional parts (not included) diagram
Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)
Part #72032
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
#6

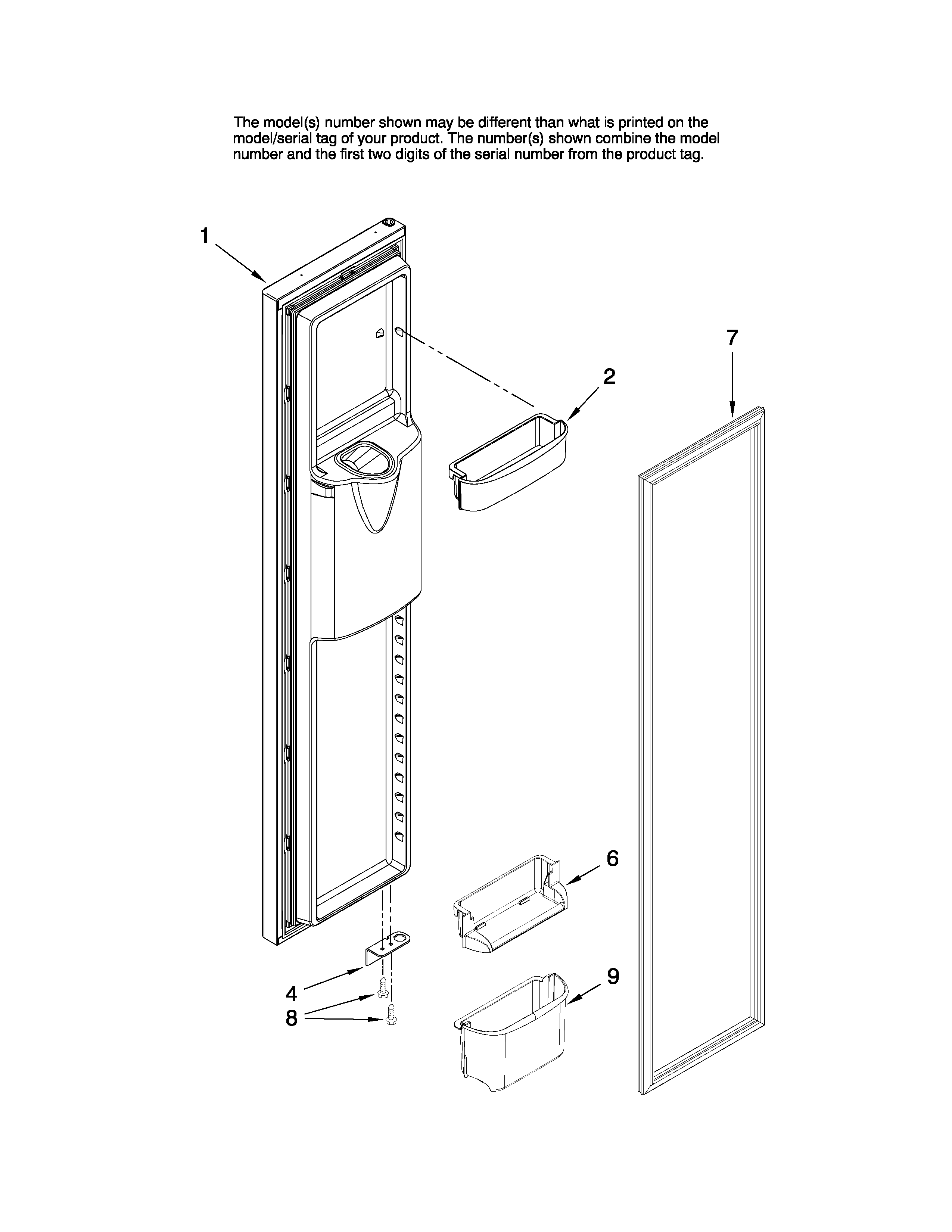

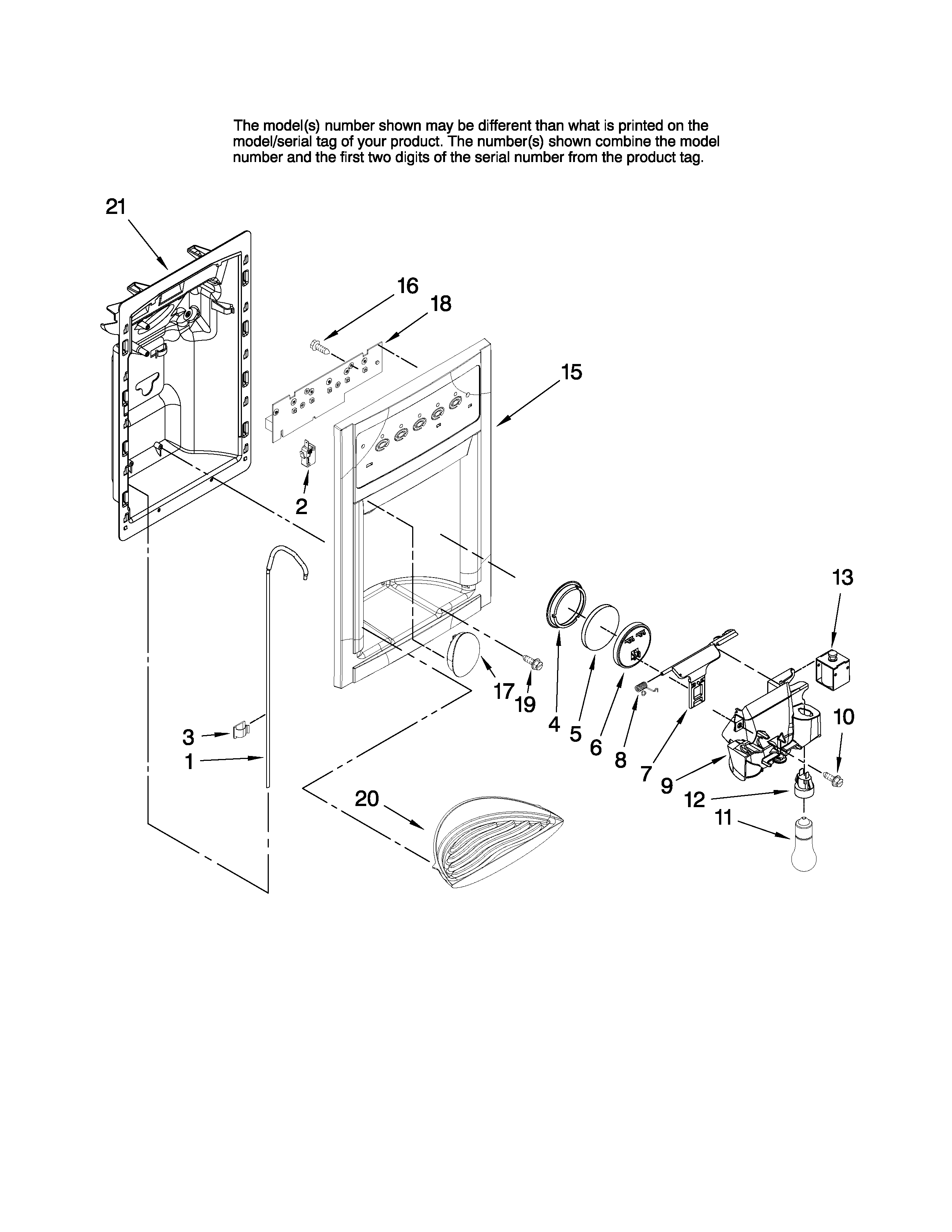

Dispenser front parts diagram
Refrigerator door chute
Part #12562701
Replaced by #WP12562701
?
Manufacturer substitution
This part replaces 12562701. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#23
Icemaker parts diagram
Refrigerator elbow
Part #10463201
Replaced by #W11176463
?
Manufacturer substitution
This part replaces 10463201. Substitute parts can look different from the original.
This item is not returnable
$42.58 |
12% OFF Phone Price : $48.58
In Stock
#5

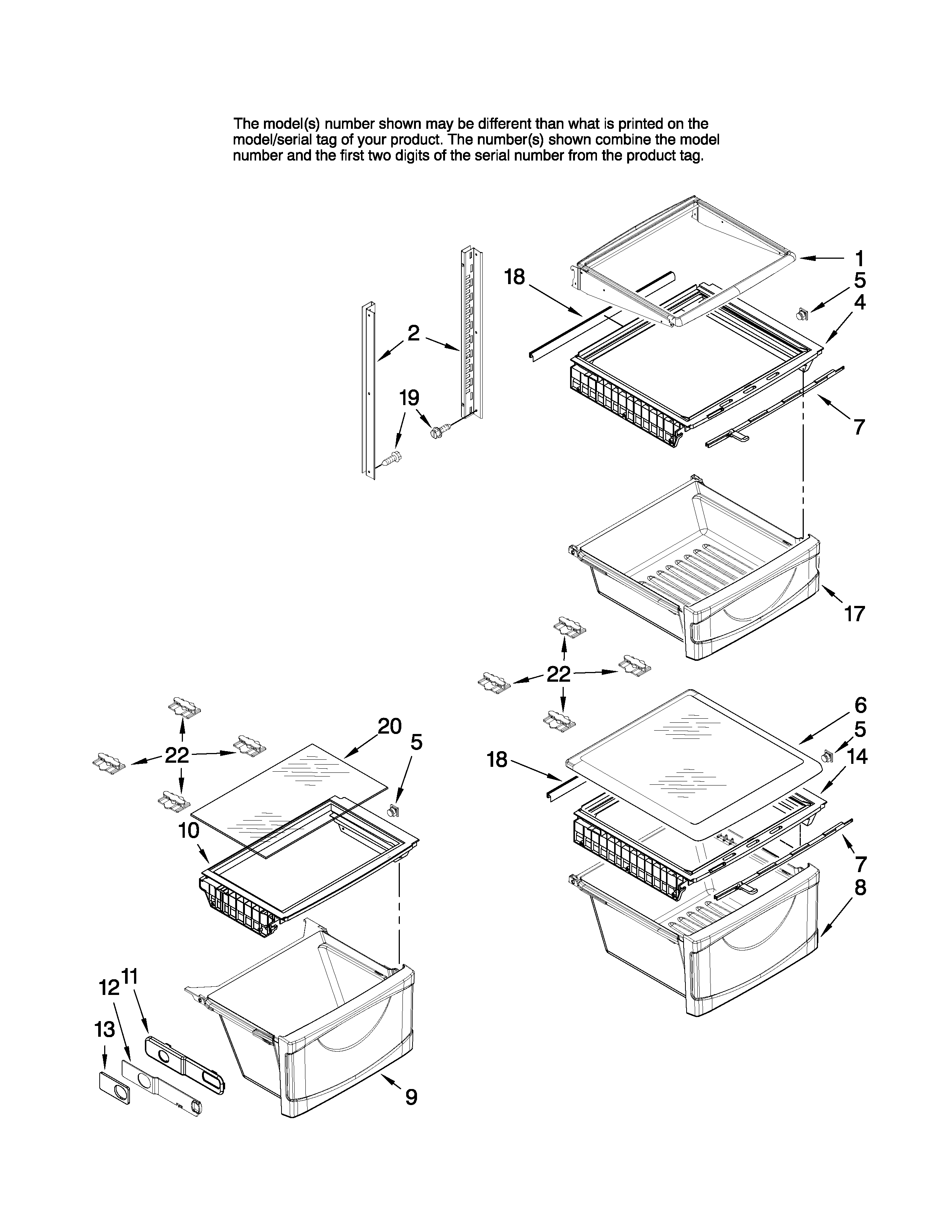

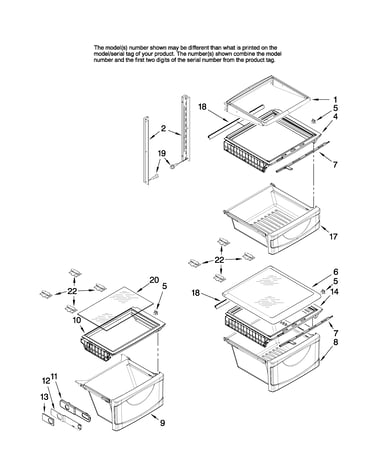

Refrigerator shelf parts diagram
Refrigerator crisper support post
Part #12603701
Replaced by #WP12603701
?
Manufacturer substitution
This part replaces 12603701. Substitute parts can look different from the original.
This item is not returnable
$7.71 |
11% OFF Phone Price : $8.71
In Stock
#8
Icemaker parts diagram
Refrigerator screw valve
Part #67006662
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 67006662. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
