Model # 225581984 Official Craftsman 9.9-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 225581984 9.9-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

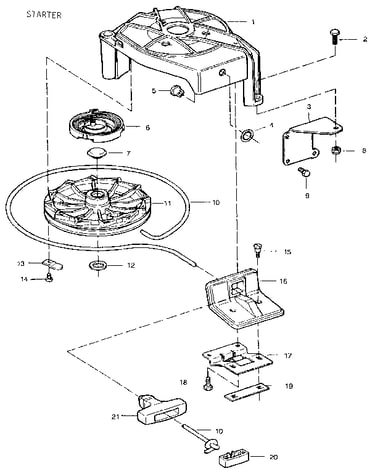

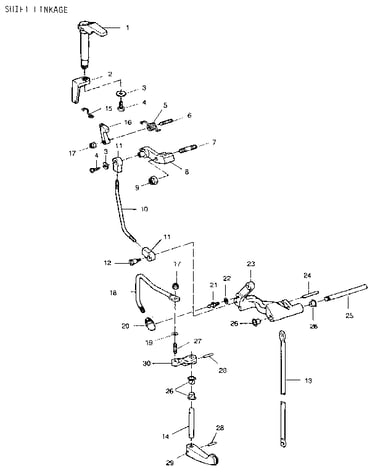

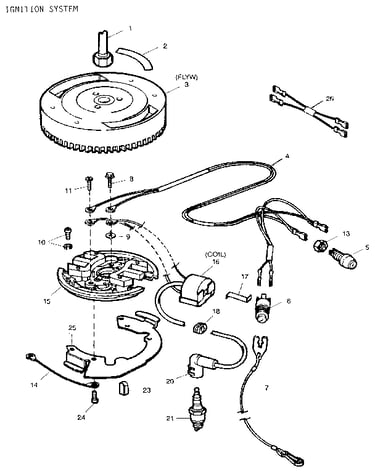

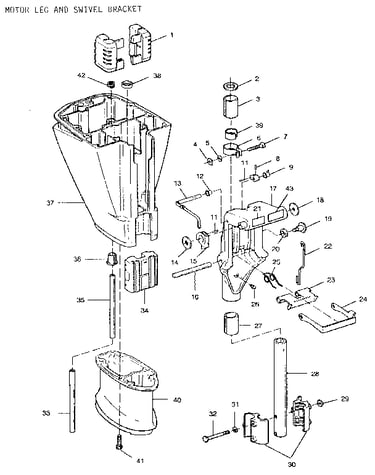

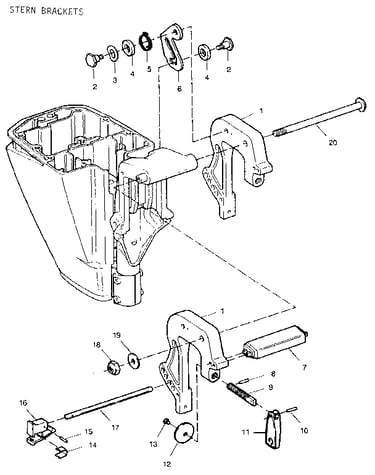

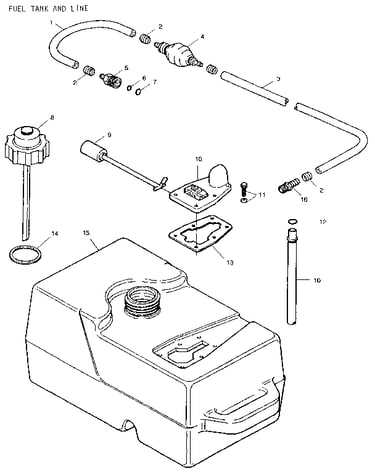

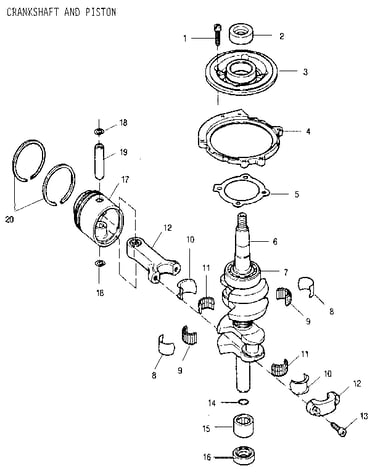

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 362 parts |

Boat Motor Fuel Pump Diaphragm And Gasket Assembly 818043A1

#30

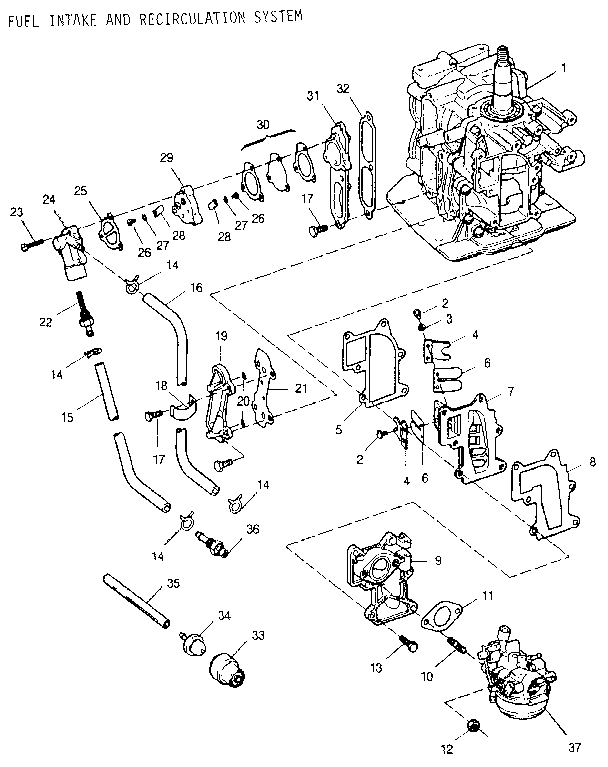

Fuel intake and recirculation system diagram

Boat motor fuel pump diaphragm and gasket assembly

Part #818043A1

The manufacturer no longer makes this part, and there's no substitute part

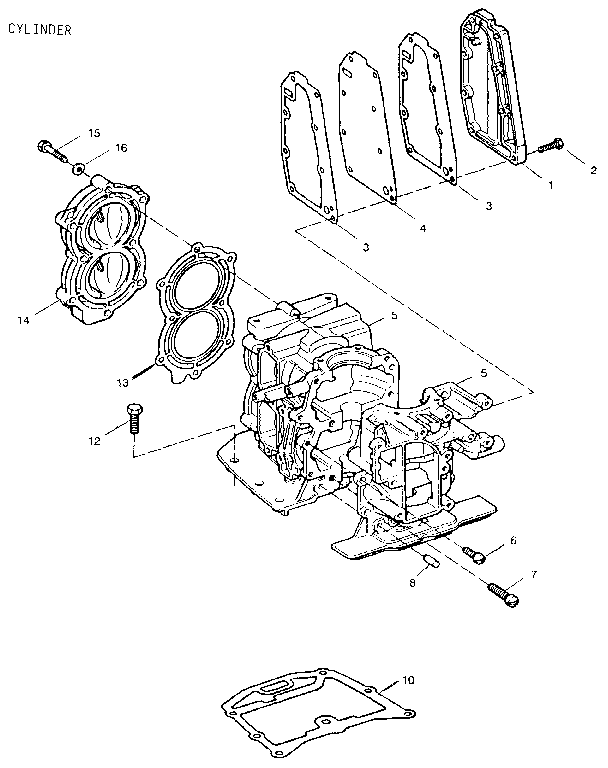

Cylinder diagram

Boat motor exhaust cover gasket

Part #715154

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Carburetor Float Bowl Retainer Screw Gasket O2510

#14

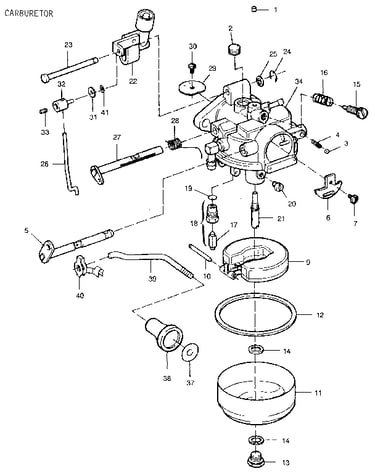

Carburetor diagram

Boat motor carburetor float bowl retainer screw gasket

Part #O2510

The manufacturer no longer makes this part, and there's no substitute part

#11

Carburetor diagram

Fuel bowl

Part #O15366

The manufacturer no longer makes this part, and there's no substitute part

#45

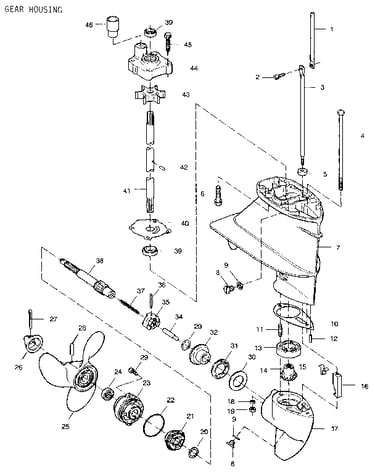

Gear housing diagram

Exercise equipment screw

Part #2030

The manufacturer no longer makes this part, and there's no substitute part

#8A

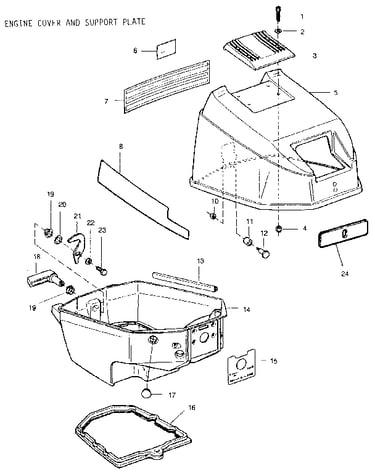

Engine cover and support plate diagram

Decal-port

Part #709397

The manufacturer no longer makes this part, and there's no substitute part

#22

Fuel intake and recirculation system diagram

Boat motor fuel filter

Part #901811

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Fuel Pump Cover Gasket 24748-2

#25

Fuel intake and recirculation system diagram

Boat motor fuel pump cover gasket

Part #24748-2

The manufacturer no longer makes this part, and there's no substitute part

#28

Fuel intake and recirculation system diagram

Boat motor fuel pump reed valve

Part #18160-3

The manufacturer no longer makes this part, and there's no substitute part

#26

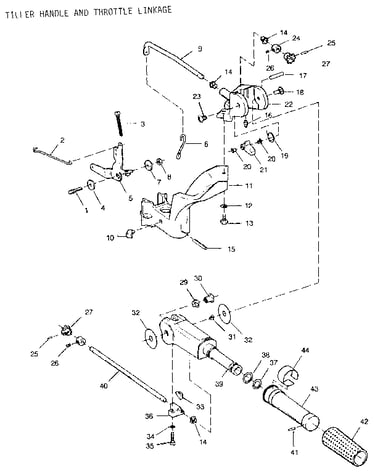

Tiller handle and throttle linkage diagram

Exercise equipment screw

Part #1859

The manufacturer no longer makes this part, and there's no substitute part
