Model # RB533GW5 Official Hotpoint electric range

Here are the diagrams and repair parts for Official Hotpoint RB533GW5 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |

Range Oven Light Bulb WX12X1510
#1024

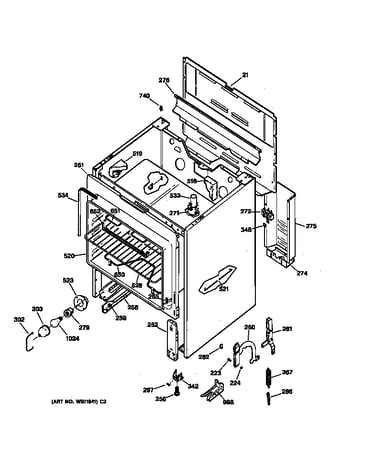

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.39
9% OFF Phone Price : $16.94
In Stock
Lamp Cover WB36X389
#303

Body parts diagram

Lamp cover

Part #WB36X389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X389. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.54
9% OFF Phone Price : $10.54
In Stock
Range Drip Pan WB32X5075
#154

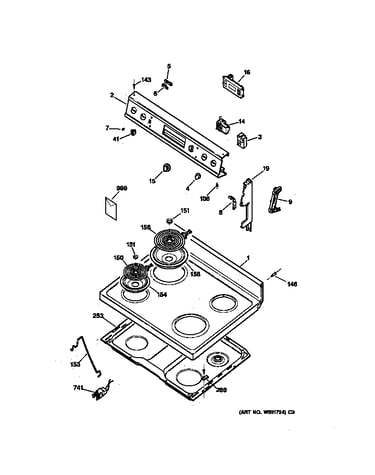

Control panel & cooktop diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72
10% OFF Phone Price : $9.72
In Stock
Range Bake Element (replaces Wb44x10005, Wb44x1005) WB44X10009
#650

Body parts diagram

Range bake element (replaces wb44x10005, wb44x1005)

Part #WB44X10009

$67.49
7% OFF Phone Price : $72.49
In Stock
8" Surf Elem WB30X5120
#156

Control panel & cooktop diagram

8" surf elem

Part #WB30X5120

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5120. Substitute parts can look different from the original.
$46.48
10% OFF Phone Price : $51.48
In Stock
Trim WB7X7195
#359

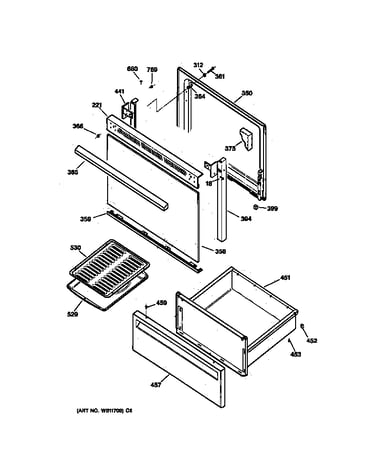

Door & drawer parts diagram

Trim

Part #WB7X7195

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB7X7195. Substitute parts can look different from the original.
This item is not returnable
$22.56
18% OFF Phone Price : $27.56
In Stock
Range Oven Rack (replaces Wb48x5097) WB48X5099
#528

Body parts diagram

Range oven rack (replaces wb48x5097)

Part #WB48X5099

$28.48
15% OFF Phone Price : $33.48
In Stock
Leveling WB2X10521
#256

Body parts diagram

Leveling

Part #WB2X10521

Replaced by #WB02X10521

?
Manufacturer substitution
This part replaces WB2X10521. Substitute parts can look different from the original.
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Element Receptacle (replaces Wb02x8228, Wb62x5358, Wb62x5393, Wb62x5394, Wb62x5397, Wb62x5401, Wb62x5405) WB2X8228
#741

Control panel & cooktop diagram

Range surface element receptacle (replaces wb02x8228, wb62x5358, wb62x5393, wb62x5394, wb62x5397, wb62x5401, wb62x5405)

Part #WB2X8228

This item is not returnable
$30.23
14% OFF Phone Price : $35.23
In Stock
Range Oven Control Thermostat (replaces Wb20x5067, Wb20x5070) WB20X5071
#14

Control panel & cooktop diagram

Range oven control thermostat (replaces wb20x5067, wb20x5070)

Part #WB20X5071

$129.55
7% OFF Phone Price : $139.55
Back Order
