Craftsman
Lawn Edger

Model # 536772341 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 536772341 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

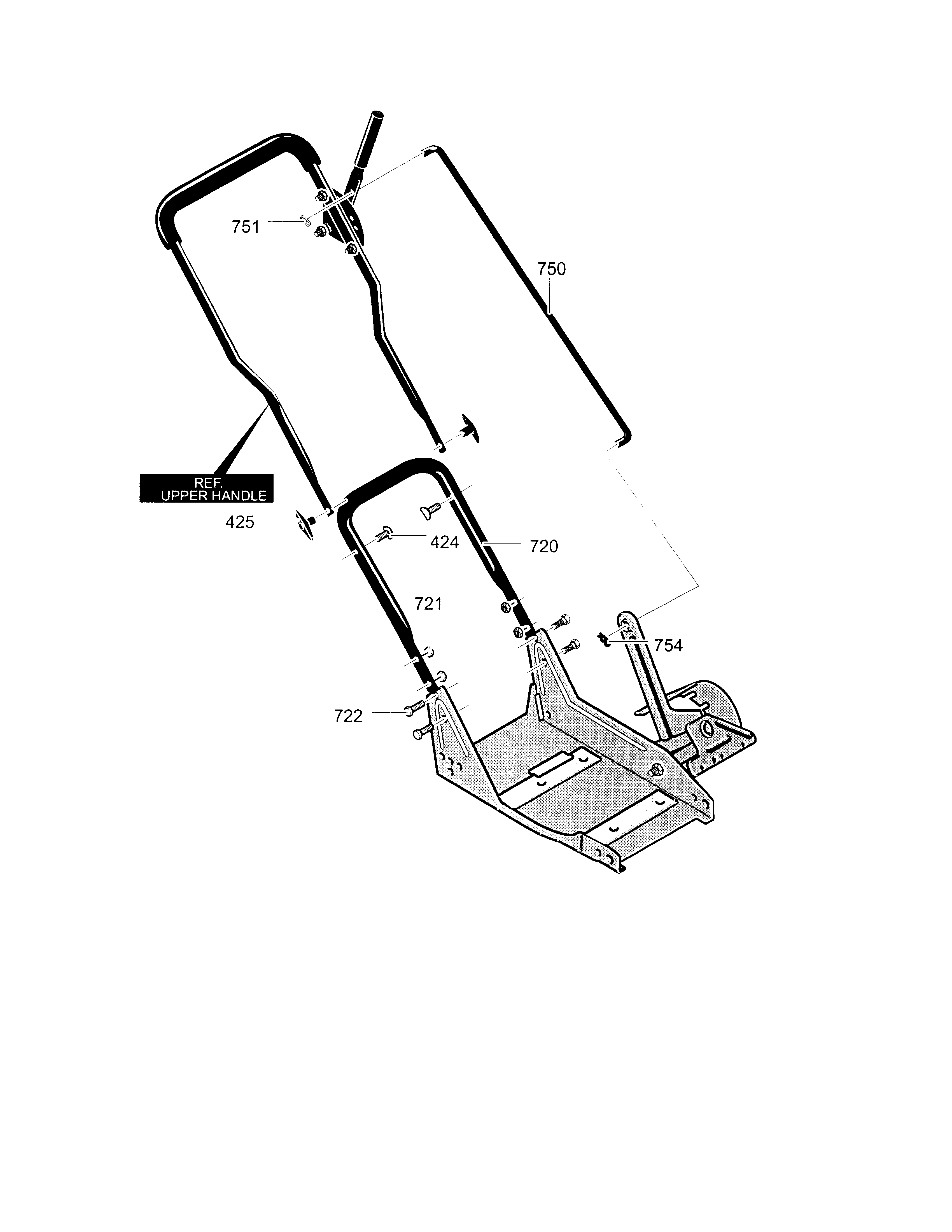

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 267 parts  |
V-belt 32668
#29

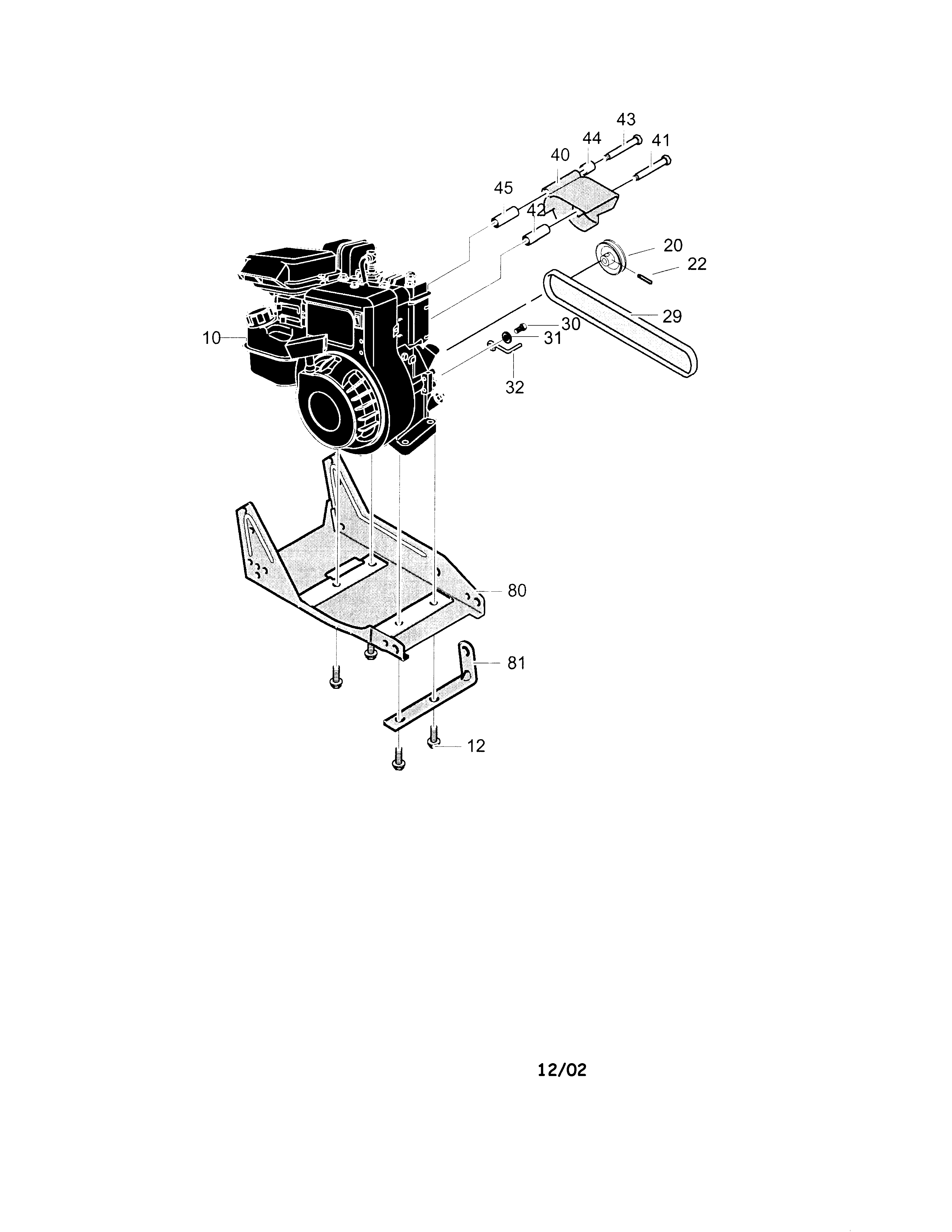

Engine/frame diagram

V-belt

Part #32668

Replaced by #32668MA

?
Manufacturer substitution
This part replaces 32668. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$24.96 |
17% OFF Phone Price : $29.96
In Stock
Nut, 1/4-20 782585
#735

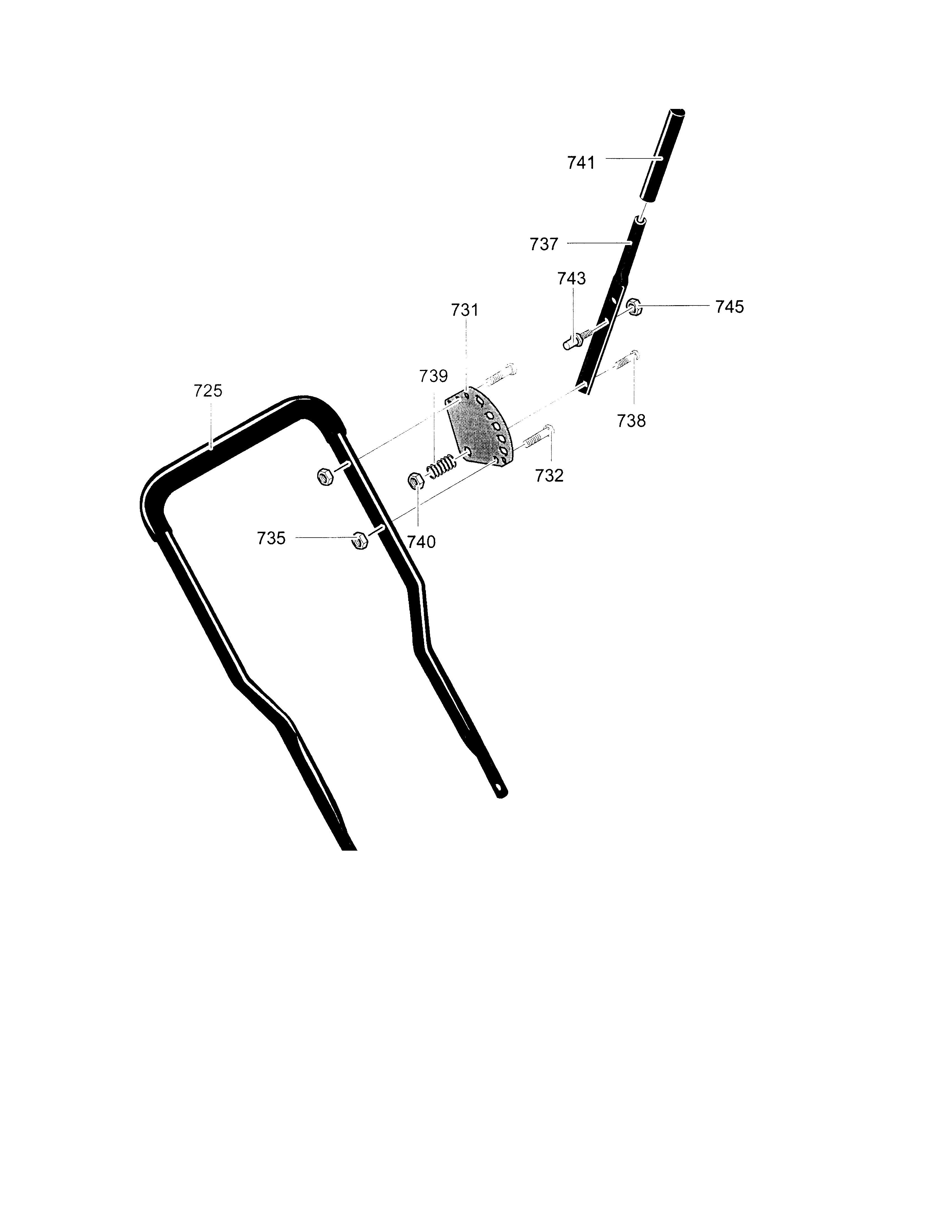

Controls diagram

Nut, 1/4-20

Part #782585

Replaced by #703251

?
Manufacturer substitution
This part replaces 782585. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Lock Nut 1498
Lock nut

Part #1498

The manufacturer no longer makes this part, and there's no substitute part

0 Cotter Pin 30X20
#118

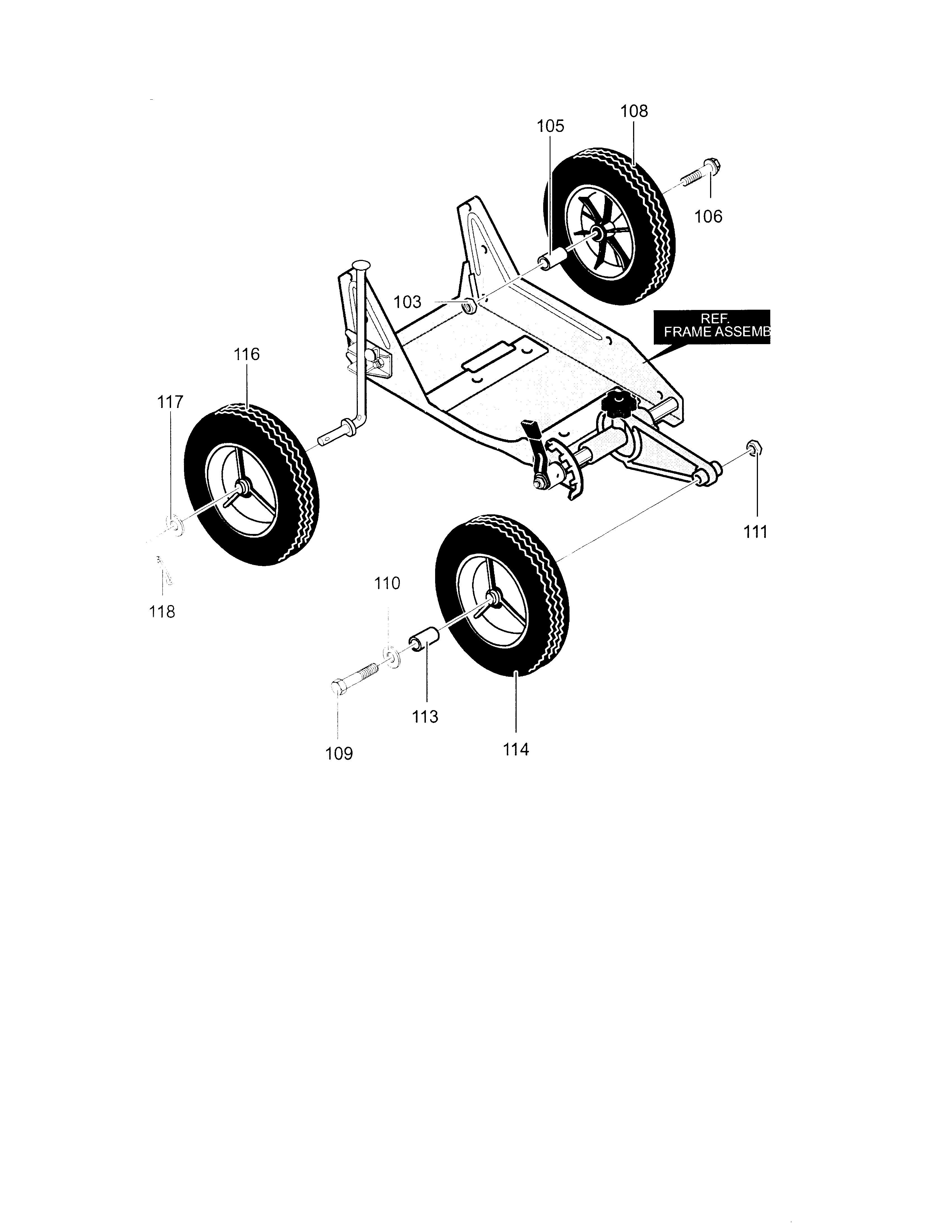

Wheels diagram

0 cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Wheel And Tire Assembly 336545
Wheel and tire assembly

Part #336545

Replaced by #336545MA

?
Manufacturer substitution
This part replaces 336545. Substitute parts can look different from the original.
$44.59 |
10% OFF Phone Price : $49.59
In Stock
Edger Index Lever Torsion Spring 308155
#323

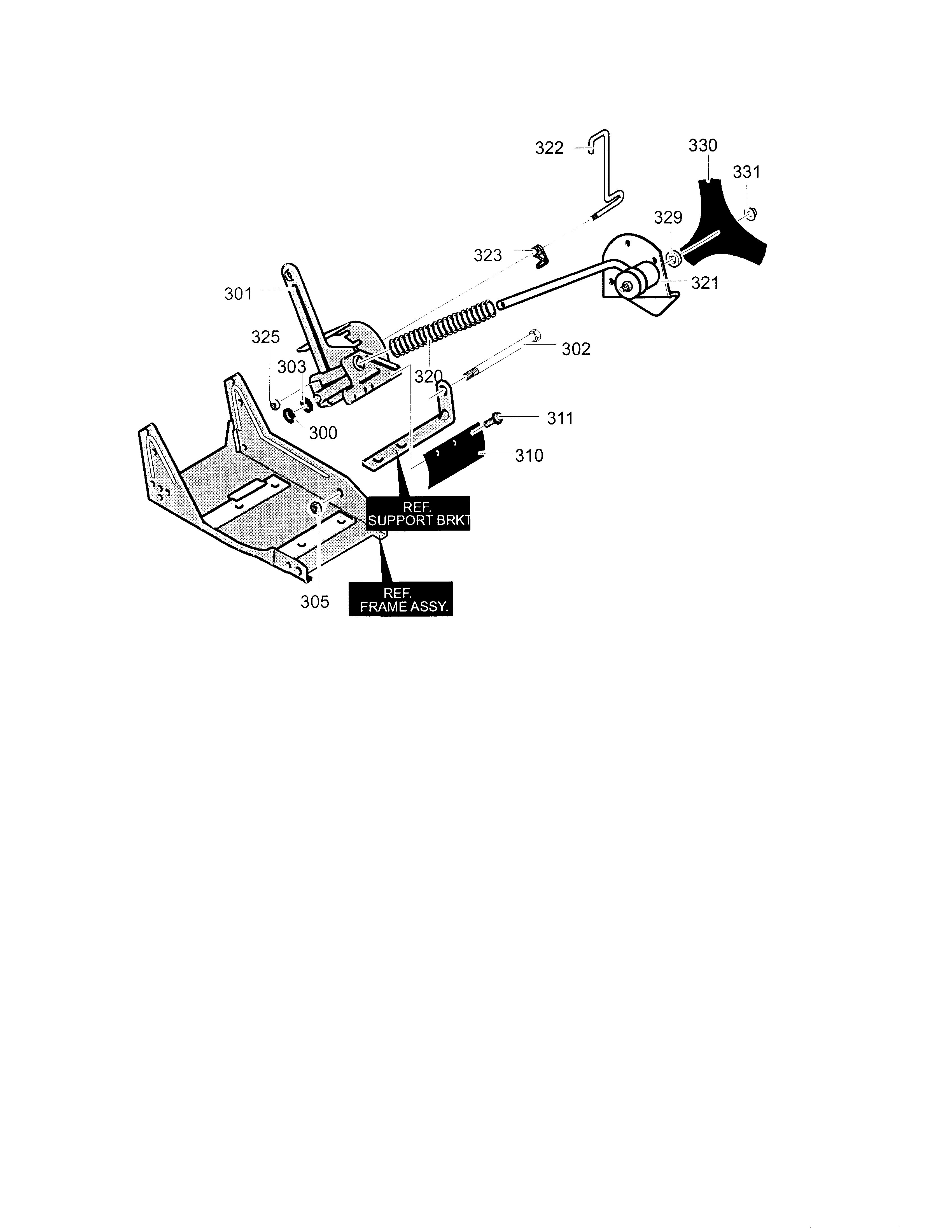

Blade support diagram

Edger index lever torsion spring

Part #308155

Replaced by #308155MA

?
Manufacturer substitution
This part replaces 308155. Substitute parts can look different from the original.
This item is not returnable
$14.06
In Stock
Mp Guard Bl 331076-201
#1

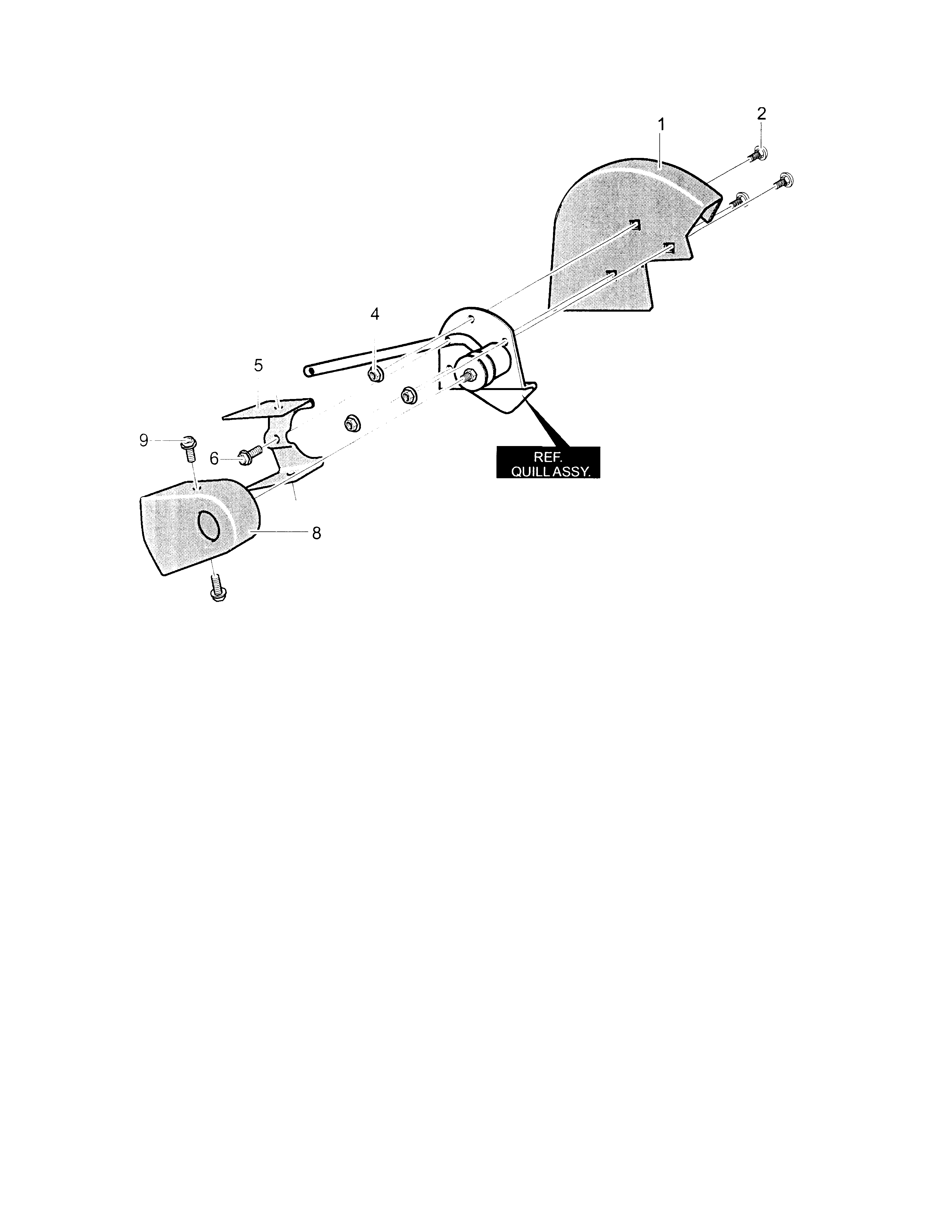

Blade guard/decals diagram

Mp guard bl

Part #331076-201

Replaced by #331076E701MA

?
Manufacturer substitution
This part replaces 331076-201. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$95.82 |
9% OFF Phone Price : $105.82
In Stock
Clevis 8082
#181

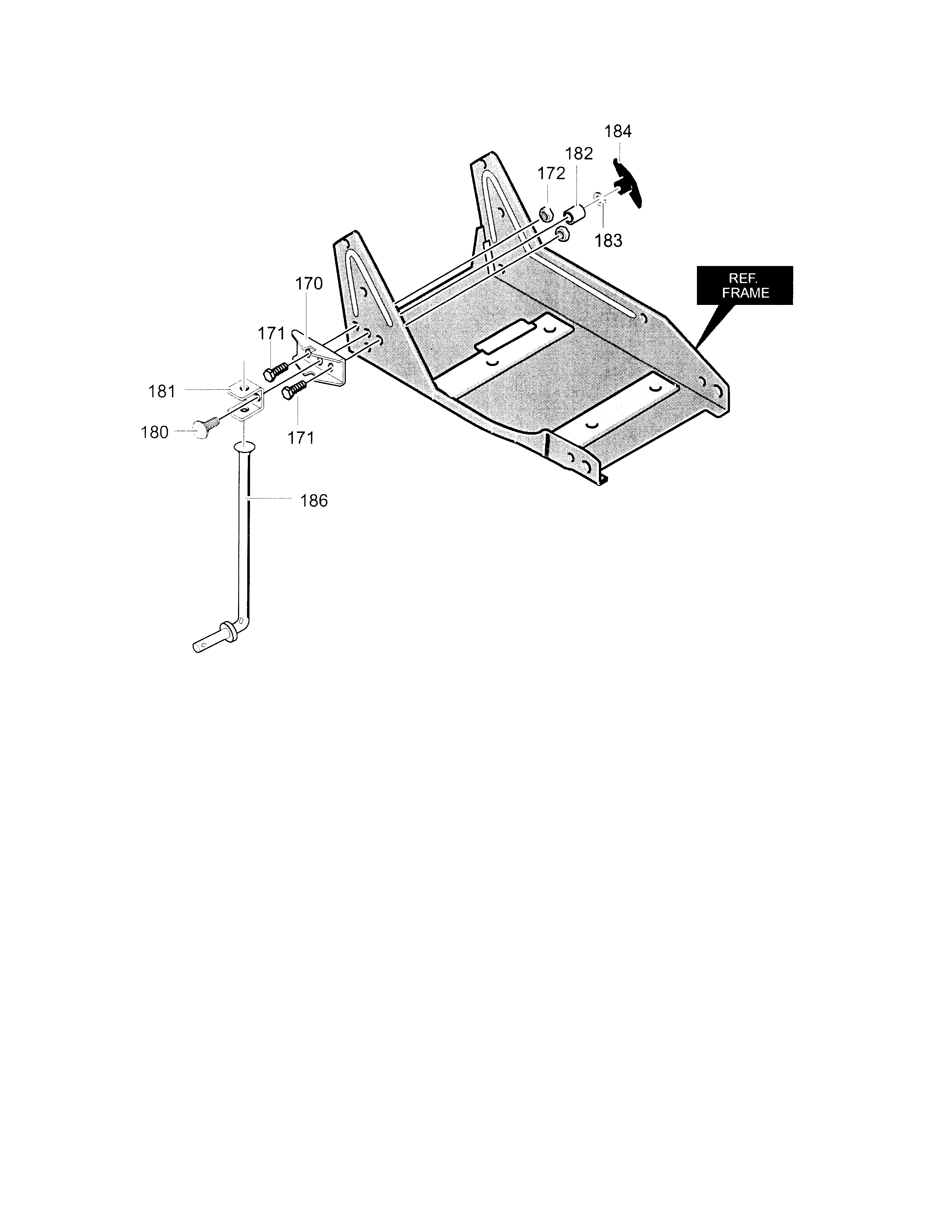

Rear wheel support diagram

Clevis

Part #8082

Replaced by #8082MA

?
Manufacturer substitution
This part replaces 8082. Substitute parts can look different from the original.
$37.31
In Stock
Spring Pin 32X81
#155

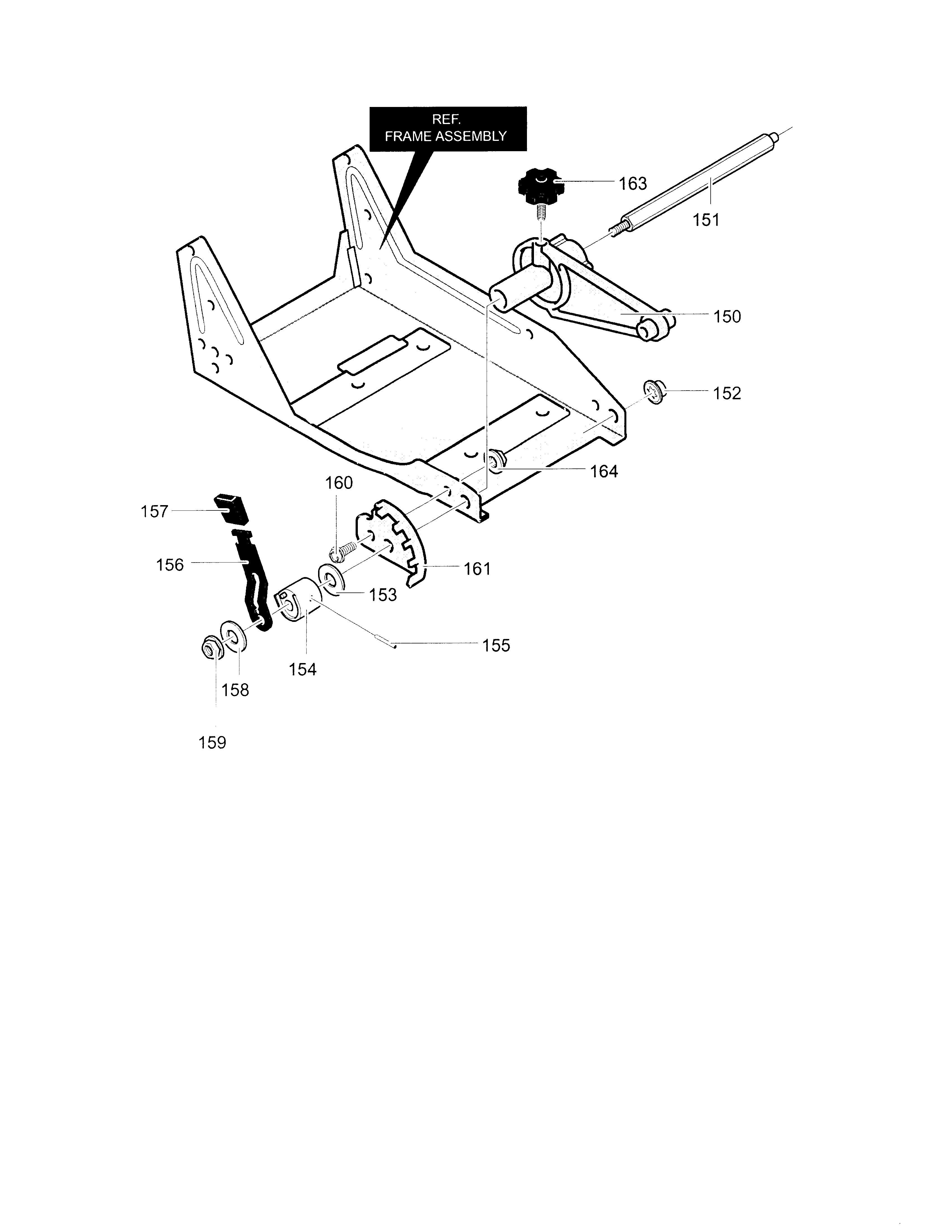

Front wheel support diagram

Spring pin

Part #32X81

Replaced by #332002MA

?
Manufacturer substitution
This part replaces 32X81. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Washer Blade 22265
Washer blade

Part #22265

Replaced by #22265MA

?
Manufacturer substitution
This part replaces 22265. Substitute parts can look different from the original.
$7.69 |
12% OFF Phone Price : $8.69
In Stock
