Model # MW8400XL2 Official Whirlpool microwave
Here are the diagrams and repair parts for Official Whirlpool MW8400XL2 microwave, as well as links to manuals and error code tables, if available.
By Schematic
By Part

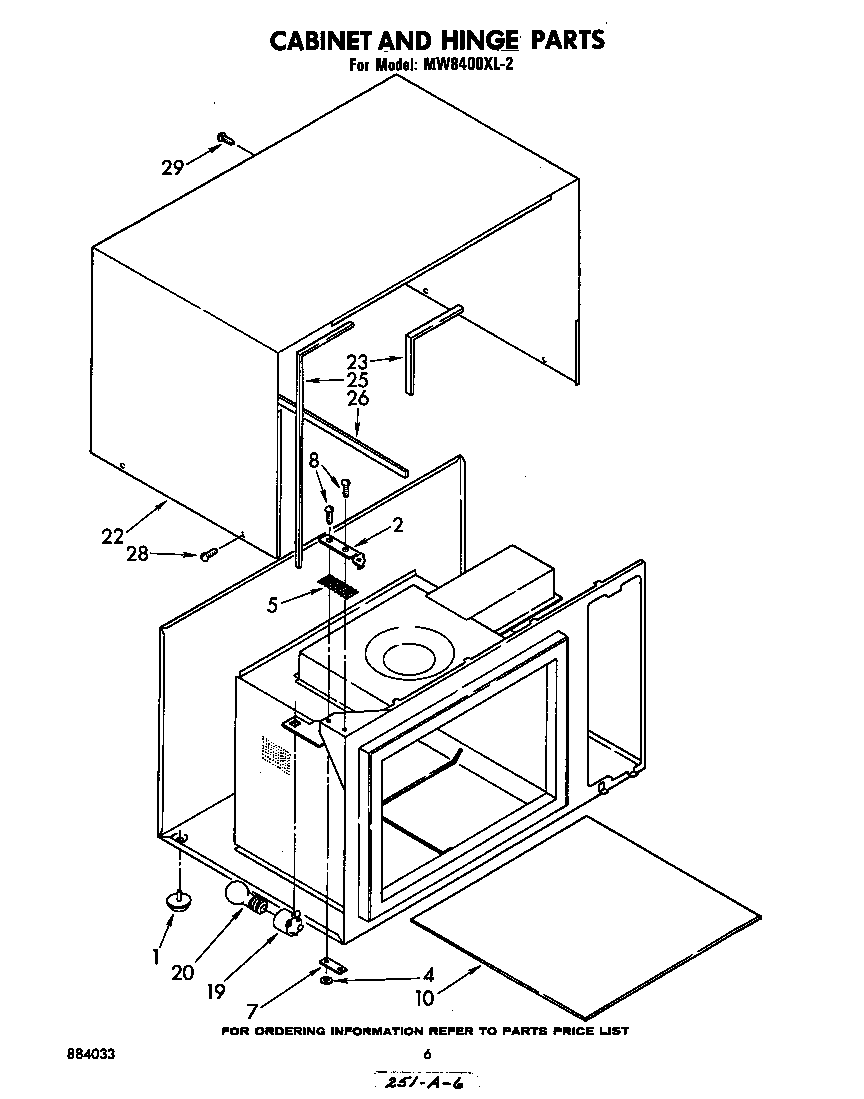

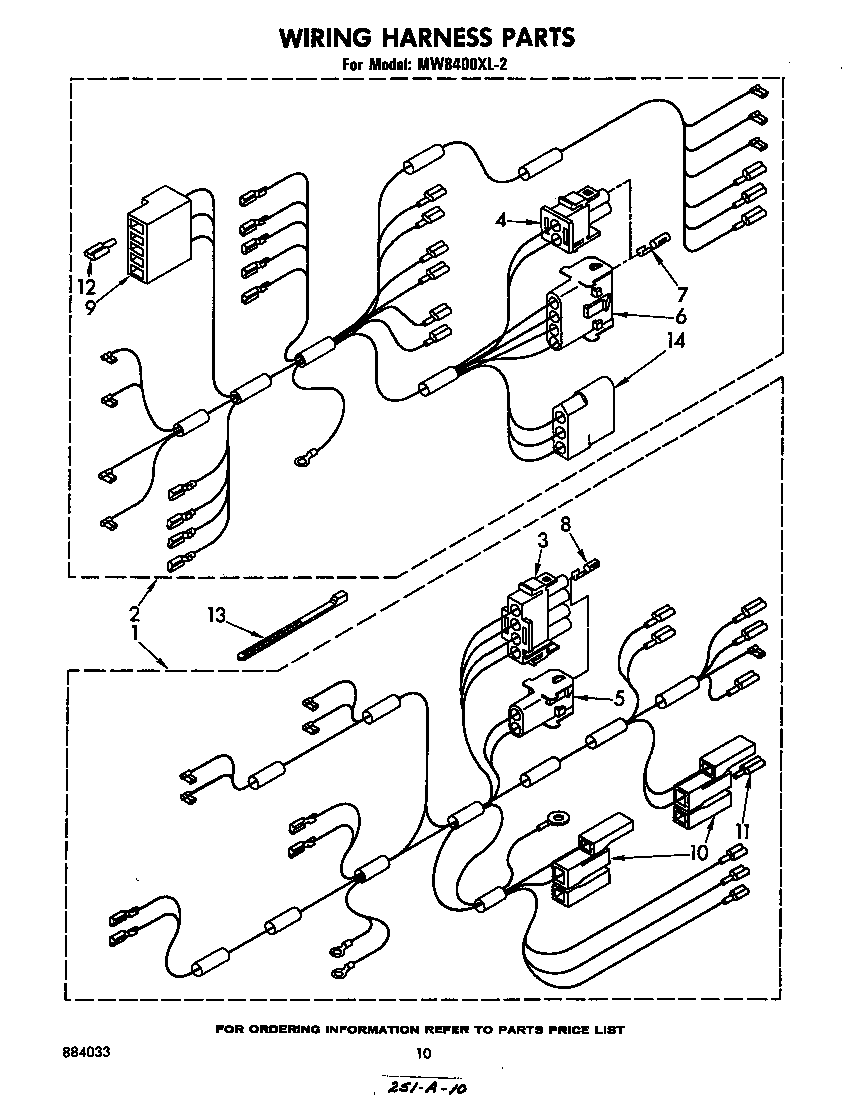

SELECT DIAGRAM
Browse Parts for
MW8400XL2 Microwaves
#24

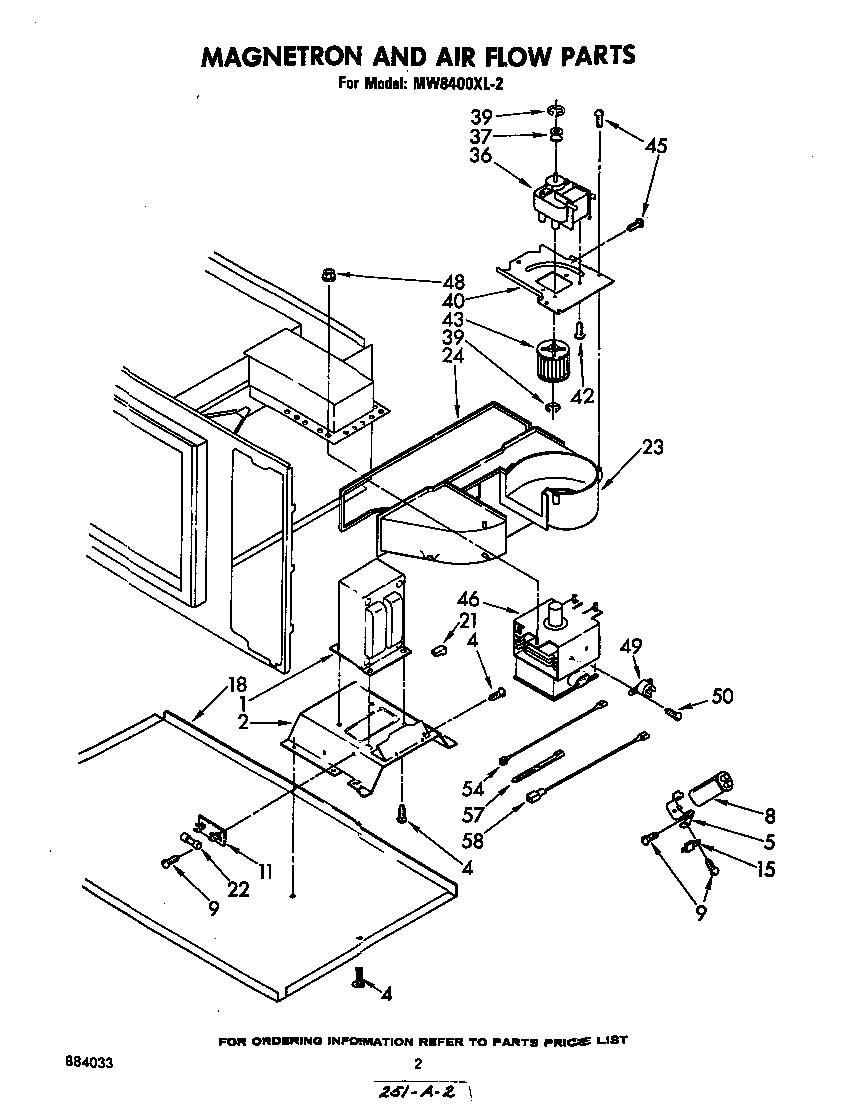

Magnetron and air flow diagram
Seal
Part #311956
Replaced by #WP339956
?
Manufacturer substitution
This part replaces 311956. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
#28

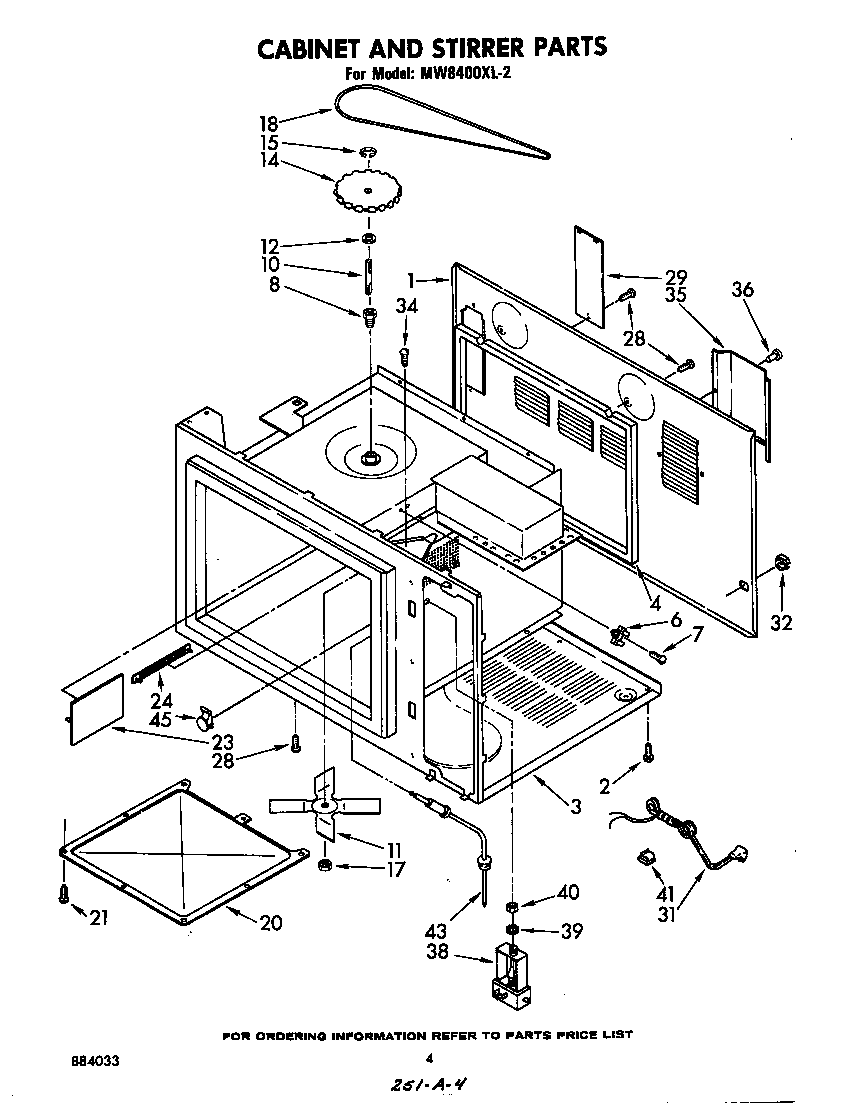

Cabinet and stirrer diagram
Screw
Part #253549
Replaced by #WP308685
?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
This item is not returnable
$4.20 |
19% OFF Phone Price : $5.20
In Stock
#46B
Magnetron and air flow diagram
Magnetron
Part #311993
The manufacturer no longer makes this part, and there's no substitute part
#46A
Magnetron and air flow diagram
Magnetron
Part #311992
The manufacturer no longer makes this part, and there's no substitute part
#46C
Magnetron and air flow diagram
Magnetron
Part #311994
The manufacturer no longer makes this part, and there's no substitute part
#4

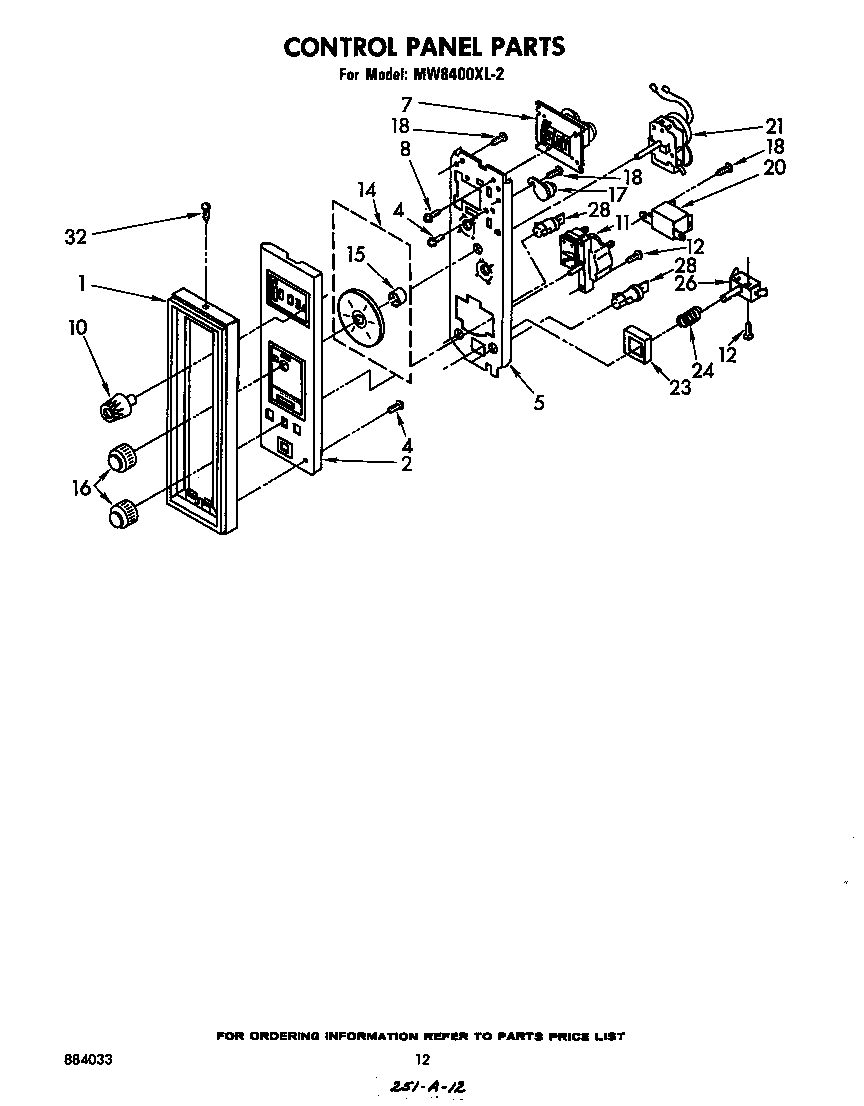

Control panel diagram
Screw
Part #309965
Replaced by #WP681249
?
Manufacturer substitution
This part replaces 309965. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#NI
All parts diagram
Adhesive
Part #482338
Replaced by #WP482338
?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$29.71 |
17% OFF Phone Price : $35.71
In Stock
#22
Magnetron and air flow diagram
Line fuse
Part #311167
Replaced by #WPW10017410
?
Manufacturer substitution
This part replaces 311167. Substitute parts can look different from the original.
This item is not returnable
$11.30 |
15% OFF Phone Price : $13.30
In Stock
#37

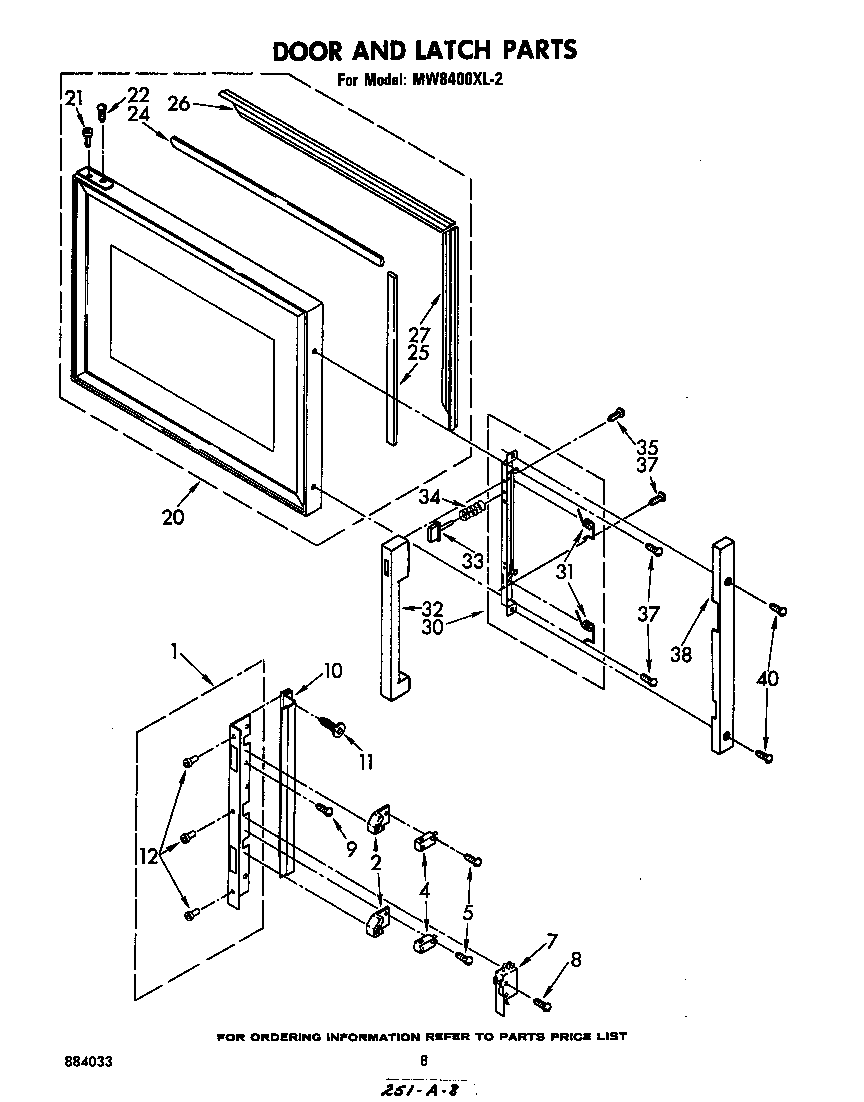

Door and latch diagram
Screw
Part #311722
Replaced by #WP489128
?
Manufacturer substitution
This part replaces 311722. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#32
Control panel diagram
Screw
Part #338156
Replaced by #WP488627
?
Manufacturer substitution
This part replaces 338156. Substitute parts can look different from the original.
This item is not returnable
$7.12 |
12% OFF Phone Price : $8.12
In Stock
