Gas Cooktop

Model # CGP95302M1S1 Official GE gas cooktop

Here are the diagrams and repair parts for Official GE CGP95302M1S1 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |

Range Surface Burner Cap WB29K10024
#330

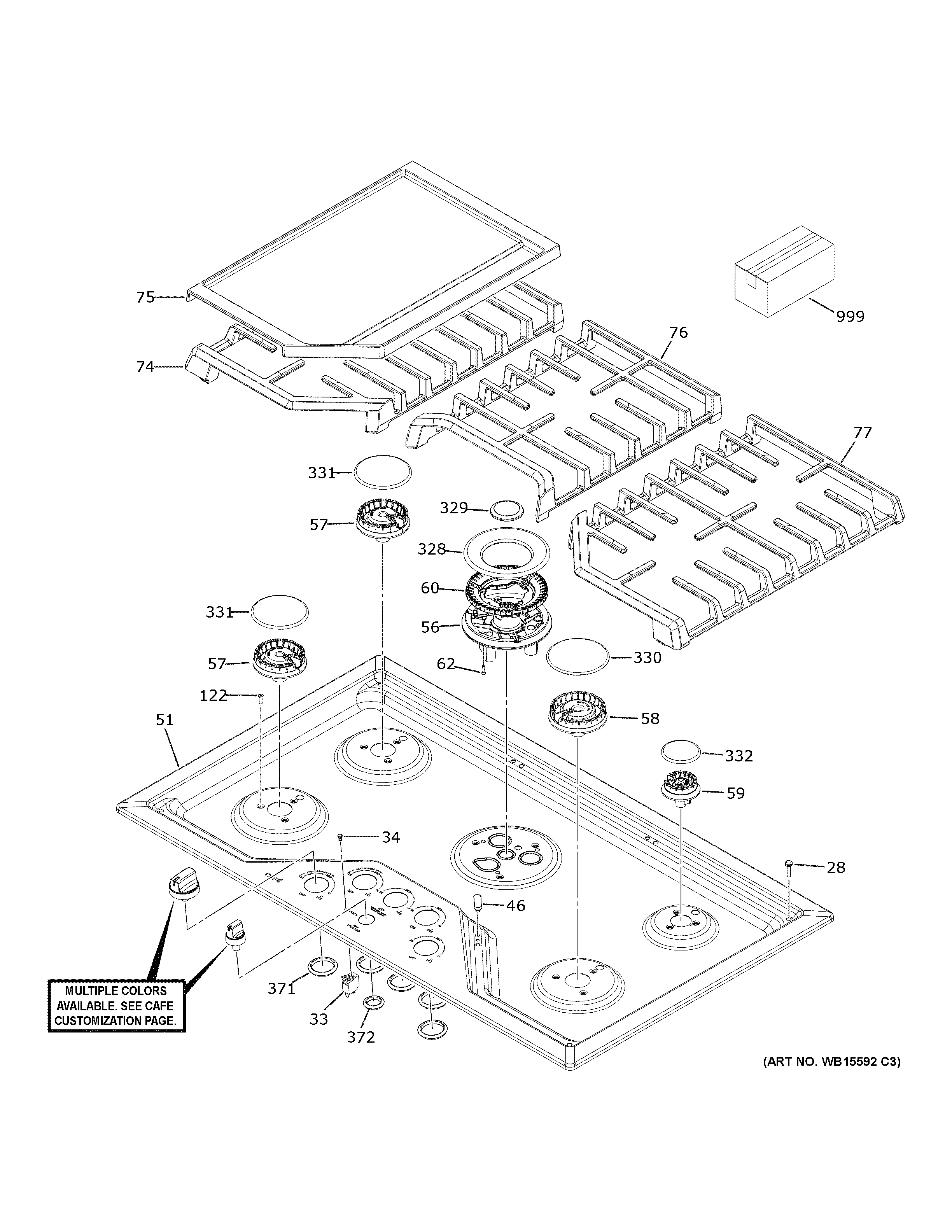

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33
15% OFF Phone Price : $13.33
In Stock
Range Surface Burner Grate Bumper WB02X24790
#28

Control panel & cooktop diagram

Range surface burner grate bumper

Part #WB02X24790

BEST SELLER
$8.78
10% OFF Phone Price : $9.78
In Stock
Cooktop Burner Grate Pad WB02X30761
#46

Control panel & cooktop diagram

Cooktop burner grate pad

Part #WB02X30761

BEST SELLER
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Cooktop Burner Head WB16X28764
#60

Control panel & cooktop diagram

Cooktop burner head

Part #WB16X28764

This item is not returnable
$20.31
20% OFF Phone Price : $25.31
In Stock
Cooktop Burner Knob (stainless) WB03X29392
#2000

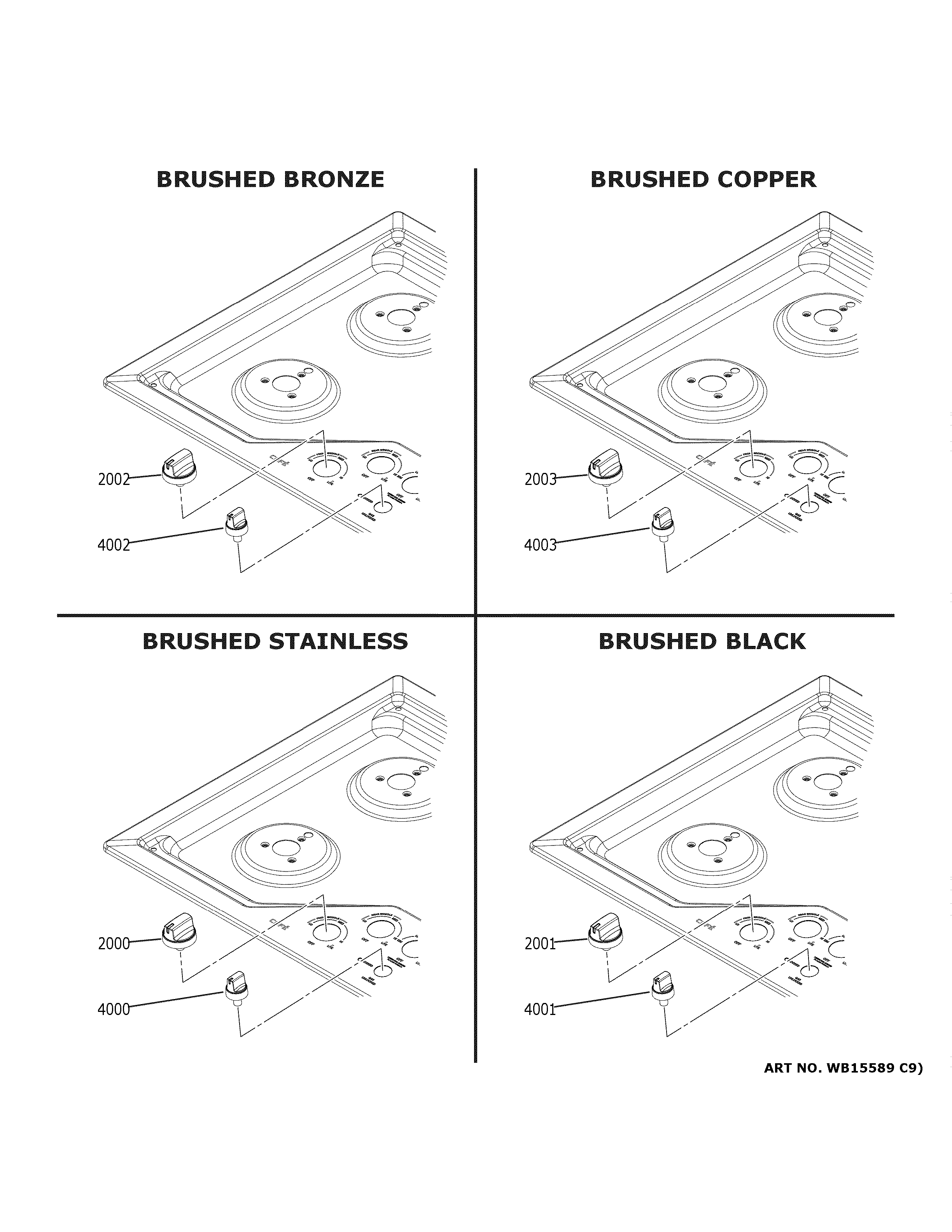

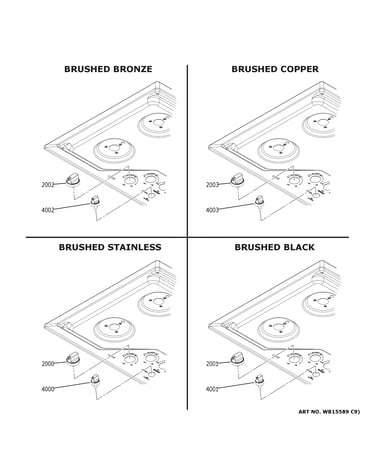

Cafe customization diagram

Cooktop burner knob (stainless)

Part #WB03X29392

$25.12
17% OFF Phone Price : $30.12
In Stock
Screw WB1K5150
#699

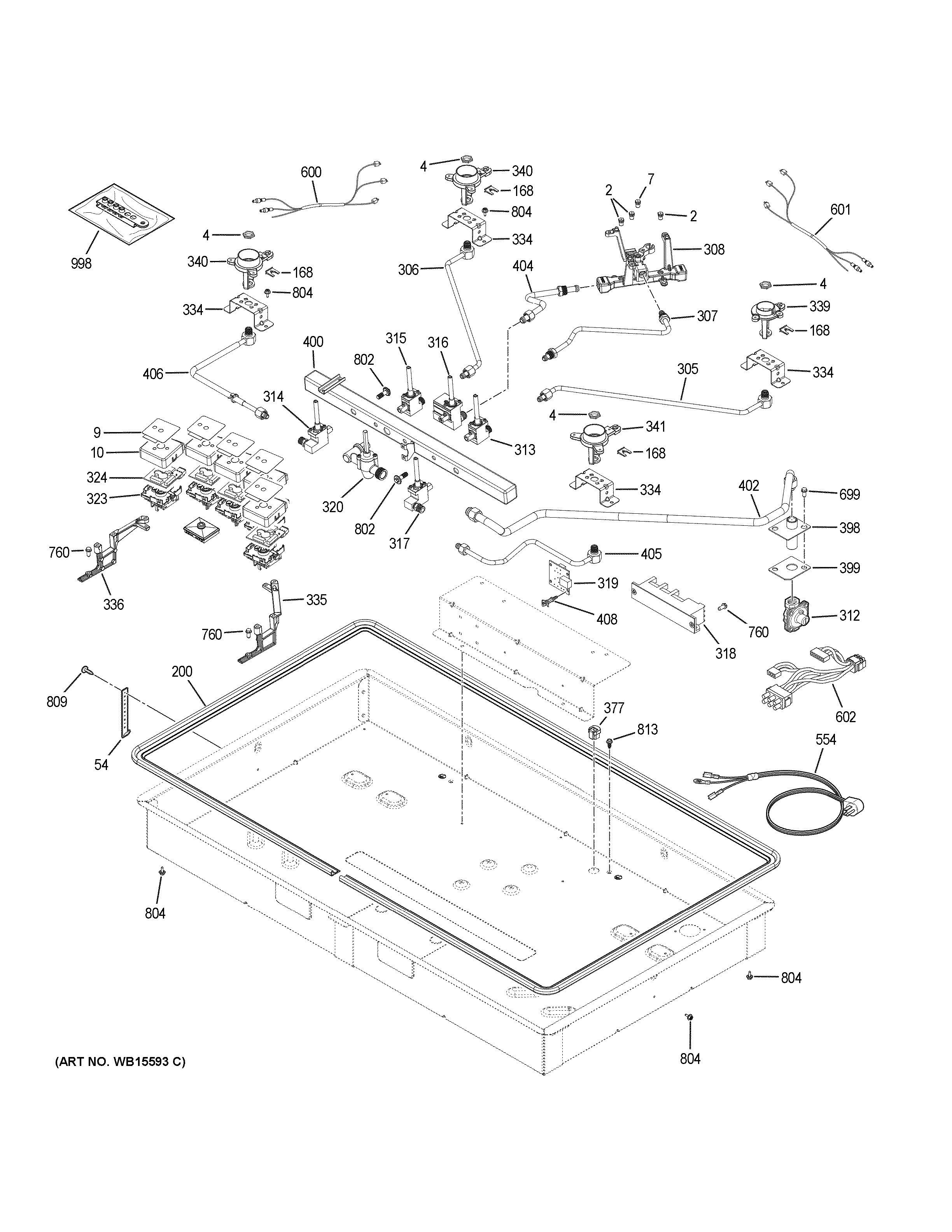

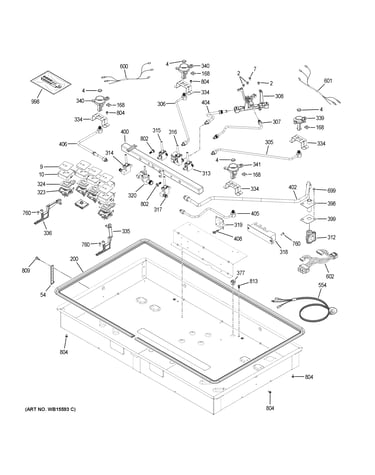

Gas & burner parts diagram

Screw

Part #WB1K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Range Surface Burner, 12,000-btu WB16X24723
#56

Control panel & cooktop diagram

Range surface burner, 12,000-btu

Part #WB16X24723

This item is not returnable
$24.42
17% OFF Phone Price : $29.42
In Stock
Range Surface Burner, Small WB16X24721
#58

Control panel & cooktop diagram

Range surface burner, small

Part #WB16X24721

This item is not returnable
$17.08
10% OFF Phone Price : $19.08
In Stock
Cooktop Spark Module WB13T10047
#318

Gas & burner parts diagram

Cooktop spark module

Part #WB13T10047

Replaced by #WB13X32509

?
Manufacturer substitution
This part replaces WB13T10047. Substitute parts can look different from the original.
$89.10
5% OFF Phone Price : $94.10
In Stock
Range Surface Burner, Medium WB16X24724
#57

Control panel & cooktop diagram

Range surface burner, medium

Part #WB16X24724

This item is not returnable
$24.26
17% OFF Phone Price : $29.26
In Stock
