Model # 422707-1211-01 Official Briggs & Stratton engine
Here are the diagrams and repair parts for Official Briggs & Stratton 422707-1211-01 engine, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
422707-1211-01 Engine
#69

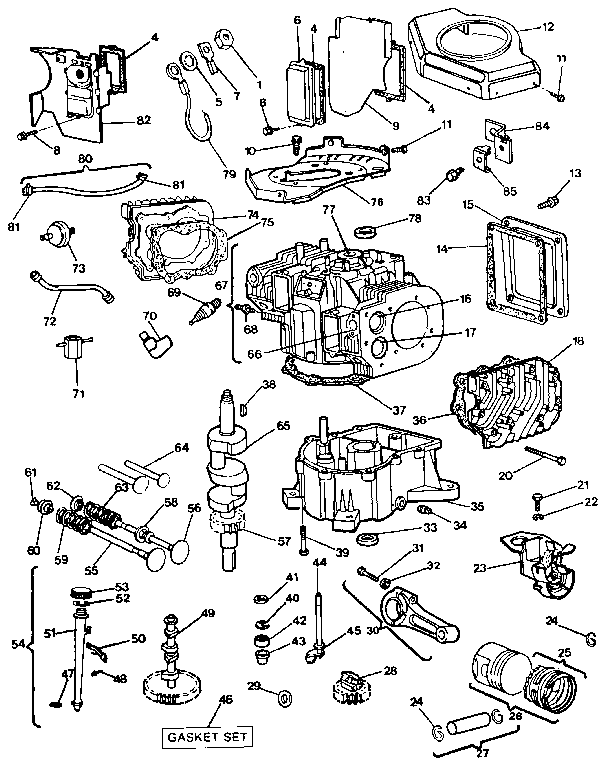

Cylinder / crankshaft and rods diagram
Plug
Part #394539
Replaced by #796112S
?
Manufacturer substitution
This part replaces 394539. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
#59

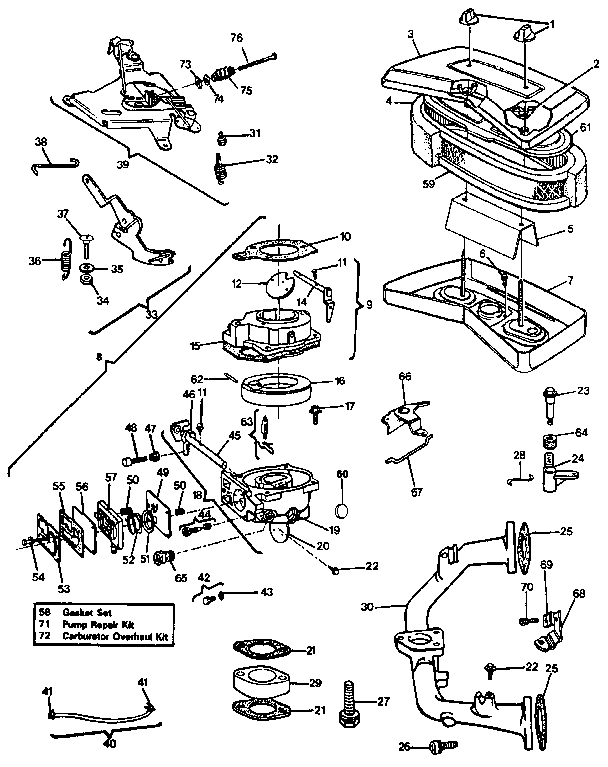

Carburetor / manifold and air cleaner assembly diagram
Cartridge
Part #394019
Replaced by #394019S
?
Manufacturer substitution
This part replaces 394019. Substitute parts can look different from the original.
$29.05 |
17% OFF Phone Price : $35.05
In Stock
#4
Carburetor / manifold and air cleaner assembly diagram
Element
Part #271271
Replaced by #272490S
?
Manufacturer substitution
This part replaces 271271. Substitute parts can look different from the original.
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
#24

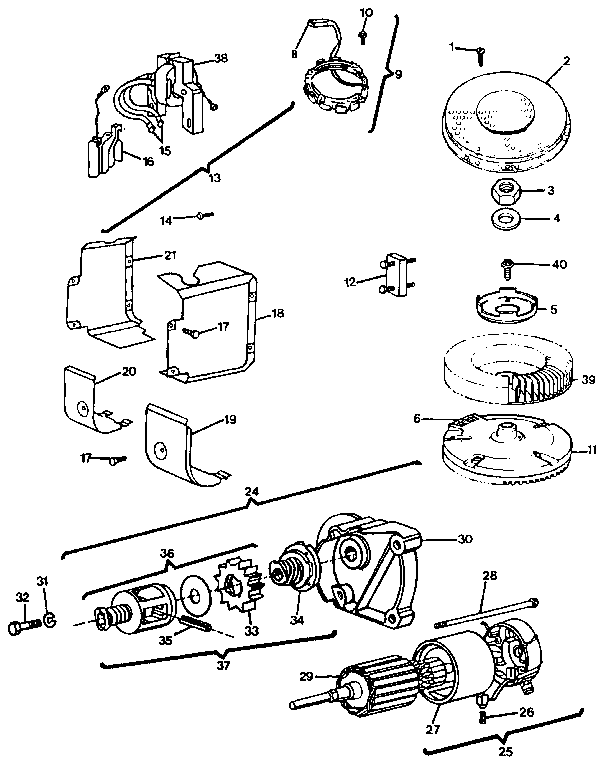

Starter motor and armature assembly diagram
Start mower
Part #394808
Replaced by #497596
?
Manufacturer substitution
This part replaces 394808. Substitute parts can look different from the original.
$118.67 |
9% OFF Phone Price : $130.67
In Stock
#72
Carburetor / manifold and air cleaner assembly diagram
Carburetor
Part #491539
Replaced by #694056
?
Manufacturer substitution
This part replaces 491539. Substitute parts can look different from the original.
$32.19 |
16% OFF Phone Price : $38.19
In Stock
#12
Starter motor and armature assembly diagram
Lawn & garden equipment engine flywheel puller, large
Part #19203
This item is not returnable
$25.45 |
19% OFF Phone Price : $31.45
In Stock
#14
Starter motor and armature assembly diagram
Screw
Part #93381
Replaced by #691061
?
Manufacturer substitution
This part replaces 93381. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
#8
Carburetor / manifold and air cleaner assembly diagram
Carburetor
Part #491535
Replaced by #693480
?
Manufacturer substitution
This part replaces 491535. Substitute parts can look different from the original.
$272.16 |
$12.00 OFF Phone Price : $284.16
In Stock
Clamp
Part #93053
Replaced by #791850
?
Manufacturer substitution
This part replaces 93053. Substitute parts can look different from the original.
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
#36
Cylinder / crankshaft and rods diagram
Gasket
Part #271868
Replaced by #271868S
?
Manufacturer substitution
This part replaces 271868. Substitute parts can look different from the original.
This item is not returnable
$13.80 |
13% OFF Phone Price : $15.80
