Model # FU199LRW3 Official White-Westinghouse upright freezer - lw30890250
Here are the diagrams and repair parts for Official White-Westinghouse FU199LRW3 upright freezer - lw30890250, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
FU199LRW3 Freestanding Freezers
#26

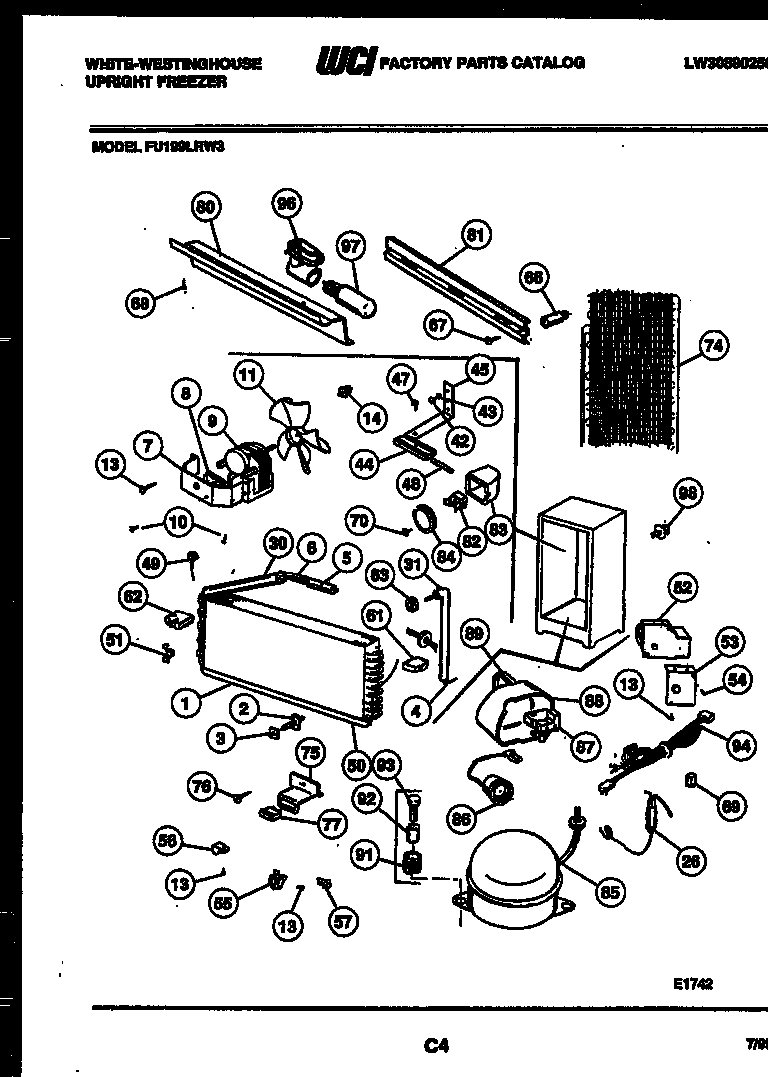

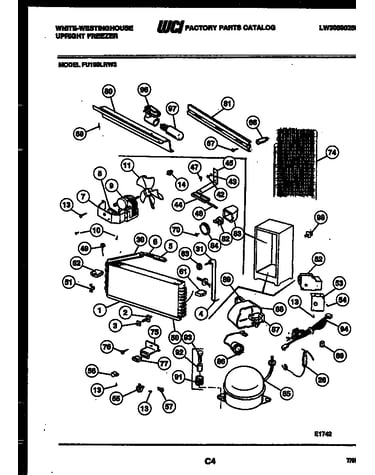

System and automatic defrost parts diagram
Filter
Part #08000027
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 08000027. Substitute parts can look different from the original.
$12.47 |
14% OFF Phone Price : $14.47
In Stock
#47

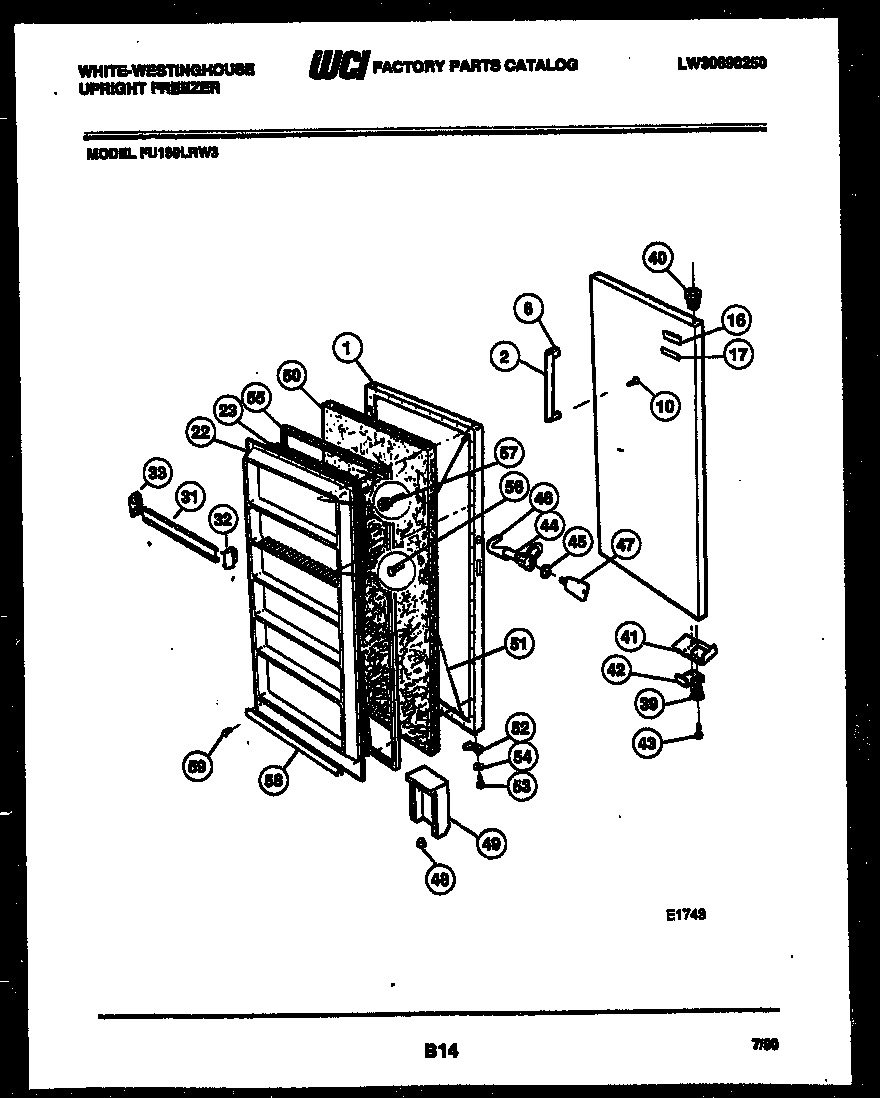

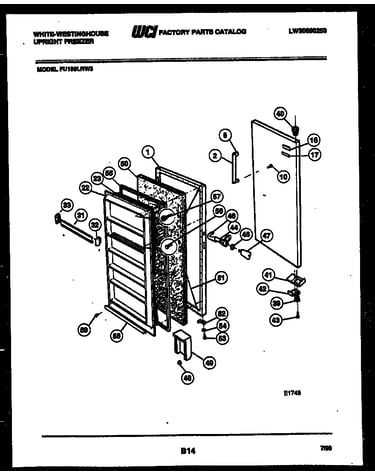

Door parts diagram
Key
Part #08037402
Replaced by #297147700
?
Manufacturer substitution
This part replaces 08037402. Substitute parts can look different from the original.
$9.04 |
10% OFF Phone Price : $10.04
In Stock
#52
System and automatic defrost parts diagram
Timer
Part #08037967
Replaced by #5304518034
?
Manufacturer substitution
This part replaces 08037967. Substitute parts can look different from the original.
$34.54 |
15% OFF Phone Price : $40.54
In Stock
#49
System and automatic defrost parts diagram
Thermostat
Part #3016814
Replaced by #5303917954
?
Manufacturer substitution
This part replaces 3016814. Substitute parts can look different from the original.
$25.58 |
19% OFF Phone Price : $31.58
In Stock
#74
System and automatic defrost parts diagram
Condenser
Part #F83897
Replaced by #5300083897
?
Manufacturer substitution
This part replaces F83897. Substitute parts can look different from the original.
This item is not returnable
$433.68 |
$12.00 OFF Phone Price : $445.68
In Stock
#27

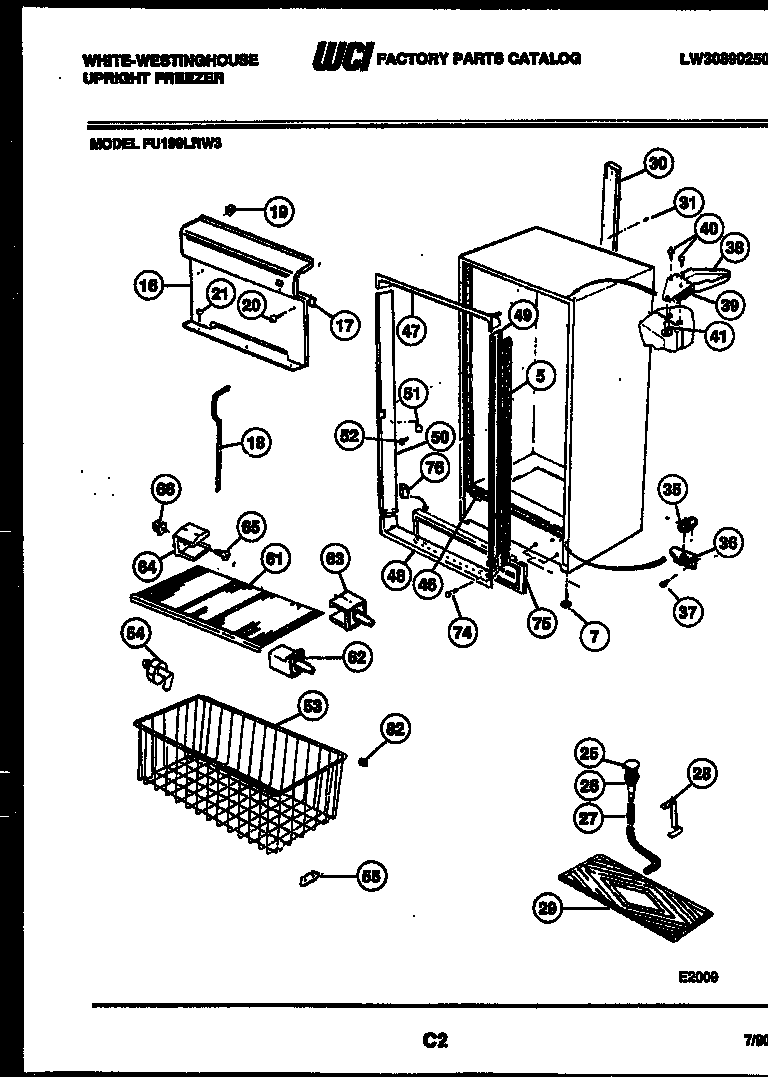

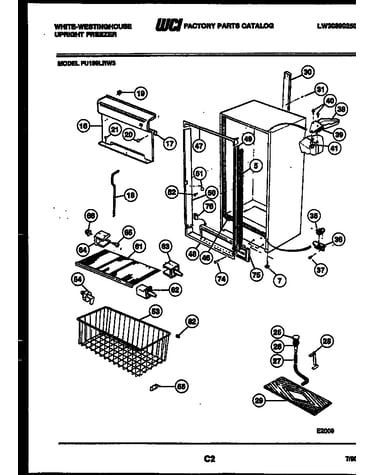

Cabinet parts diagram
Drain hose
Part #08037416
Replaced by #5304512272
?
Manufacturer substitution
This part replaces 08037416. Substitute parts can look different from the original.
This item is not returnable
$16.36 |
11% OFF Phone Price : $18.36
In Stock
#25
Cabinet parts diagram
Screen
Part #08037403
Replaced by #216503100
?
Manufacturer substitution
This part replaces 08037403. Substitute parts can look different from the original.
$50.58 |
11% OFF Phone Price : $56.58
In Stock
#55
Cabinet parts diagram
Freezer basket glide (replaces 000123942, 1123942, 123942, 5303208916, f000123942, f123942)
Part #08009560
$27.07 |
18% OFF Phone Price : $33.07
In Stock
#85
System and automatic defrost parts diagram
Compressor
Part #5303916012
Replaced by #5304476642
?
Manufacturer substitution
This part replaces 5303916012. Substitute parts can look different from the original.
$377.19 |
$12.00 OFF Phone Price : $389.19
In Stock
#91
System and automatic defrost parts diagram
Grommet
Part #08002681
Replaced by #216498900
?
Manufacturer substitution
This part replaces 08002681. Substitute parts can look different from the original.
This item is not returnable
$13.44 |
13% OFF Phone Price : $15.44
In Stock
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Repair guides for upright freezers
How to replace a freezer control panel
A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DI…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer thermistor
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…
Repair difficulty
Time required
45 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
