Whirlpool
Room Air Conditioner

Model # W5WCE105XW0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool W5WCE105XW0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Evaporator W10362768
#2

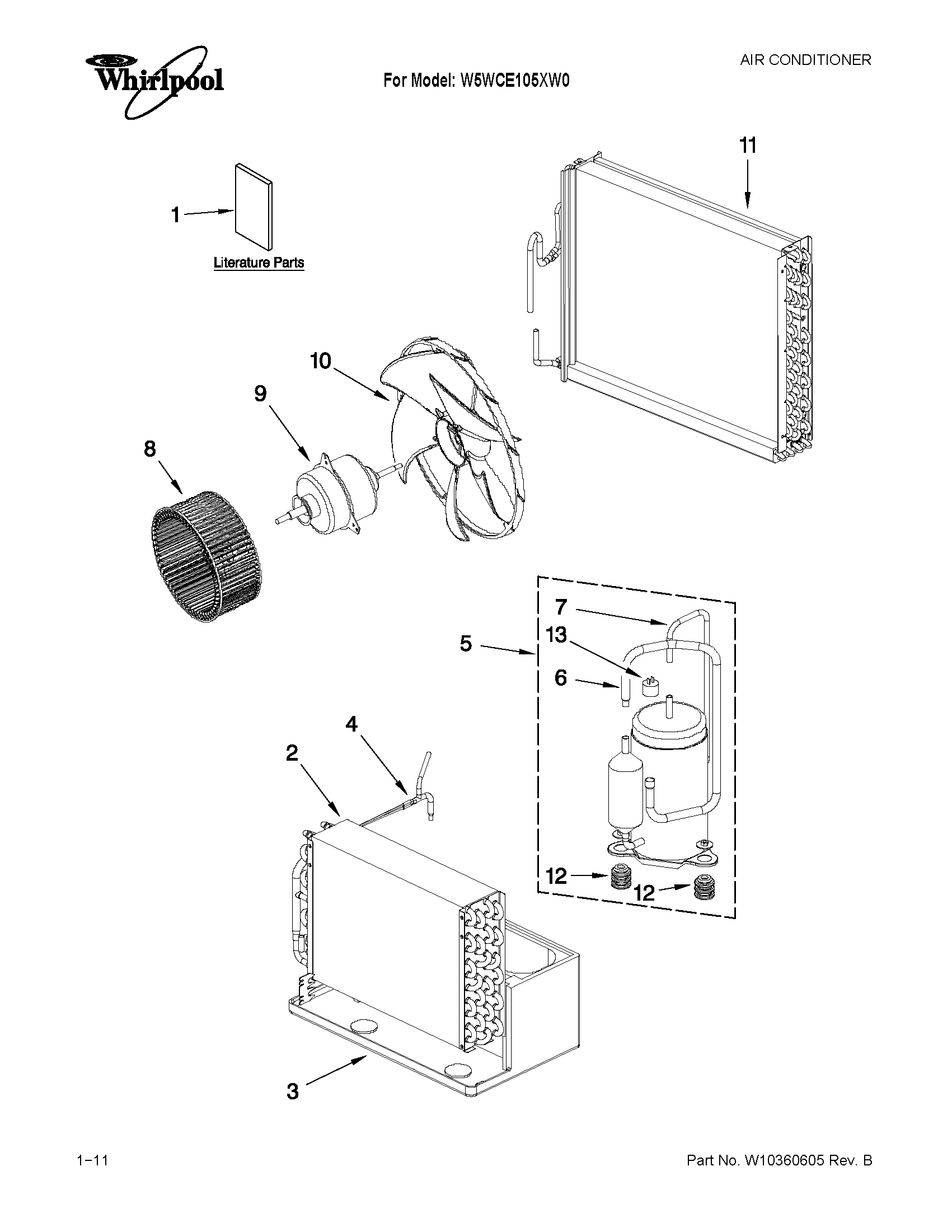

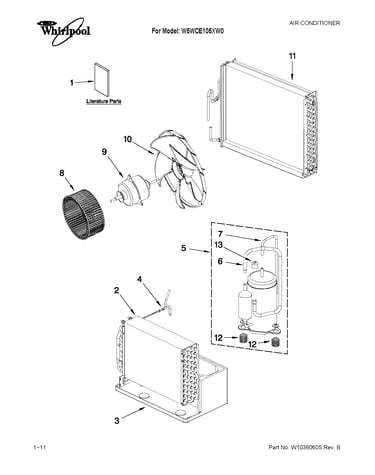

Unit parts diagram

Evaporator

Part #W10362768

$215.28
In Stock
Cartridge W10368207
#5

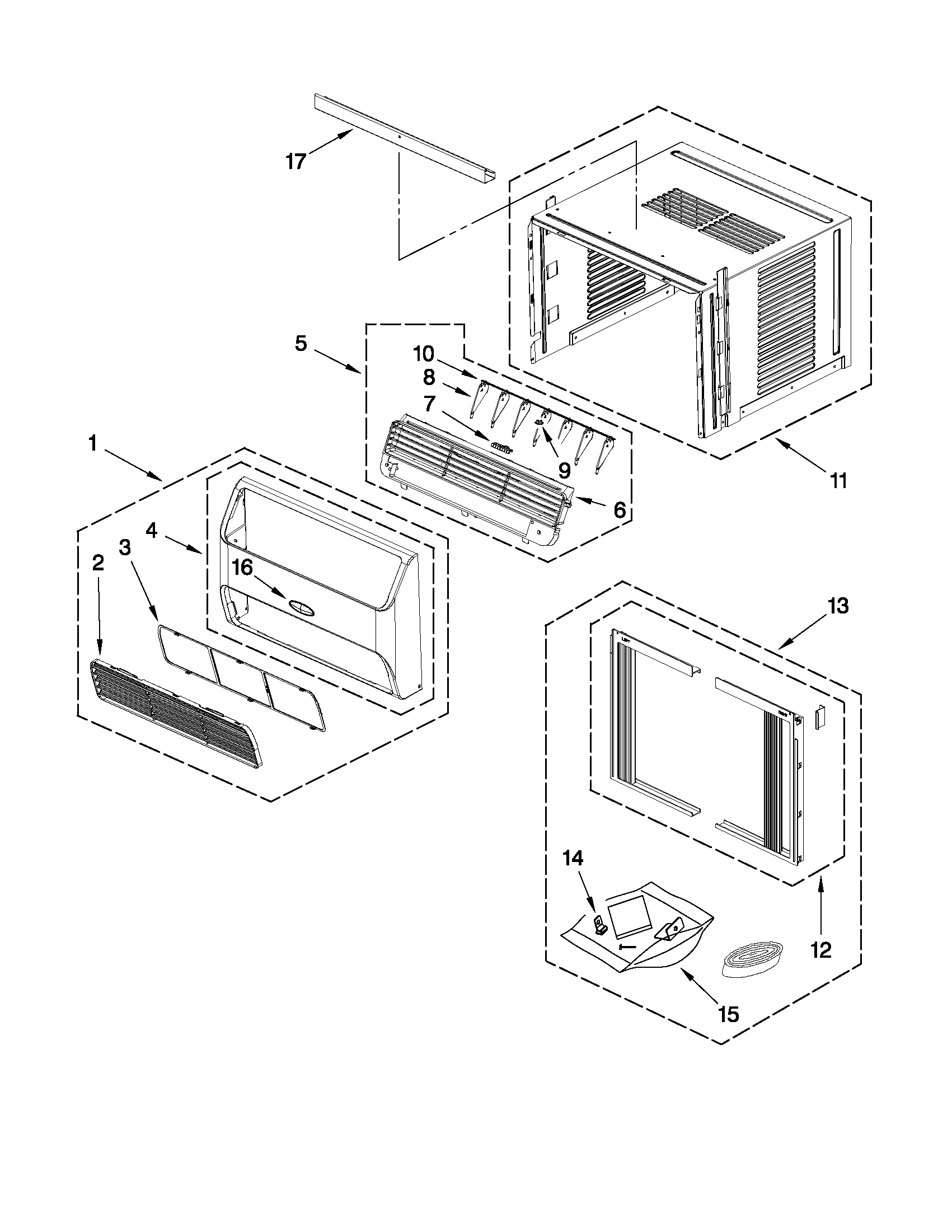

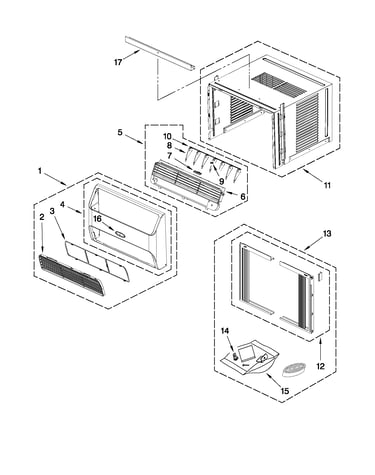

Cabinet parts diagram

Cartridge

Part #W10368207

$59.47
In Stock
Nameplate 8209737
#16

Cabinet parts diagram

Nameplate

Part #8209737

$31.04
In Stock
Capacitor W10362769
#8

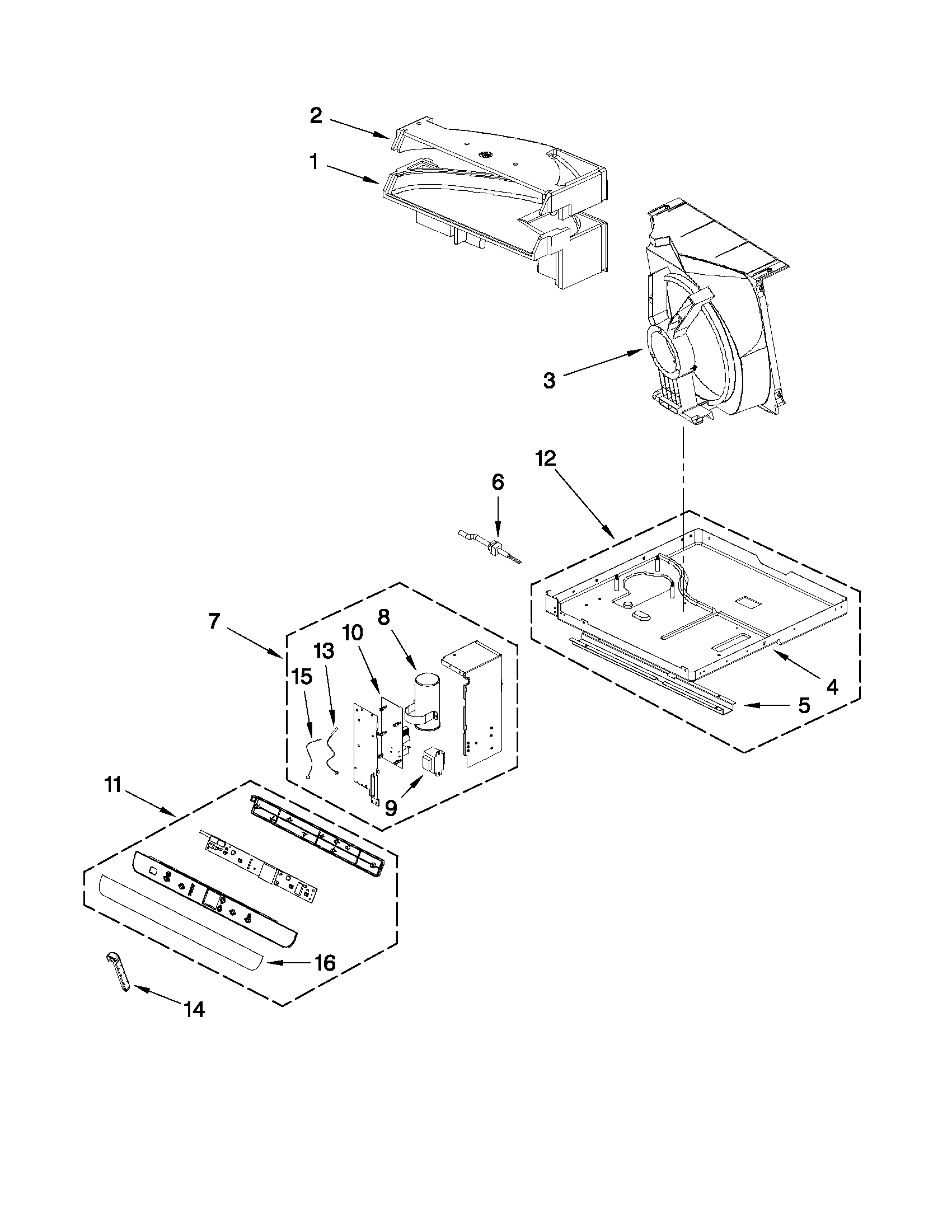

Air flow and control parts diagram

Capacitor

Part #W10362769

$88.64
In Stock
Front W10388579
#4

Cabinet parts diagram

Front

Part #W10388579

$45.78
In Stock
Power Cord W10362771
#6

Air flow and control parts diagram

Power cord

Part #W10362771

$145.60
In Stock
Scroll W10362818
#1

Air flow and control parts diagram

Scroll

Part #W10362818

$35.80
In Stock
Fan Blade W10362784
#10

Unit parts diagram

Fan blade

Part #W10362784

Replaced by #WPW10362784

?
Manufacturer substitution
This part replaces W10362784. Substitute parts can look different from the original.
$57.98
In Stock
Electronic Control W10362790
#10

Air flow and control parts diagram

Electronic control

Part #W10362790

Replaced by #WPW10362790

?
Manufacturer substitution
This part replaces W10362790. Substitute parts can look different from the original.
$112.69
In Stock
Housing-hd W10362819
#2

Air flow and control parts diagram

Housing-hd

Part #W10362819

Replaced by #WPW10362819

?
Manufacturer substitution
This part replaces W10362819. Substitute parts can look different from the original.
$37.89
In Stock
