Model # 2340L5V Official Ingersoll Rand air compressor

Here are the diagrams and repair parts for Official Ingersoll Rand 2340L5V air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

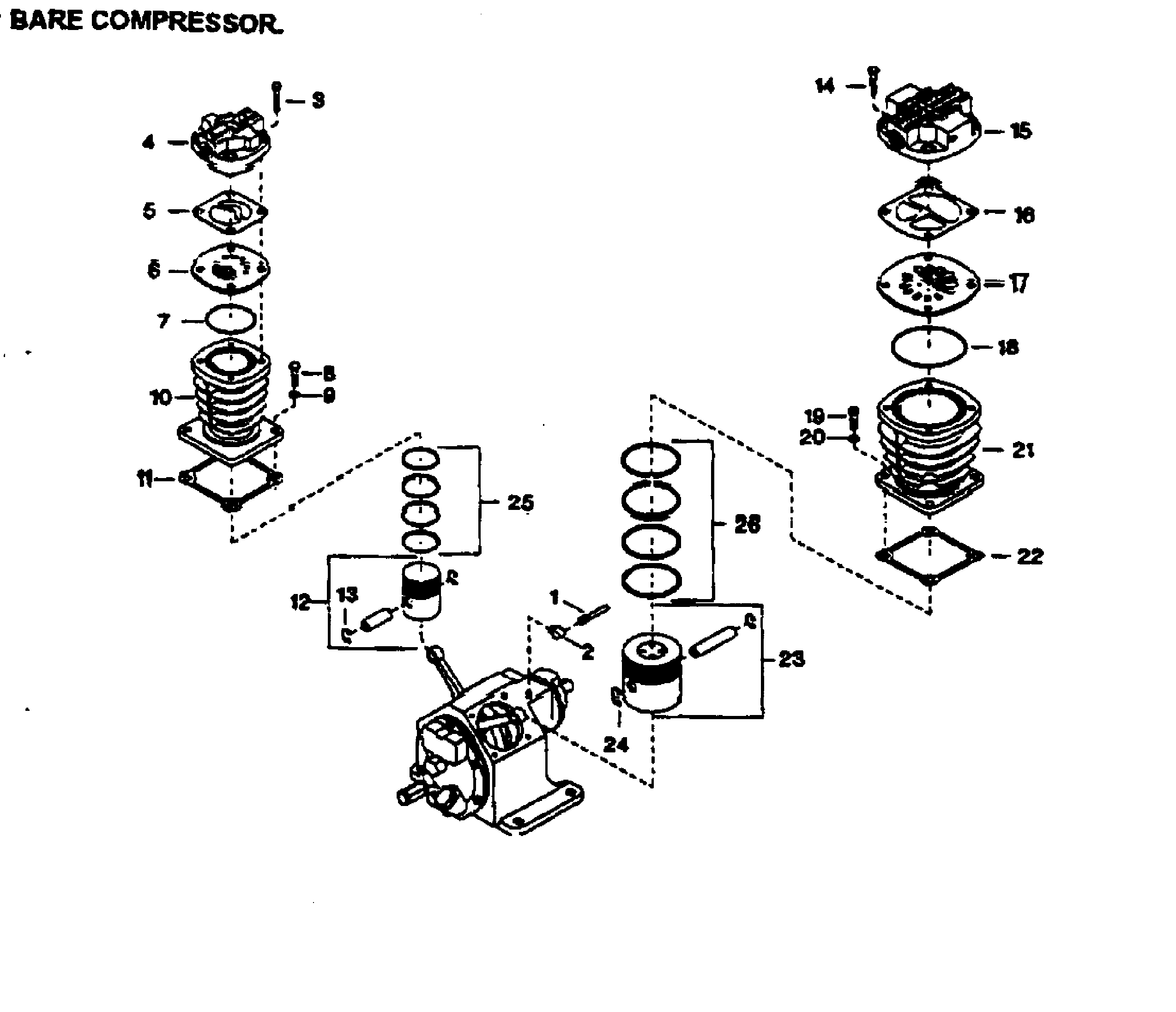

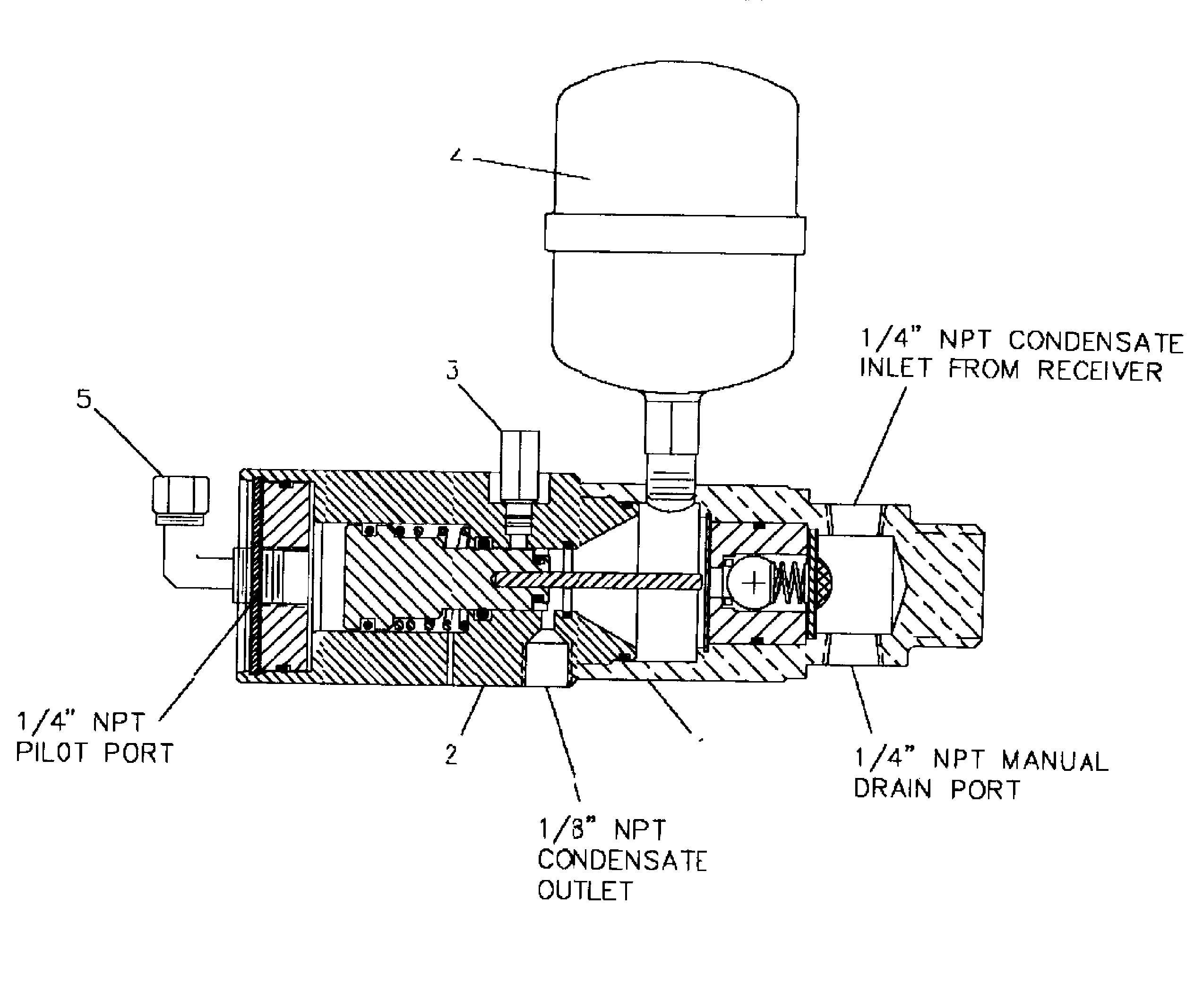

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Cover Frame End 37127123
#7

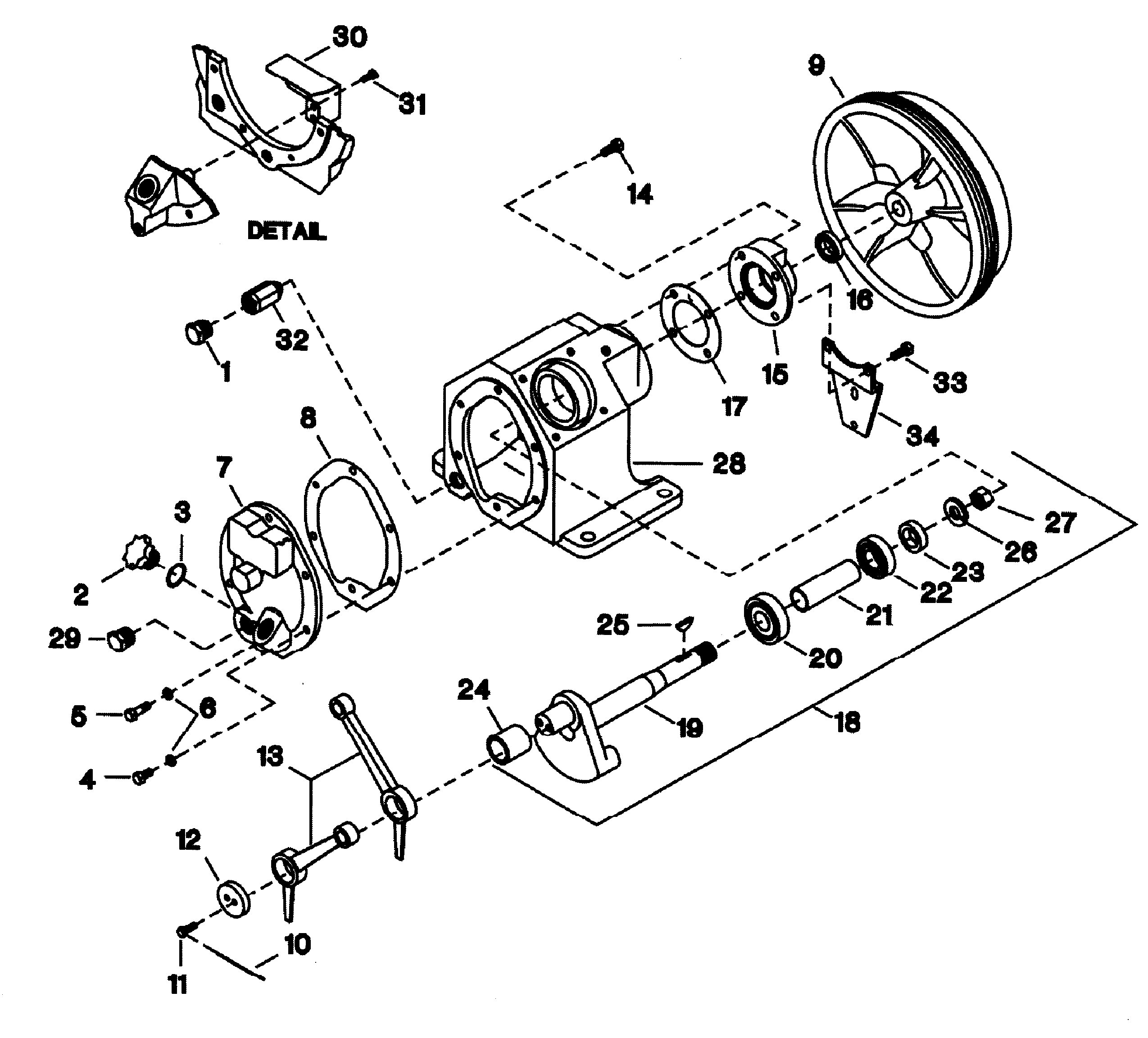

Frame assy diagram

Cover frame end

Part #37127123

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 95930400
#20

Frame assy diagram

Ball bearing

Part #95930400

The manufacturer no longer makes this part, and there's no substitute part

Nut,tube 95108577
#3

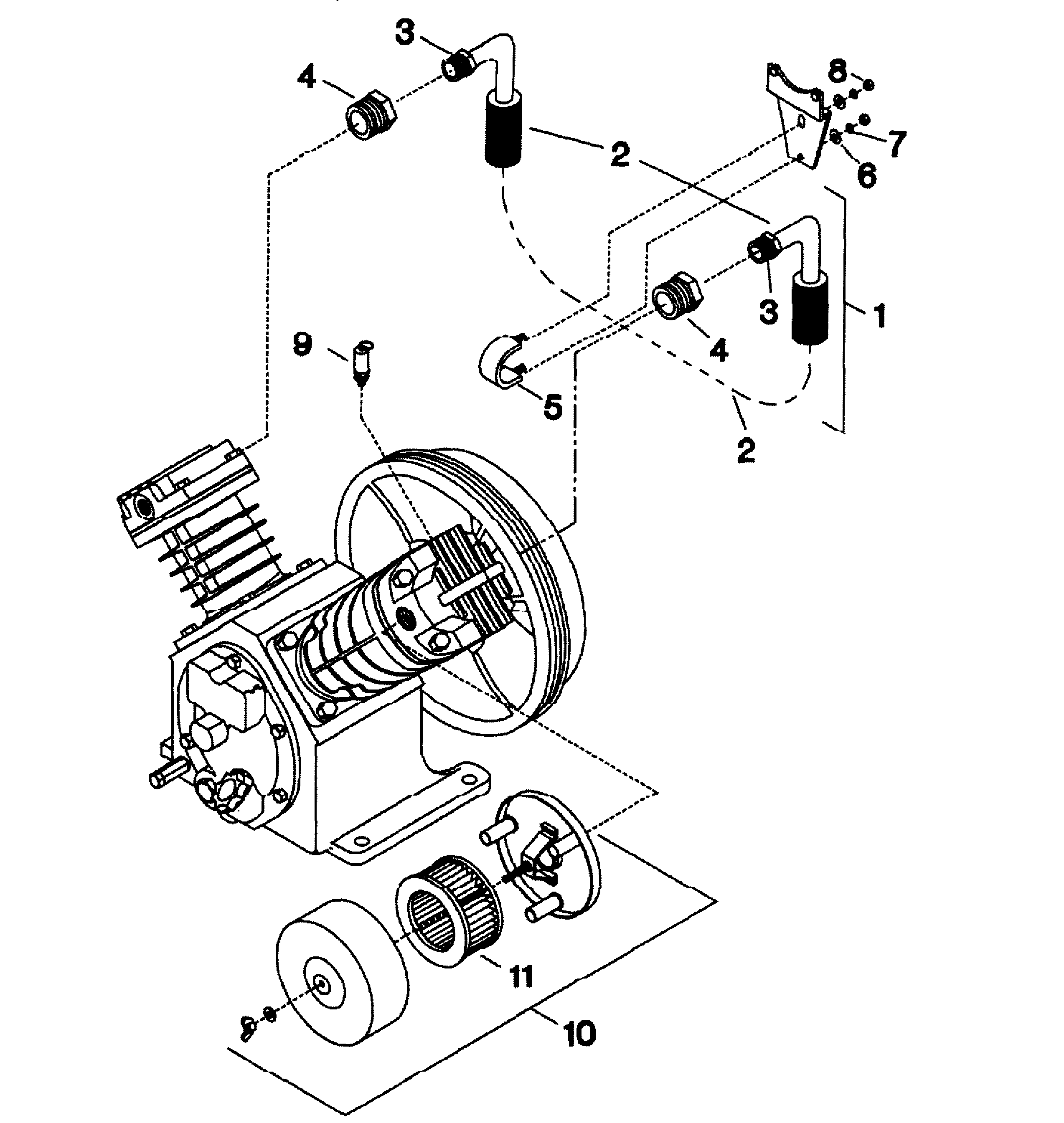

Intercooler diagram

Nut,tube

Part #95108577

The manufacturer no longer makes this part, and there's no substitute part

Plug Oil Filter 37127065
#2

Frame assy diagram

Plug oil filter

Part #37127065

The manufacturer no longer makes this part, and there's no substitute part

Valve Discharge-hp 32241010
#7

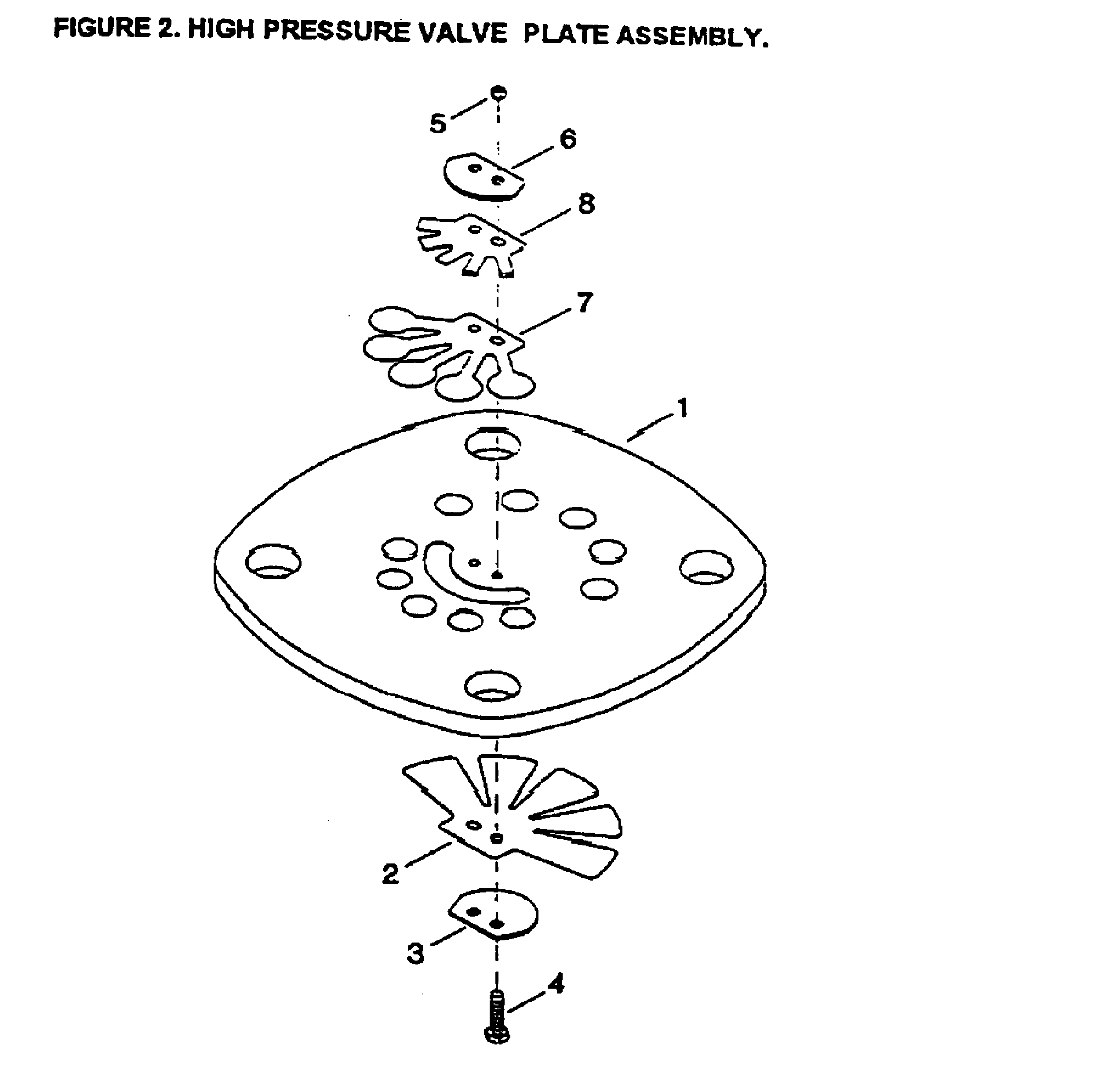

H-valve assy diagram

Valve discharge-hp

Part #32241010

The manufacturer no longer makes this part, and there's no substitute part

Pressure Gauge 23474901
#26

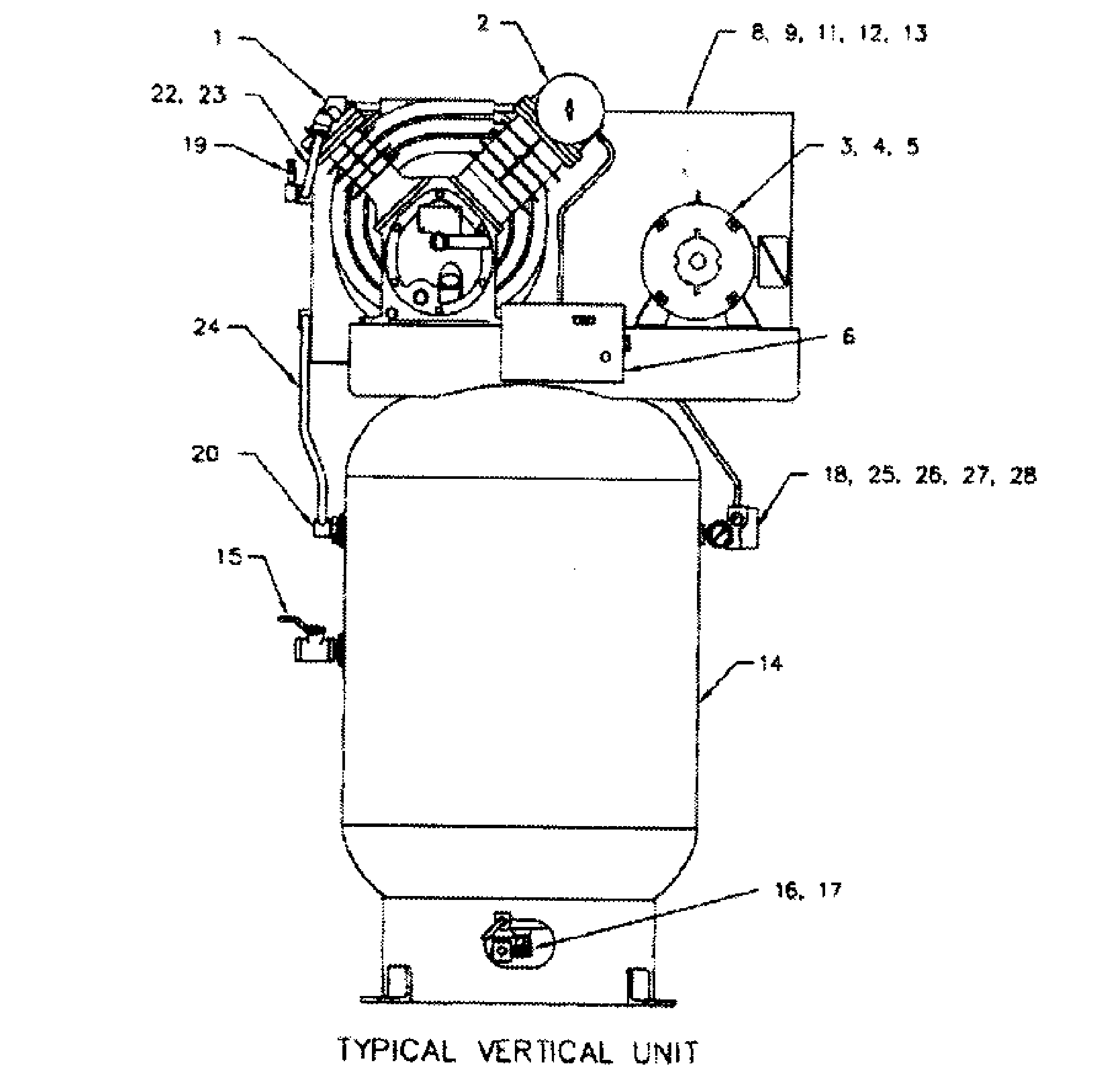

Main assy diagram

Pressure gauge

Part #23474901

The manufacturer no longer makes this part, and there's no substitute part

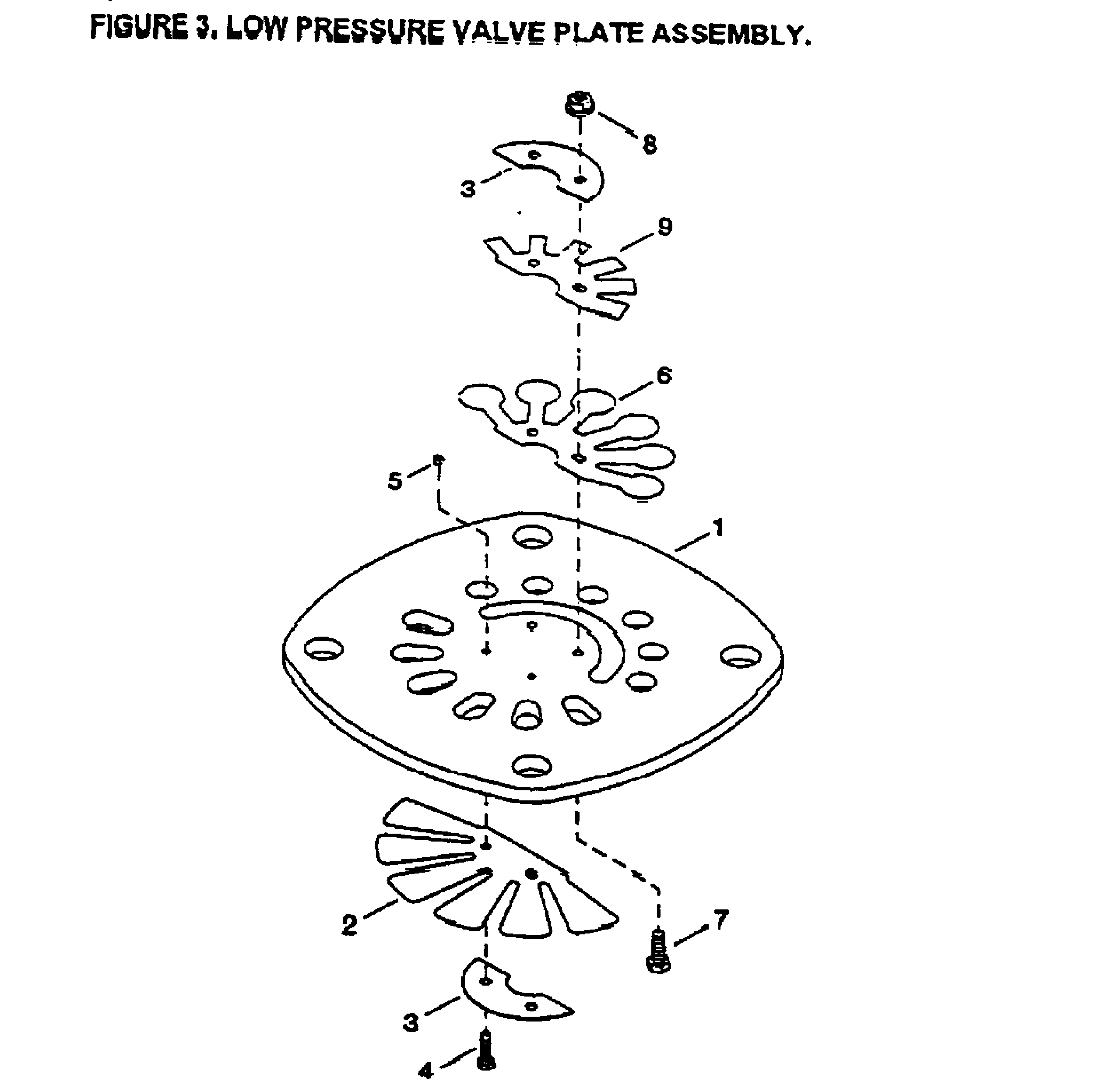

Plate,valve-hp 32310799
#1

H-valve assy diagram

Plate,valve-hp

Part #32310799

The manufacturer no longer makes this part, and there's no substitute part

Pad,4x4 Steel/neoprane 32320681
#NI

Main assy diagram

Pad,4x4 steel/neoprane

Part #32320681

The manufacturer no longer makes this part, and there's no substitute part

Decal,hazourdus 56272107
#NI

Main assy diagram

Decal,hazourdus

Part #56272107

The manufacturer no longer makes this part, and there's no substitute part

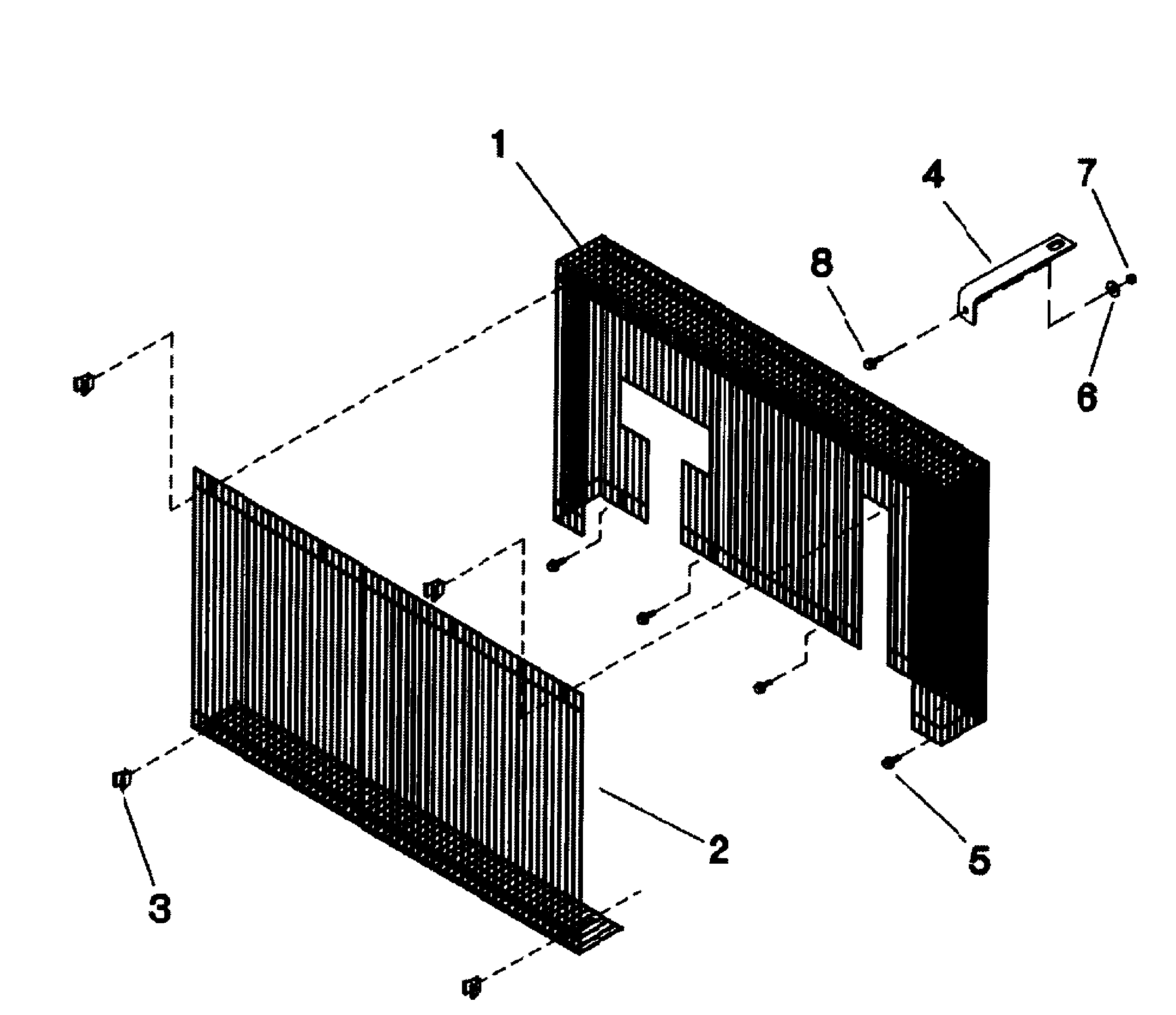

Belt,drive-v 95099453
#5

Main assy diagram

Belt,drive-v

Part #95099453

The manufacturer no longer makes this part, and there's no substitute part
