Model # 21759460 Official Craftsman 4.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21759460 4.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

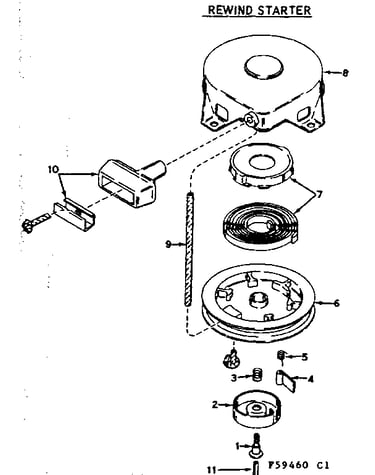

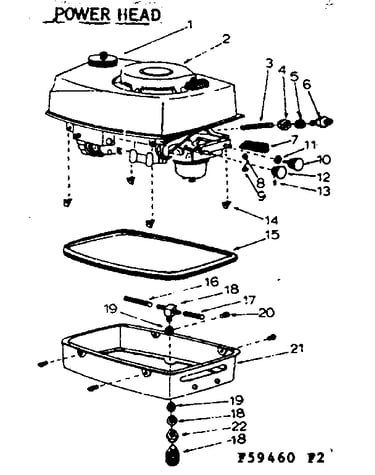

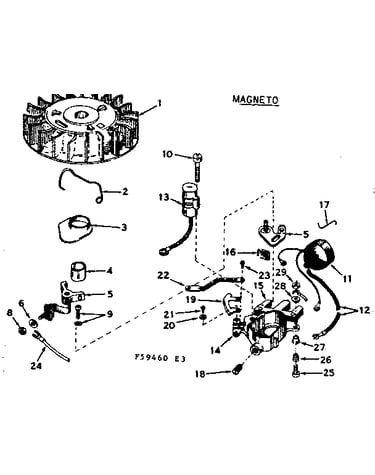

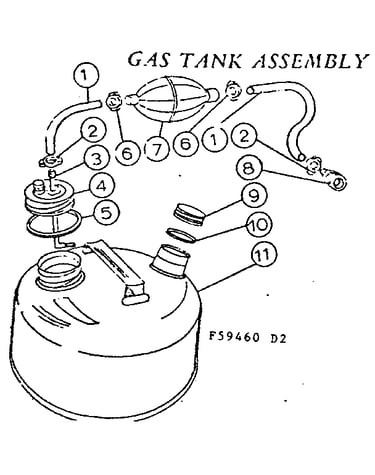

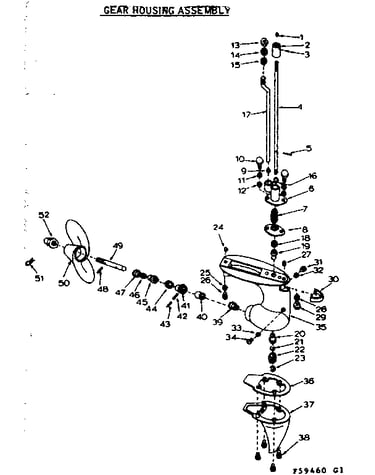

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 265 parts |

#25

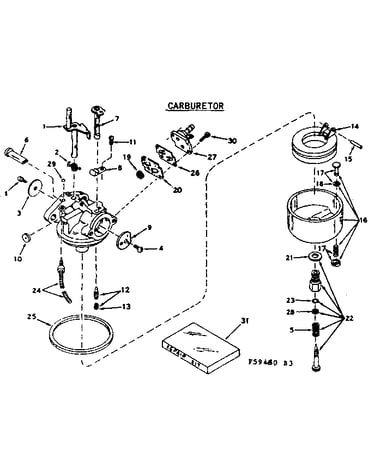

Carburetor diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

#59

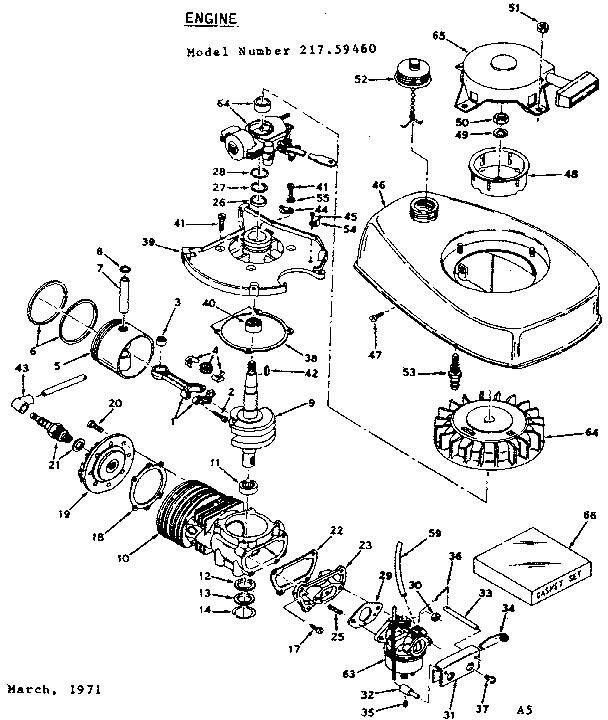

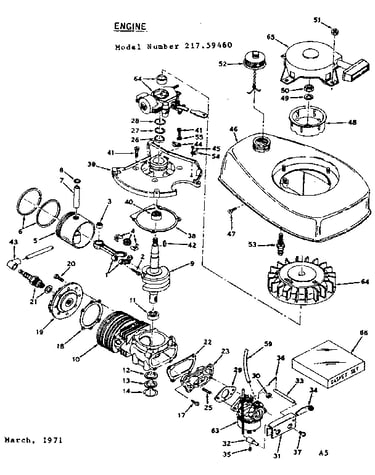

Engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

#26

Engine diagram

Seal

Part #510105

The manufacturer no longer makes this part, and there's no substitute part

#22

Engine diagram

Gasket

Part #510270

The manufacturer no longer makes this part, and there's no substitute part

#28

Engine diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

#27

Engine diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

#28

Carburetor diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Carburetor diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

#18

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

#53

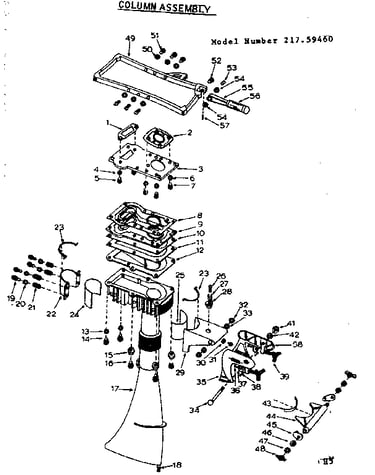

Column assembly diagram

Bushing

Part #96032

The manufacturer no longer makes this part, and there's no substitute part
