Model # GFWH1405D0MS Official GE washer

Here are the diagrams and repair parts for Official GE GFWH1405D0MS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Washer Suspension Spring WH05X10012
#204

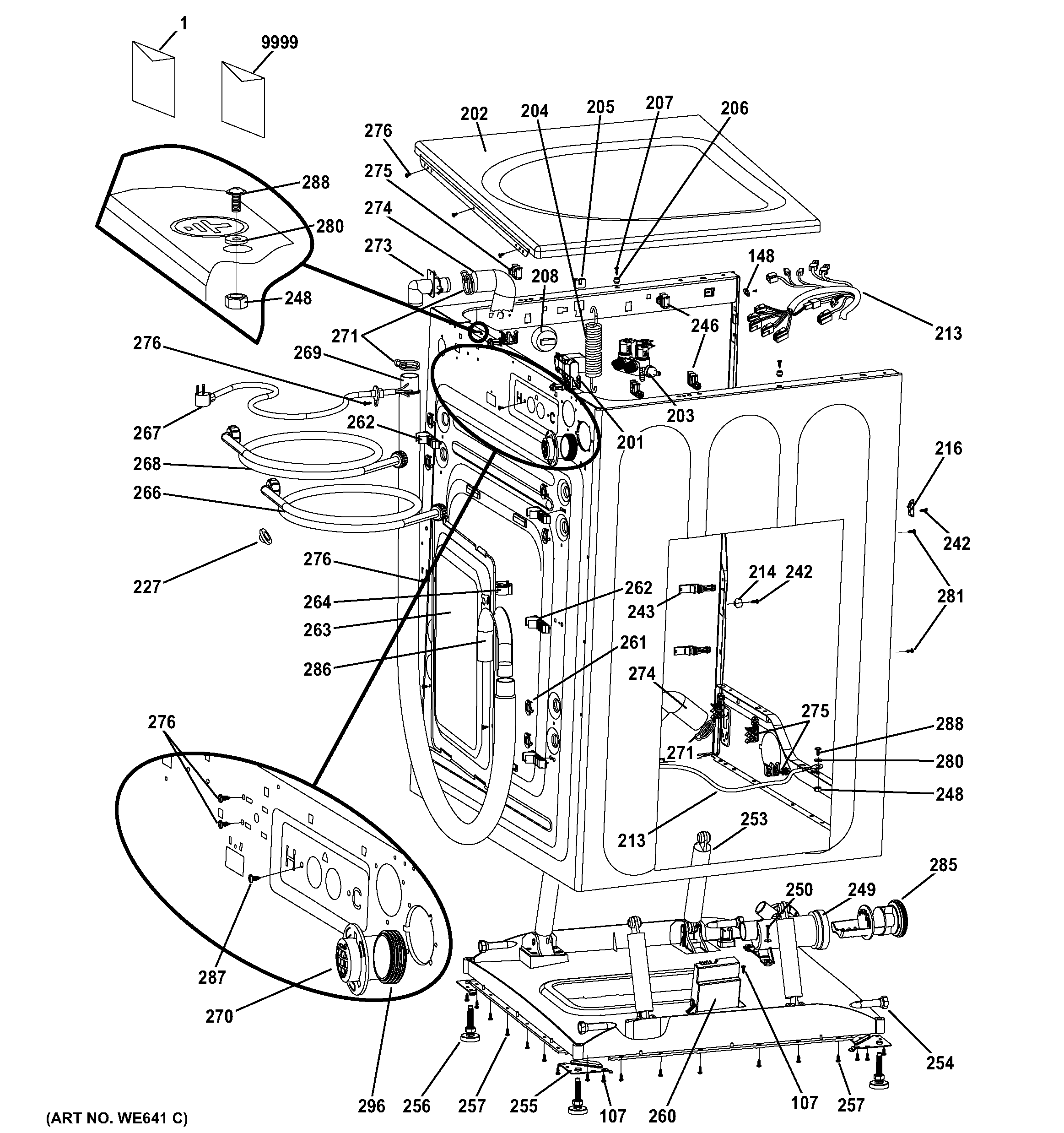

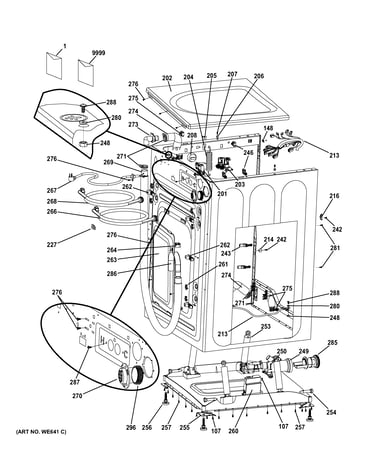

Cabinet & top panel diagram

Washer suspension spring

Part #WH05X10012

$38.64 |
13% OFF Phone Price : $44.64
In Stock
Washer Drive Pulley Kit WH07X10022
#322

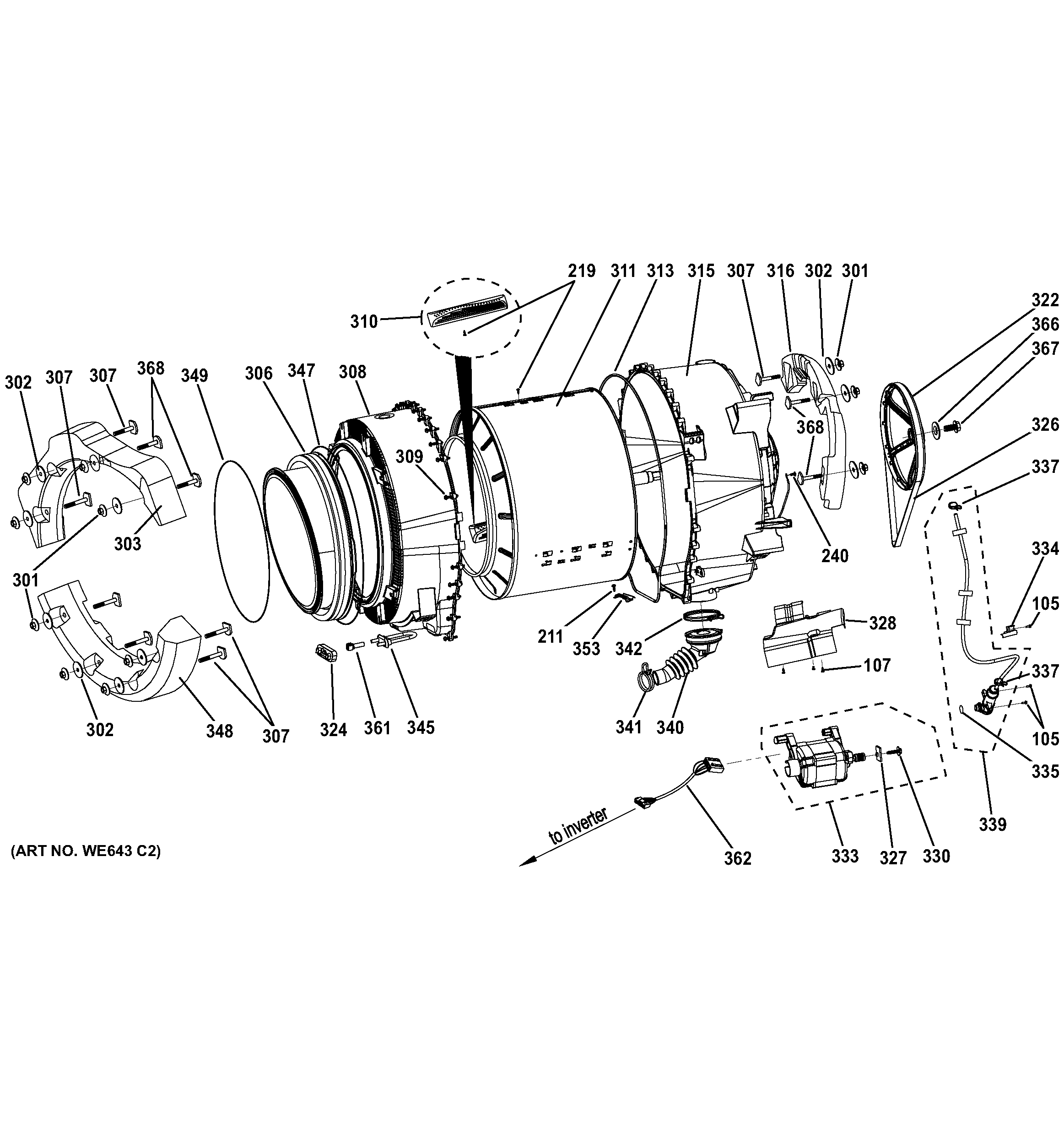

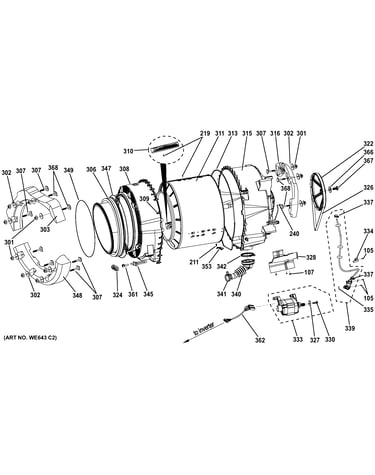

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hanger Spring WH01X10251
#205

Cabinet & top panel diagram

Hanger spring

Part #WH01X10251

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Noise Filter (replaces Wh41x10123, Wh41x10298) WH41X10301
#201

Cabinet & top panel diagram

Washer noise filter (replaces wh41x10123, wh41x10298)

Part #WH41X10301

$68.36 |
8% OFF Phone Price : $74.36
In Stock
Screw M5*16 WH02X10270
#235

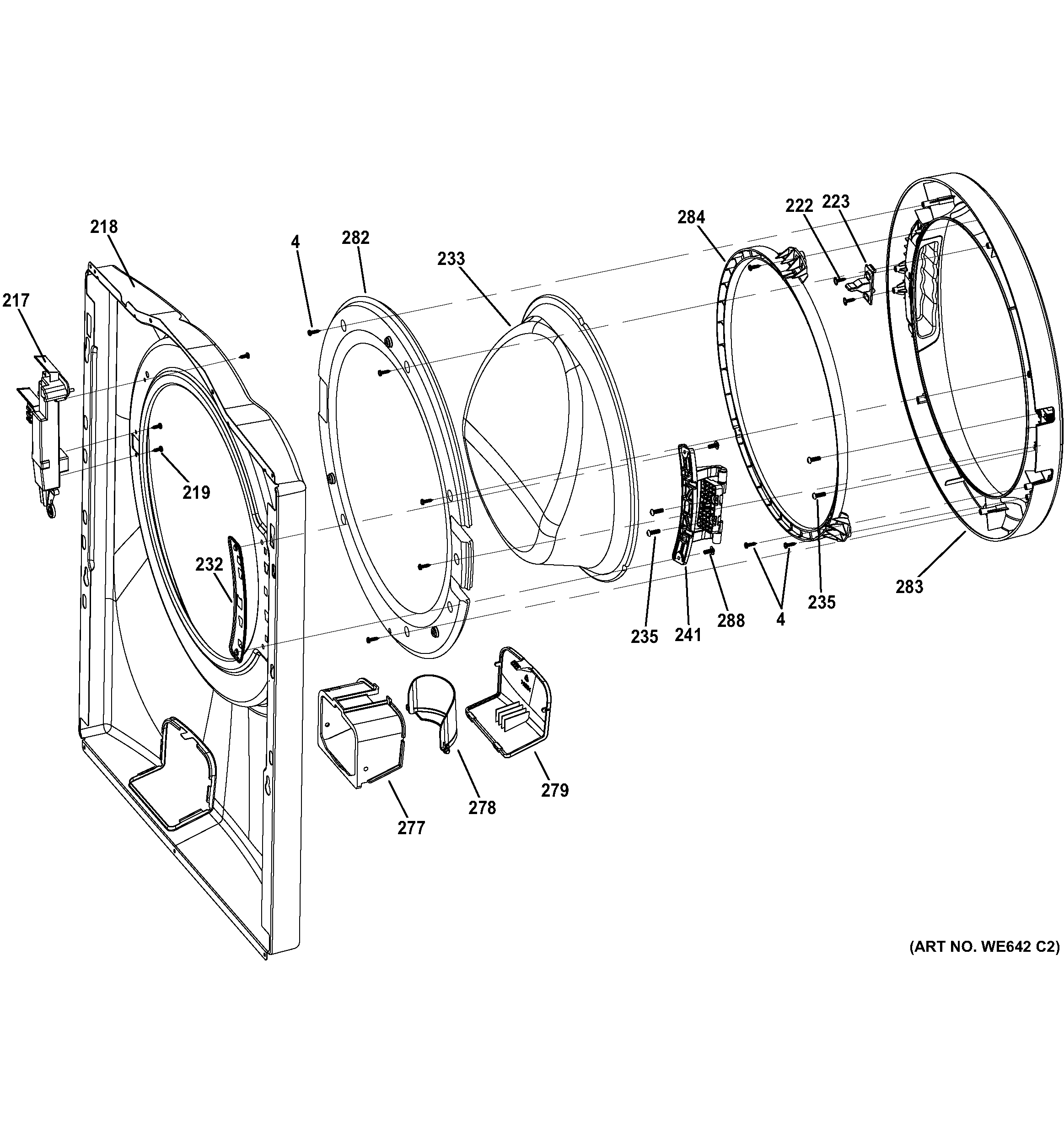

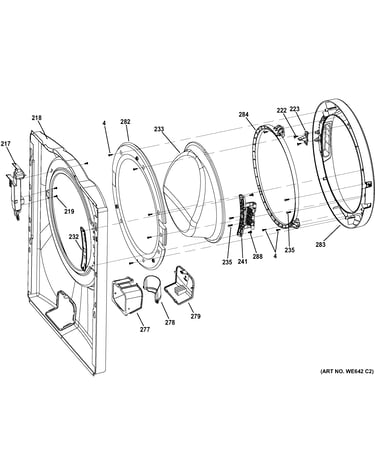

Front panel & door diagram

Screw m5*16

Part #WH02X10270

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pump Clamp WH01X10275
#341

Tub & motor diagram

Pump clamp

Part #WH01X10275

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Main Box Sub WH41X10307
#150

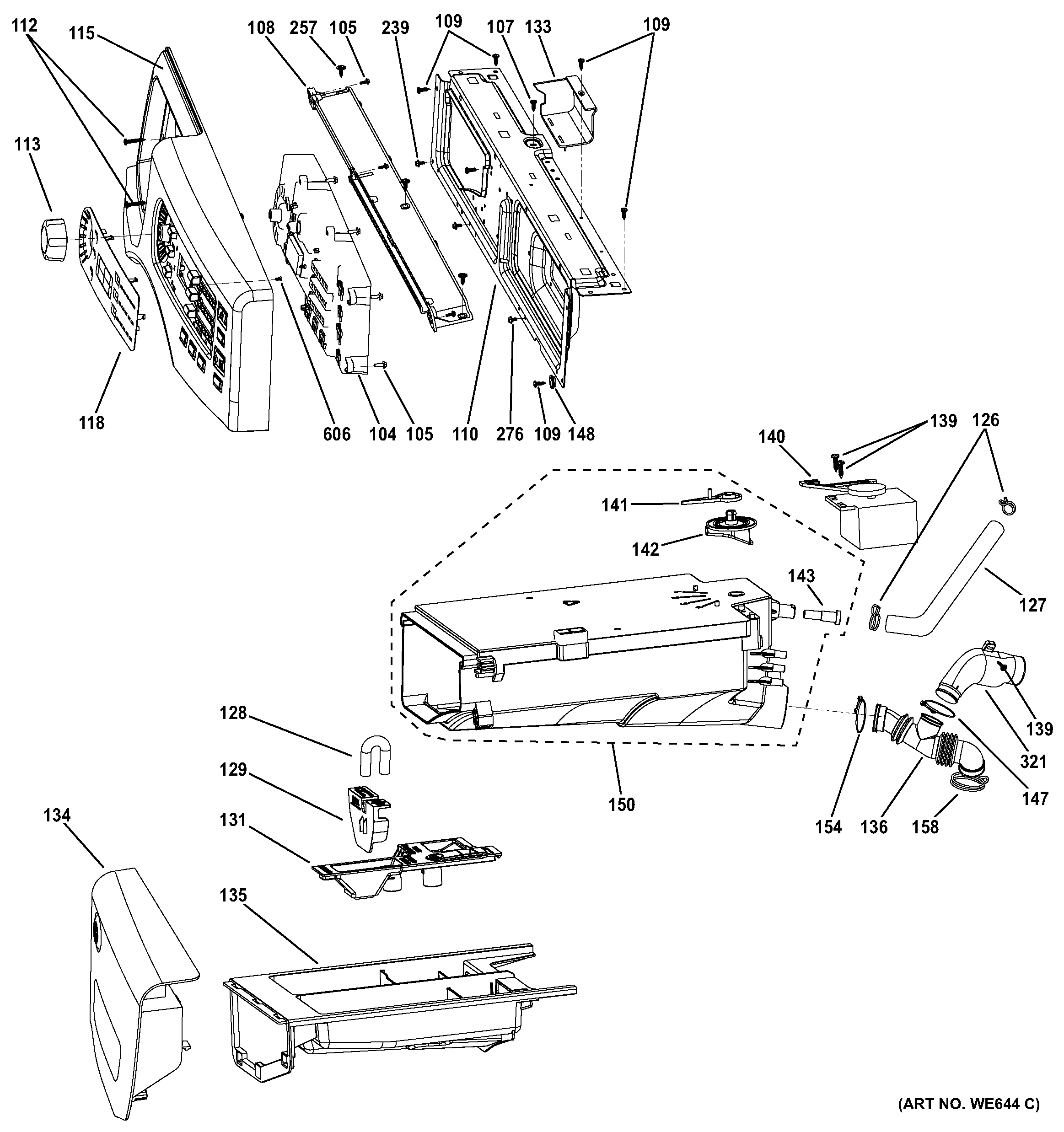

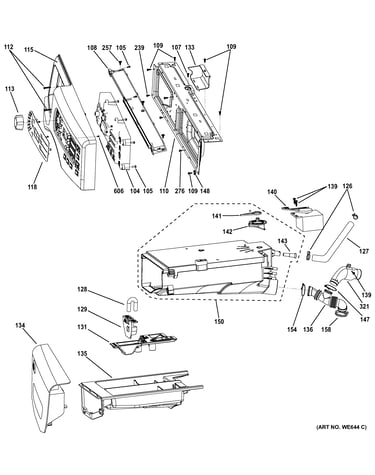

Controls & dispenser diagram

Main box sub

Part #WH41X10307

$105.77 |
10% OFF Phone Price : $117.77
In Stock
Washer Leveling Leg Bracket WH16X10077
#255

Cabinet & top panel diagram

Washer leveling leg bracket

Part #WH16X10077

$13.51
In Stock
Softener Ble WH41X10181
#131

Controls & dispenser diagram

Softener ble

Part #WH41X10181

$13.07 |
13% OFF Phone Price : $15.07
In Stock
