Model # B-7075 Official Ryobi belt sander

Here are the diagrams and repair parts for Official Ryobi B-7075 belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

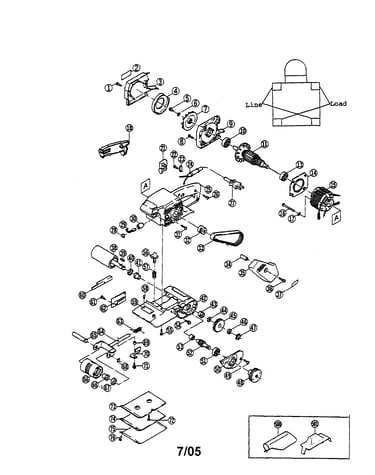

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Cork Cushion (b7100) 6390044
#74A

Belt sander diagram

Cork cushion (b7100)

Part #6390044

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 6570082
#30

Belt sander diagram

Brush holder

Part #6570082

The manufacturer no longer makes this part, and there's no substitute part

Bearing 969235005
Bearing

Part #969235005

The manufacturer no longer makes this part, and there's no substitute part

Front Roller Arm (b7100) 6090143
#64A

Belt sander diagram

Front roller arm (b7100)

Part #6090143

The manufacturer no longer makes this part, and there's no substitute part

Tension Spring 6180117
#63

Belt sander diagram

Tension spring

Part #6180117

The manufacturer no longer makes this part, and there's no substitute part

Gear Case Cover (b7100) 6820292
#50A

Belt sander diagram

Gear case cover (b7100)

Part #6820292

The manufacturer no longer makes this part, and there's no substitute part

Pulley (l) (b7100) 6860057
#48A

Belt sander diagram

Pulley (l) (b7100)

Part #6860057

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 6500766
#15

Belt sander diagram

Field coil

Part #6500766

The manufacturer no longer makes this part, and there's no substitute part

Armature 6030863
#11

Belt sander diagram

Armature

Part #6030863

The manufacturer no longer makes this part, and there's no substitute part

Front Roller Shaft 6100089
#65

Belt sander diagram

Front roller shaft

Part #6100089

The manufacturer no longer makes this part, and there's no substitute part
