Jenn-Air
Microwave/Hood Combo

Model # JMV8000ADB Official Jenn-Air microwave/hood combo

Here are the diagrams and repair parts for Official Jenn-Air JMV8000ADB microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Bulb 56001089
#15

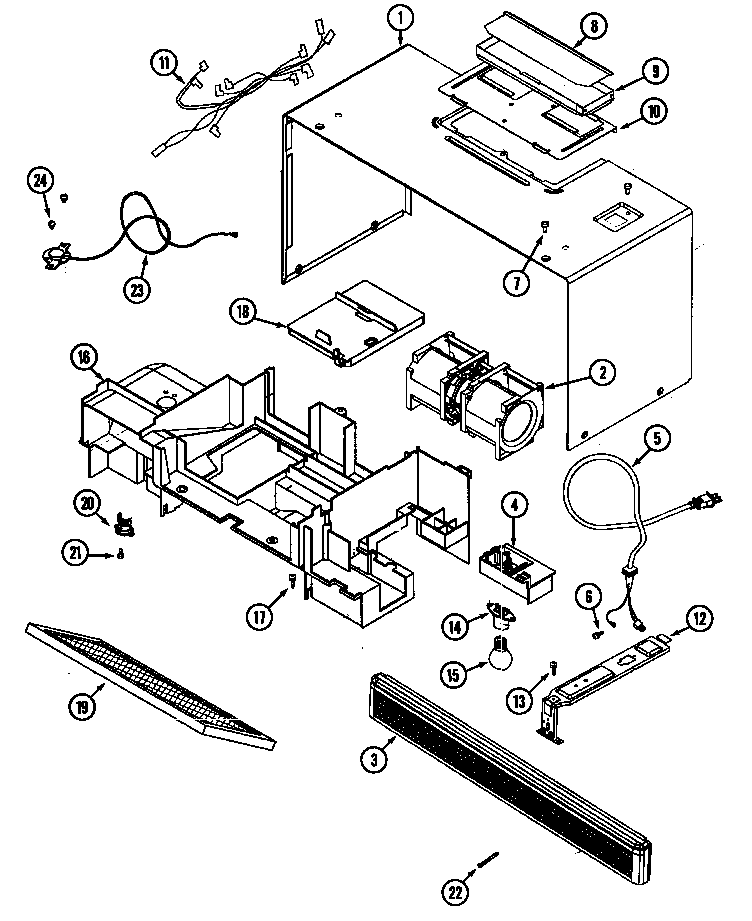

Cabinet & ventilation diagram

Bulb

Part #56001089

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 56001089. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Bulb 56001071
#6

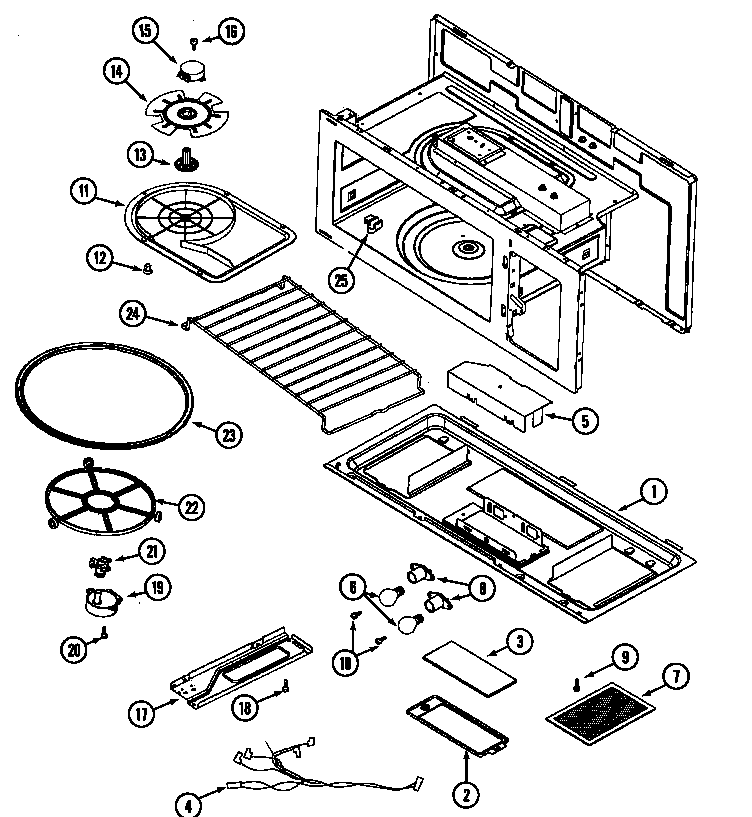

Base & cavity diagram

Bulb

Part #56001071

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 56001071. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
High-voltage Diode 56001030
#15

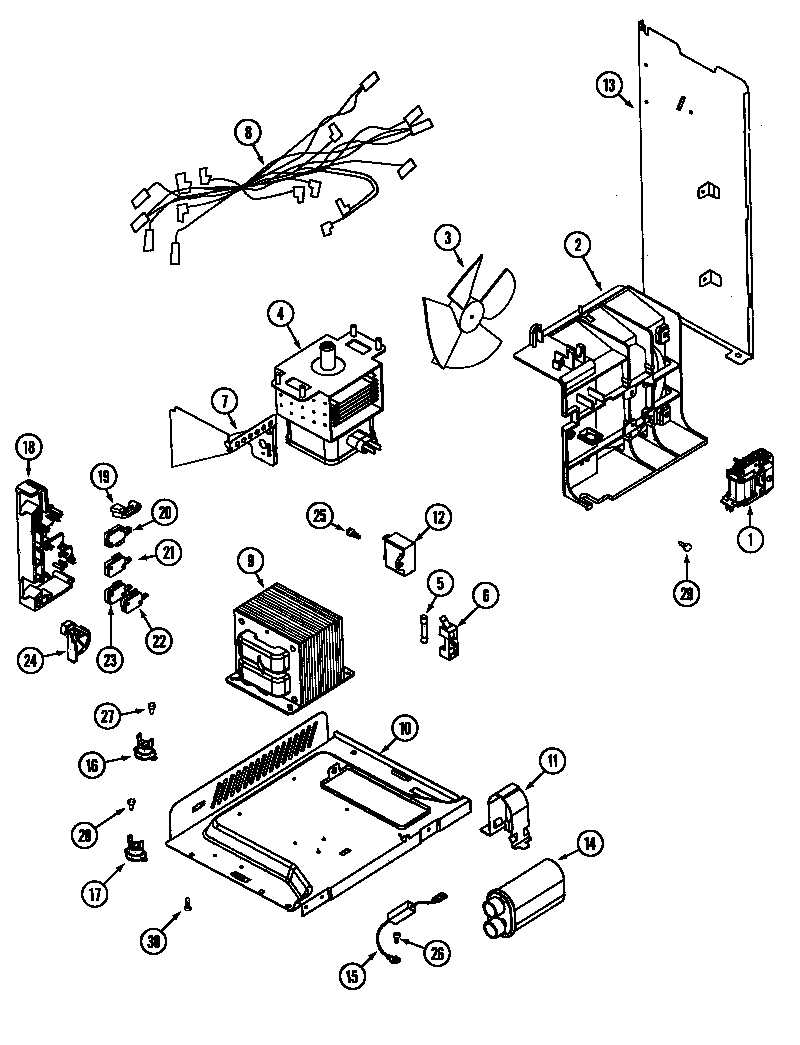

Internal controls diagram

High-voltage diode

Part #56001030

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces 56001030. Substitute parts can look different from the original.
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Microwave Grease Filter, 2-pack 56001069
#7

Base & cavity diagram

Microwave grease filter, 2-pack

Part #56001069

Replaced by #WP56001069

?
Manufacturer substitution
This part replaces 56001069. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Screw 56001173
#3

Door diagram

Screw

Part #56001173

Replaced by #WP56001173

?
Manufacturer substitution
This part replaces 56001173. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Microwave/hood Door Handle 56001139
#1A

Door diagram

Microwave/hood door handle

Part #56001139

Replaced by #WP56001139

?
Manufacturer substitution
This part replaces 56001139. Substitute parts can look different from the original.
$87.49 |
5% OFF Phone Price : $92.49
In Stock
Secondary Switch 56001037
#22

Internal controls diagram

Secondary switch

Part #56001037

Replaced by #W10915404

?
Manufacturer substitution
This part replaces 56001037. Substitute parts can look different from the original.
This item is not returnable
$13.09 |
13% OFF Phone Price : $15.09
In Stock
Base Plate 56001180
#1

Base & cavity diagram

Base plate

Part #56001180

$24.36
In Stock
Microwave Wire Harness 56001176
Microwave wire harness

Part #56001176

$65.04
In Stock
Microwave/hood Door Handle (white) 56001136
#2A

Door diagram

Microwave/hood door handle (white)

Part #56001136

Replaced by #WP56001136

?
Manufacturer substitution
This part replaces 56001136. Substitute parts can look different from the original.
$82.69 |
6% OFF Phone Price : $87.69
In Stock
