Model # FV4BNF003000 Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FV4BNF003000 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

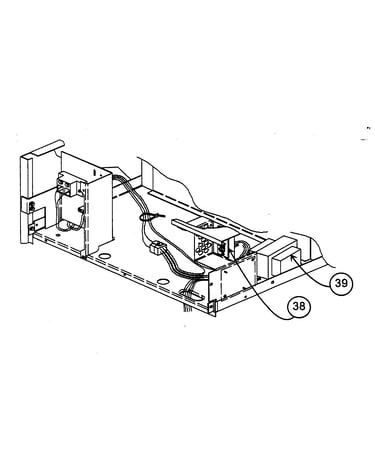

Diode Board HK61EA003
#NI

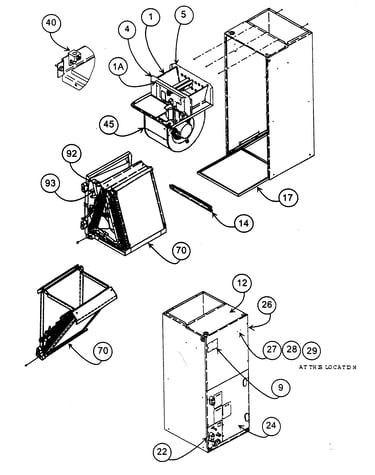

Casing assy diagram

Diode board

Part #HK61EA003

The manufacturer no longer makes this part, and there's no substitute part

Fan Wheel LA22LA095
#52

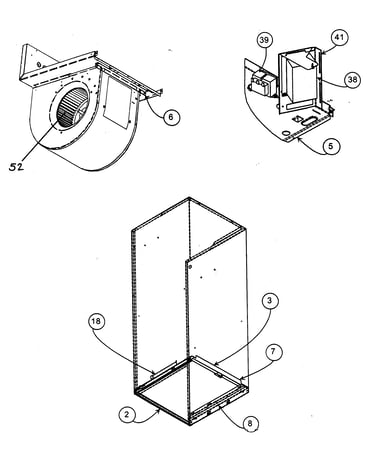

Blower assy diagram

Fan wheel

Part #LA22LA095

$205.40
In Stock
Bracket 314900-203
#6

Blower assy diagram

Bracket

Part #314900-203

$17.49
In Stock
Harness 324846-701
#NI

Casing assy diagram

Harness

Part #324846-701

$130.92
In Stock
Connector HY90AZ021
#40

Casing assy diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Fuse ATC5
#NI

Casing assy diagram

Fuse

Part #ATC5

The manufacturer no longer makes this part, and there's no substitute part

Channel 316808-301
#81

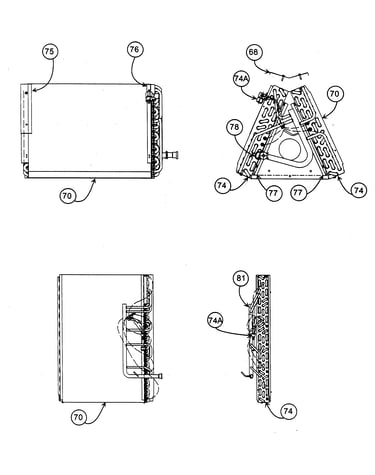

Coil assy diagram

Channel

Part #316808-301

This item is not returnable
$2.16
In Stock
Sw Temp Act HH19ZA965
#NI

Casing assy diagram

Sw temp act

Part #HH19ZA965

$72.40
In Stock
Distr,lqd 314947-322
#74A

Coil assy diagram

Distr,lqd

Part #314947-322

$64.67
In Stock
Central Air Conditioner Air Handler Blower Motor Relay (replaces Hn61pc003) HN61PC002
#NI

Casing assy diagram

Central air conditioner air handler blower motor relay (replaces hn61pc003)

Part #HN61PC002

The manufacturer no longer makes this part, and there's no substitute part
