Admiral S1050EJ-Z electric counter unit cooktop

Admiral S1050EJ-Z electric counter unit cooktop Parts

Here are the diagrams and repair parts for Admiral S1050EJ-Z electric counter unit cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part

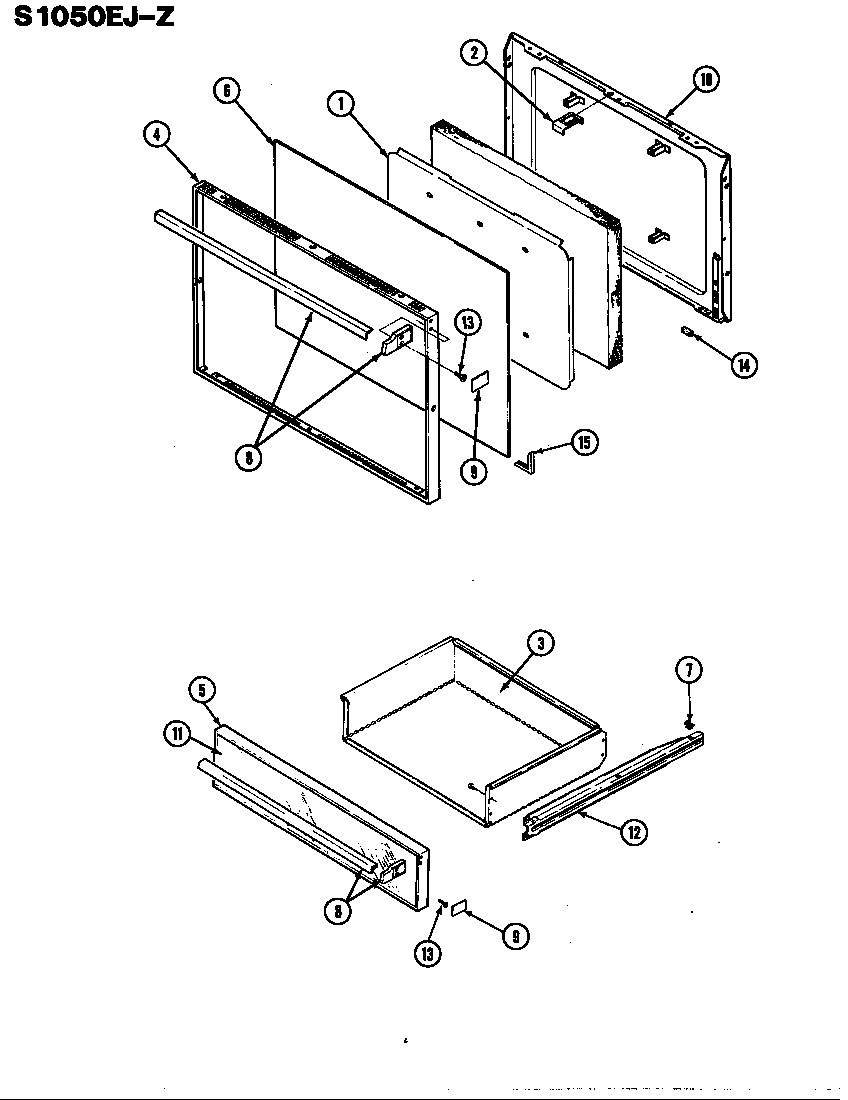

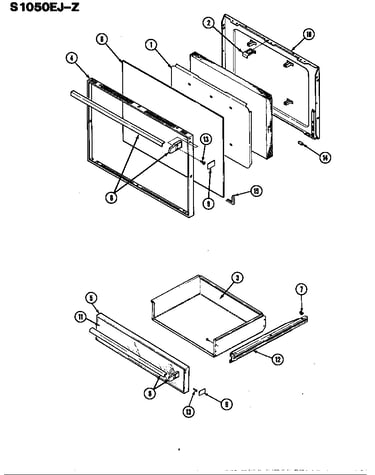

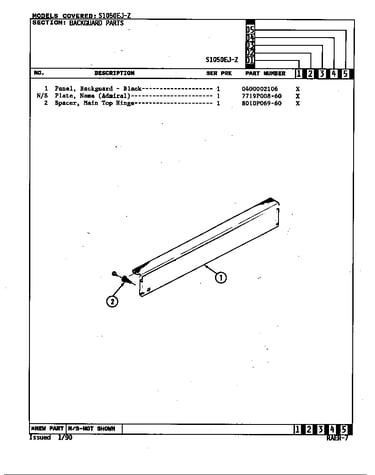

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for S1050EJ-Z Cooktops

  • Range Drip Pan, 6-in (chrome) for Admiral S1050EJ-Z - Part WPW10196406

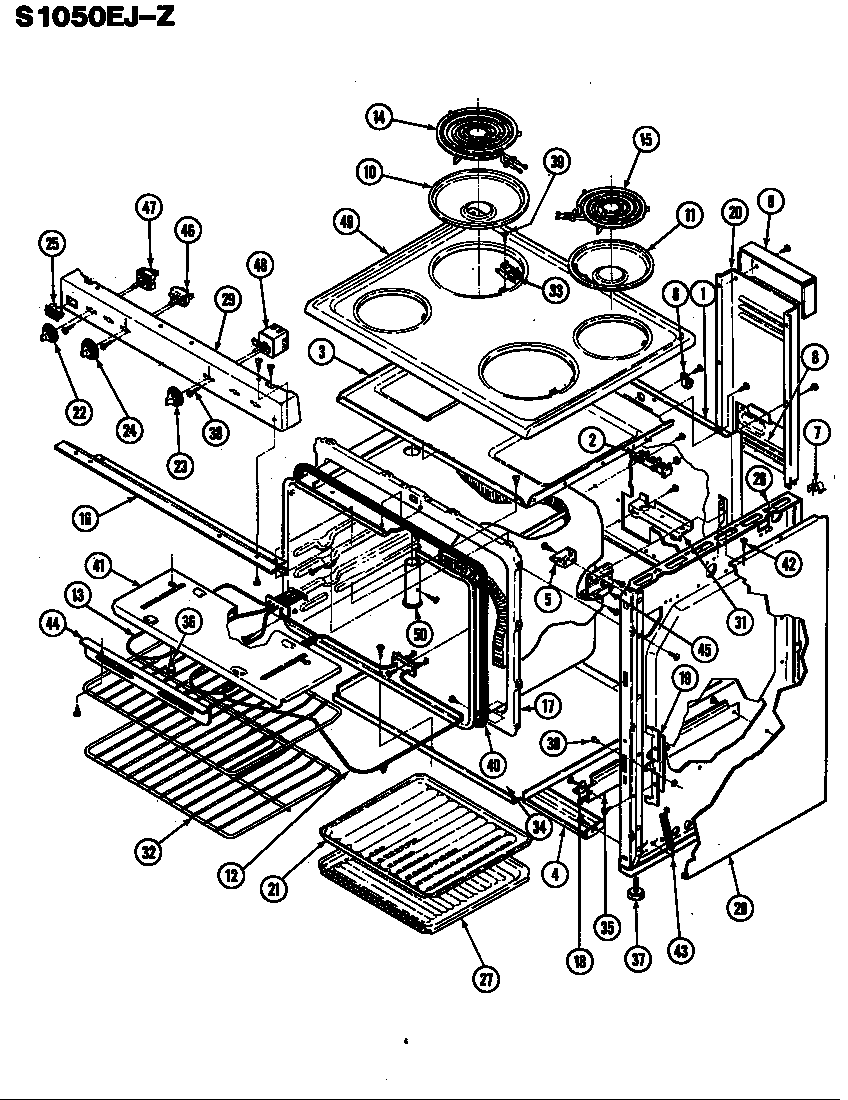

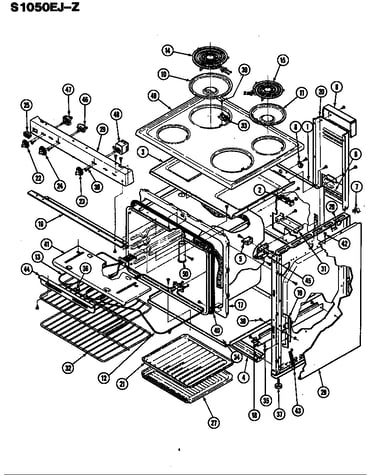

    Body diagram

    Drip Bowl

    Part #7725P015-60

    Replaced by #WPW10196406

    Info Icon
    Manufacturer substitution
    This part replaces 7725P015-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.31
    14% OFF Phone Price : $7.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle Kit for Admiral S1050EJ-Z - Part 12001676

    Body diagram

    Receptacle

    Part #1430306K

    Replaced by #12001676

    Info Icon
    Manufacturer substitution
    This part replaces 1430306K. Substitute parts can look different from the original.
    In Stock
    $12.52
    14% OFF Phone Price : $14.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Admiral S1050EJ-Z - Part WP7101P126-60

    Body diagram

    Screw

    Part #7101P057-60

    Replaced by #WP7101P126-60

    Info Icon
    Manufacturer substitution
    This part replaces 7101P057-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.95
    17% OFF Phone Price : $5.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Spring for Admiral S1050EJ-Z - Part WP7803P058-60

    Body diagram

    Spring, Ov D

    Part #7803P055-60

    Replaced by #WP7803P058-60

    Info Icon
    Manufacturer substitution
    This part replaces 7803P055-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.98
    13% OFF Phone Price : $14.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for Admiral S1050EJ-Z - Part W11122006

    Body diagram

    Infinite Switch

    Part #7403P168-60

    Replaced by #W11122006

    Info Icon
    Manufacturer substitution
    This part replaces 7403P168-60. Substitute parts can look different from the original.
    In Stock
    $92.16
    6% OFF Phone Price : $98.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Admiral S1050EJ-Z - Part 4396923

    Body diagram

    Broiler Insert

    Part #3413F002-23

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3413F002-23. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for Admiral S1050EJ-Z - Part 4396923

    Body diagram

    Broiler Pan

    Part #3401F004-23

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3401F004-23. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Admiral S1050EJ-Z - Part WP74004005

    Body diagram

    Screw

    Part #7101P042-60

    Replaced by #WP74004005

    Info Icon
    Manufacturer substitution
    This part replaces 7101P042-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Temperature Knob for Admiral S1050EJ-Z - Part WP7711P159-60

    Body diagram

    Thermostat Knob

    Part #7711P218-60

    Replaced by #WP7711P159-60

    Info Icon
    Manufacturer substitution
    This part replaces 7711P218-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.72
    20% OFF Phone Price : $29.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Terminal Block for Admiral S1050EJ-Z - Part WPW10245259

    Body diagram

    Terminal Block

    Part #7401P002-60

    Replaced by #WPW10245259

    Info Icon
    Manufacturer substitution
    This part replaces 7401P002-60. Substitute parts can look different from the original.
    In Stock
    $27.91
    18% OFF Phone Price : $33.91Info Icon
    Minus Item
    Qty
    Plus Item
