GE
Countertop Microwave

Model # JE1456LWH02 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1456LWH02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

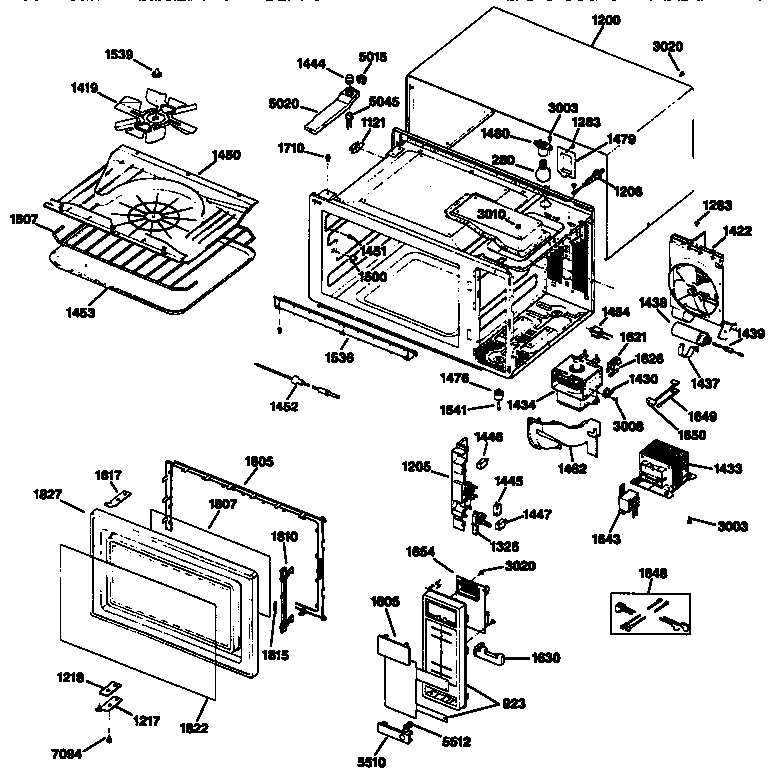

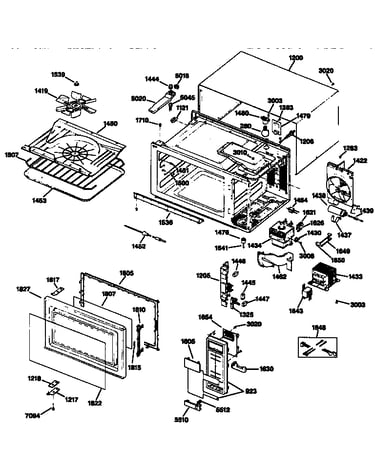

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Monitor Switch WB24X0796
#1446

Microwave parts diagram

Monitor switch

Part #WB24X0796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Primary Switch WB24X0439
#1445

Microwave parts diagram

Primary switch

Part #WB24X0439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Flame Sensor WB20X0141
#1121

Microwave parts diagram

Flame sensor

Part #WB20X0141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X0141. Substitute parts can look different from the original.
$22.40 |
18% OFF Phone Price : $27.40
In Stock
Diode WB27X0330
#1439

Microwave parts diagram

Diode

Part #WB27X0330

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw WB01X1436
#3003

Microwave parts diagram

Washer screw

Part #WB01X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB01X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Mini Manual 31-1409
#1A

Microwave parts diagram

Mini manual

Part #31-1409

This item is not returnable
$5.99
In Stock
Use And Care Manual 49-8349
#1

Microwave parts diagram

Use and care manual

Part #49-8349

This item is not returnable
$2.29
In Stock
Flange Nut WB01X0888
#3010

Microwave parts diagram

Flange nut

Part #WB01X0888

Replaced by #WB01X10065

?
Manufacturer substitution
This part replaces WB01X0888. Substitute parts can look different from the original.
$8.11
In Stock
Magnetron WB27X0764
#1434

Microwave parts diagram

Magnetron

Part #WB27X0764

The manufacturer no longer makes this part, and there's no substitute part

Brckt Capact WB06X0235
#1437

Microwave parts diagram

Brckt capact

Part #WB06X0235

The manufacturer no longer makes this part, and there's no substitute part
